一、How to Install LED Video Wall: A Complete Step-by-Step Guide
Installing an LED video wall correctly is critical for performance, safety, and long-term reliability.
Whether you are an AV integrator, rental company, or first-time buyer, this guide will walk you through how to install an LED video wall step by step — from planning to final testing.
二、What You Need Before Installation
Before installing an LED video wall, preparation is essential.
Checklist:
- LED display cabinets
- Steel structure or mounting frame
- Power supply system
- LED control system (sending & receiving cards)
- Signal cables & power cables
- Installation tools
Site Preparation:
- Measure installation area accurately
- Ensure wall or structure can support weight
- Prepare stable power supply
- Plan cable routing
三、LED Video Wall Installation Methods
There are three common installation methods:
1. Wall-Mounted LED Video Wall
- Most common for indoor applications
- Saves space
- Requires strong wall support
2. Hanging Installation
- Used for stages, events, rental setups
- Requires truss or rigging system

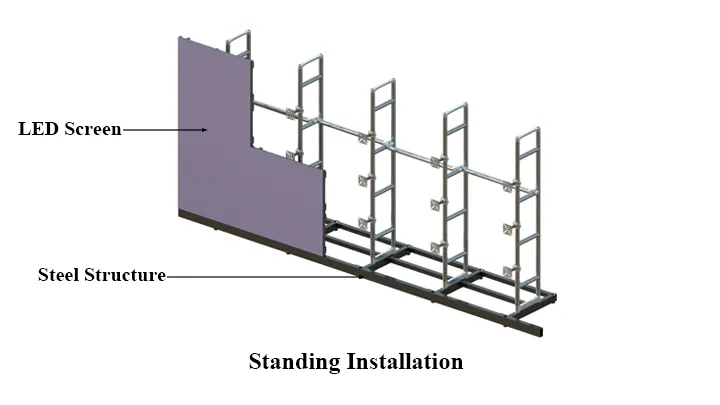

3. Ground Support (Stacking)
- Suitable for large screens
- Easy for temporary installations
Choose the right method based on your project scenario.
四、Step-by-Step Installation Process

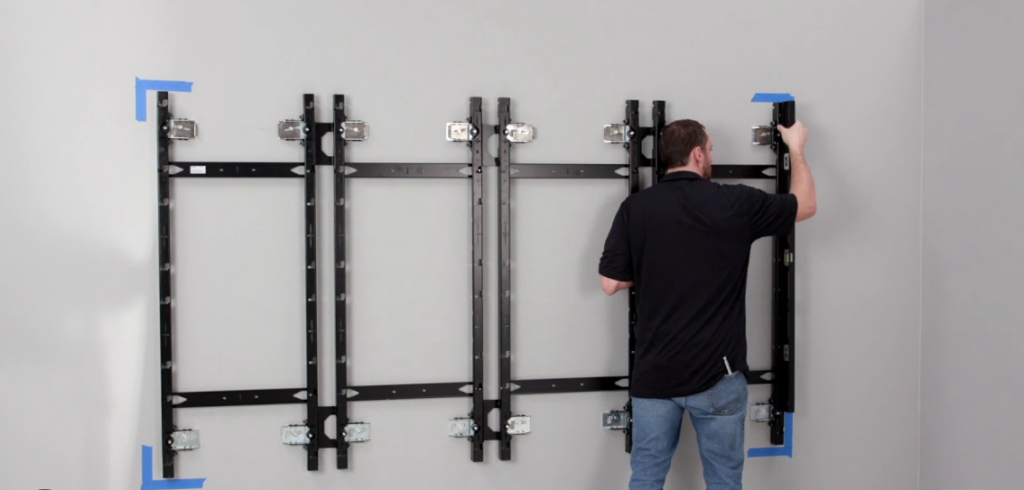

Step 1: Build the Supporting Structure
The structure is the foundation of your LED wall.
- Install steel frame or mounting brackets
- Ensure flatness and alignment
- Check load-bearing capacity
A misaligned structure will cause visible gaps between panels.

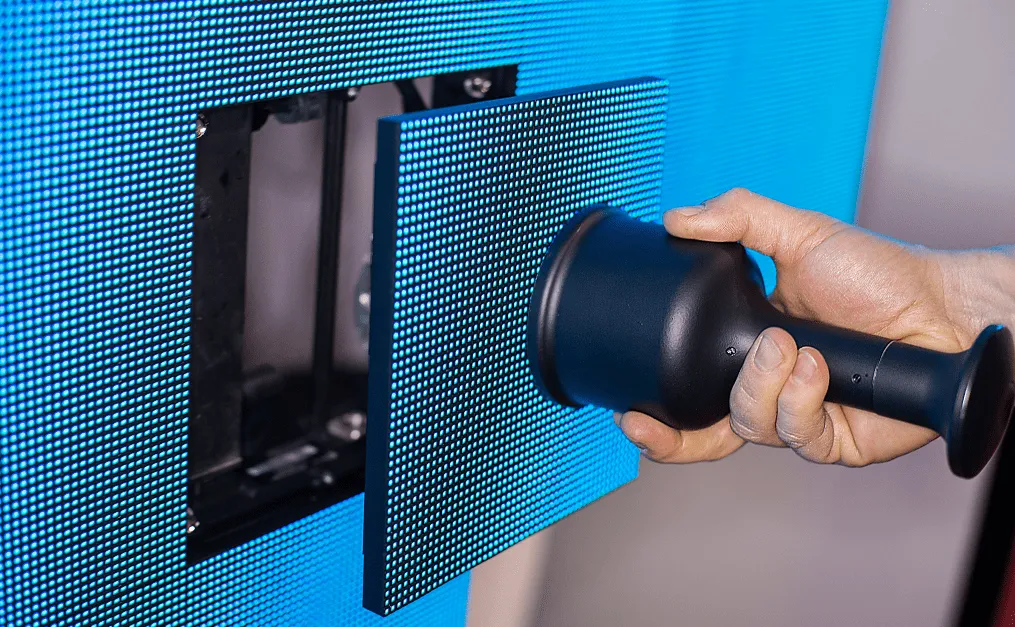

Step 2: Install LED Cabinets
- Start from bottom or center
- Mount cabinets one by one
- Use quick-lock system to secure panels
Make sure all cabinets are perfectly aligned.
Step 3: Connect Power Cables
- Connect power supply to each cabinet
- Ensure proper voltage
- Avoid overloading circuits
Step 4: Connect Signal System
- Connect receiving cards inside cabinets
- Connect sending card to control system
- Use Ethernet or fiber cables
Step 5: System Configuration
- Install LED control software
- Set screen resolution
- Map cabinet layout
Step 6: Testing & Calibration
- Turn on system
- Check brightness and colors
- Adjust uniformity
- Test video playback
五、LED Video Wall Wiring Diagram (Basic Overview)
- Power → Power supply → Cabinets
- PC → Sending card → Receiving cards → LED modules
Always follow manufacturer wiring instructions.
六、Common Installation Mistakes to Avoid
❌ Poor Structural Alignment
Leads to uneven screen surface.
❌ Incorrect Cable Connections
Causes signal failure or flickering.
❌ Ignoring Ventilation
Can reduce lifespan.
❌ No Grounding Protection
Risk of electrical damage.
七、Indoor vs Outdoor Installation Differences
Indoor LED Installation
- Lower brightness
- Simpler structure
- No waterproof requirement
Outdoor LED Installation
- Requires waterproof design (IP65+)
- Stronger structure
- Higher brightness
八、Safety Tips for LED Wall Installation
- Use certified mounting systems
- Ensure proper grounding
- Avoid water exposure (indoor screens)
- Follow local electrical regulations
九、Installation Time & Cost
Estimated time:
- Small screen (10–20 sqm): 1–2 days
- Medium screen (20–50 sqm): 2–4 days
- Large screen (50+ sqm): 5+ days
Installation cost depends on:
- screen size
- complexity
- labor
十、Real Project Example
A client installed a 40 sqm indoor LED video wall:
- Installation time: 3 days
- Setup: wall-mounted structure
- Result: seamless display and stable performance
十一、FAQs About LED Video Wall Installation
Q1: Can I install LED video wall myself?
Small projects are possible, but professional installation is recommended.
Q2: How much space is needed behind the screen?
Typically 60–100mm for ventilation and maintenance.
Q3: Do LED video walls require maintenance?
Yes, regular inspection ensures long lifespan.
