PRODUCT DETAILS

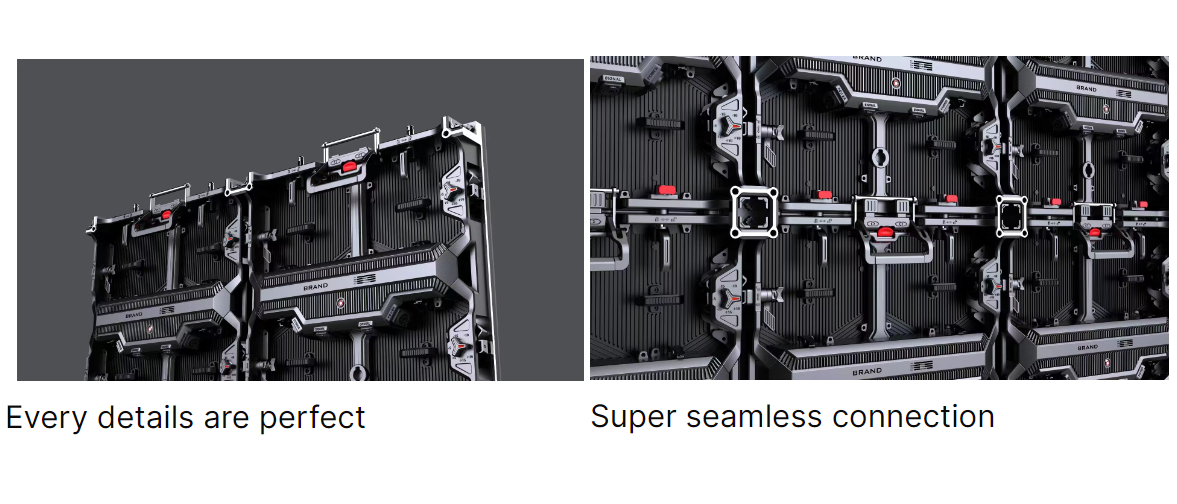

FAST ASSEMBLY

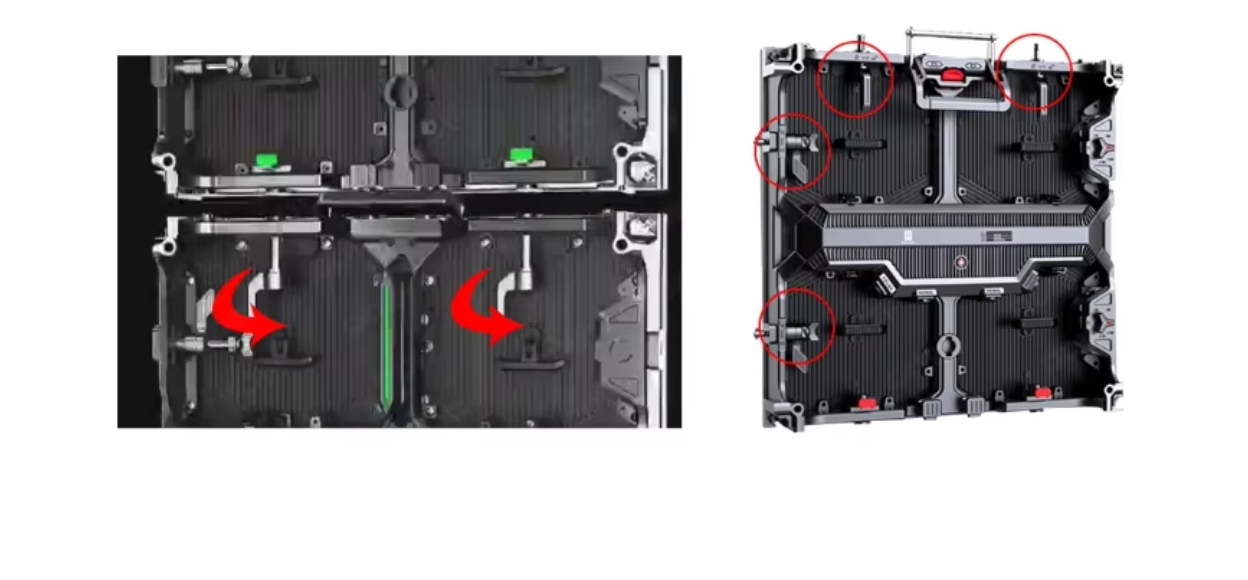

There are 2 fast lock each side for panel, quick operation ,alsoensuring the flatness the whole screen

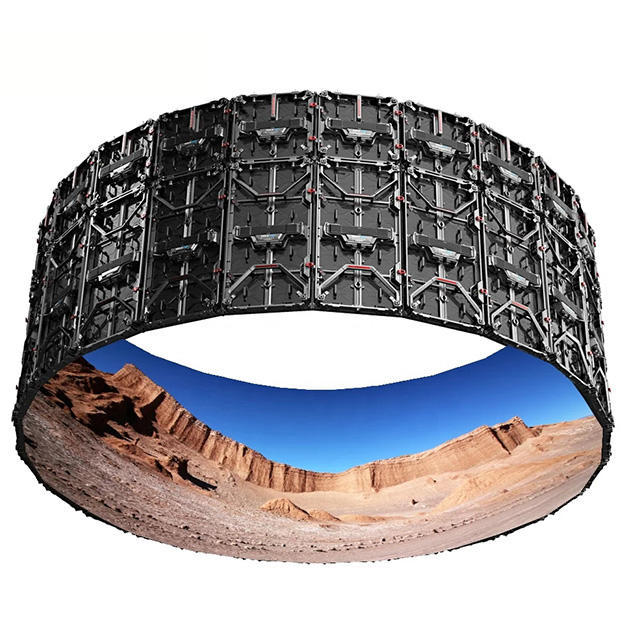

Cabinet with curve locks can make your screen get smoothly inner andouter curve
Pixel | 2.97mm | 3.91mm | 4.81mm |
LED Encapsulation | SMD2121 | SMD2121 | SMD2121 |
Brightness | 4500nit | 4500nit | 4500nit |
Module Size(mm) | 250×250 | 250×250/ 250×500 | 250×500/250×250 |
Cabinet Size | 500x500x80/500x1000x80 | 500×1000×80/500x500x80 | 500×1000×80/500x500x80 |
Material | Die Casting Aluminum | Die Casting Aluminum | Die Casting Aluminum |
Scan Method | 1/21 Scan | 1/16 Scan | 1/13 Scan |
Weight | 12.5Kg/8kg | 12.5Kg/ 8Kg | 12.5Kg/ 8Kg |
Cabinet Resolution | 84×168/84x84dots | 256x128dots / 128x128dots | 104x208dots/104x104dots |
Pixel Density | 112896Pixel/㎡ | 65536 Pixel/㎡ | 43264 Pixel/㎡ |
Refresh Frequency | ≥3840Hz | ||
Working Voltage | 110-220Volt/50/60hz | 110-220Volt/50/60hz | 110-220Volt/50/60hz |
IP waterproof | IP43 | IP43 | IP43 |
Optimal Viewing Distance | ≥ 2m | ≥ 3m | ≥ 4m |
Working Temperature | -20~45 ℃ | – 20~40℃ | -20~45 ℃ |

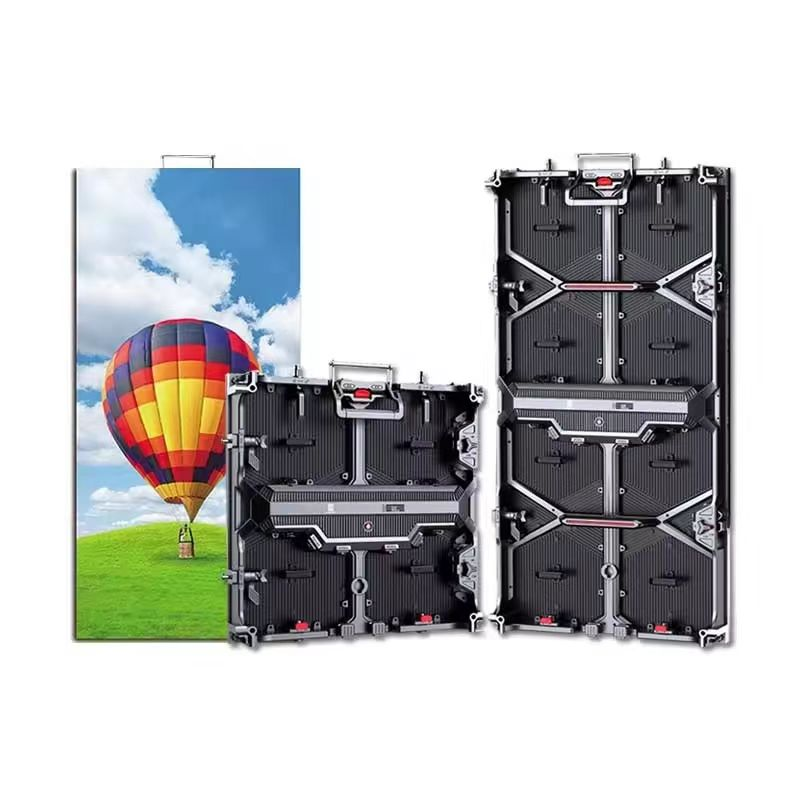

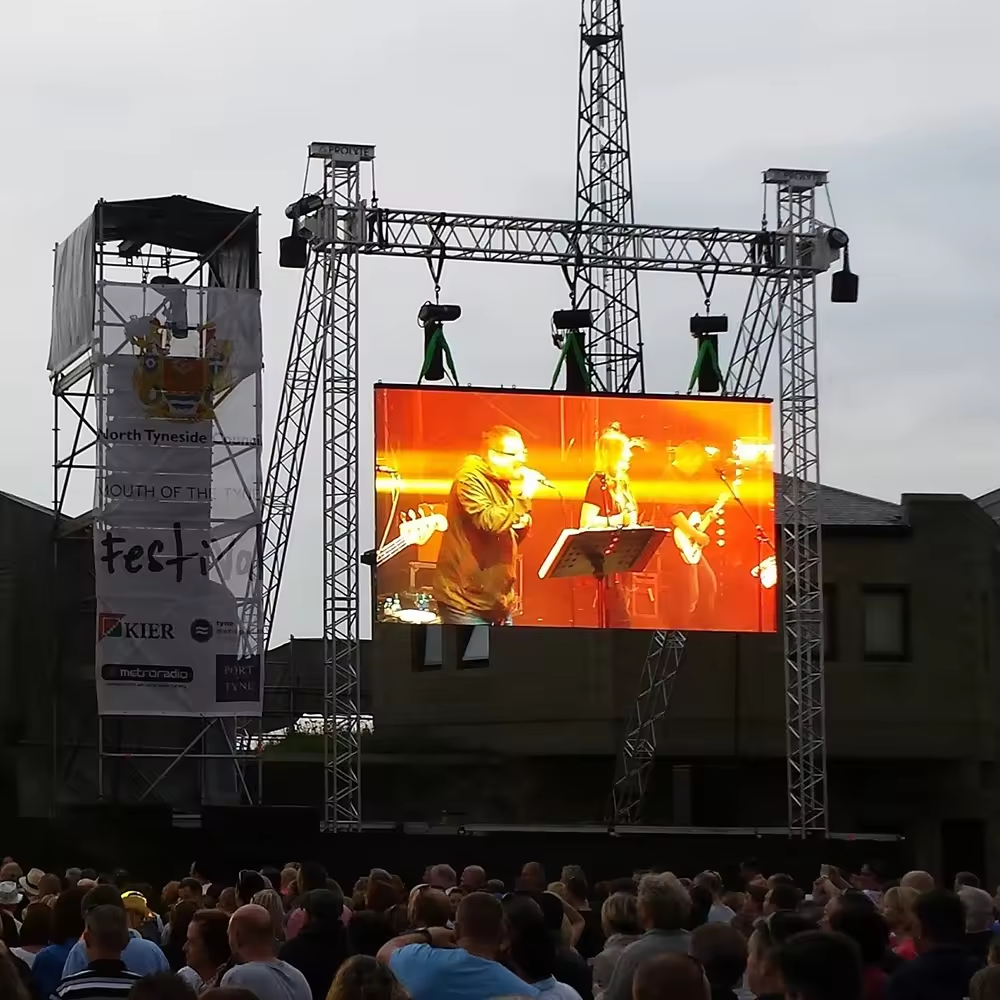

Rental Screen
P2.97
500*500mm Cabinet
500*1000mm Cabinet
P3.91
500*500mm Cabinet
500*1000mm Cabinet
P4.81
500*500mm Cabinet
500*1000mm Cabinet
