Module Resolution: W52XH52dots

Brightness:≥ 5000CD/SQM

Pixel Pitch: 4.81mm

Click me!

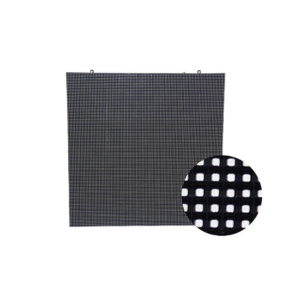

LM4.81 Outdoor LED Display Module

250mmx250mm P4.81mm Outdoor led display module

High Brightness and high Resolution W52XH52dots outdoor SMD LED screen panel

high waterproof IP65 protection grade outdoor full Color LED sign module.

p4 led module outdoor

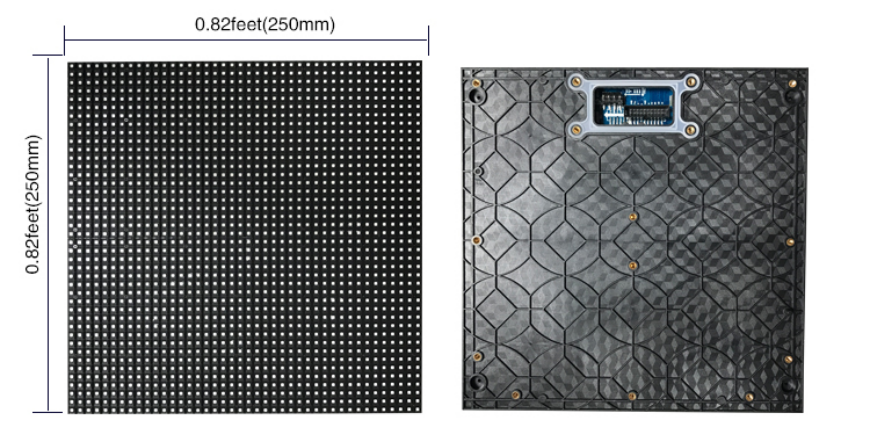

LED Module Size: 250mmx250mmx17.5mm , LED Module With 1.6cm PCB.

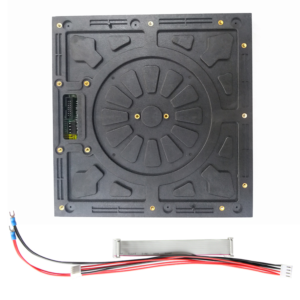

Outdoor LED Module


LED Module Brightness: ≥ 5000 CD/m2(Nits)

Module Weight: 0.5KG, Module Thickness about 11mm

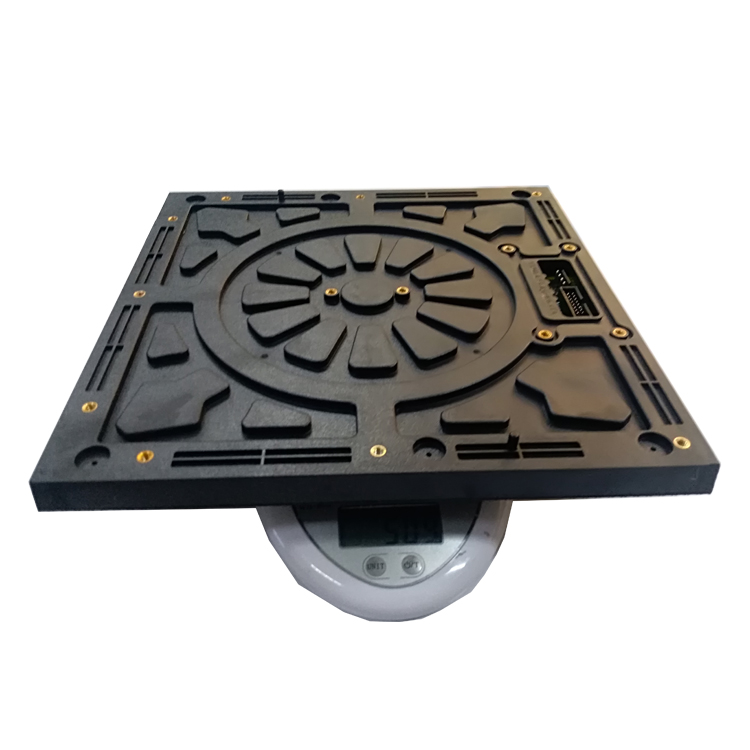

Module Weight 0.5KG

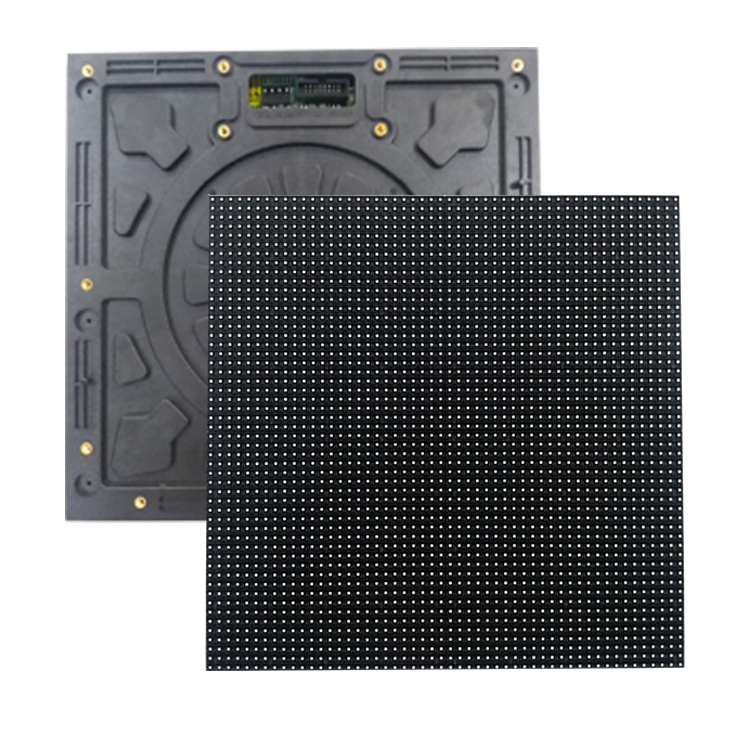

SMD 4.81MM outdoor LED sign module have the high reliability and contrast,wide view angle and good consistency.

This LED module could meet the need of high brightness,high refresh rate,high gray scale and keep natural color at one time with best color uniformity.

p4 led module outdoor

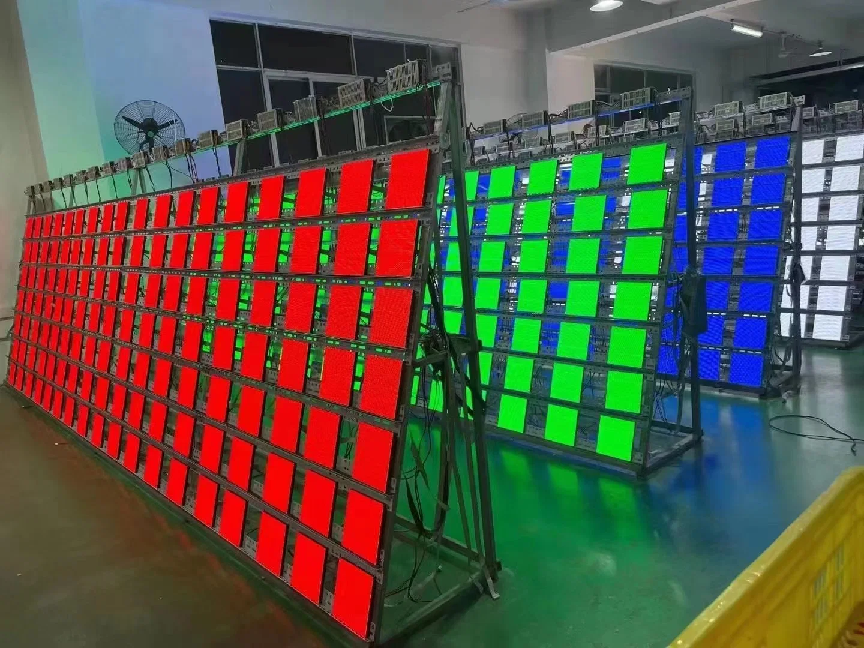

LED Display Module Aging & Testing

The aging test of the LED module refers to running the LED module for a long time to simulate actual use conditions to detect its performance and stability.

Typically, LED modules are run continuously for hours or days, or even longer. So that to ensure that the performance and brightness of the LEDs do not degrade after prolonged use.

During the aging test, we monitor the brightness, color fidelity, uniformity, and other parameters of the LED, evaluating the quality and reliability of the LED module based on the test results.

LED Display Module Aging & Testing

The aging of LED display is divided into white balance aging (2×24 hours) and video aging (24 hours). Totally 72 hours before packing.

Aging test process of led display screen:

1) Check the led display module to install all correct.

2) whether there is a short circuit or not.

3) Check whether the module is flat and neat.

4) Check whether the appearance is intact or not.

5) Use the online led control system to light up.

After the aging test,, we conduct parameter inspections in the quality control group, including white balance, red, green, blue, grayscale gradient, video effects and text effects, etc.
After 72 hours of aging testing, we will promptly report any problems and contact the engineering department, then to replace or repair the damaged LEDs.
Before packaging, we ensure that all components can operate stably to ensure product quality and reliability.


Item:Technical Parameter
Model:PH4.8mm outdoor LED module
Pixel Pitch:4.81mm
Pixel configuration:3in1 (1R1G1B)
Module Size:250*250mm
Module Resolution:W52XH52dots
Module Thickness:11mm
Module Weight:0.5KG
Package LED mode:SMD2727
Max Power:20W
Pixel Density:42849 dots/SQM
Driving Method:Constant Current Driving
Scan Method:1/13 scan
Interface Way:HUB 75
Brightness:≥ 5000CD/SQM
