Flexible LED display
√ EXCELLENT VISUAL EFFECT：Super bright solid color pixels, the pixel pitch of this indoor module is only 2mm, 900 nits, 1/32 scans, with digital RGB chip, clear picture without jitter and ghosting, eliminate distortion, Provide excellent display.
√ LARGE VIEWING ANGLE: Viewing angle can reach H: 160degree/ V: 360degree, getting vivid effect within any position of the viewing range.
√ STABLE AND HIGH QUALITY: This LED matrix module is expected to deliver a lifetime of up to 100,000 hours. Less lumen depreciation than LCD and DLP display, guarantee the even performance in long time usage.

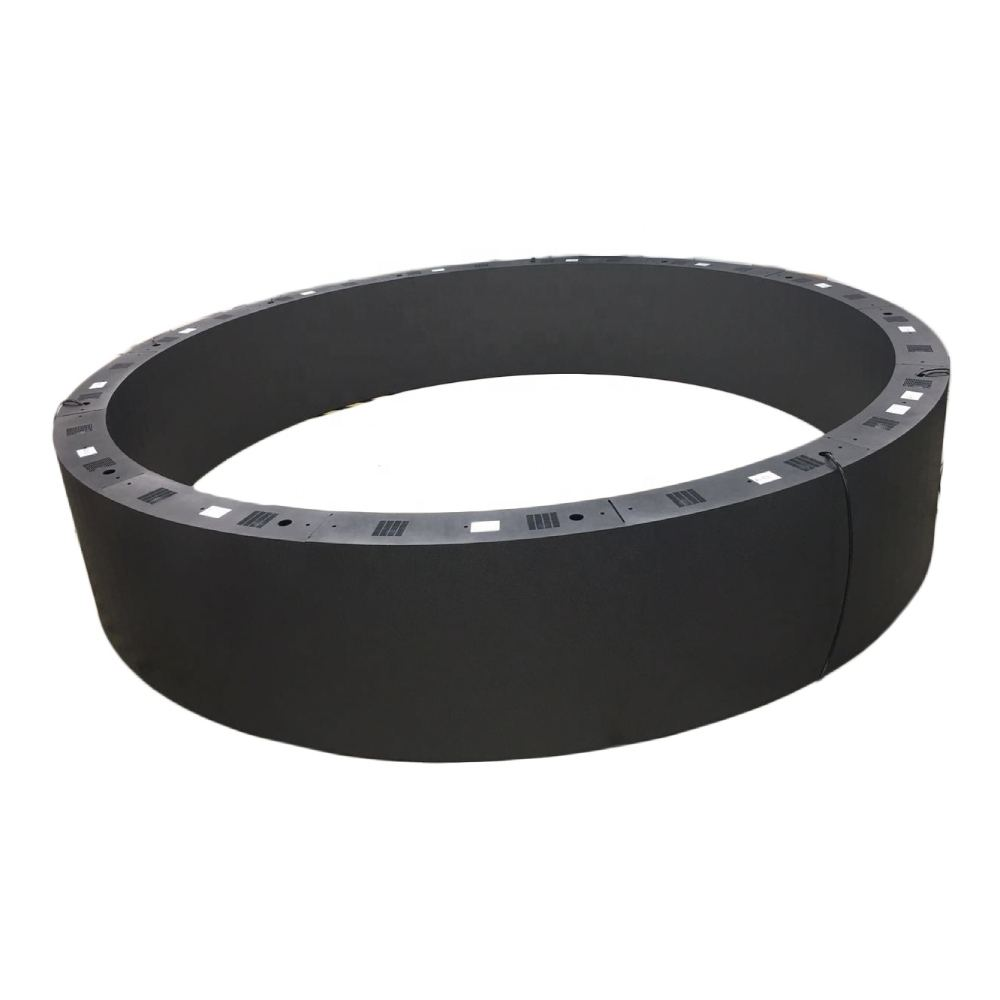

√ FLEXIBLECOMBINATION: Breaking through the limits of LED display size, it has so many combinations to fit your situation.

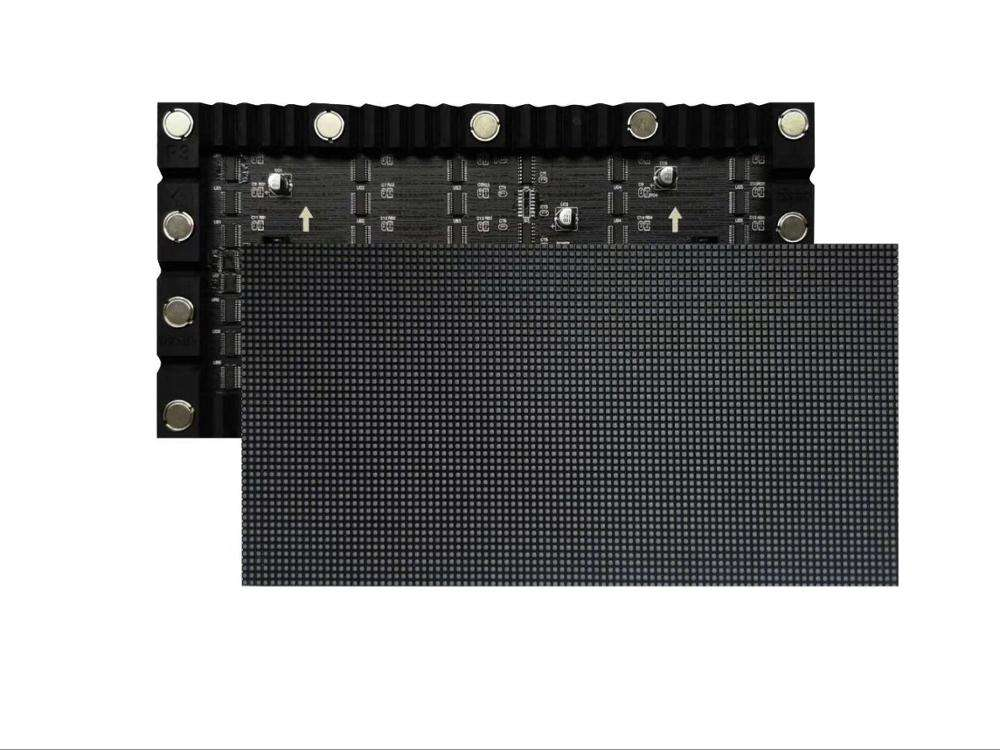

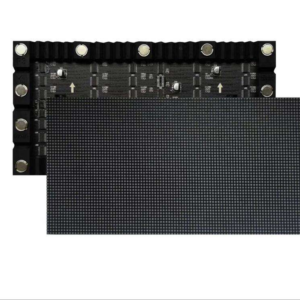

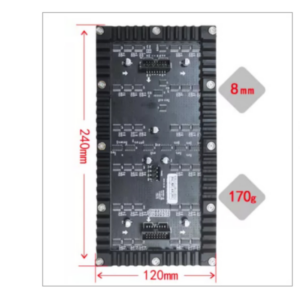

Module’s Front side & Back side

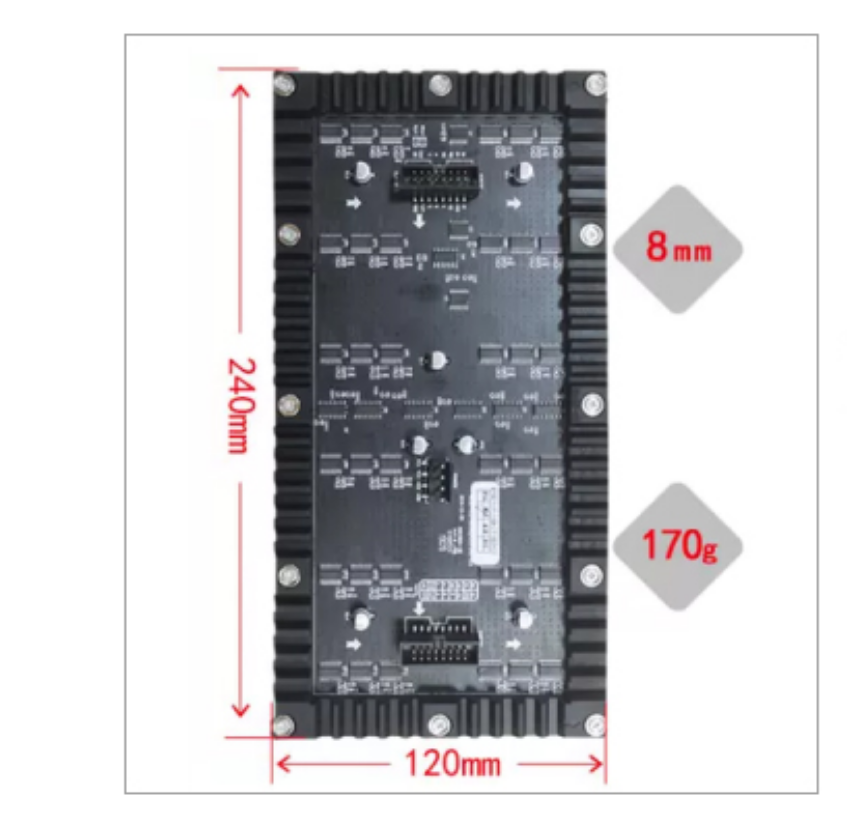

Ultra-thin and super light, weight of each module is just 170g

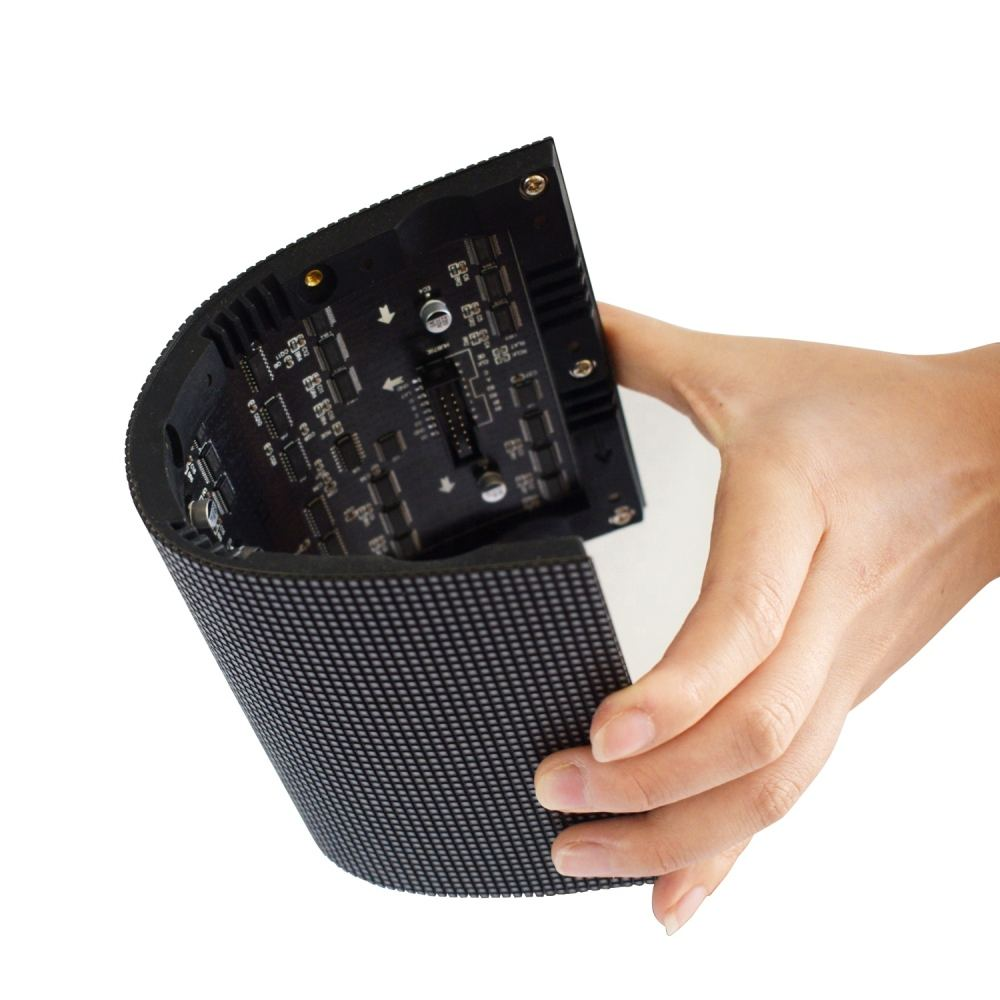

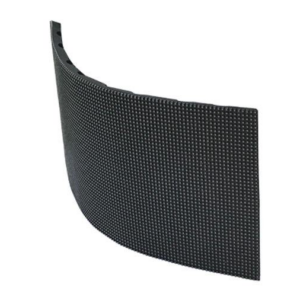

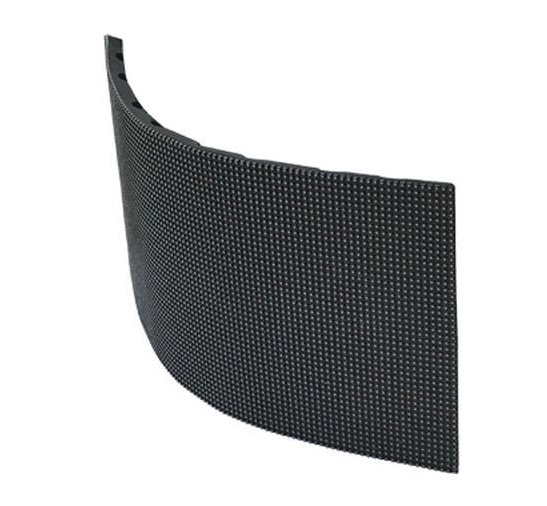

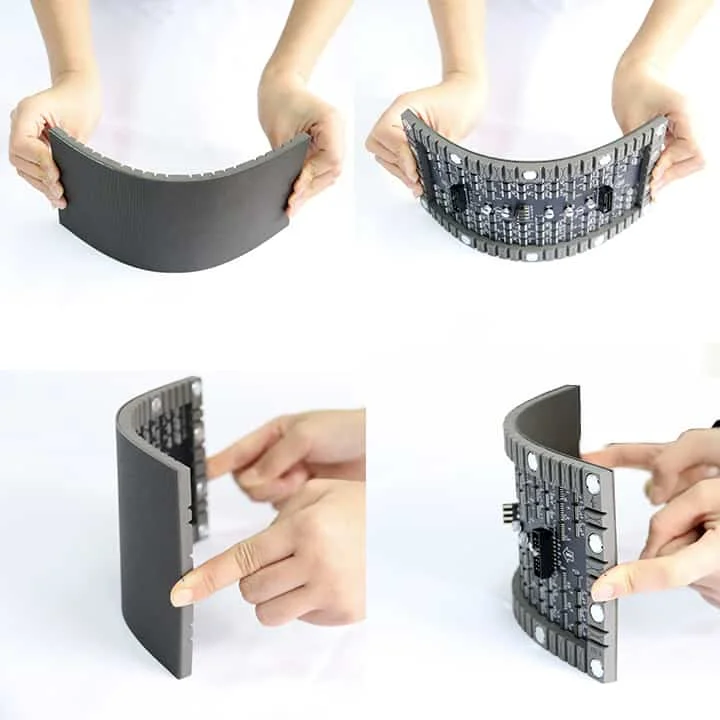

Flexible, thin and light-weight, suitable for different degree bending effects

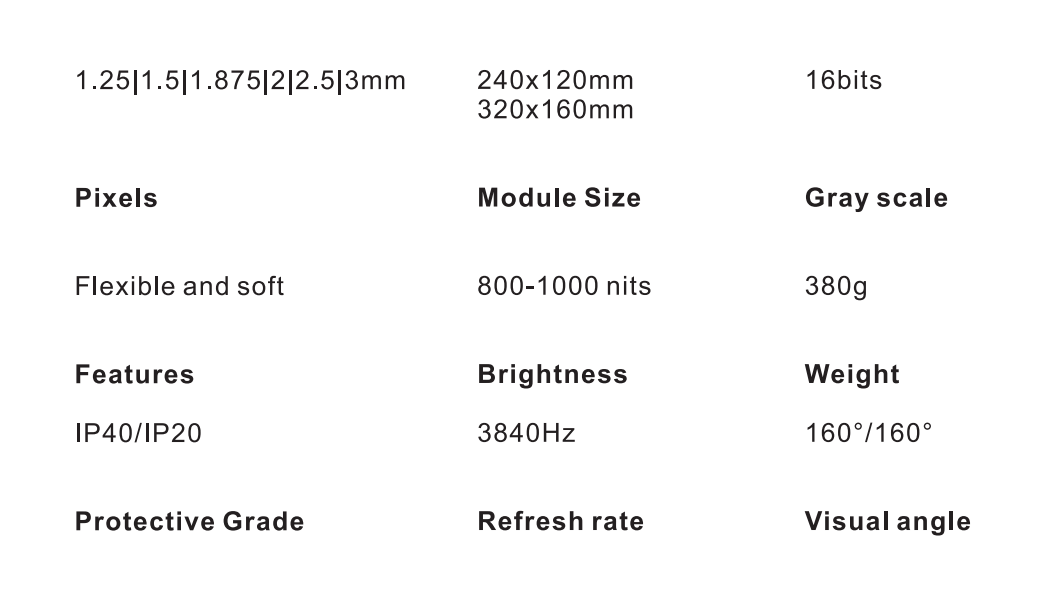

| Pixel Pitch (mm) | 1.5 | 2.0 | 2.5 | 3.0 |
| Brightness ( nits) | 800 | 900 | 1100 | 900 |
| Pixel Configuration | SMD1010 | SMD1515 | SMD2020 | SMD2020 |
| Colors | 281 triUion | 281 triUion | 281 triUion | 281 triUion |
| Refresh Rate ( Hz ) | >3840 | >3840 | >3840 | >3840 |
| Pixel Matrix | 160×80 | 120×60 | 96×48 | 80×40 |
| Pixel Matrix/m2 | 444444.45 | 250000 | 160000 | 160000 |
| Viewing Angle (H/V) | 160/160 | 160/160 | 160/160 | 160/160 |
| Power(Max / Avg) | 660 / 180 w/sq.m | 660 / 180 w/sq.m | 660 / 180 w/sq.m | 660 / 180 w/sq.m |
| IP Rate | IP40/IP20 | IP40/IP20 | IP40/IP20 | IP40/IP20 |
| Input Voltage (AC) | 110/220 | 110/220 | 110/220 | 110/220 |
| Size(LxWxH) | 240x120x12mm | 240x120x12mm | 240x120x12mm | 240x120x12mm |
| Weight (Kgs) | 380G | |||

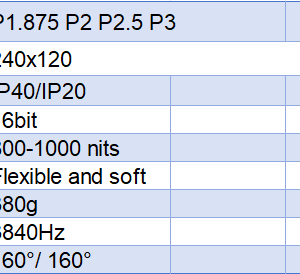

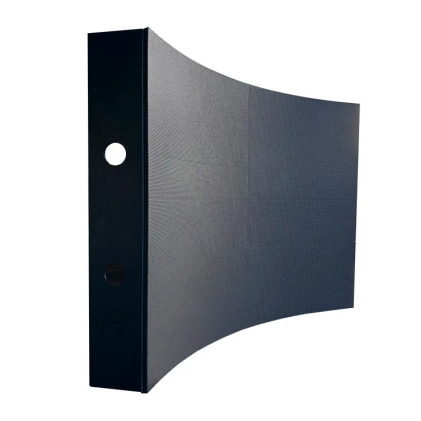

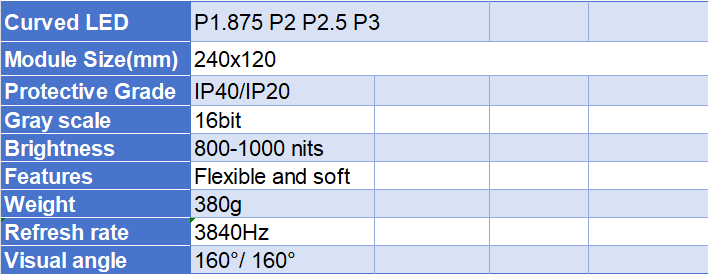

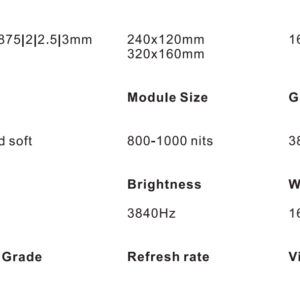

Flexible LED Screen
P1.875
300G
3840Hz
800-1000 nits
P2
300G
3840Hz
800-1000 nits
P2.5
300G
3840Hz
800-1000 nits
P3
300G
3840Hz
800-1000 nits
