VMS LED Traffic Sign Display Screen
Many cities around the world are using LED displays in their intelligent transportation systems.
These multifunction displays are commonly used for road and highway messaging, overhead traffic signs, tollbooth queue guidance, and more.
They can be used for almost any display function along the road.
Advantages
High brightness and high visibility, no matter day or night, it is more effective than any other form of signs;
Able to display various information and even graphics;
The displayed content can be remotely updated at any time. There is no need to send manual on-site debugging of the LED display, saving operating costs;
Energy saving, because the LED display uses less electricity than traditional light bulbs.
Update information in real time

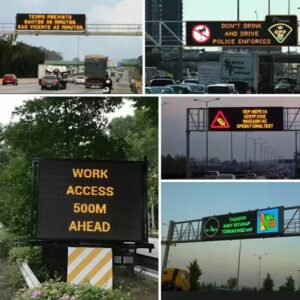

Electronic Variable Message Traffic Sign

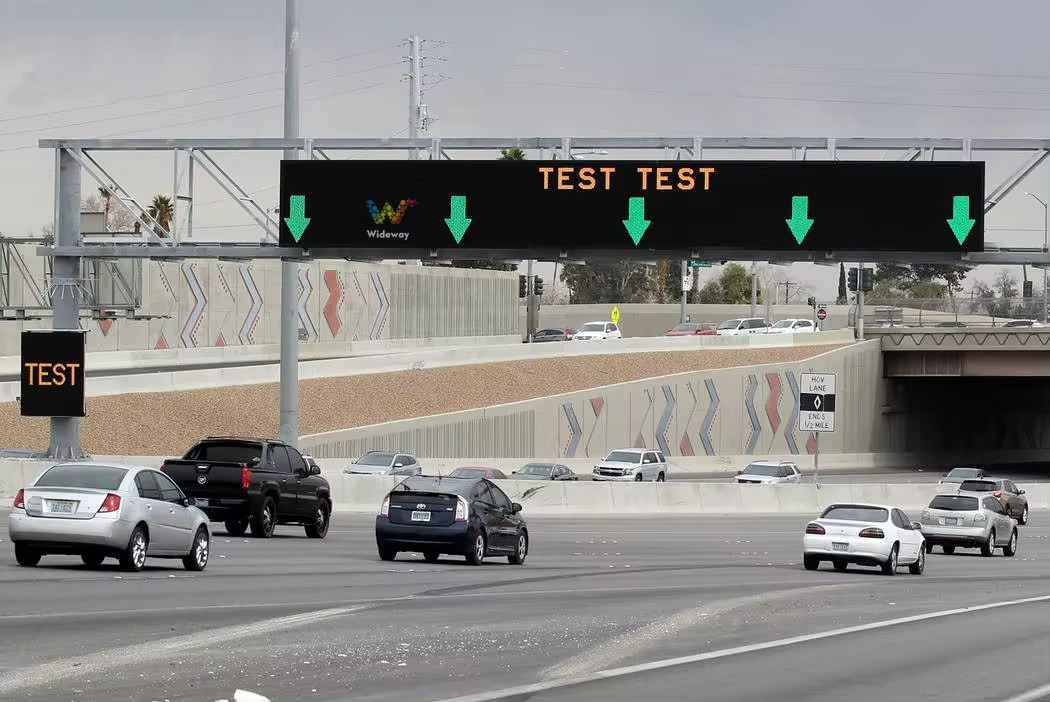

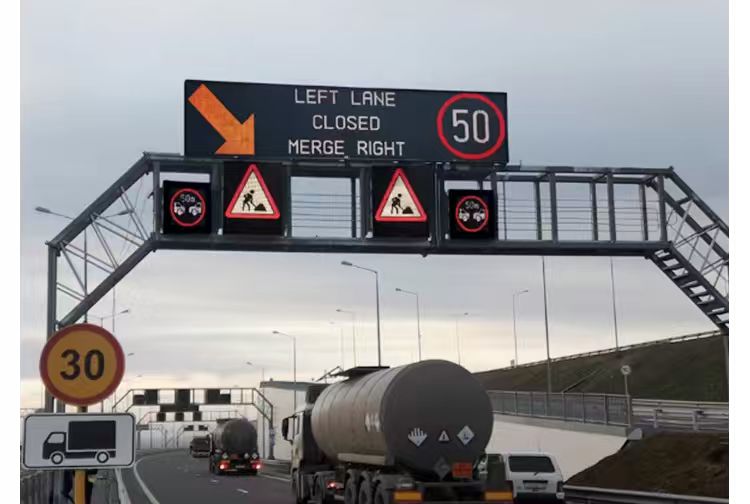

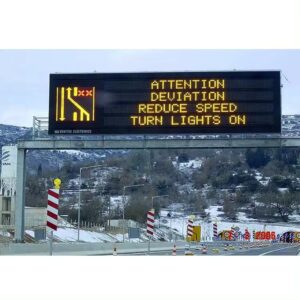

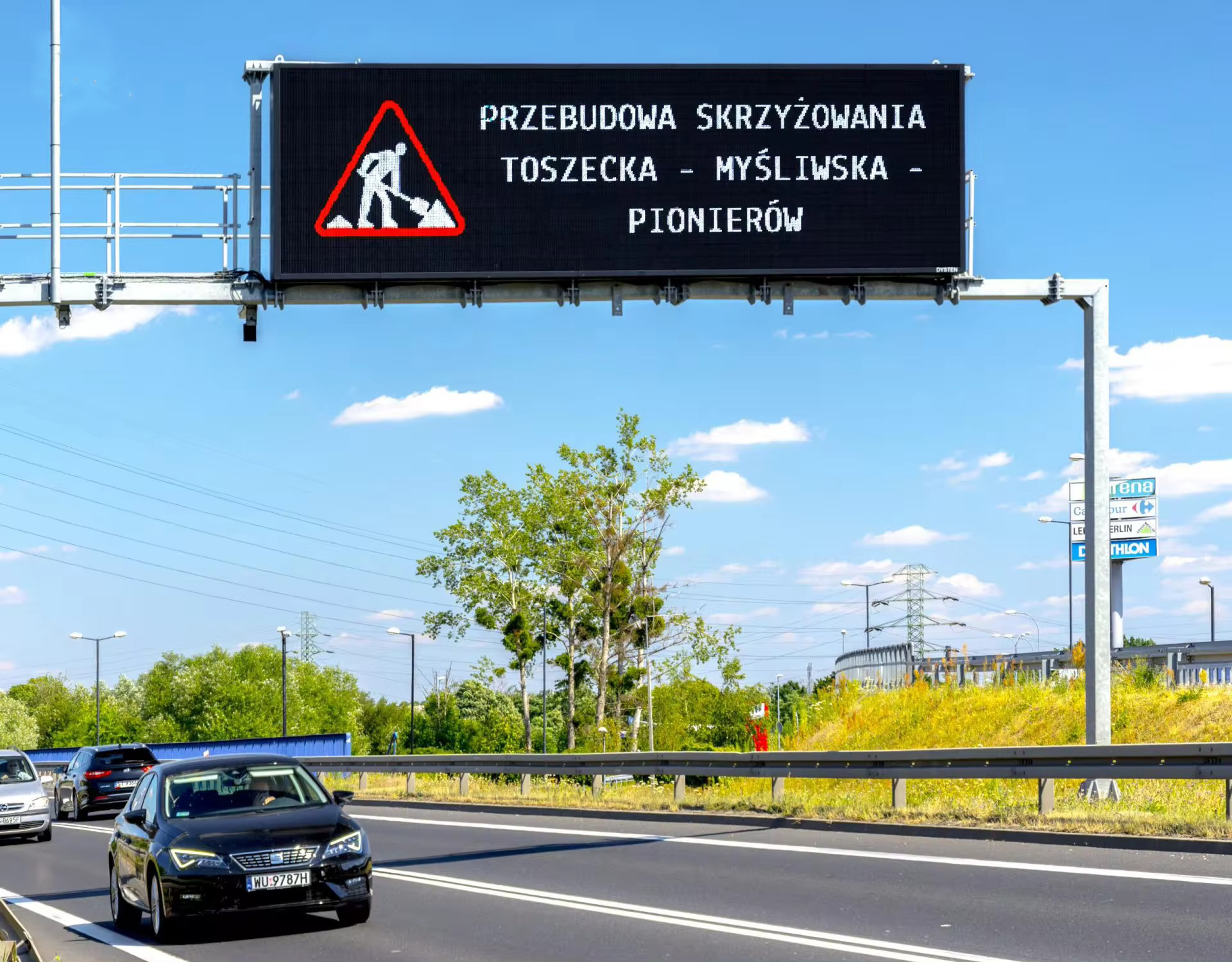

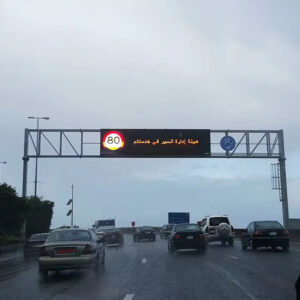

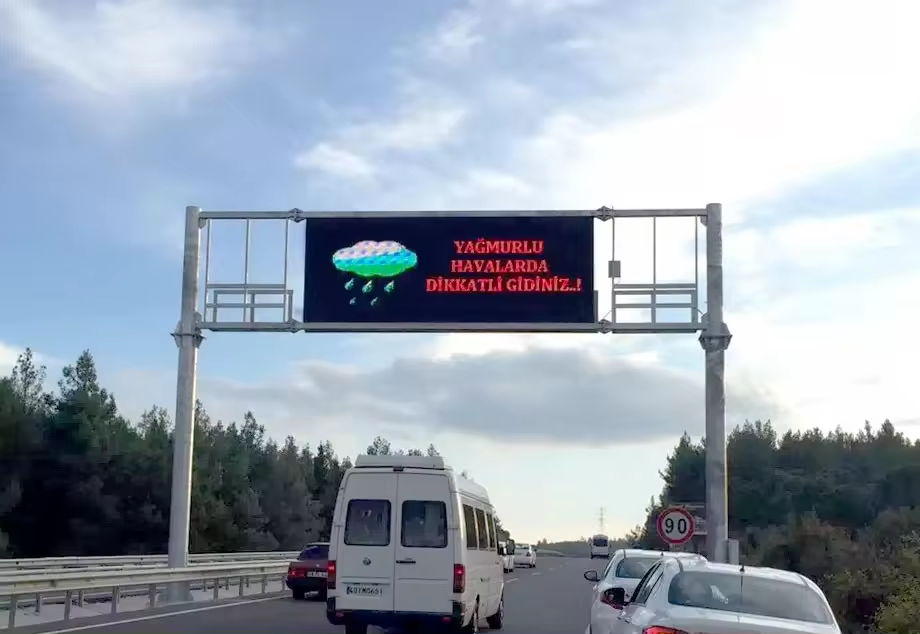

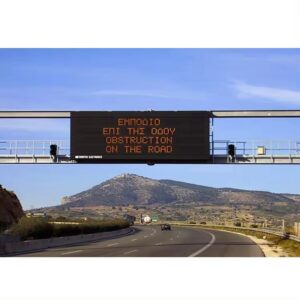

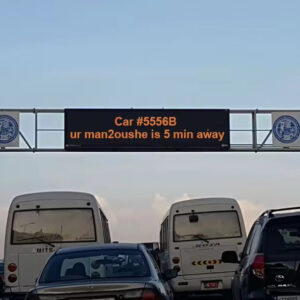

The Chinastar VMS products including gantry VMS, cantilever VMS, single pillar VMS and other customized VMS products.
By delivering useful information, our durable signs are guiding traffic all over the world.

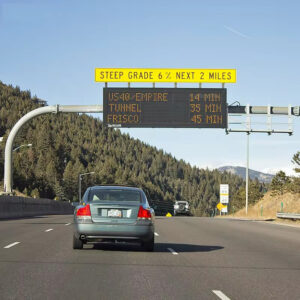

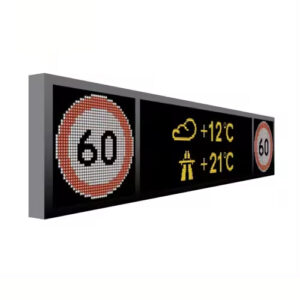

Fixed variable message sign

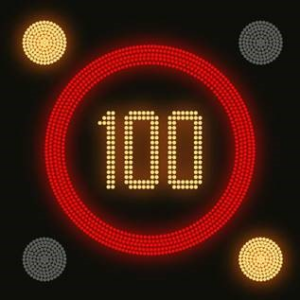

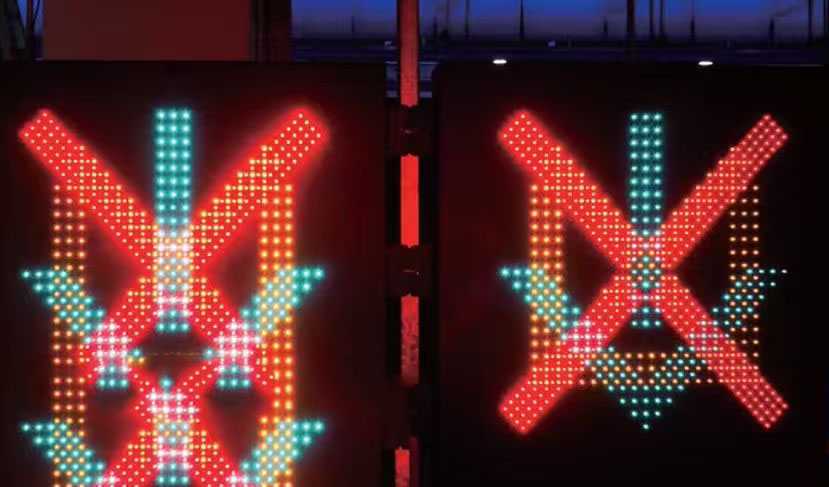

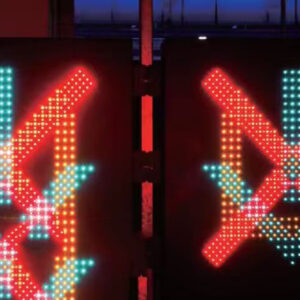

Chinastar variable message sign, often used on roadways, are designed to deliver traffic information covering congestion report,accident report, temperature, lane control and limit speed sign, etc.
It has been widely used in modern transportation system and it is becoming indispensable
IP65 Waterproof
IP65 pressure washing and harsh weather
Electromagnetic interference free
Wireless and remote control

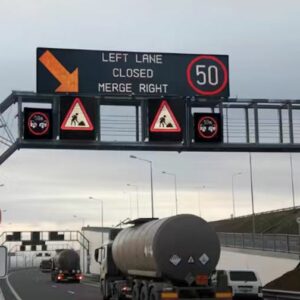

ITS Road Safety Traffic sign Available in variety of sizes and cabinet colors.
Networkable with other displays and controllers.
Self-diagnosis and failure report.

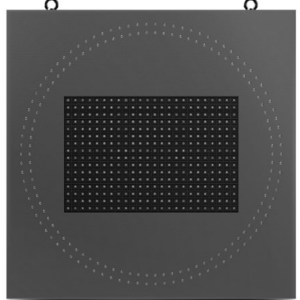

Variable Message Sign on Column:

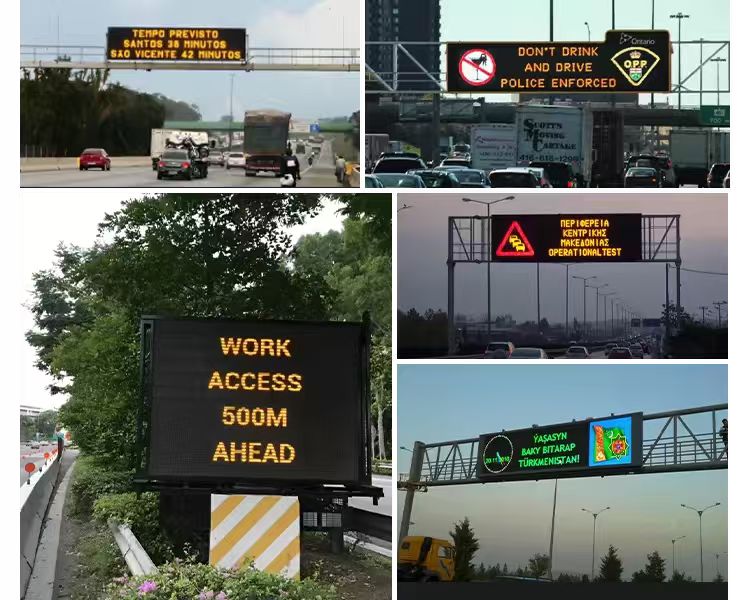

European Standard for Variable Message Traffic Signs EN12966Variable message signs Project cases on High way Compatible with EN12966 and NTCIP

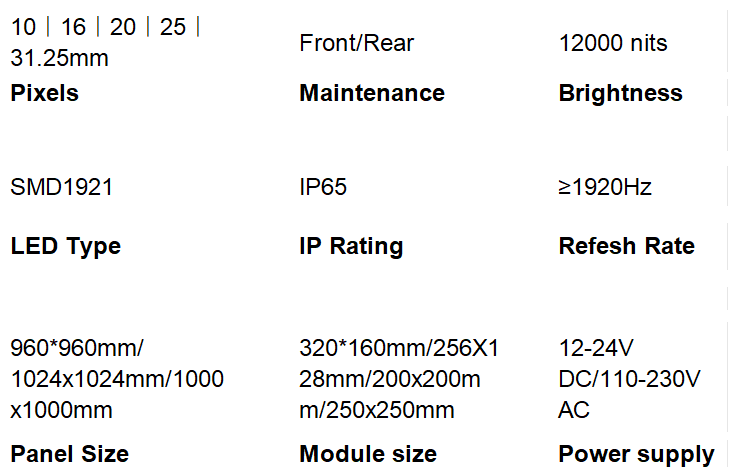

| ITI EM | P10 | P16 | P20 | P25 | P31.25 |
| Pixel pitch | 10mm | 16mm | 20mm | 25mm | 31.25mm |
| LED type | 3in 1 SMD+L .ENS | 3in 1 SMD+L .ENS | 3in 1 SMD+L .ENS | 3in 1 SMD+L .ENS | 3in 1 SMD+L .ENS |

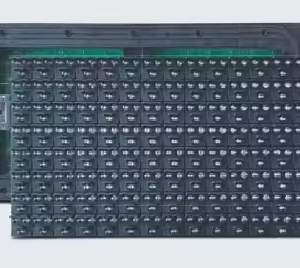

| Module dimension | 320X160mm | 256X128mm | 320x160mm | 200x200mm | 250x250mm |
| Module Resolution | 32×16 | 16×8 | 8×8 | 8×8 | 8×8 |
| Cabinet material | 2mm aluminium Alloy | ||||
| Screen Weight | 65kgs/sqm | 65kgs/sqm | 65kgs/sqm | 65kgs/sqm | 65kgs/sqm |
| Cabinet dimension | 960x960mm | 1024x1024mm | 960x960m m | 1000x1000mm | 1000x1000m m |
| Brightness | L3,L3*EN 12966(Red> 3100nit, Green> 3720nits Blue>1240nits,Amber>7440nits, White>12400nits | ||||
| Driving method | 2s | static | static | static | static |
| brightness adjustment | 32/256 | 32/256 | 32/256 | 32/256 | 32/256 |
| Color coordinates | C2: EN12966 | C2: EN12966 | C2: EN12966 | C2: EN12966 | C2: EN12966 |
| Viewing Angle | H15/-15 Deg./v8/-10 Deg.(B6:EN12966) | ||||
| Contrast ratio | R3:EN12966 | R3:EN12966 | R3:EN12966 | R3:EN12966 | R3:EN12966 |
| Refresh rate | >90+HZ | >90+HZ | >90+HZ | >90+HZ | >90+Z |
| Display control | Asynchronous control system available | ||||
| Signal transfer | Cat 5 network Cable, RS232, rs485 optional | ||||
| Display capacity | Text,image, graphics and animations | ||||
| Life span | >100000hours | >100000hours | >100000hou rs | >100000hours | >100000hour S |
| Power supply | 12-24V DC/110-230V AC | ||||
| Max power Consumption | 400W/SQM | 250W/SQM | 220W/SQM | 220W/SQM | 220W/SQM |
| Avg.power consumption | 130W/SQM | 80W/SQM | 70W/SQM | 70W/SQM | 70W/SQM |
| Operation Temperature | -25-+60 | -25-+60 | -25-+60 | -25-+60 | -25-+60 |
| Storage Temperature | -40-+80 | -40-+80 | -40-+80 | -40-+80 | -40-+80 |
| Operating humidity | 10%-90% | 10%-90% | 10%-90% | 10%-90% | 10%-90% |
| Store humidity | 15%-95% | 15%-95% | 15%-95% | 15%-95% | 15%-95% |
| Protection L .evel | P65 | IP65 | IP65 | IP65 | IP65 |
| Maintenance method | Front/Rear Serviec | ||||
| EN12966 | Compliance | Compliance | Compliance | Compliance | Compliance |

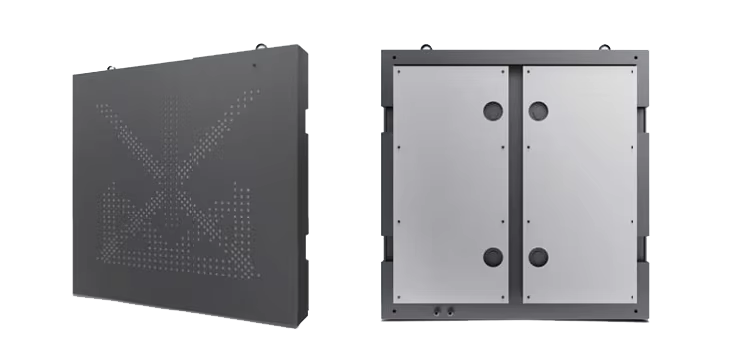

Outdoor Screen
P10
960x960mm
65kgs/sqm
320x 160mm module
P16
1024x1024mm
65kgs/sqm
256X128mm module
P20
960x960mm
65kgs/sqm
320x 160mm module
P25
1000x1000mm
65kgs/sqm
200x 200mm module
P31.25
1000x1000mm
65kgs/sqm
250x 250mm module
