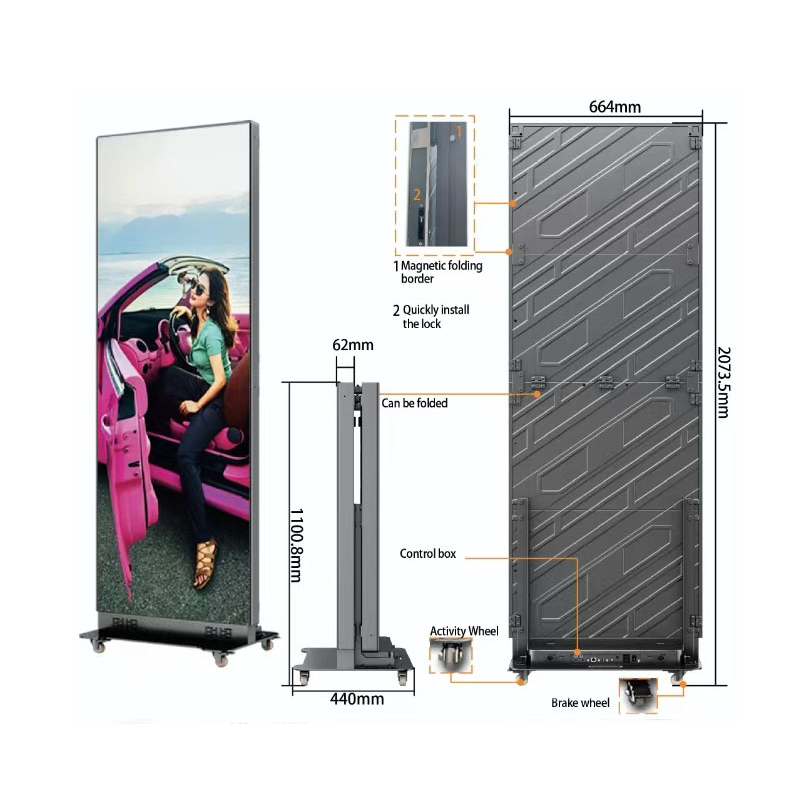

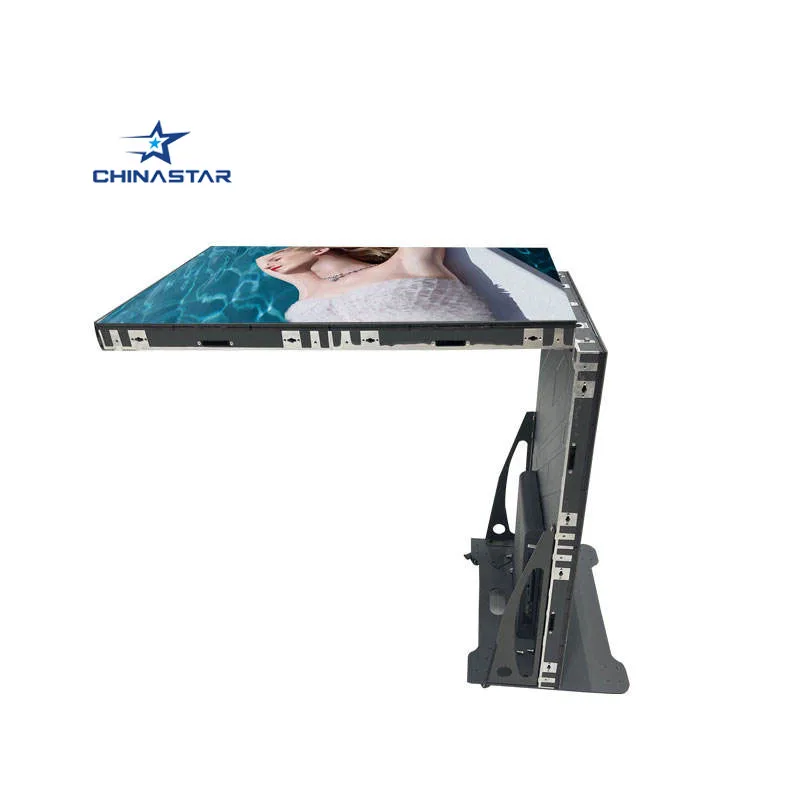

Foldable LED Poster Display
| P2.5 | P1.86 | P1.538 | |||
Display module | Pixel spacing | 2.5mm | 1.86mm | 1.538mm | 1.25mm |
Pixelconstruction | Table sticker 3-in-1 LED | ||||
Resolution ratio | 128*(h)64dots | 172*(h)86dots | 204*(h)104dots | 256(h)128dots | |
Module Size | (w)320*(h)160mm | ||||

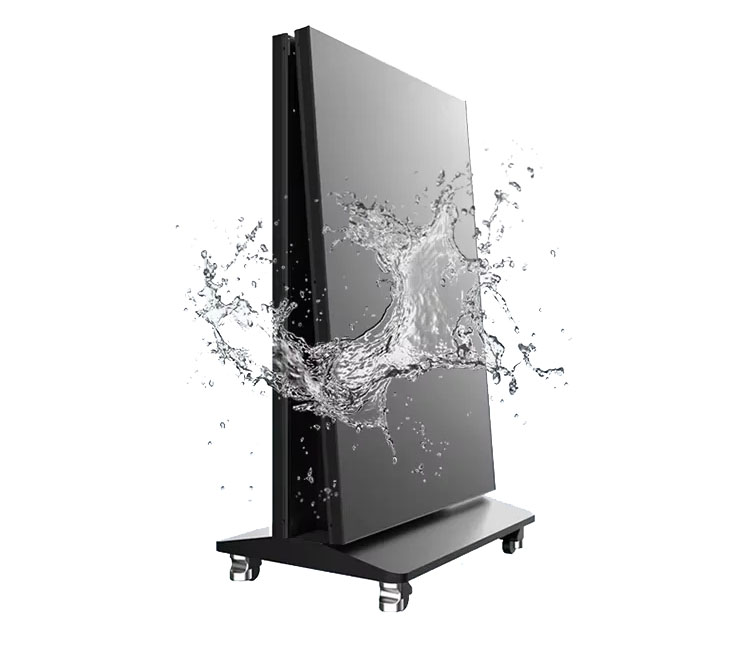

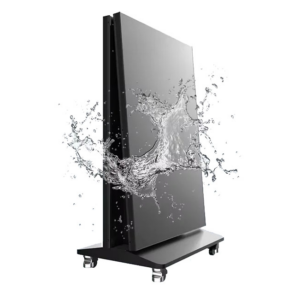

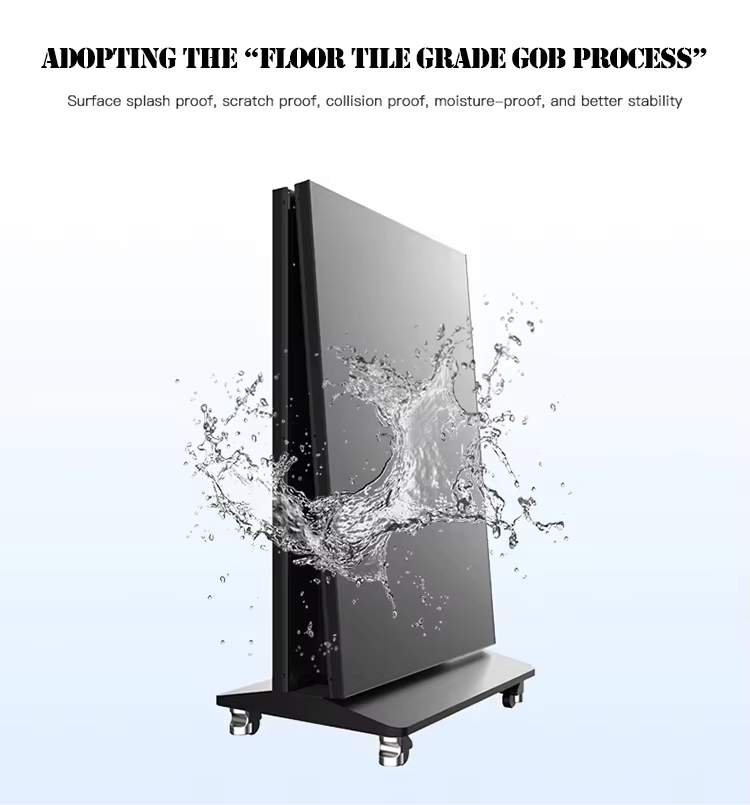

Protectivetechnology | GOB | ||||
Module weight | 0.55kg | ||||
Whole machine composition | Whole machine module composition W*H | (w)2*（H）12 | |||

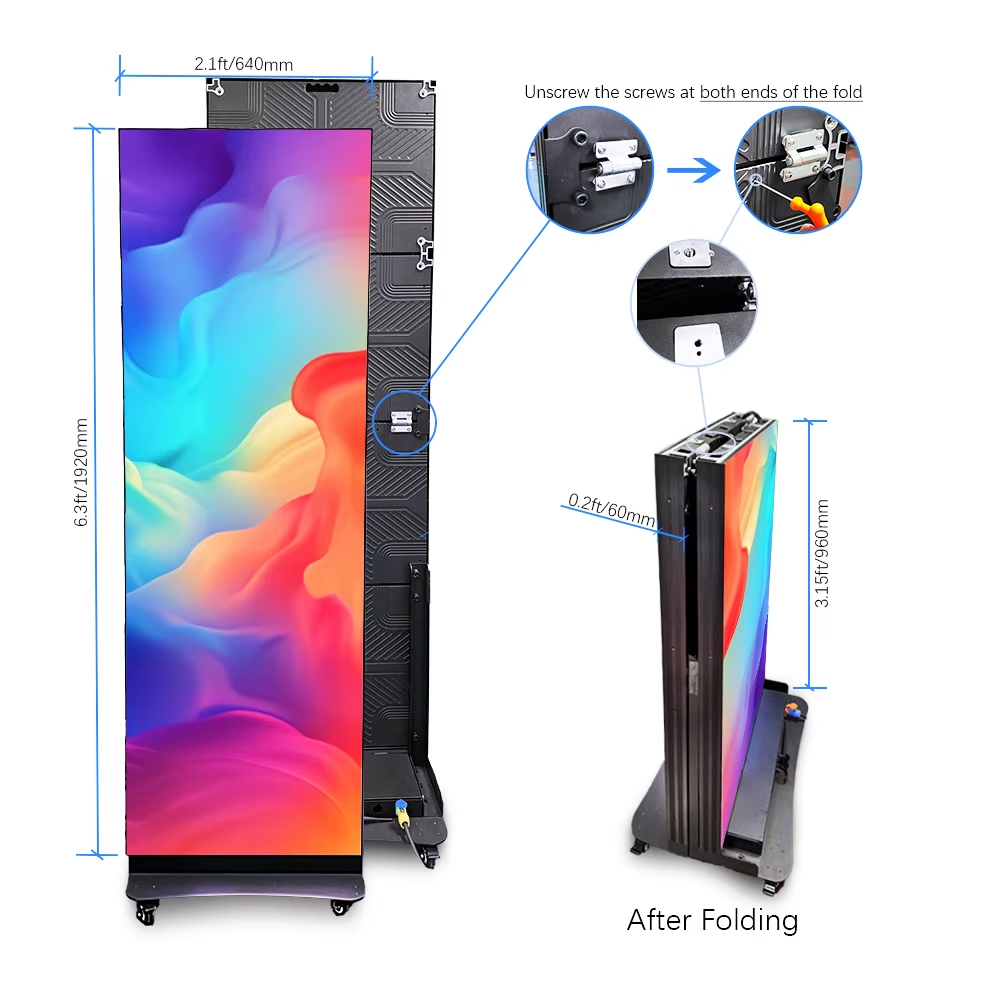

Overall resolution W * H | 640*1920mm | ||||
Display Size | 646*2050mm | ||||
Gross weight of the machine | 43kg | ||||
Optical parameters | Flatness tolerance | 0.5mm | |||
White balanced brightness | 650CD | ||||
Gray scale | 14-16BT(Can be adjusted） | ||||
Color temperature | 3200-9000（Can be adjusted) | ||||
Best visual distance | 3-20M | ||||
Perspective (horizontal) | 160° | ||||
Perspective (vertical) | 160° | ||||
Optical parameters | Tolerance of center to center distance of luminous point | ≤3% | |||
luminance uniformity | ≥95 | ||||
Chromaticity uniformity | ±0.003Cx,Cy | ||||
contrast ratio | 8000:1 | ||||
Power on requirements | Power supply requirements | 110-240V | |||
Peak power consumption | 430W | 450W | 550W | 650W | |
Average Power | 145W | 150W | 185W | 220W | |
Communication param | Synchronous/Asynchronous | support | |||

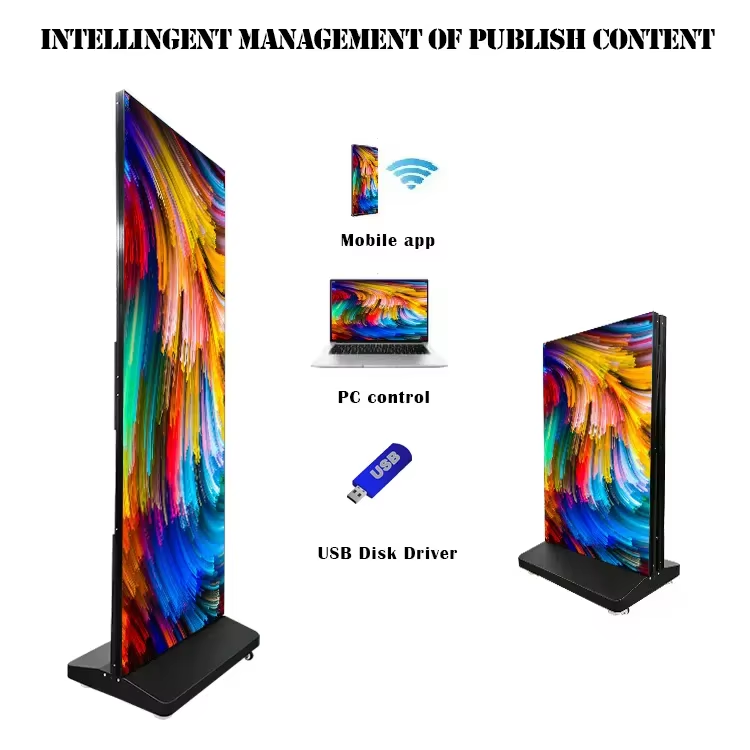

Communication method | APP/U disk/network port/4G remote APP/USB drive/Ethernet port/4G remote | ||||
Interface | JS485*1 WIFI*1 U disk*1 HDMI*2 | ||||

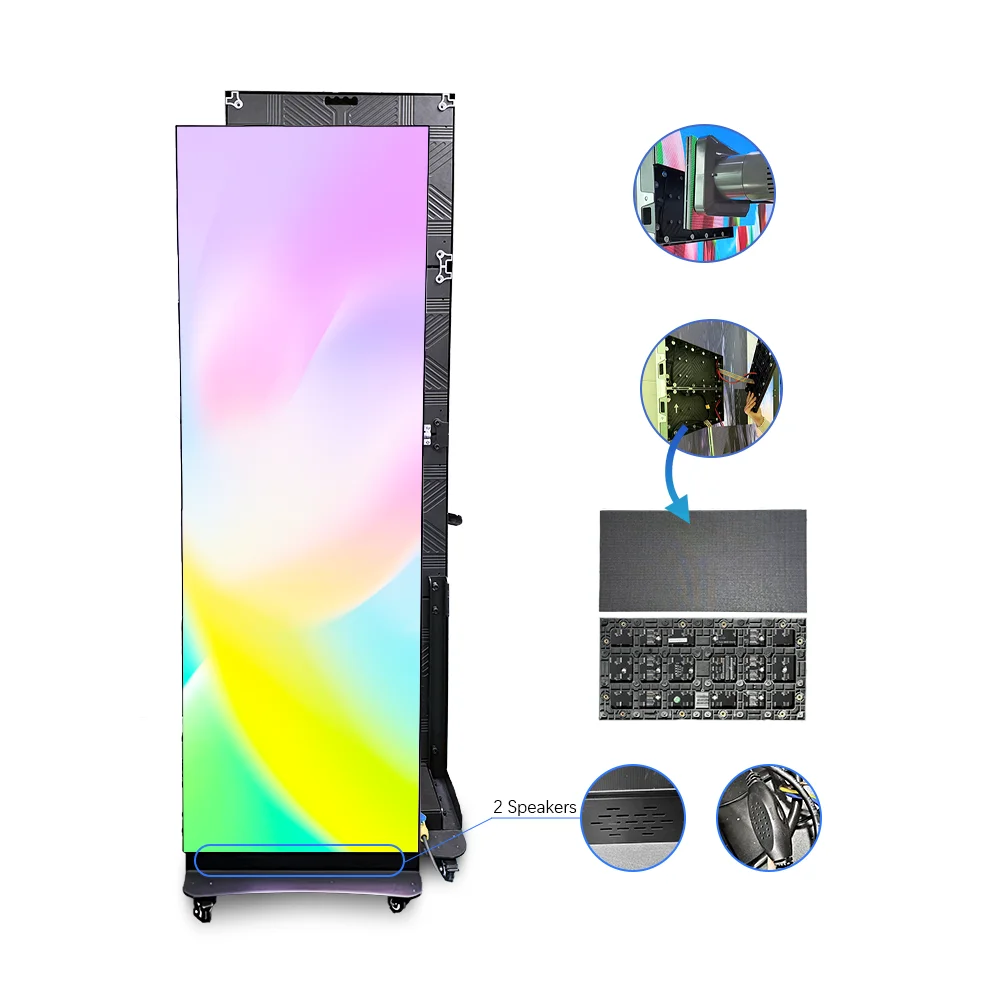

Speaker | Is there a built-in speaker | 50*12mｍ*2PCS | |||
audio | 3.5 Audio Interface/Supports External Amplifier | ||||
Performance processing | Drive mode | Constant current drive | |||
Frame Frequency | 60HZ | ||||
Refresh rate | ≥3840HZ | ||||
parameters | Typical lifespan values | 50000H | |||
Working temperature range | ﹣40—50℃ | ||||
Operating humidity range | 10-80% no condensation | ||||
Storage Temperature Range | ﹣50—50RH | ||||
Storage humidity range | 10-85%RH no condensation | ||||

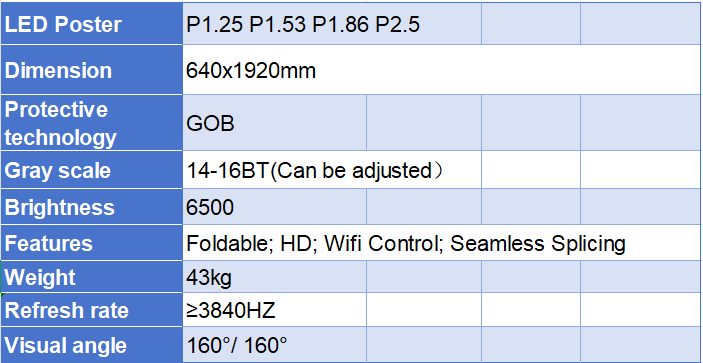

LED Poster Screen
P1.25
43KG

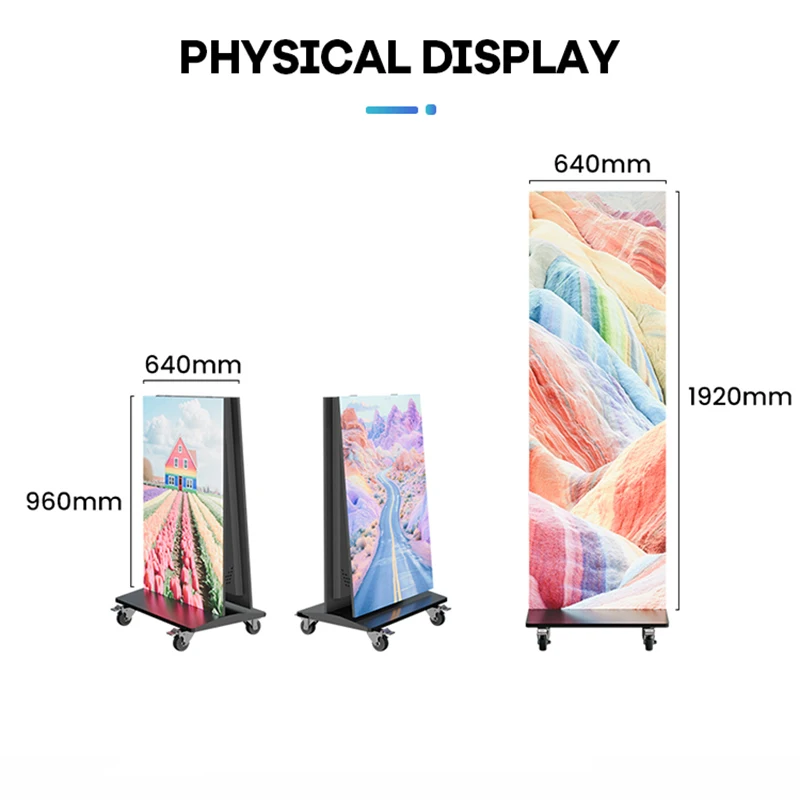

640x1920mm
P1.53
43KG
640x1920mm
P1.86
43KG
640x1920mm
P2.5
43KG
640x1920mm
