P10mm outdoor LED module

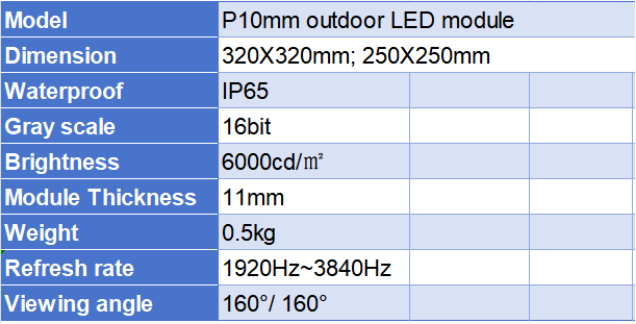

Item: | Technical Parameter |
Model: | P10mm outdoor LED module |
Pixel Pitch: | 10mm |
Pixel configuration: | 3in1 (1R1G1B) |
Module Size: | 250*250mm |
Module Resolution: | W24XH24dots |
Module Thickness: | 11mm |
Module Weight: | 0.5KG |
Package LED mode: | SMD2727 |
Max Power: | 20W |
Pixel Density: | 9227 dots/SQM |
Driving Method: | Constant Current Driving |
Scan Method: | 1/13 scan |
Interface Way: | HUB 75 |
Brightness: | ≥ 6000CD/SQM |
LED Module
P10

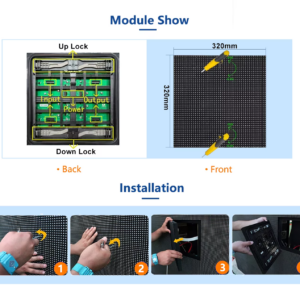

320X320mm
250X250mm
