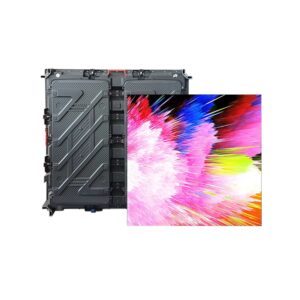

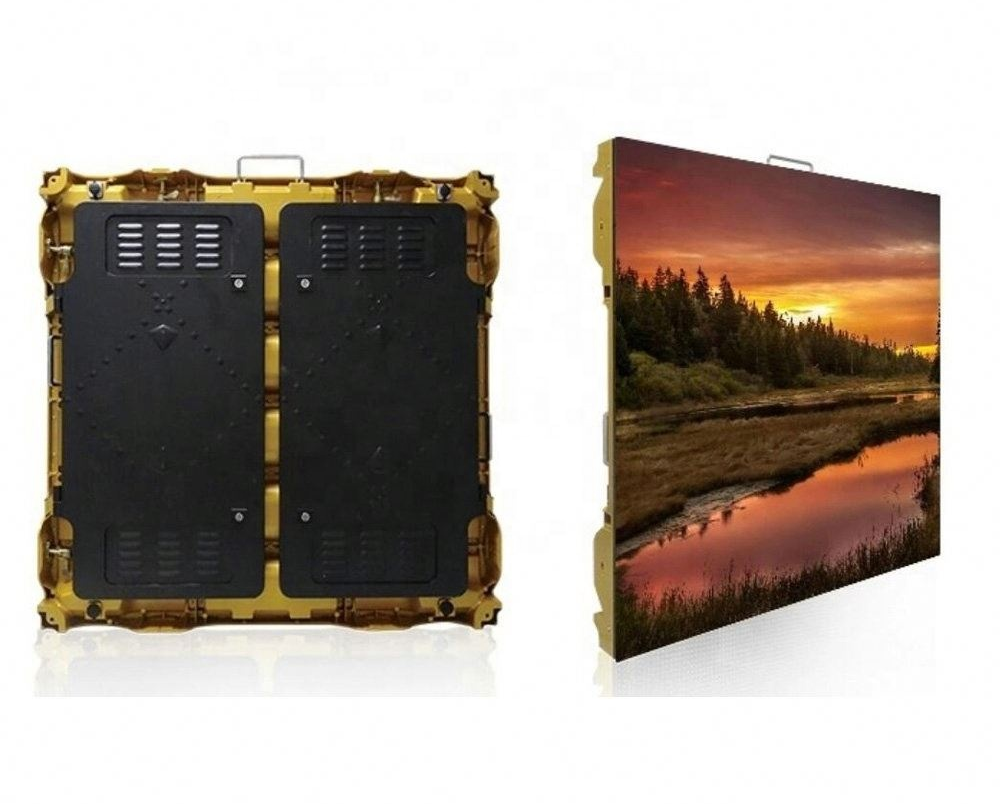

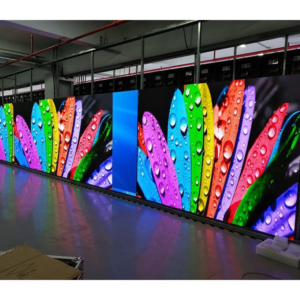

HA960 Indoor LED Screen
P2.5 P3.33 P4 P5
Black SMD LED makes perfect
Front maintenance & Front installation
Wifi, 4G, cloud, usb, remote control
Thin, light weight, easy installation
Low brightness with High grayscale operator

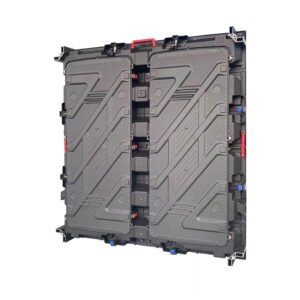

Front Installation Saving Structure
Not only front maintenance, but also front installation. LED display can be installed in front after removing 4 comers modules.
Therefore the whole LED display thickness is the cabinet thickness.

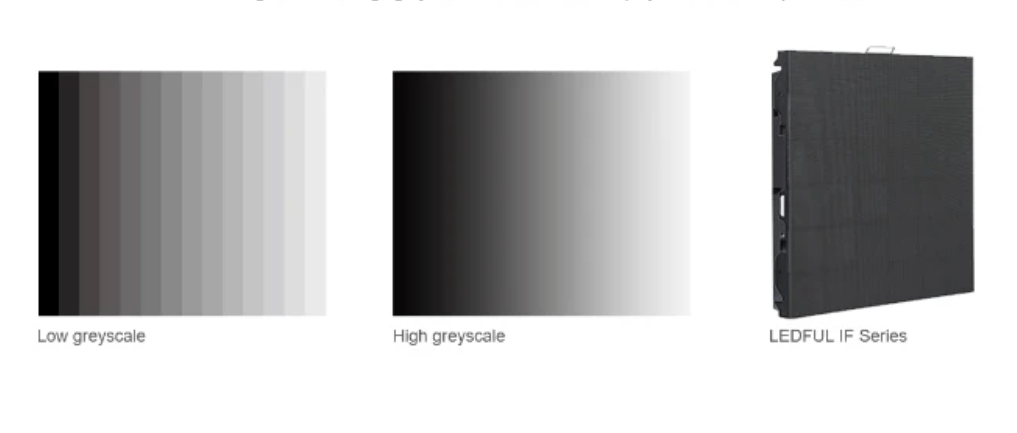

Low brightness with High grayscale
Low brightness with High grayscale to make the LED display in ultimate view performance.

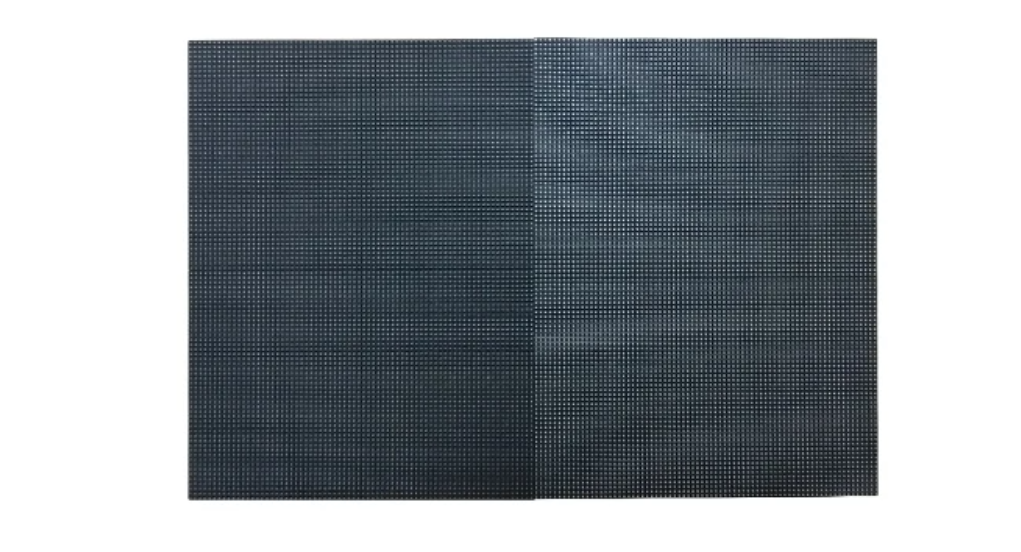

Black SMD LED
LED display with advantage such as high contrast ratio, non reflection, vivid color, etc, let us make your screen in perfect performance

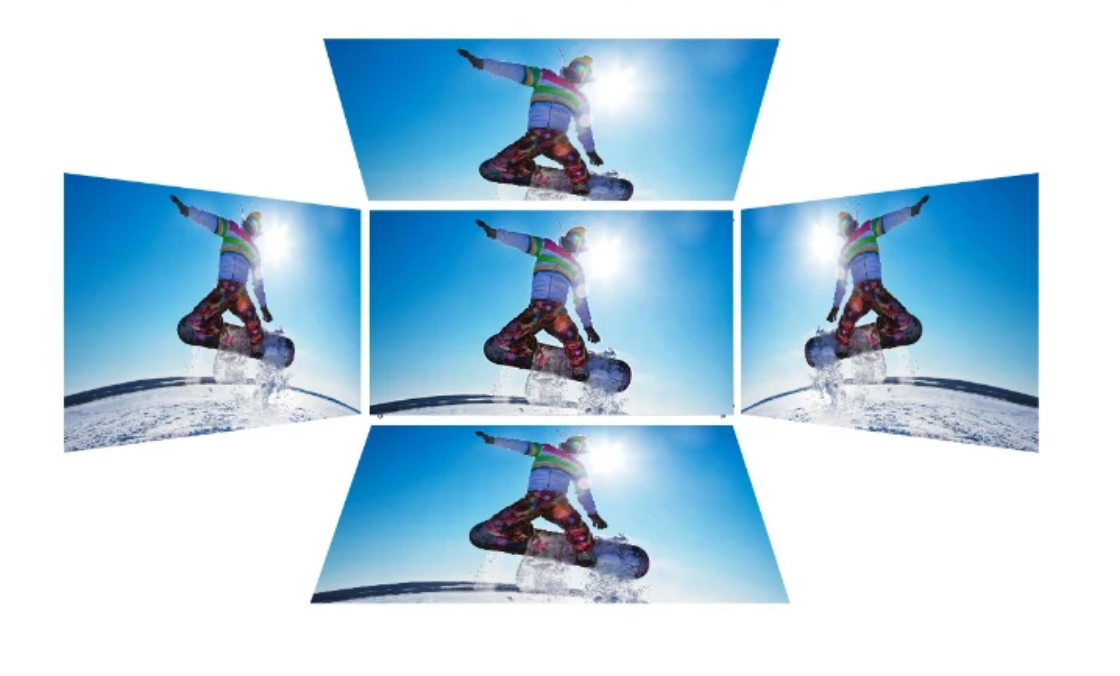

Wide Viewing Angle
Wide viewing angle increasing its value by covering more viewing. Seeing from five directions. It would be still the natural and clear image in an LED display.

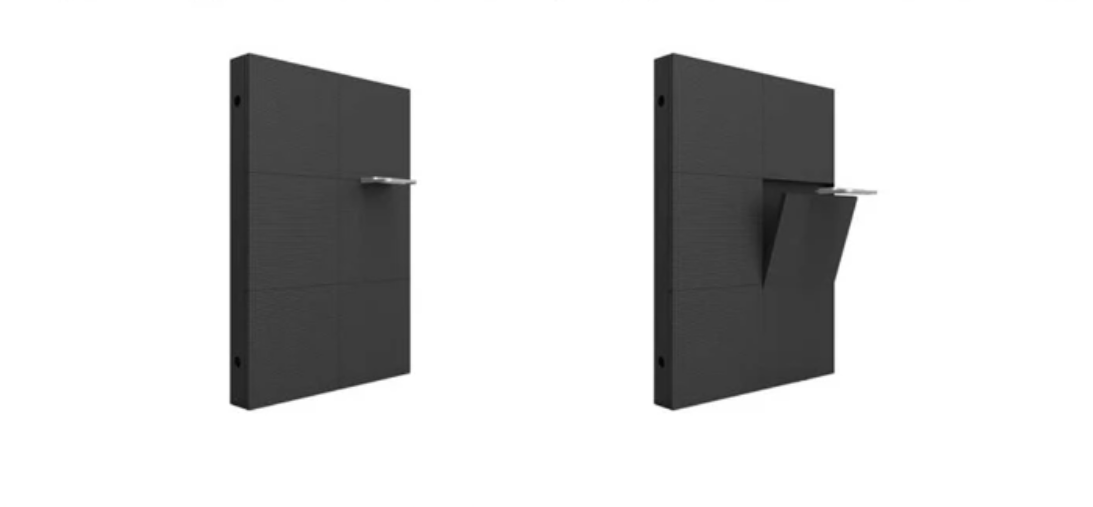

Front Maintenance Saving Space
No back space for LED display maintenance? Go with font. LED modules, power supply,receiver card, cables, etc can be taken out from front side
High definition effect, bright color,distinct difference, high quality display effect

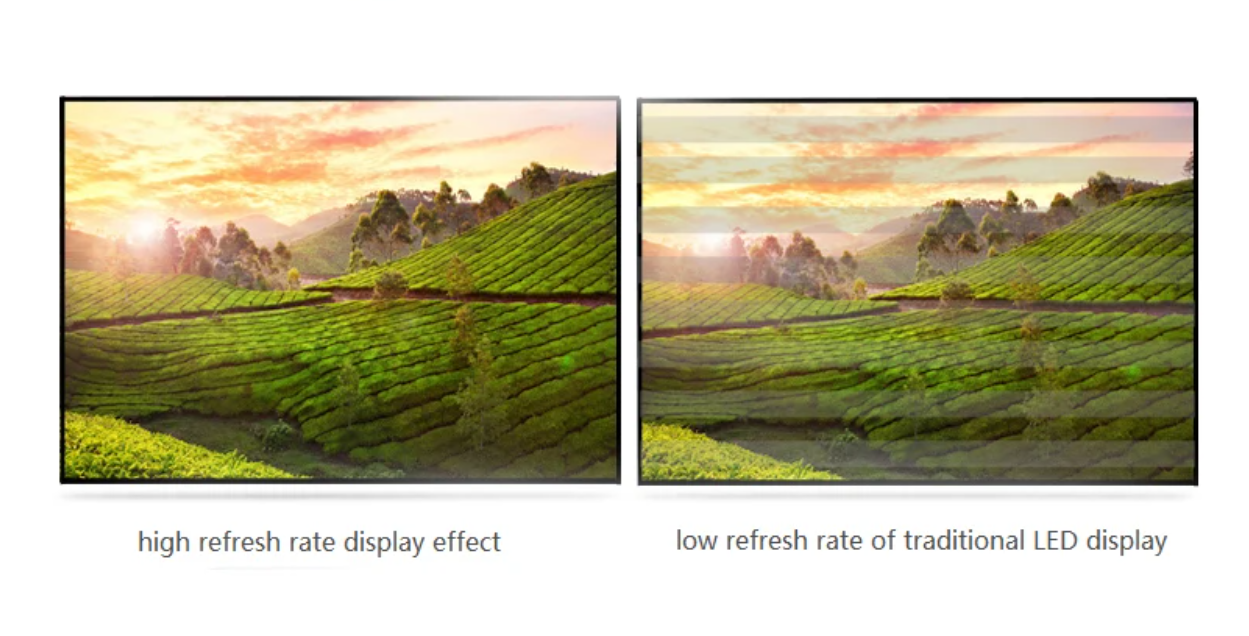

High refresh rate, switching does not flash

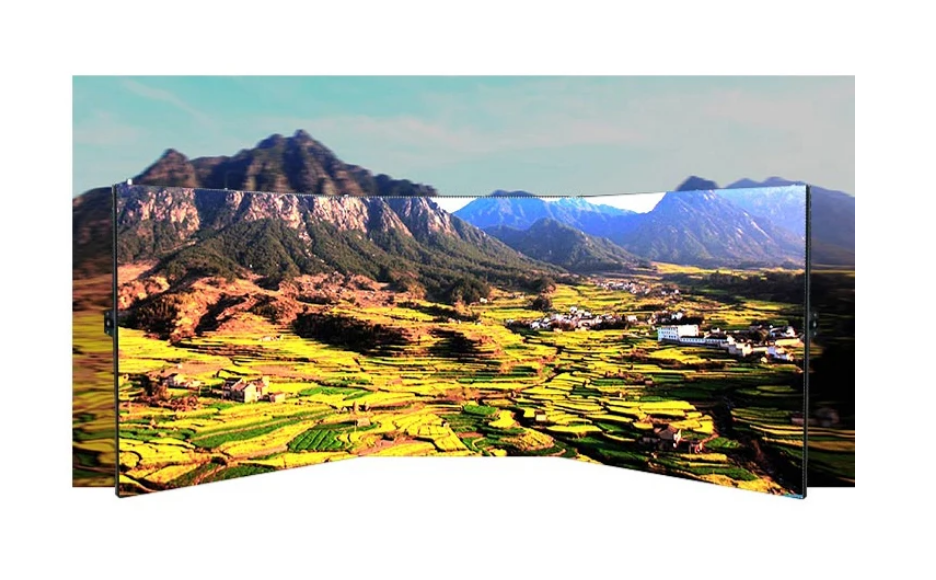

Large viewing angle, high consistency
Environmental protection and energy saving
| Indoor fixed installation display parameter information | ||||
| model NO | p2.5 | p3.33 | p4 | p5 |
| Pixel Pitch | 2.5mm | 3.33mm | 4mm | 5mm |
| Pixel Configu ration | SMD2121 | SMD2121 | SMD2121 | SMD2121 |
| Module Resolt tion | 128*64dots | 96* 48dots | 80*40dots | 64*32dots |

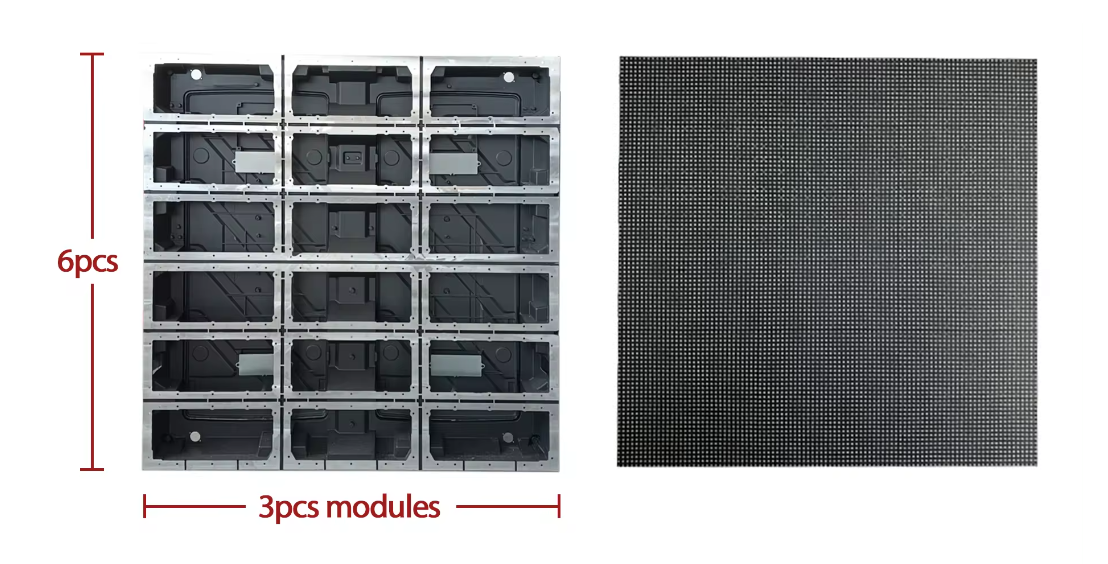

| Module Size | 320*160mm | |||
| Cabinet Size | 960*960mm | |||
| Pixel Density | 1 59990dots/m2 | 89994dots/m2 | 62496dots/m2 | 39997dots/m2 |

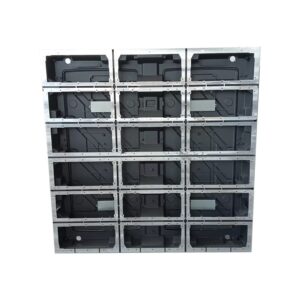

| Cabinet Material Die cast aluminu m | ||||
| Power Consumption(/ 260/780W/m | 400/800W/m | 400/800W/m | 450/900W/m | |
| Brightness | z1000cd/m? | |||
| Drive Mode | 1/32scan | 1/24scan | 1/20 scan | 1/16scan |
| View Angle(HN) | 120/120 | |||
| Best Viewing Distance3.13-8.33m | 4.16-11.1m | 5-13.33m | 6.25-16.67m | |
| Fresh rate | 1920HZ | |||
| Gray scale | 256(14-16bit) | |||
| Input Voltage | AC220V/50Hz or AC110V/60Hz | |||
| Defects Rate | s0.00001 | |||
| MTBF | >10,000 hours | |||
| Life span | z100,000 hours | |||
| Protective Grade | IP31 | |||
| Temperature-operating | -20C~ +60C | |||
| Humidity-operating | 10%~95% | |||
Indoor Product
P2.5
960*960mm Cabinet
320*160mm Module
1137778 pixles/㎡
P3.33
960*960mm Cabinet
320*160mm Module
89994dots/㎡
P4
960*960mm Cabinet
320*160mm Module
62496dots/㎡
P5
960*960mm Cabinet
320*160mm Module
39997dots/㎡
