EOD10 Series Outdoor LED Screen
Product Main Specifications
| Pixel Pitch: | 2.5/3/4/5/6/8/10mm | Panel Size: | 960x960mm |
| Charactristic: | Back Service | Power Supply: | DC 3.8 + 2.8V |
| Warranty: | 2 Years | Maintenance: | Back |
| Module Size: | 320*160mm | Comsunpution: | Max:480w/Aver:150w/m2 |
| Standard: | CE/ROHS/FCC/UL | Panel Material: | IP65 Waterproof Iron |
| Product name: | Outoor Led screen display energy saving outdoor advertising electronic energy saving LED Display | ||
More Features
Standard Modules

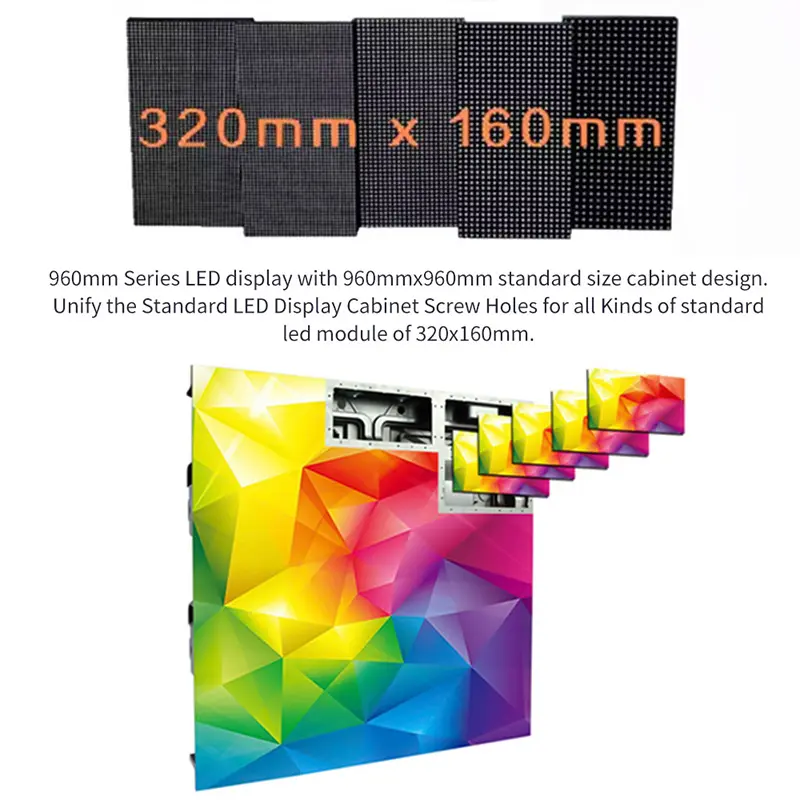

The cabinet size is 960*960mm, module size is 320*160mm. P3 to P20 outdoor led modules are all available.
960*960 outdoor energy saving LED Display

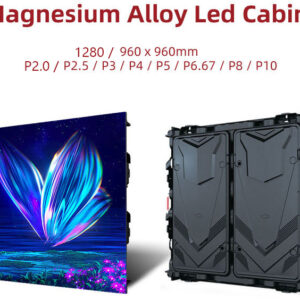

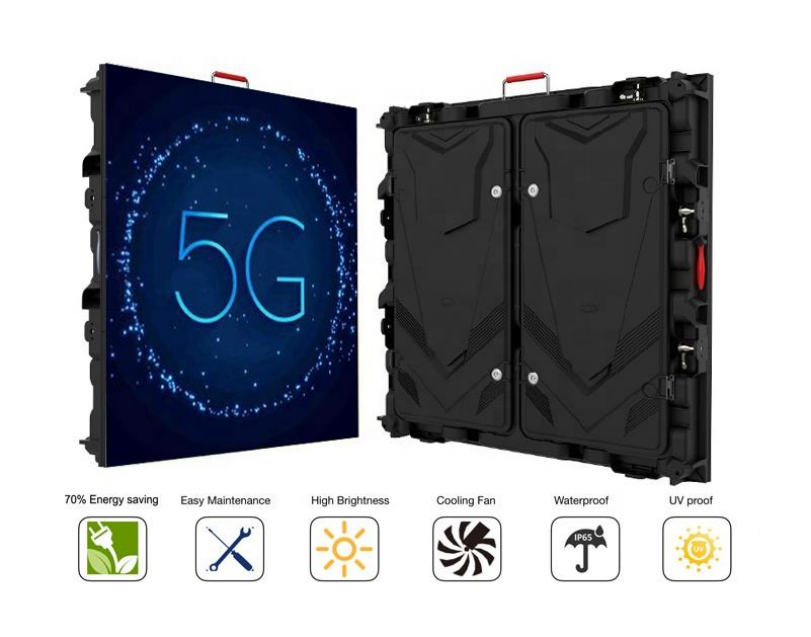

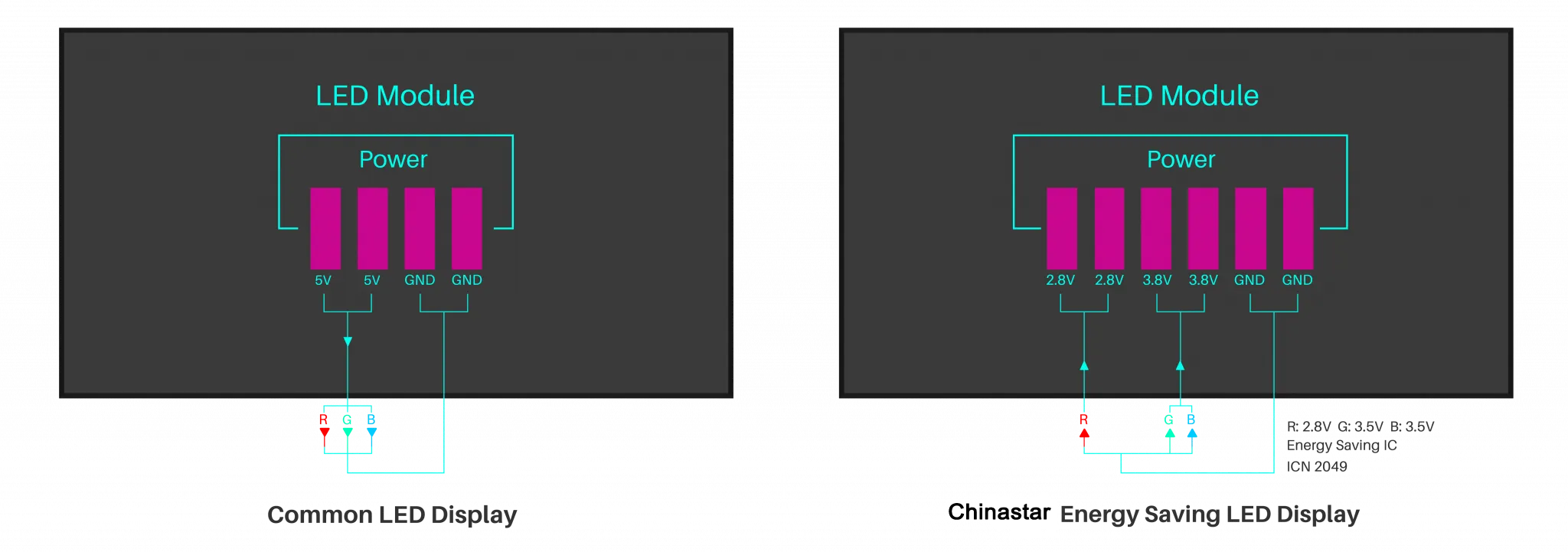

EOD Series Energy Saving LED Display is magnesium alloy display with the size of 960*960mm and high IP66 waterproof level. Unique panel design with 320*160mm module size. Ultra-low heat and power consumption, saving electricity with excellent visual experience.
Thinner and lighter
15kg/m lighter and 20% thinner than iron cabinet,
saving transportation space , reducing delivery weight
and bearing requirements of buildings and steel structures.
How to install outdoor LED display
Outdoor LED displays can be installed in various ways, such as wall-mounted, ground-mounted, suspended, column-mounted, etc. You can choose the appropriate installation method according to specific site conditions and needs to ensure the stable installation and good display effect of the LED display.
Three Function
Fixed installation: Fixed installation for advertisement,adding flying bar
Hanging installation: connectors and fast lock for rental,adding rubber
Sports perimeter display: cushion and bracket for perimeter displa
Working Process of EOD10 Series Outdoor LED Screen
The working process of the outdoor LED display is as follows: the external device sends a signal to the LED control system, the control system processes and converts the signal format, and then transmits it to the LED module to control the brightness and color of the LED lamp beads, and finally forms images, text or video content. and update the display as needed.
| ITEM | Parameters | |||||
| Pixel Pitch | 4mm | 5mm | 6.67mm | 8mm | 10 mm | 10 mm |
| Pxel Configuration | SMD1921 | SMD2727 | SMD3535 | SMD3535 | SMD3535 | DIP3461R1G1B |
| Drive IC | SM16237DS | ICN2069 +ICN2019 | ||||
| Scan Mode | 1/8Scan | 1/8 Scan | 1/6 Scan | 1/4 Scan | 1/2 Scan | 1/2 Scan |
| Module Size | 320*160mm | 320*160mm2 56*128mm | 320*160 mm | 320*160 mm | ||
| Cabinet Size(WH) | 960*960mm | 960*960mm/1 _024*768mm | 960*960mm | 960*960mm | ||
| Cabinet Pxels | 57600 dots | 35864 dots | 20736 dots | 14400 dots | 9216 dots | 9216 dots |
| Power Consumption | Max.: 450W/m, Aver: 120W /㎡ | Max: 400W/㎡, Aver..80W/㎡ | ||||
| Optimal View ing Distance | 4-60m | 5-80m | 7-100 m | 8-120m | 10-150m | 10-300m |
| Brightness | ≥6000 CD/㎡ | ≥7500CD/㎡ | ||||
| Material | Die-casting Aluminum | |||||
| Cabinet Weight | 30kg/㎡ | |||||
| View Angle | Horizontal140″ Vertical 140* | |||||
| Fresh requency | 21920HZ/s | |||||
| Operating Voltage | 2.8+3.8V | |||||
| input Voltage | AC110~220v(50/60HZ) | |||||
| MTBF | >10,000 hours | |||||
| Lfe span | z100,000 hours | |||||
| Grey Scale | 16 bit | |||||
| Protective Grade | P65 front,IP56 rear | |||||
| Temperature-operating | = 25 ~65 | |||||
