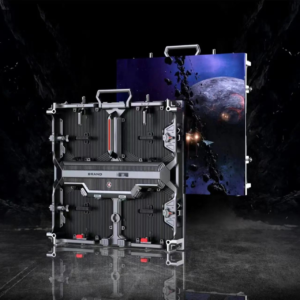

RO500 Rental LED Screen
Excellent in rental visual production came in all details from cabinet handle. cabinet fxiedslot, fast lock,magnet adsorption module, module installation knob-power& signal connector, detachable power boxing, and more
Different modules with different pixel pitches can be used on one frame.
Pixel pitch of products:P1.953,P2.5,P2.604,P2.976,P3.91,P4.81
Module dimensions: 250*500mm.

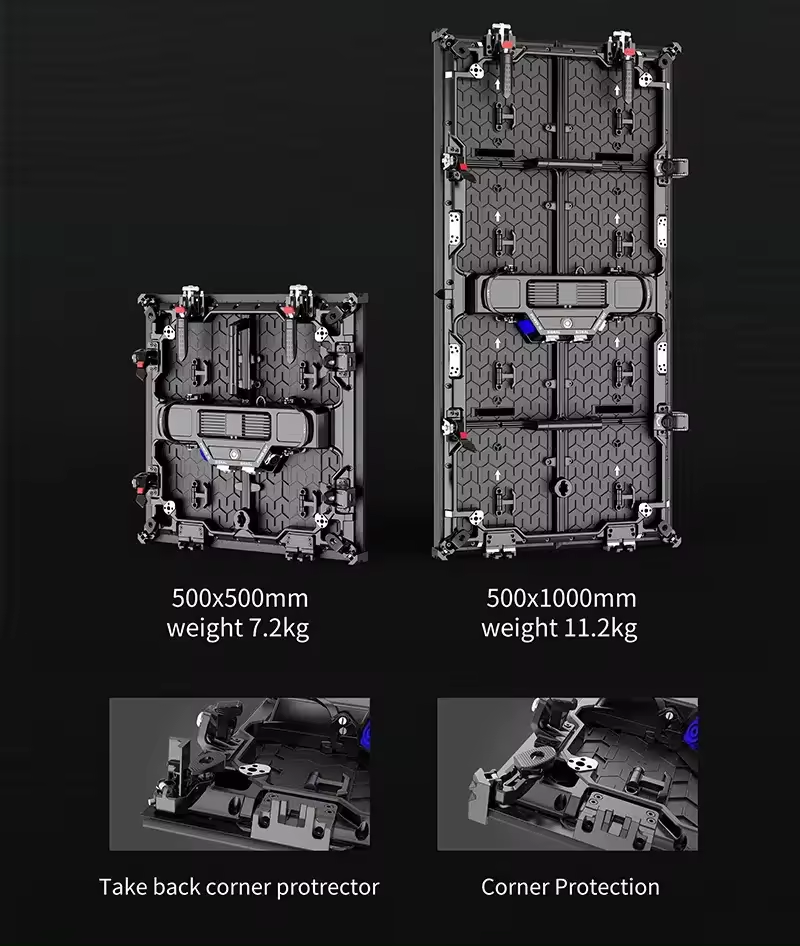

Panel dimensions: 500(W)*500(H)mm, 500(W)*1000(H)mm

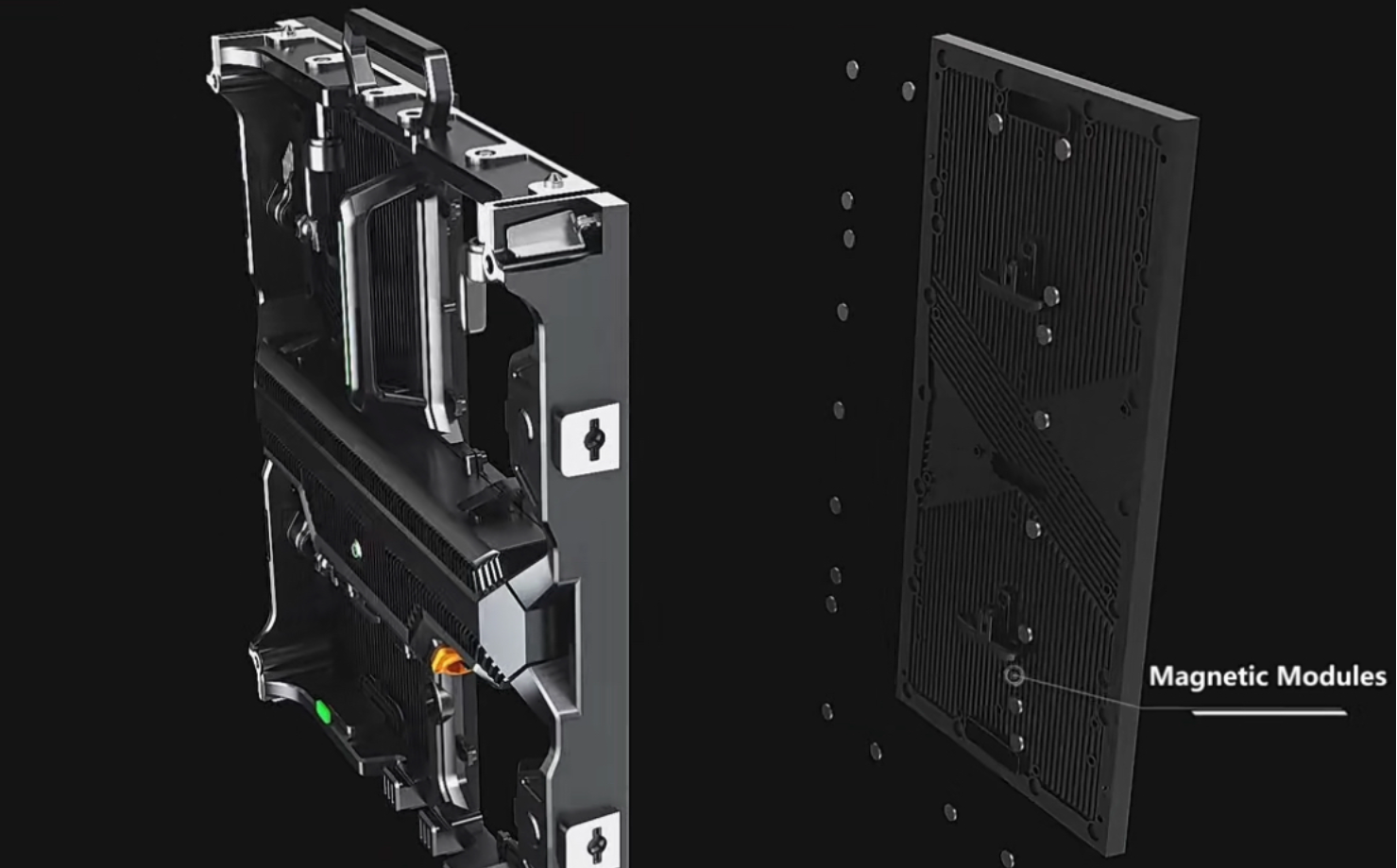

Modular Design for Fast Maintenance
The TG series’ classic modular design allows for front and rear maintenance of modules , making maintenance very user-friendly.

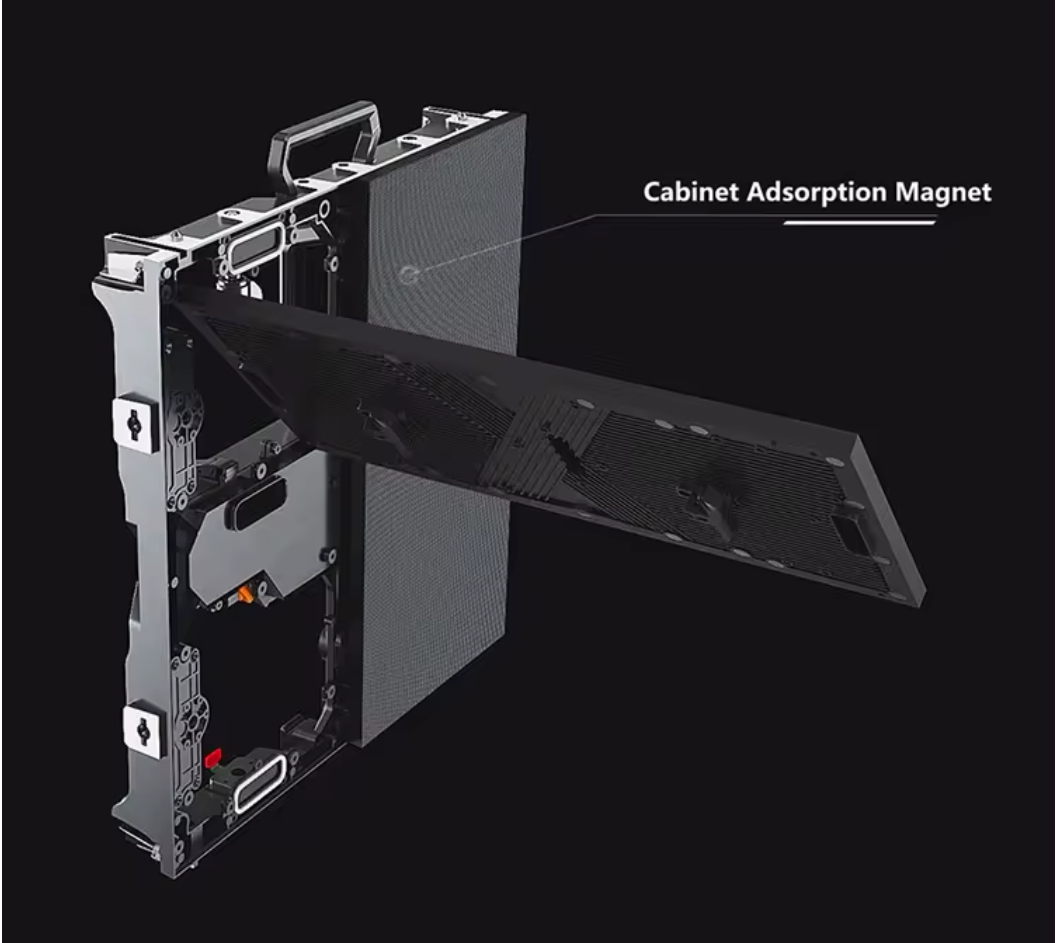

Cabinet Adsorption Magnet

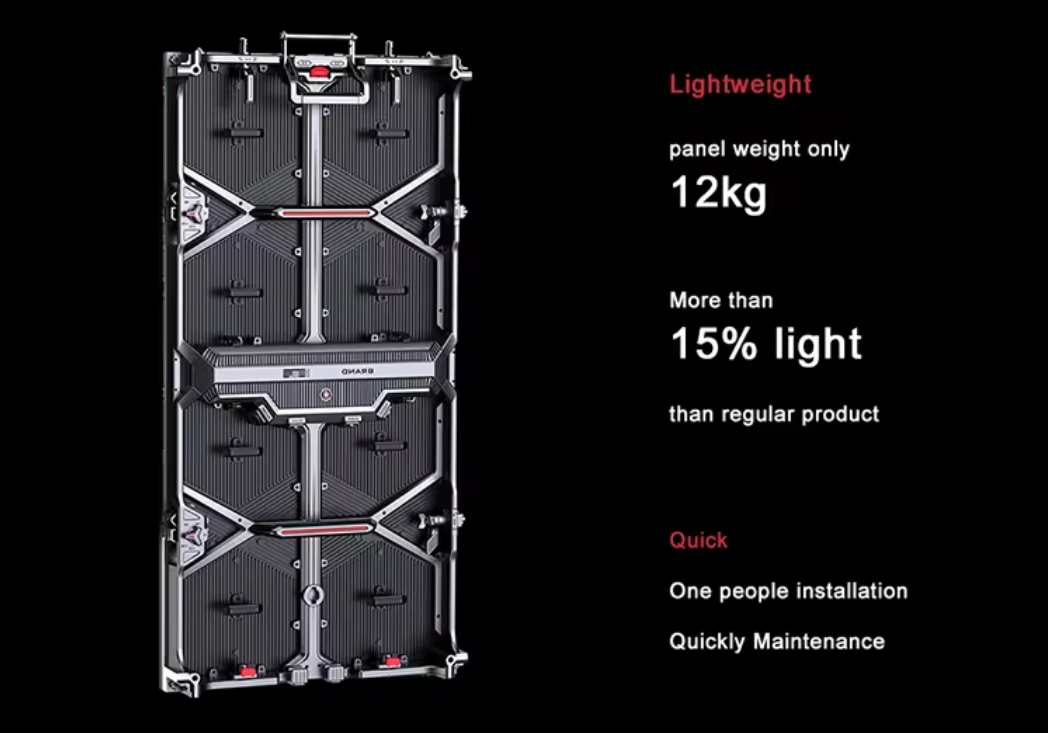

More Lightweight And Large
Lighter weight and larger size, ideal for large display applications

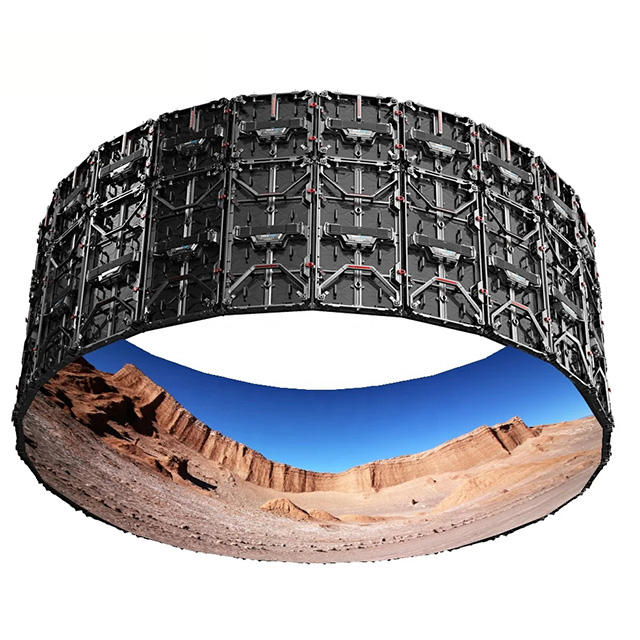

HIGH PRECISION CURVE LOCK
Adopt high-precision curve lock design (-10° to +15°), rotation control more accurate,easy to use. and quickly adjust the degree of curve.

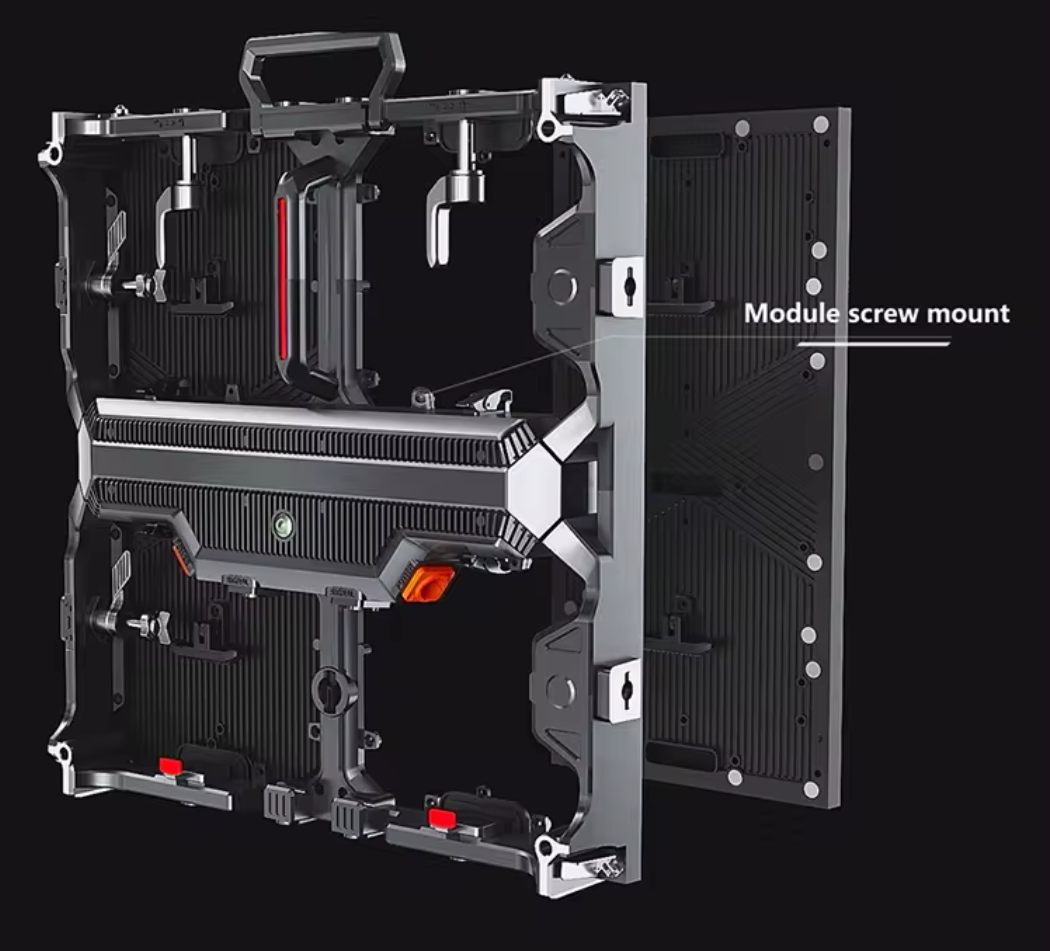

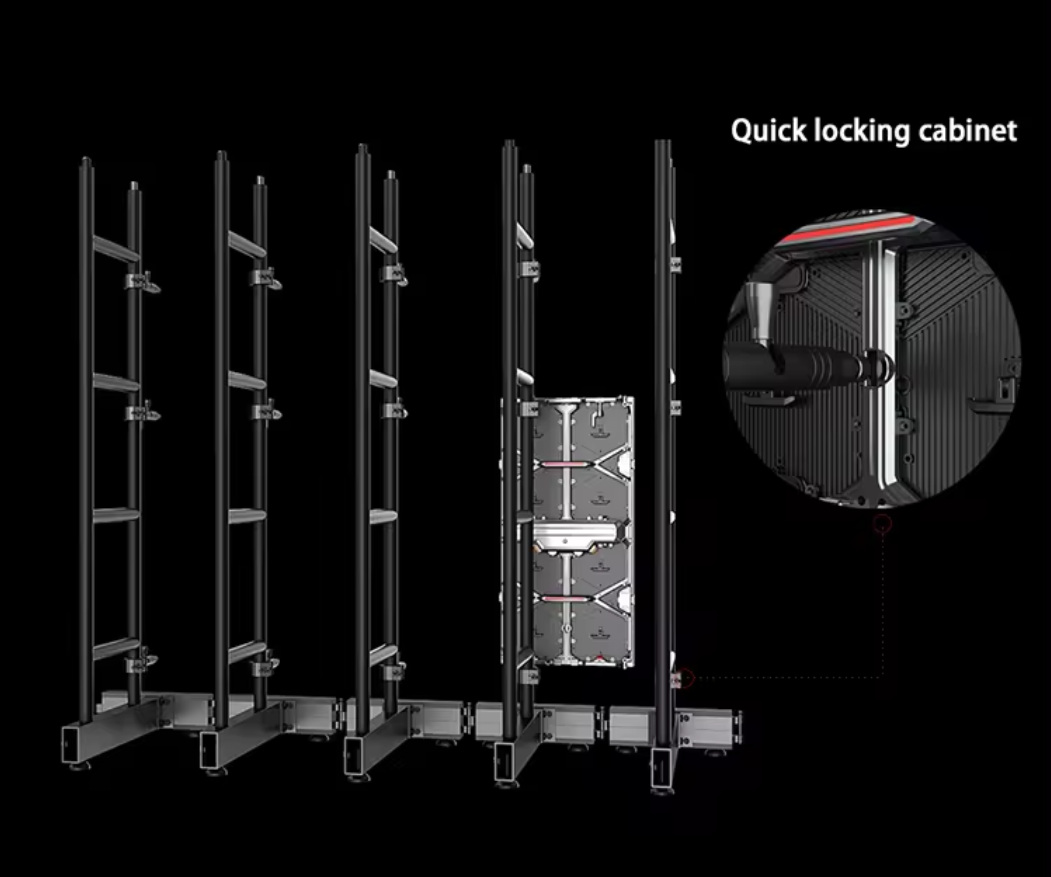

FAST ASSEMBLY
There are 2 fast lock each side for panel, quick operation ,also ensuring the flatness the whole screen

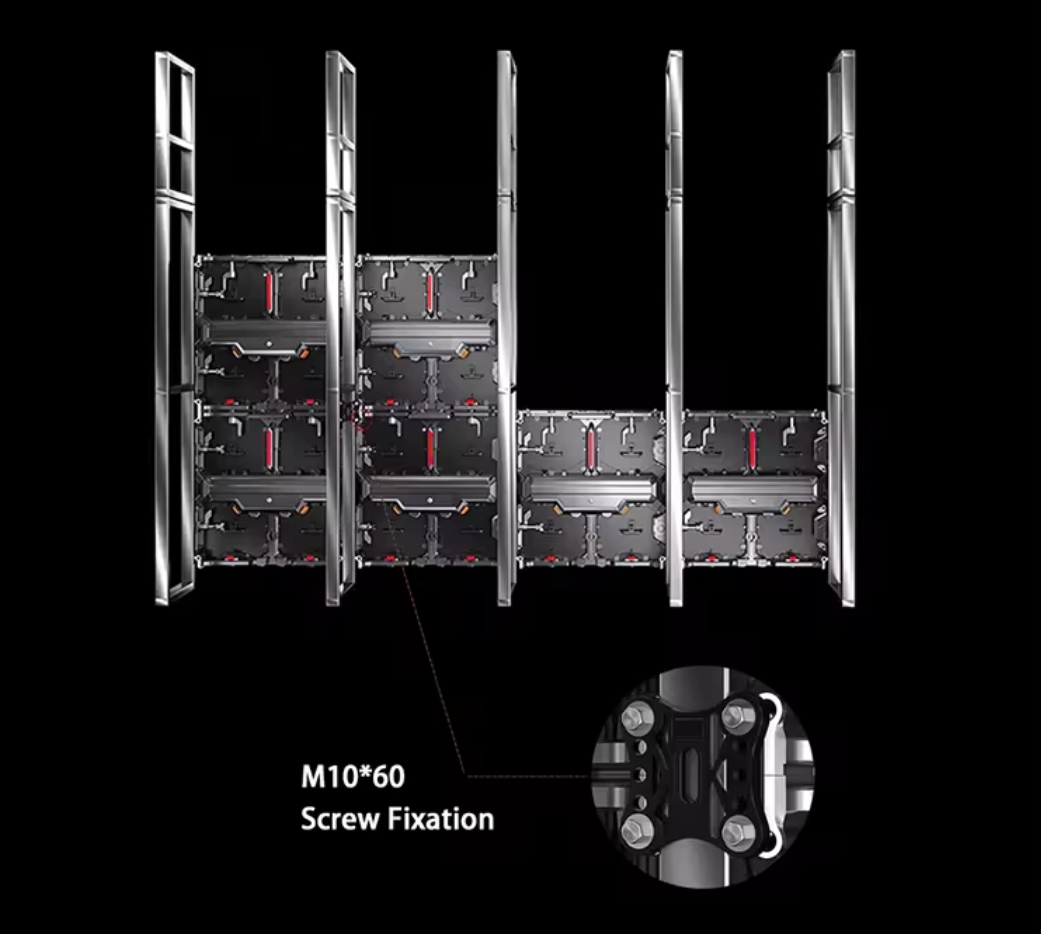

Easy to install
Hanging installation
Right angle and arc installation
Lighter and faster to installation
| Outdoor Rental led screen specification | |||
| Pixel | 2.97mm | 3.91mm | 4.81mm |
| LED Encapsulation | SMD1921 | SMD1921 | SMD1921 |
| Brightness | 5000nit | 5000nit | 5000nit |
| Module Size(mm) | 250×250 | 250×250/ 250×500 | 250×500/250×250 |
| Cabinet Size | 500×1000×80/500x500x80 | 500×1000×80/500x500x80 | 500×1000×80/500x500x80 |
| Material | Die Casting Aluminum | Die Casting Aluminum | Die Casting Aluminum |
| Scan Method | 1/14 Scan | 1/8 Scan | 1/13 Scan |
| Weight | 8Kg | 12.5Kg/ 8Kg | 12.5Kg/ 8Kg |
| Cabinet Resolution | 84×168/84x84dots | 256x128dots / 128x128dots | 104x208dots/104x104dots |
| Pixel Density | 112896Pixel/㎡ | 65536 Pixel/㎡ | 43264 Pixel/㎡ |
| Refresh Frequency | ≥1920Hz | ||
| Viewing Angle | 140/140 | 140/140 | 140/140 |
| Working Voltage | 110-220Volt/50/60hz | 110-220Volt/50/60hz | 110-220Volt/50/60hz |
| IP waterproof | IP65 | IP65 | IP65 |
| Optimal Viewing Distance | ≥ 2m | ≥ 3m | ≥ 4m |
| Working Temperature | -20~60 ℃ | – 20~60℃ | -20~60 ℃ |
Rental Screen
P2.97

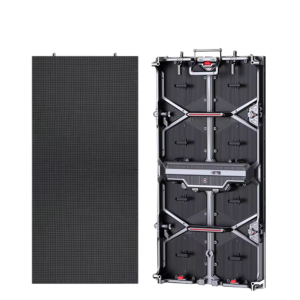

P3.91
