When selecting an LED display, one of the most critical technical aspects to consider is pixel pitch. The pixel pitch not only affects the resolution and visual clarity but also determines the appropriate viewing distance and cost. In this Artical, we’ll help you understand what pixel pitch means, how it impacts display performance, and how to choose the right pixel pitch for your application.
一、What is Pixel Pitch in LED Displays?

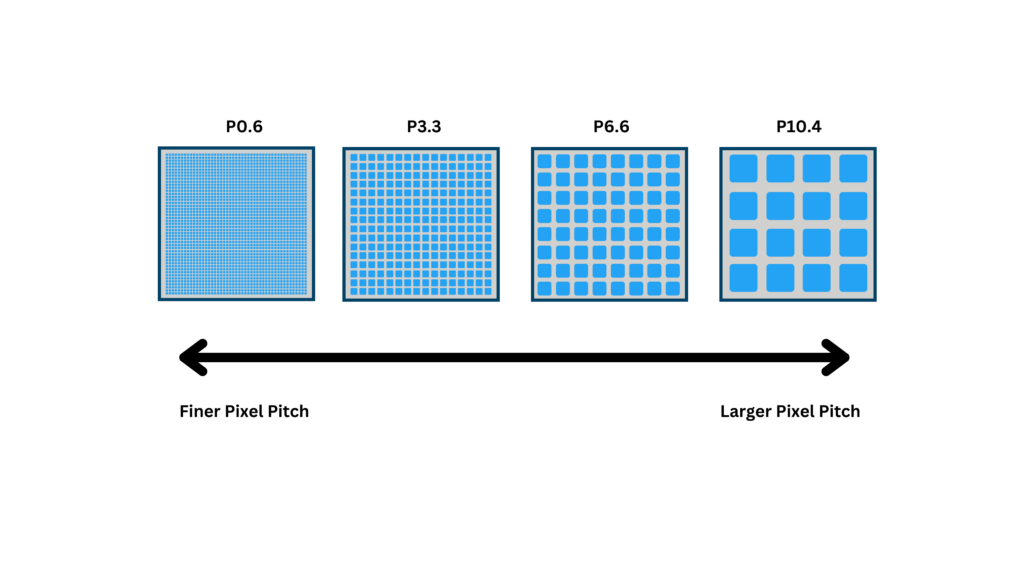

Pixel pitch refers to the distance (in millimeters) between the centers of two adjacent pixels on an LED screen. It’s commonly labeled as P1.2, P2.5, P4.0, etc. A smaller pixel pitch means higher resolution because the pixels are packed more tightly together. A larger pixel pitch means lower resolution but is typically more cost-effective and suitable for long-distance viewing.

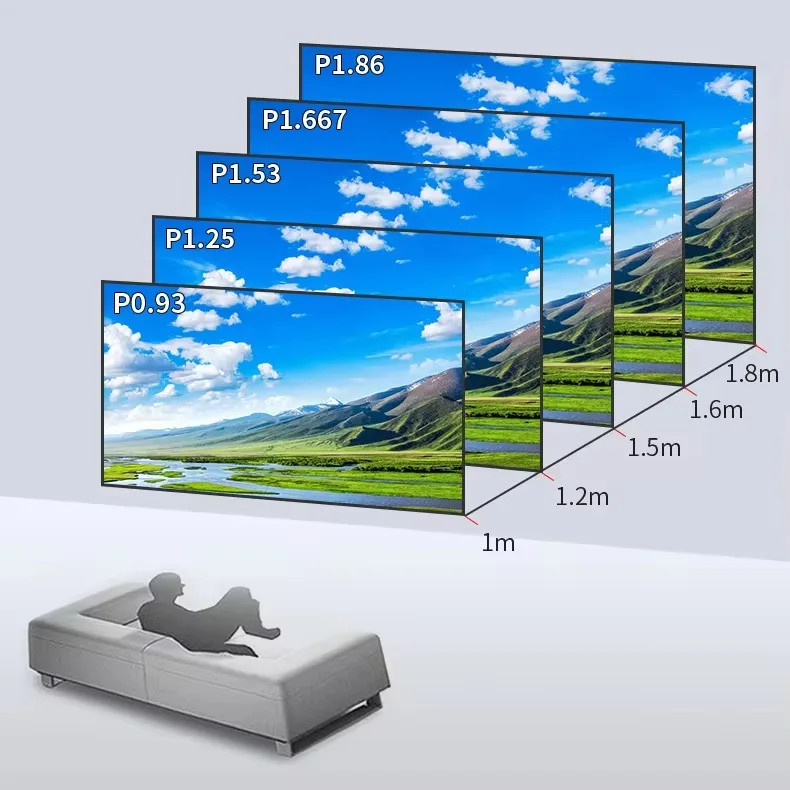

二、How Pixel Pitch Affects Viewing Distance and Image Quality
Understanding the relationship between pixel pitch and viewing distance is essential for optimal image quality:
| Pixel Pitch | Recommended Viewing Distance | Typical Applications |
|---|---|---|
| P0.9 – P1.5 | 1 – 3 meters | Control rooms, conference rooms, luxury retail |
| P1.5 – P2.5 | 3 – 6 meters | Shopping malls, indoor advertising, hotels |
| P2.5 – P4.0 | 6 – 15 meters | Indoor stages, exhibitions, public spaces |
| P5.0 – P10.0+ | 15 meters or more | Outdoor billboards, stadiums, building façades |
For example, using a P2.5 screen for a control room with a close viewing range would result in blurry images. Likewise, installing a P1.2 display on a roadside billboard would be unnecessarily expensive.
三、Indoor vs Outdoor Pixel Pitch Selection
Indoor LED Displays
Indoor environments usually have shorter viewing distances, which demand higher resolution. Choose smaller pixel pitches such as P1.2 – P2.5 for close-up applications like:
- Retail store displays
- Meeting room video walls
- Interactive kiosks
- Hotel lobbies
These environments benefit from sharp image clarity and rich detail, which smaller pitches can provide.
Outdoor LED Displays
For outdoor LED screens, brightness and visibility are more critical than pixel density. Viewers are typically farther away, so P4.0 – P10.0 is more appropriate. Ideal for:
- Building-mounted billboards
- Stadium screens
- Highway LED signage
- Outdoor event stages
Larger pixel pitches help reduce cost while still maintaining legibility at long distances.
四、Balancing Cost and Performance
Smaller pixel pitch = higher resolution, but also higher cost and higher power consumption. It’s important to match your display needs with your budget and viewing conditions.
If your audience is expected to be close to the screen, investing in a finer pitch (like P1.5) offers a better experience. For long-distance audiences, a coarser pitch (like P6 or P8) will save on cost without sacrificing legibility.
五、Other Factors to Consider
Content Type: High-definition videos and detailed graphics require finer pixel pitch.
Screen Size: Larger screens can sometimes offset the need for extremely small pixel pitch.
Installation Space: Tight spaces may limit viewing distance, requiring finer pitch.
Use Frequency: Permanent installations may justify higher investment; temporary or rental setups may favor larger pitches.
六、Conclusion
Choosing the right LED display pixel pitch ensures your content looks stunning, your message is clear, and your investment pays off. Always consider the viewing distance, application environment, budget, and content resolution needs.
