Modern conference rooms are increasingly replacing traditional projectors and LCD displays with LED conference all-in-one displays. These large-format LED meeting room solutions combine high-resolution visualization, interactive touch technology, motorized height adjustment, and smart conference functions in one integrated system.

A modern LED conference all-in-one display can be built around three core technologies: a COB fine pitch LED display, a touchscreen interactive system, and a motorized height adjustment system.

This combination creates a large, seamless, interactive display that can be used for corporate meetings, executive boardrooms, video conferencing, training rooms, smart classrooms, showrooms, and collaborative workspaces.

Compared with a conventional fixed LED video wall, an all-in-one LED conference display provides additional flexibility. The screen can be raised or lowered, users can write and interact directly on the display, and COB fine pitch LED technology can provide high pixel density for close-viewing applications.

一、What Is an LED Conference All-in-One Display?

An LED conference all-in-one display is an integrated LED meeting room system designed for presentations, video conferencing, digital whiteboarding, collaboration, and large-format content display.

Instead of installing a separate projector, LCD monitor, interactive whiteboard, camera, speaker system, and control equipment, an all-in-one LED conference solution can integrate many of these functions into one professional display system.

The core display uses a fine pitch indoor LED screen, while additional hardware can provide touch interaction and motorized movement.

A typical configuration may include:

• COB fine pitch LED display
• Touchscreen system
• Motorized lifting mechanism
• LED display controller
• Camera
• Microphone
• Speakers
• Windows or Android operating system
• Wireless screen sharing
• HDMI, USB and network interfaces

The exact configuration can be customized according to the conference room, screen size, viewing distance, and application requirements.

二、Three Core Features of an LED Conference All-in-One Display

The key characteristics of this type of LED meeting room display are height adjustment, touchscreen interaction, and COB fine pitch LED technology.

Together, these technologies transform a conventional LED video wall into a more flexible interactive conference room display system.

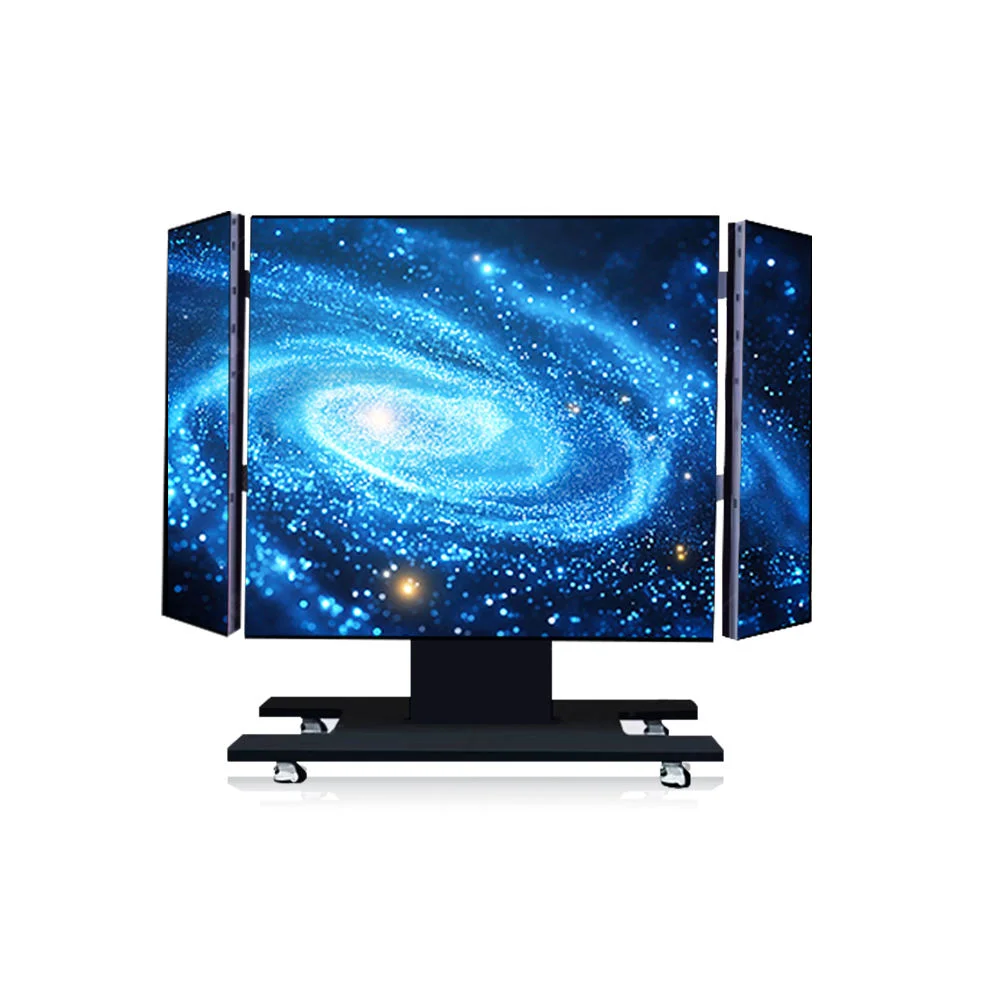

1. Height Adjustable LED Conference Display

A height adjustable LED display uses a motorized lifting structure to move the screen vertically.

Instead of permanently fixing the LED video wall to a wall, the display can be raised or lowered according to the meeting environment.

This is particularly useful for multi-purpose conference rooms where different activities require different screen positions.

For example, the display can be positioned for a presentation, adjusted for interactive whiteboarding, or lowered when the room needs to be used for another purpose.

The lifting mechanism can typically be controlled through a control panel, remote controller, or integrated control system, depending on the product configuration.

Advantages of a Motorized LED Screen

A motorized LED conference display provides:

Flexible screen positioning for different users and meeting scenarios.

Improved ergonomics because the display height can be adjusted according to the room and viewing position.

Multi-purpose room flexibility for meetings, training, presentations, and collaborative activities.

Modern installation design that can integrate the LED display into a professional conference room environment.

The lifting system should be selected according to the total weight of the LED display, lifting range, stability, operating noise, and safety requirements.

2. Touchscreen LED Conference Display

The second major feature is touch interaction.

A touchscreen LED display allows users to interact directly with the large LED screen instead of relying entirely on a mouse, keyboard, or remote controller.

Depending on the touch system, users can:

• Write on the LED screen
• Draw diagrams
• Annotate presentations
• Highlight important information
• Move and resize objects
• Operate applications
• Use digital whiteboard software
• Collaborate on documents

This turns the LED video wall into an interactive LED display rather than simply a passive screen.

For corporate meetings, this can be useful for brainstorming, strategy discussions, training, product demonstrations, and collaborative presentations.

How Does a Touchscreen LED Display Work?

The LED display itself is responsible for producing the image, while a separate interactive touch system detects user input.

Large LED displays can be combined with different touch technologies depending on the required screen size and application.

The complete interactive system can include:

LED display + touch frame or touch layer + interactive software + operating system.

When a user touches the screen, the touch system detects the position and sends the information to the computer or operating system.

The LED display then shows the corresponding response.

When purchasing an interactive LED meeting display, buyers should evaluate the complete touch system rather than only asking whether the LED screen is “touchscreen.”

Important factors include touch accuracy, response speed, simultaneous touch points, writing experience, calibration, and operating system compatibility.

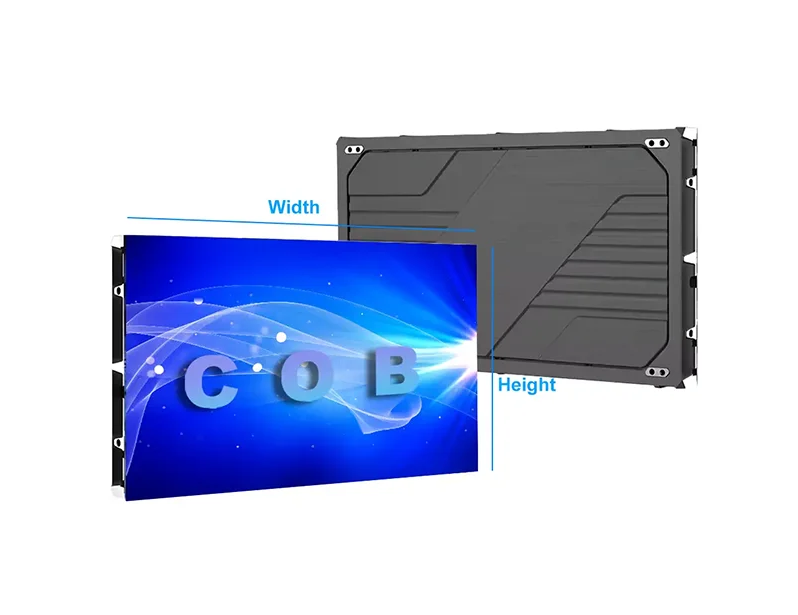

3. COB Fine Pitch LED Display

The third core technology is the COB fine pitch LED display.

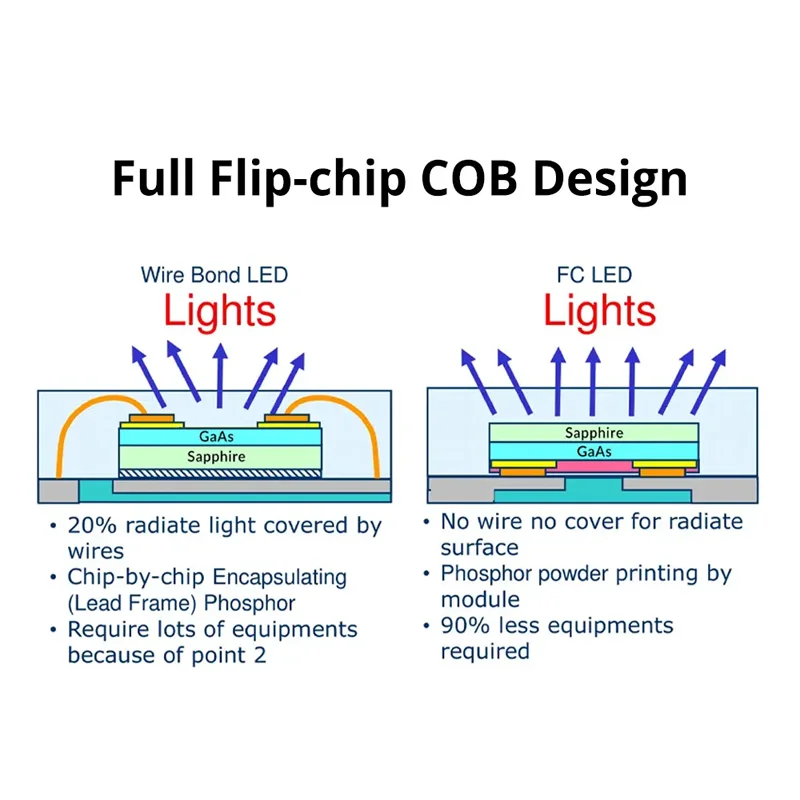

COB stands for Chip on Board.

Traditional SMD LED displays use packaged LED lamp beads mounted onto a PCB. COB technology directly mounts LED chips onto the PCB and uses an encapsulation process to protect the LED surface.

This makes COB technology particularly suitable for fine pitch indoor LED displays.

Common COB LED pixel pitches include:

P0.7, P0.9, P1.2, P1.5, and P1.8.

The smaller the pixel pitch, the greater the pixel density.

For conference rooms where participants may sit relatively close to the LED screen, fine pixel pitch can provide clearer text, charts, presentations, and detailed video content.

三、Why Use COB LED for a Conference Room?

People may sit only a few meters away from the screen and need to read detailed information.

A conference room LED display therefore needs to provide good close-viewing performance.

COB fine pitch LED technology can offer:

• High pixel density
• Fine pixel pitch
• Smooth display surface
• Strong surface protection
• Good close-viewing performance
• High reliability for professional indoor applications

This makes COB LED video walls an attractive option for premium boardrooms, executive meeting rooms, control rooms, corporate showrooms, and other professional environments.

四、COB LED vs SMD LED for Conference Room Displays

Both COB and SMD technologies are used in indoor LED video walls.

COB LED is particularly attractive when a project requires fine pixel pitch, high protection, and premium close-viewing performance.

SMD LED remains widely used because it offers a broad range of products and configurations.

五、Recommended Pixel Pitch for an LED Conference Room

Pixel pitch is one of the most important specifications when choosing a conference room LED display.

Typical options include:

There is no single pixel pitch that is ideal for every conference room.

The correct choice depends on viewing distance, screen size, room dimensions, content type, desired resolution, and budget.

For example, a P1.2 COB LED display can be appropriate for a high-end meeting room where viewers are relatively close to the screen.

For a larger room with longer viewing distances, P1.5, P1.8, or P2.5 may provide a more balanced solution.

六、LED Conference All-in-One Display for Video Conferencing

Video conferencing is one of the most important applications for modern meeting room displays.

A large LED screen can display:

• Remote participants
• Presentation slides
• Documents
• Shared computer screens
• Video content
• Charts and data

The all-in-one system can also integrate a conference camera, microphone, and speaker system.

This creates a complete visual and communication platform for hybrid meetings.

Depending on the system configuration, the display can be used with popular video conferencing and collaboration software. Software compatibility should be confirmed based on the operating system and computing hardware selected for the project.

七、Interactive LED Digital Whiteboard

With touch functionality, an LED conference display can also replace a traditional whiteboard.

During a meeting, users can switch between presentation mode and digital whiteboard mode.

For example, a team can display a presentation, annotate a chart, draw a workflow, brainstorm ideas, and save meeting notes without switching to another display device.

This makes a touchscreen LED video wall useful for:

• Brainstorming
• Project planning
• Corporate training
• Strategy meetings
• Product demonstrations
• Education
• Remote collaboration

八、LED Conference Display vs Traditional Projector

Projectors remain useful in many environments, but LED displays provide several advantages for modern meeting rooms.

For professional conference rooms that require high brightness, large-format visuals, and interactive functionality, an LED display can provide an integrated solution.

九、LED Conference Display vs Interactive LCD Panel

Interactive flat panels are another common meeting room display technology.

However, LED displays provide greater flexibility in screen size.

For small meeting rooms, an interactive LCD panel may be sufficient.

For large conference rooms, boardrooms, and corporate presentation centers, a seamless fine pitch LED video wall can provide a larger and more immersive visual area.

十、Applications of LED Conference All-in-One Displays

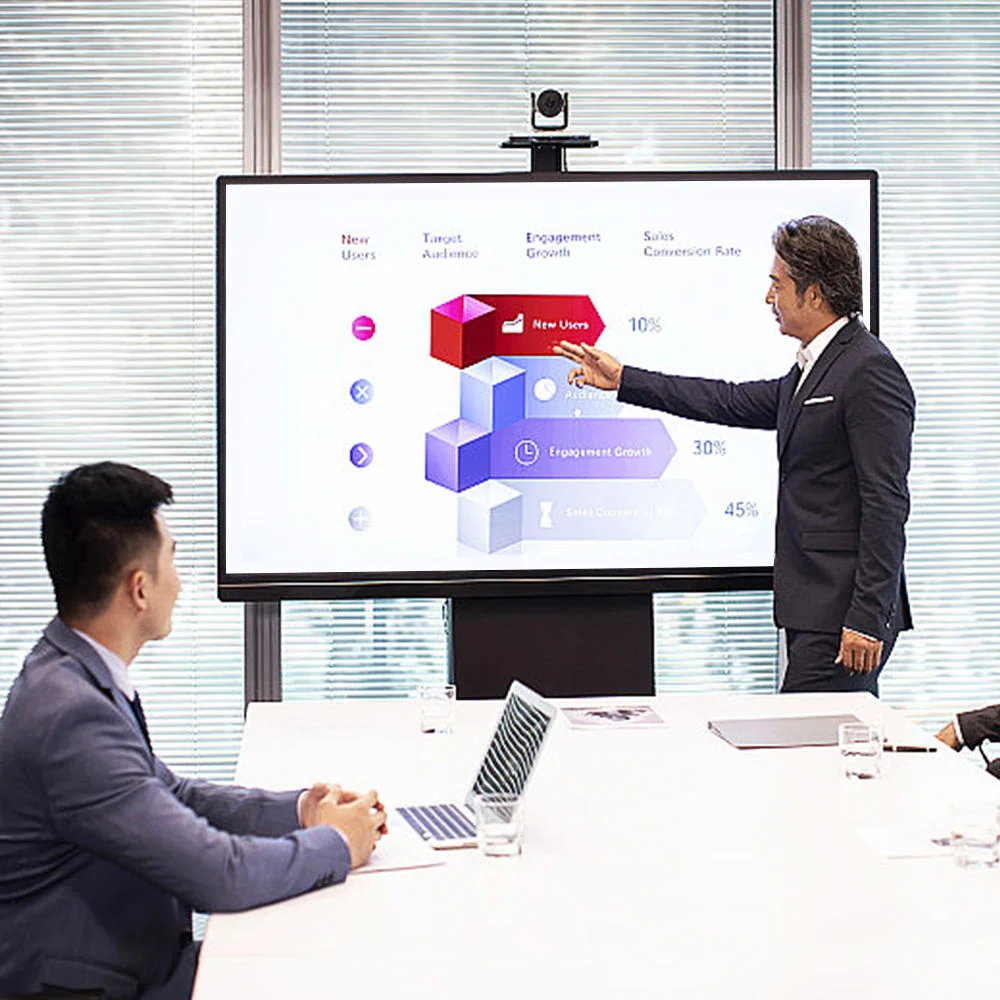

Corporate Conference Room

A corporate meeting room can use an LED conference display for presentations, video conferencing, digital whiteboarding, and collaboration.

The height adjustment feature can provide additional flexibility when the room is used by different teams.

Executive Boardroom

A COB fine pitch LED boardroom display can provide a premium visual solution for executive meetings.

P0.9, P1.2, and P1.5 COB LED displays can be considered depending on viewing distance and resolution requirements.

Training Room

Training rooms require clear visibility for presentations, instructional videos, documents, and software demonstrations.

A large interactive LED display can allow trainers to write directly on presentations and diagrams.

Smart Classroom

An interactive LED display can combine large-format visualization with digital whiteboard functionality.

Teachers can display educational content, write notes, show videos, and interact with learning software.

Corporate Showroom

A large interactive LED video wall can also be used in corporate showrooms and experience centers.

Visitors can interact with product information, company presentations, videos, graphics, and digital demonstrations.

十一、What Is Included in an LED Conference All-in-One System?

A complete LED meeting room system can contain multiple components.

The exact configuration can be customized according to the customer’s requirements.

For example, a customer may only need COB fine pitch LED + motorized lifting, while another project may require a complete touchscreen LED conference system with camera, microphone, speakers, and wireless presentation.

十二、How to Choose an LED Conference All-in-One Display

1）Choose the Right Pixel Pitch

Start with viewing distance rather than simply choosing the smallest pixel pitch.

A close-viewing boardroom may benefit from P0.9 or P1.2.

A medium-sized conference room may use P1.2, P1.5, or P1.8.

A larger room may not require an ultra-fine-pitch LED display.

2）Choose COB or SMD

COB is worth considering when the project emphasizes:

Fine pixel pitch, surface protection, close viewing, and premium appearance.

SMD can be attractive when the project emphasizes:

Cost efficiency, product variety, and conventional LED display configurations.

3）Decide Whether Touchscreen Functionality Is Required

Touch functionality is particularly useful for meetings involving:

• Brainstorming
• Training
• Digital whiteboarding
• Interactive presentations
• Collaborative work

If the display is primarily used for video playback and presentations, touch may not be essential.

4）Consider the Motorized Lifting System

A height adjustable LED display is useful when the room has multiple purposes.

Before selecting a lifting mechanism, consider the display weight, lifting height, installation structure, stability, noise level, and safety system.

5）Consider the Complete Conference System

The LED screen is only one part of a meeting room system.

The complete solution may also require:

Camera + Microphone + Speakers + Computer + Operating System + Wireless Presentation + Control System.

Evaluating these components together can help avoid compatibility problems during installation.

十三、Advantages of an LED Conference All-in-One Display

The combination of COB fine pitch LED, touchscreen interaction, and motorized height adjustment provides several advantages.

Large and Seamless Visual Area

Unlike multiple LCD panels, an LED video wall can provide a large seamless display without conventional panel bezels.

Flexible Screen Height

The motorized lifting system allows the screen position to be adjusted according to different meeting scenarios.

Interactive Collaboration

Touch functionality allows users to write, annotate, draw, and interact with digital content.

Fine-Pitch Image Quality

COB fine pitch LED technology provides a high pixel density solution for close-viewing conference rooms.

Integrated Meeting Experience

The system can combine visual display, digital whiteboarding, video conferencing, audio, and wireless presentation into one professional meeting room solution.

十四、LED Conference All-in-One Display Price

The price of an LED conference all-in-one display depends on the complete configuration.

Important cost factors include:

• LED screen size
• Pixel pitch
• COB or SMD technology
• Touchscreen system
• Motorized lifting mechanism
• LED cabinet
• LED controller
• Receiving cards
• Camera
• Microphone
• Speakers
• Operating system
• Wireless presentation system
• Installation structure

A COB P1.2 touchscreen height adjustable LED display, for example, will have a very different project cost from a standard fixed SMD P2.5 LED video wall.

Therefore, buyers should request a complete system quotation rather than comparing only the price per square meter.

十五、Future of LED Meeting Room Displays

The development of conference room display technology is moving toward higher resolution, smarter interaction, and greater integration.

Fine pitch LED and Micro LED technologies are enabling higher pixel density for close-viewing applications.

COB LED technology is becoming increasingly important for premium indoor LED video walls.

Interactive LED displays are turning traditional video walls into collaborative workspaces.

Motorized and movable LED structures are providing more flexibility for multi-purpose meeting rooms.

At the same time, AI-powered cameras, voice processing, automatic framing, wireless collaboration, and smart meeting software are making conference rooms more intelligent.

The future conference room is therefore likely to rely less on separate devices and more on an integrated LED meeting room display solution.

十六、Frequently Asked Questions

Q1: What is an LED conference all-in-one display?

An LED conference all-in-one display is a large-format LED meeting room system that can integrate a fine pitch LED screen with touch interaction, motorized height adjustment, video conferencing, audio, and collaboration functions.

Q2: What are the main features of an LED meeting all-in-one display?

The main features include COB fine pitch LED display, touchscreen interaction, and motorized height adjustment. Depending on the configuration, the system can also include cameras, microphones, speakers, wireless presentation, and smart meeting software.

Q3: Can an LED conference display be raised and lowered?

Yes. A motorized lifting structure can be integrated with the LED display to provide electric height adjustment.

Q4: Can a COB LED display be touchscreen?

Yes. A COB fine pitch LED display can be combined with an interactive touch system to create a touchscreen LED video wall.

Q5: What pixel pitch is suitable for a conference room?

P0.9, P1.2, P1.5, and P1.8 are common fine-pitch options. The correct pixel pitch depends on viewing distance, room size, screen size, content, resolution requirements, and budget.

Q6: Is COB LED better than SMD LED for conference rooms?

COB and SMD have different characteristics. COB is particularly suitable for fine-pitch, close-viewing, and premium indoor applications, while SMD offers a broad range of configurations and can provide a more cost-efficient option.

Q7: Can an LED conference display replace a projector?

In many conference rooms, yes. An LED display provides a bright, large-format visual surface without requiring a projection screen. Whether it is the appropriate choice depends on the room, application, screen size, and project budget.

Q8: Can an LED meeting display be used as a digital whiteboard?

Yes. When combined with a compatible touchscreen system and software, an LED display can support digital whiteboarding, annotation, drawing, and interactive collaboration.

十七、Conclusion

An LED conference all-in-one display combines the functions of a large LED video wall with interactive meeting technology.

Its three defining features are motorized height adjustment, touchscreen interaction, and COB fine pitch LED technology.

The motorized system provides flexible screen positioning. The touchscreen turns the display into an interactive collaboration and digital whiteboard platform. The COB fine pitch LED display provides high pixel density and a professional visual experience for close-viewing conference environments.

For corporate meeting rooms, executive boardrooms, training centers, smart classrooms, showrooms, and video conferencing spaces, this combination can provide a more integrated alternative to traditional projectors, LCD displays, and separate meeting room equipment.

When selecting an LED conference room display, buyers should evaluate pixel pitch, viewing distance, COB or SMD technology, screen size, touch performance, lifting mechanism, video conferencing hardware, and total system cost together.

The goal is not simply to purchase a large LED screen, but to create a complete interactive, height adjustable, fine pitch LED meeting room solution that fits the way the space will actually be used.
