一、How to Choose LED Screen Size: Step-by-Step Guide
Choosing the right LED screen size is one of the most important decisions when planning an LED display project.
If the screen is too small, your audience won’t see clearly.
If it’s too large, you’ll waste budget unnecessarily.
In this guide, we’ll show you exactly how to choose the perfect LED screen size based on viewing distance, application, and budget.
二、Why LED Screen Size Matters
The size of your LED display directly affects:
- viewing experience
- image clarity
- overall project cost
The right size ensures:
- better audience engagement
- professional visual impact
- cost efficiency
Step 1: Measure Viewing Distance
The most important factor is viewing distance.
Rule of Thumb:
Screen width = viewing distance ÷ 2
Example:
| Viewing Distance | Recommended Width |
|---|---|
| 4m | 2m |
| 6m | 3m |
| 10m | 5m |
This ensures comfortable viewing without eye strain.
Step 2: Choose the Right Aspect Ratio
Most LED screens use: 16:9 (standard)
Why 16:9?
- fits most video content
- ideal for presentations
- widely used in events
Other options:
- 4:3 → conference rooms
- custom → creative displays
Step 3: Match Screen Size with Application
Different applications require different sizes.
Conference Room
- 5–20 sqm
- smaller but higher resolution
Stage Events
- 30–100+ sqm
- large visual impact
Retail Store
- 10–30 sqm
- eye-catching display
Church LED Display
- 20–60 sqm
- clear visibility for audience
Outdoor Billboard
- 50–200+ sqm

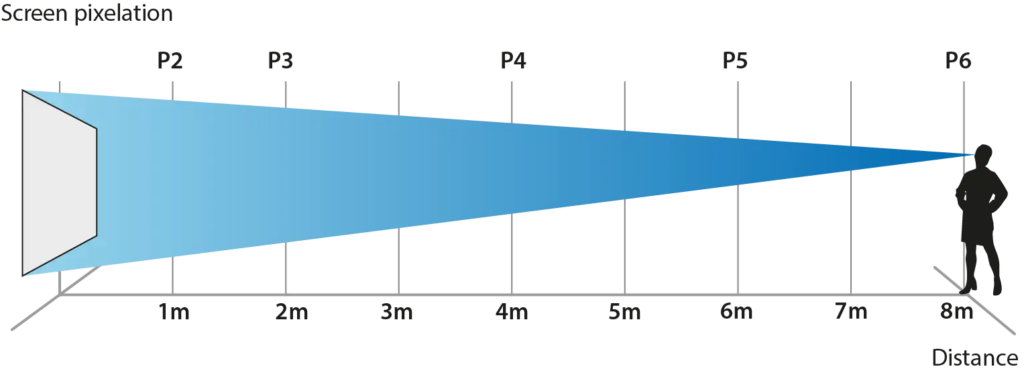

Step 4: Consider Pixel Pitch
Pixel pitch must match screen size and distance.
Quick Guide:
| Distance | Pixel Pitch |
|---|---|
| 2–3m | P2.5 |
| 3–5m | P3 |
| 5–10m | P3.91 / P4 |
| 10m+ | P5+ |
Larger screens usually use larger pixel pitch to control cost.
Step 5: Calculate Total Screen Area
Formula:
Area (sqm) = Width × Height
Example:
- Width: 3m
- Height: 1.7m
Area = 5.1 sqm
三、LED Screen Size vs Cost
Bigger screen = higher cost, but not always better.
Estimated Price:
- Small (5–10 sqm): $5,000 – $20,000
- Medium (10–50 sqm): $10,000 – $80,000
- Large (50+ sqm): $40,000+
Optimizing size can save: 20–40% budget
四、Common Mistakes to Avoid
❌ Screen Too Small
Poor visibility
❌ Screen Too Large
Wasted budget
❌ Ignoring Viewing Distance
Leads to bad user experience
❌ Wrong Aspect Ratio
Content distortion
五、Quick LED Screen Size Calculator Table
| Distance | Suggested Size |
|---|---|
| 3m | 1.5 × 0.85m |
| 5m | 2.5 × 1.4m |
| 8m | 4 × 2.25m |
| 10m | 5 × 2.8m |
六、Real Project Example
A company planned a conference LED wall:
- Viewing distance: 6m
- Recommended size: 3m × 1.7m
Result:
- perfect visibility
- optimized budget
七、FAQs About LED Screen Size
Q1: How big should my LED screen be?
Depends on viewing distance and application.
Q2: Is bigger always better?
No, correct sizing is more important than size.
Q3: Can LED screens be customized?
Yes, fully modular.
八、Get Your Free LED Screen Size Recommendation
Not sure what size you need?
Send us:
- room or stage size
- viewing distance
- application
We will provide:
- exact screen size
- pixel pitch recommendation
- full quotation
Get your free LED solution now
