What is a rental LED display

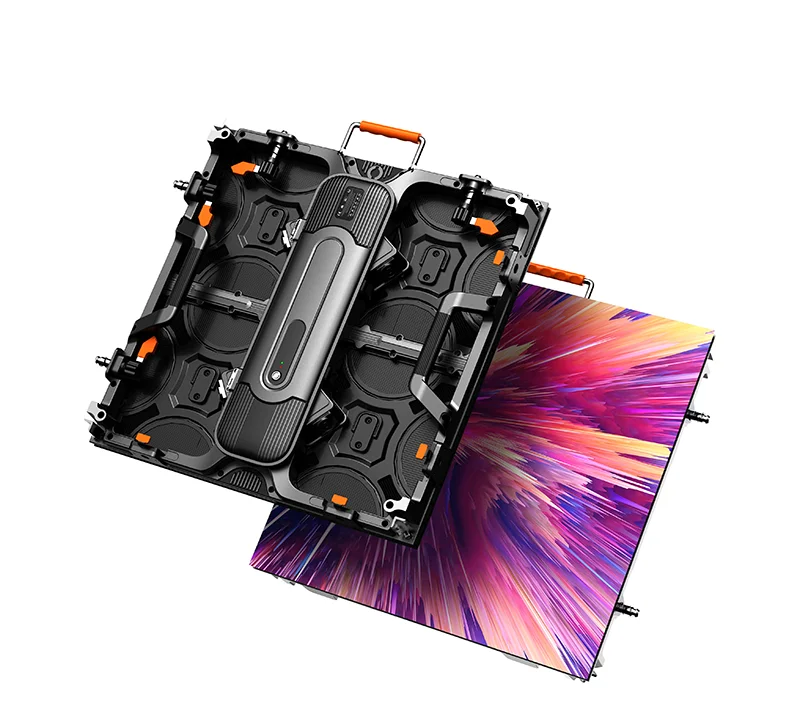

The most notable feature of LED rental screens is their high degree of flexibility. Unlike fixed LED displays, rental screens will not be fixed in one place for a long time, but will provide services for a variety of activities, such as music events, exhibitions, commercial product launches, etc. Its design uses a custom die-cast aluminum shell, making the screen cabinet thin and light, allowing for quick installation and removal. It generally appears in the form of rental, so it is called LED rental screen.

Through LED rental display screens, you not only get advanced technical support, but also experience the perfect combination of flexibility and efficiency, meeting the diverse needs of display screens for different activities. Choose an LED rental display to make your event glow and attract attention.

How to Control Rental LED Display Board

There are two kinds of control methods including synchronous and asynchronous control systems. The basic structure of LED control system is generally like what the picture shows:

When you choose a LED display using synchronous control system, it means the display will show the real-time content of the computer screen connected to it.

The synchronous control method needs the computer (input terminal) to connect the synchronous sending box, and when the input terminal provides signal, the display will show the content, and when the input terminal stops the display, the screen will stop too.

And when you applying asynchronous system, it doesn’t display the same content that is being played on the computer screen, meaning you may edit the content firstly on the computer and send the content to the receiving card.

Under the asynchronous control method, the contents will be edited by computer or mobile phone firstly and will be sent to the asynchronous LED sender box.

The contents will be stored in the sender box, and the screen can display the contents that have already been stored in the box. This allows the LED displays to show the contents themselves separately.

Moreover, there are some points for you to understand the differences better:

(1) Asynchronous system mainly controls the screen by WIFI/4G, but you also can control the screen through computers too.

(2) One of the most obvious differences lies in the truth that you can’t play the real-time contents by the asynchronous control system.

(3) If the number of total pixels is under 230W, then both of the two control systems can be chosen. But if the number is larger than 230W, it is recommended you can only choose the syn control method.

Typical LED Display Control Systems

After we know the two types of common control methods, now let us get started to figure out several control systems we often apply:

(1) For asynchronous control: Novastar, Huidu, Colorlight, Xixun, and so on.

(2) For synchronous control: Novastar, LINSN, Colorlight, and so on.

Moreover, how to choose the corresponding sending card/receiving card modes for the displays? There is a simple criteria – choose the one based on the loading capacity of the cards and the resolution of the screen.

The above is a brief introduction to the control methods and control systems of rental LED display screens. Please contact us for more details!

Installation Precautions:

1. Be careful when moving the cabinet: Be careful during the transportation process to avoid bumps on the edges to prevent problems such as the LED lamp beads falling.
2. Avoid installation while the power is on: Never install the LED box while the power is on to ensure safe operation.
3. Check the LED screen before powering on: Before powering on the LED screen, use a multimeter to check the LED module to eliminate potential problems.

Common installation methods include:

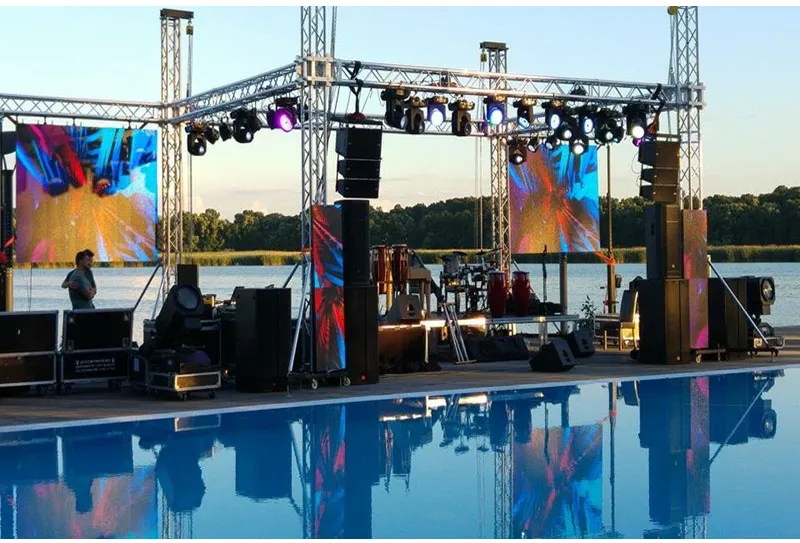

1. Suspension method: The screen is suspended from above to an overhead truss system, ceiling grid, crane or other support structure.
2. Stacking method: The staff places the entire weight of the screen on the ground and supports it at multiple locations to ensure that the screen is stable and solid.

Diverse LED screen installation methods:

• 90 degree right angle installation: Beautiful appearance, small right angle joints, providing stable and reliable display quality.
• Arc installation: High-precision arc lock allows easy arc installation, suitable for inner and outer arcs to achieve convex and concave LED screen effects.

• Hoisting: Suitable for hanging rental LED walls, make sure the size is not too large, connect through the hanging beam and the bottom beam, there is a hanging beam on the top, and a bottom beam on the bottom, use a lifting mechanism to connect, the horizontal box is fastened by a lock.

• Stage LED screen bracket truss installation: The newly designed stage LED truss system is suitable for ground-fixed LED screens. It is made of high-grade lightweight aluminum and is suitable for cabinets of different sizes. The wheels at the bottom are removable. In addition to flat video walls, Curved LED screens with adjustable legs are also available for rent.
• Fixed installation: Truss fixed installation is the most common way to rent LED screens indoors and outdoors. First build the steel frame, and then assemble the LED display by stacking it. The quick locking design greatly saves installation time. The LED box can also be installed at the end of the event. Quick disassembly afterwards.
