RP3.91 – Model of The New Generation of Rental LED Screens!

In this article, we will introduce Chinastar LED’s latest rental LED screen series – PR series, which focuses on solving problems such as instant installation, easy maintenance and impact resistance. The reasons why we strongly recommend the RP series include but are not limited to:



√  Never-off power: Even unplugging the power plug will not cause the screen to go black.

√  Integrated modular design: Equipped with dual backup design for power supply and signal to improve stability and reliability.

√  Excellent screen design: including thoughtful corner protection and lightweight design for easy transportation and installation.

√  Diversified installation methods: Supports right-angle screen and curved installation to adapt to the needs of different occasions.

√  Various pixel pitches are available: P2.9, P2.97, P3.91, P4.81 and other pixel pitches are provided to meet the display needs of different scenes.

√  Double front maintenance design: The double front maintenance design makes maintenance more convenient.

………

Additionally, you can learn more details by watching the introductory video below. Chinastar LED’s PR series rental LED screens will provide a superior visual experience for your event.

Click to Jump

  1. Features of RP3.91
  2. Advantages of RP Series
  3. View of RP Series
  4. Specification of RP Series
  5. Aging Testing

1. Features of RP3.91

Module size: 250*250mm

Cabinet size: 500*500mm

LED Types: SMD2121

Model resolution: 64*64

Cabinet weight: 8.5kg

Refresh rate: 3840HZ

Brightness(CD/m2): 800-1200

Driving method: 1/16Scan

Viweing angles(HV): 160°/160°

Colour grayscale: 32bit

Application: Indoor, Outdoor, Semi-outdoor

2. Advantages of RP Series

The RP series rental LED display introduces black technology – wireless screen connection, which eliminates the need for networks and cables. It gets rid of the cumbersomeness of traditional rental LED display screens, opens the era of wireless rental LED screens, realizes efficient stage rental, and solves various stage problems. . This series has delicate and bright colors and an integrated modular design, presenting you with a brand new rental screen experience.

In addition, the RP series is more intelligent and convenient in maintenance, with intelligent front maintenance and a buckle + magnetic design. The RP series also has the feature of never being powered off. It adopts a double backup design of power supply and signal. Even if the power plug is unplugged, the screen will not go black, ensuring stable operation of the screen and efficiently solving common stage problems.

The RP series is a model of the new generation of rental LED screens and is the crystallization of high-end technology and intelligent design.

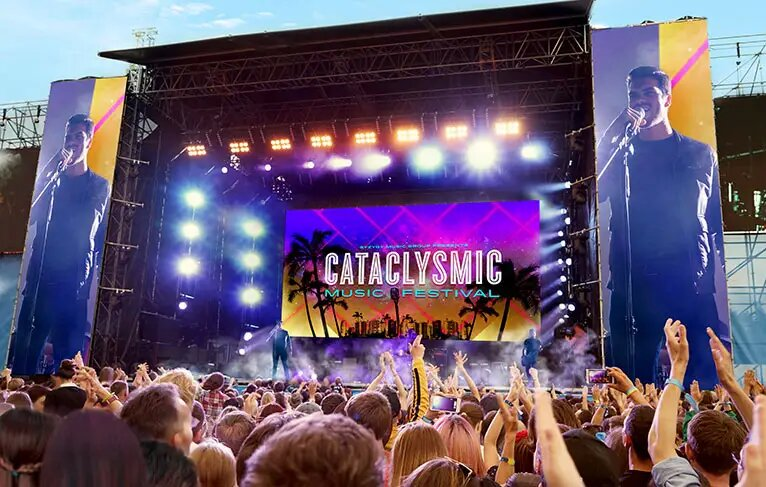

Stage LED screen

3. View of RP Series

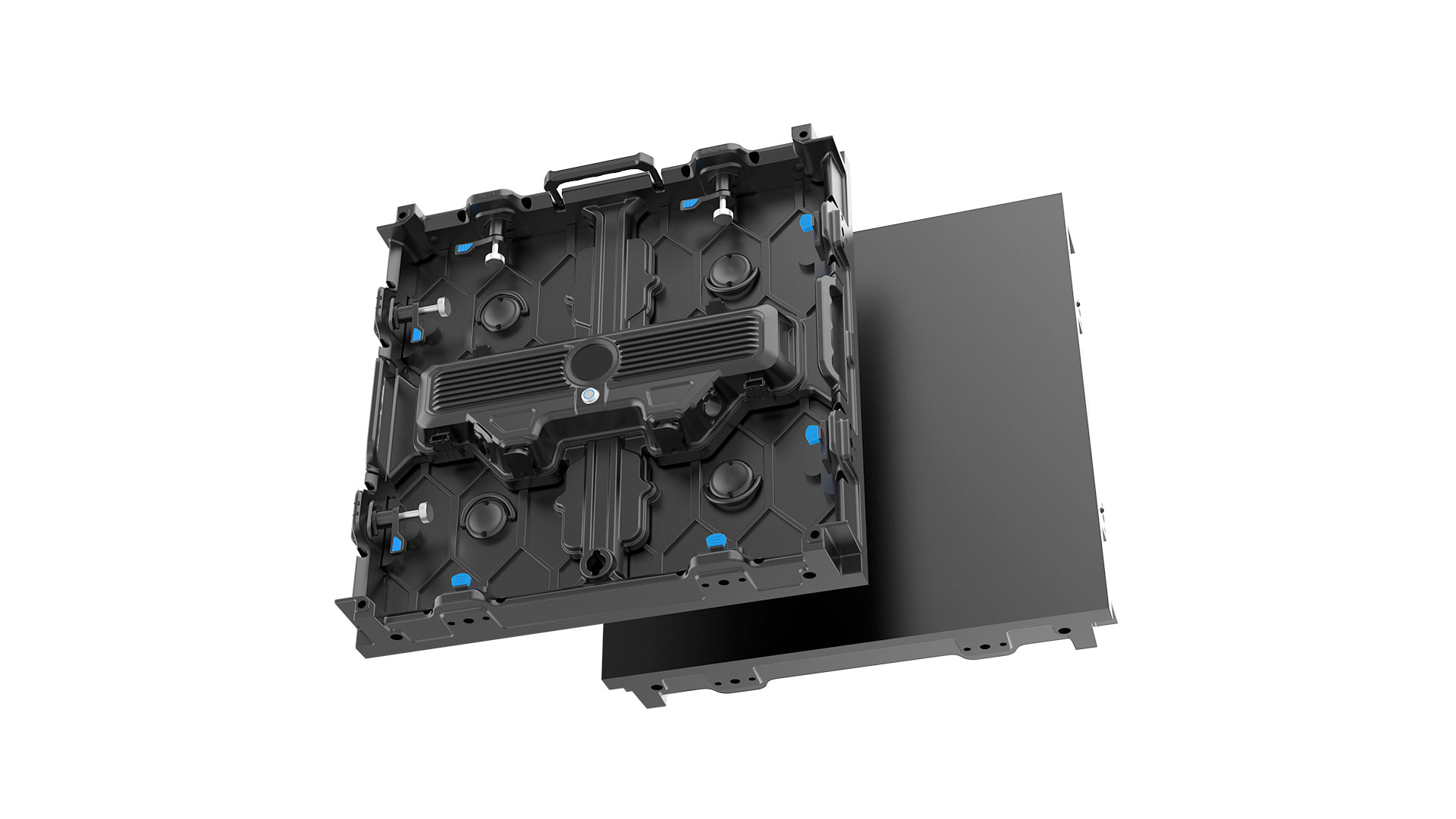

P3.91 LED screen

NEVER POWER-OFF

When the LED display is working, it can keep running even if the power plug is unplugged. This feature is usually implemented through a dual power and signal backup design to ensure that even if a power interruption or plugging operation occurs, the display can still maintain normal working status without a black screen. This feature provides higher stability and reliability for events, performances and other occasions, effectively avoiding unexpected interruptions caused by power problems, ensuring that the audience always enjoys a continuous and smooth visual experience.

INTEGRATED MODULIZED DESIGN

The components of the LED display screen are integrated into a whole in design, which improves the convenience of installation, disassembly and transportation.

The advantage of the integrated module design is that it simplifies the installation process, reduces complex connections between components, and improves installation efficiency. At the same time, it is more convenient to disassemble and transport, reducing maintenance costs. It helps ensure the stability and reliability of the LED display, provides better shock resistance and impact resistance, and is suitable for various complex rental environments and applications.

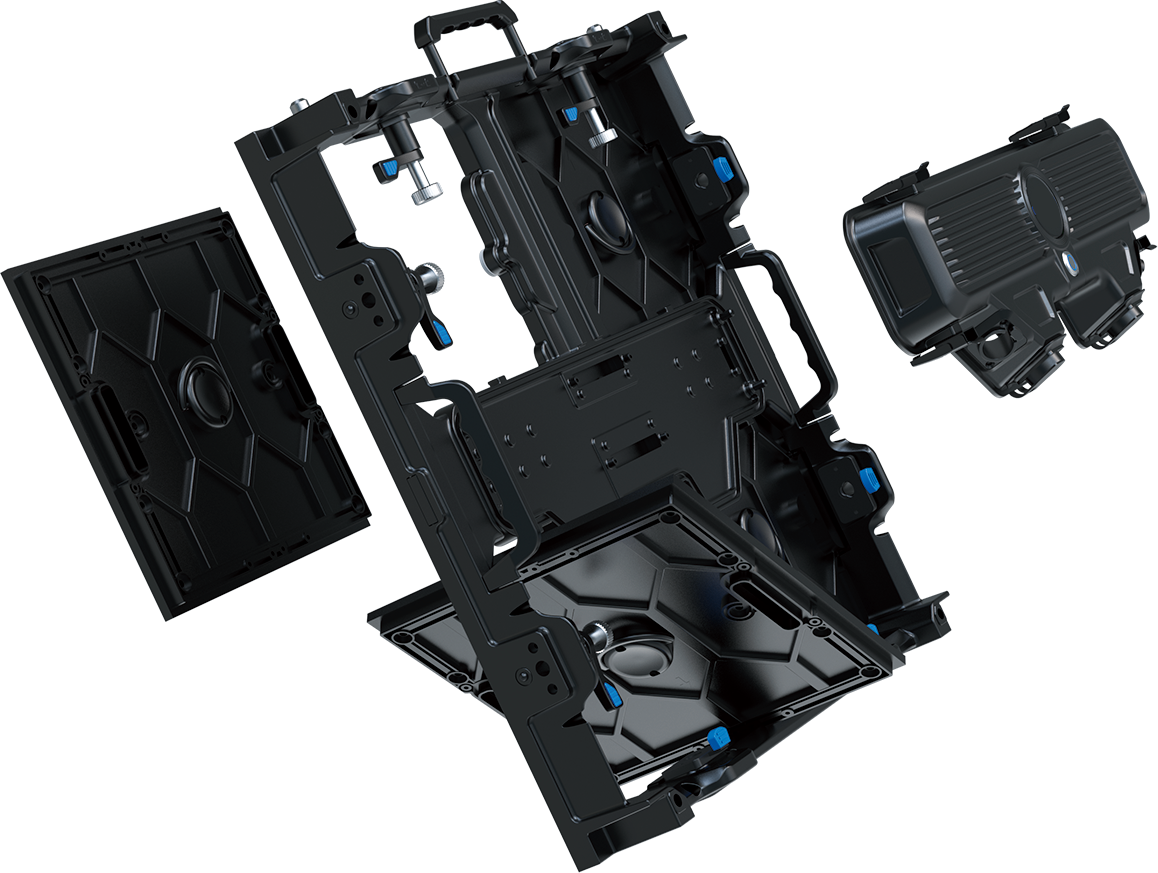

led display screen

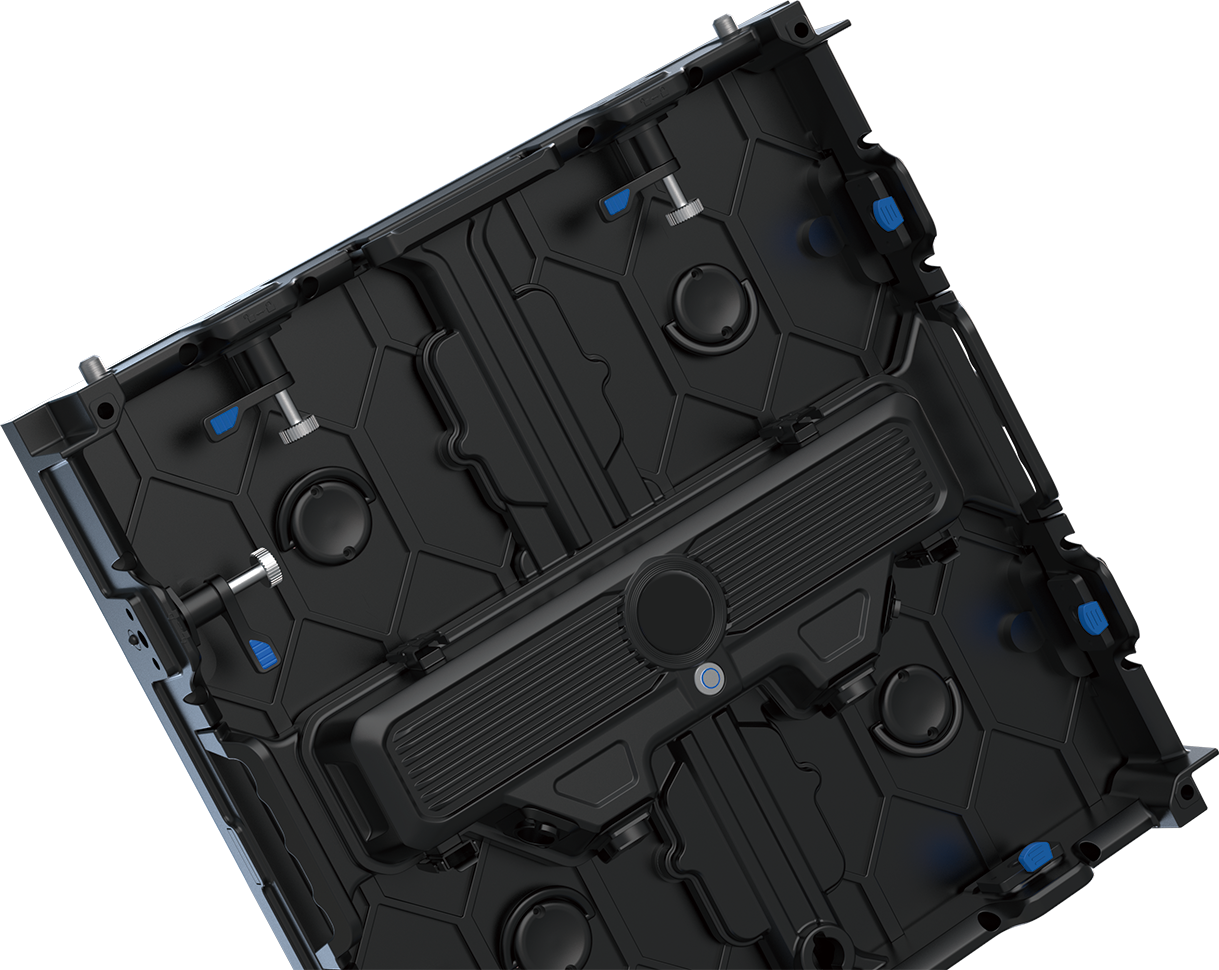

led panel

DEBUT WITH A LIGHT PACK

The RP series adopts lightweight design, including lightweight materials and processes, making the entire LED screen weigh only 8.5kg, which is lighter than traditional LED displays. This design reduces the difficulty of handling and installation while maintaining screen performance, and helps reduce transportation costs. The lightweight design makes rental screens more suitable for scenarios that require frequent relocation and quick installation, providing users with a more convenient experience.

Dual back-up design of power and signal

The RP series rental LED screen has a dual backup design for power supply and signal, which provides higher reliability for the stable operation of the screen. This design is mainly reflected in the following two aspects:

Power backup: Advanced power backup technology is used to ensure that the LED screen can still maintain normal operation in the event of abnormal power supply or sudden interruption. The dual backup system ensures stable power supply to the screen and avoids black screen or other failures caused by power supply problems.

Signal backup: A signal backup mechanism is introduced, so that the LED screen can continue to display content even if the signal is interrupted or abnormal. This design ensures reliable image display under various circumstances and enhances the stability of the LED screen and its ability to cope with unexpected situations.

Rental LED Display

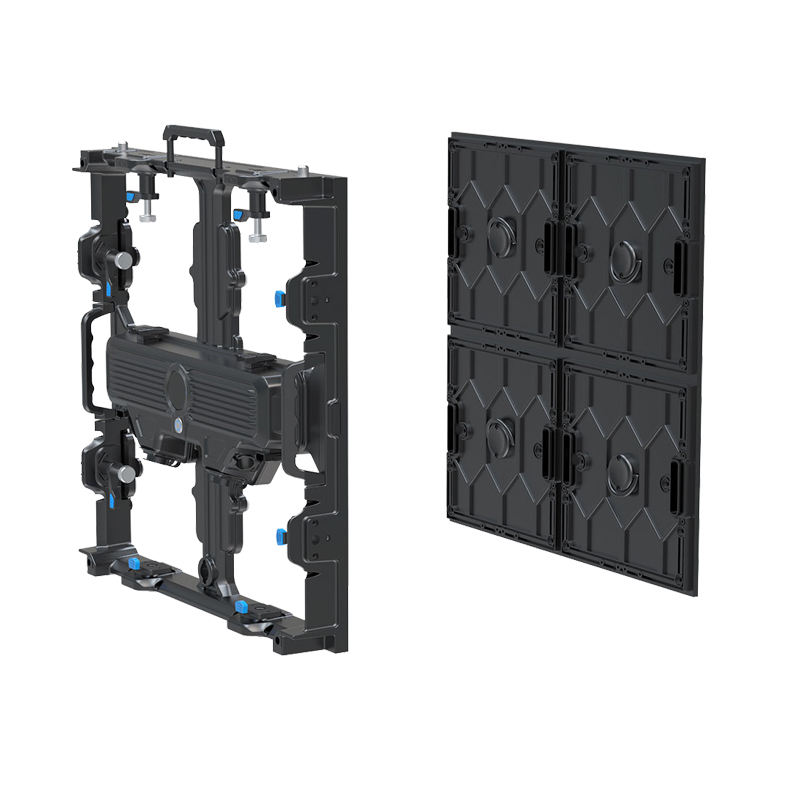

double front maintenance led screen

DUAL FRONT MAINTENANCE DESIGN

RP series rental LED screens adopt a double front maintenance design, making maintenance more intelligent and convenient. This design mainly has the following features:

Intelligent front maintenance: Maintenance operations of RP series screens can be completed on the front side of the screen, eliminating the need for cumbersome steps of rear maintenance. This design enables maintenance personnel to perform screen maintenance and repair more conveniently and quickly, reducing maintenance time and costs.

Buckle + magnetic design: The screen body adopts a design that combines buckle and magnetism, allowing maintenance personnel to quickly and easily disassemble and replace the screen module. This design simplifies the entire maintenance process, improves efficiency, and reduces reliance on professional technology, allowing more people to easily complete maintenance tasks.

SUITABLE FOR VARIOUS INSTALLION

RP series LED rental screens have the general characteristics of ordinary rental screens, and are highly adaptable and easy to handle. It can be widely used in different scenarios, including but not limited to 90° cubes, arcs and floors. The design of the rental screen is flexible and can be constructed to create a vertical 90° cube effect as needed, or it can also be formed into a curved arc display, or even suitable for laying on the floor to meet the needs of different venues and activities.

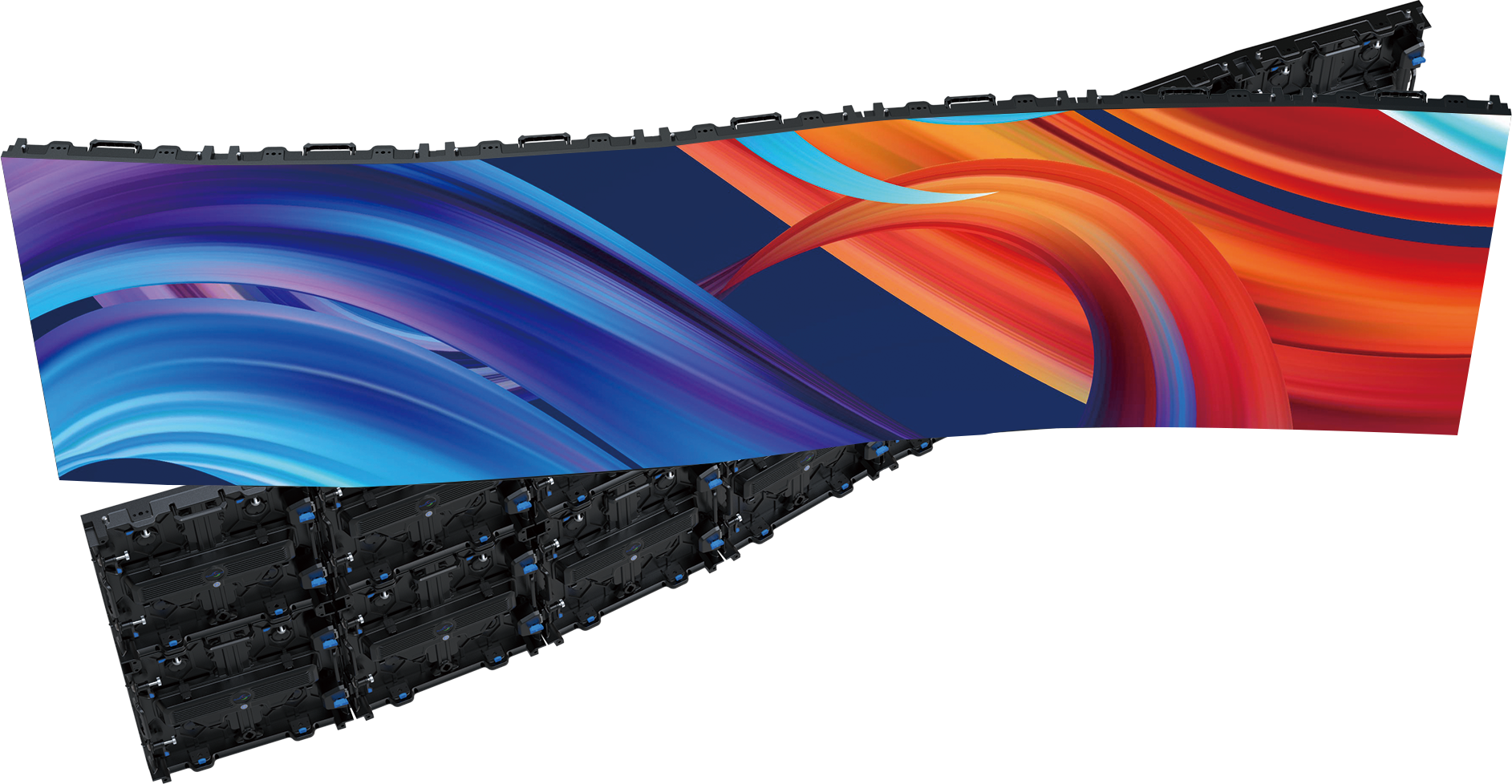

programmable led screen

4. Specification of RP Series

Indoor Rental Display Technical Prarmeter

Model

P2.6

P297

P3.91

Led type

SMD1515

SMD1515

SMD2121

Pixel pitch(mm)

P2.6

2.976

3.906

Pixel density(dots/m?)

147,456

112,896

65 536

Model size(mm)

250*250

250*250

250*250

Model resolution(dots)

96*96

84*84

64*64

Cabinet size(mm)

500* 500*85

500*500*85

“500*500*85

Cabinet weight(kgs)

8.5kg

8.5kg

8.5kg

Refresh rate(HZ)

3840

3840

3840

Brightness(CD/m?)

800-1200

800-1200

800-1200

Average power

250

250

250

Driving method

1/32s

1/28s

1/16s

Viweing angles(HM)

1 60*/160°

1 60*/160°

160″/160°

IP rate

IP30

IP30

IP30

Working hunmindity

10%-60%

Working temperature(C)

-40C~+80C

Installtion types

Stting/Floor/L iting/Arc/Speial-shaped/Right Angle

Outdoor Rental Display Technical Prarmeter

Model

P2.97T

P3.97T

P4.81T

Led type

SMD1415

SMD1912

SMD1912/SMD2525 can choose

Pixel pitch(mm)

2976

3.906

4807

Pixel density(dots/m?)

112 ,896

65 536

43,264

Model size(mm)

250*250

250*250

250*250

Model resolution(dots)

84*84

64*64

52*52

Cabinet size(mm)

500*500*85

500*500 *85″

500*500*85

Cabinet weight(kgs)

8.5kg

8.5kg

8.5kg

Refresh rate(HZ)

3840

3840

3840

Brightness(CD/m?)

800-1200

800-1200

800-1200

Average power

250

250

250

Driving method

1/21s

1/16s

1/13s

Viweing angles(HM)

160*/160°

160″/160°

1 60*/160°

IP rate

IP65

IP65

IP65

Working hunmindity

10%-90%

Working temperature(‘C)

-40C~+80C

Installtion types

 Sitting/Floor/Lifting/Arc/Speial-shaped/Right Angle

5. Testing



The RP series is a model of the new generation of rental LED screens, integrating high-end technology and intelligent design to bring a more convenient and efficient visual experience to your activities. Do you want to know more information or get a detailed quote? Just fill out the form!
