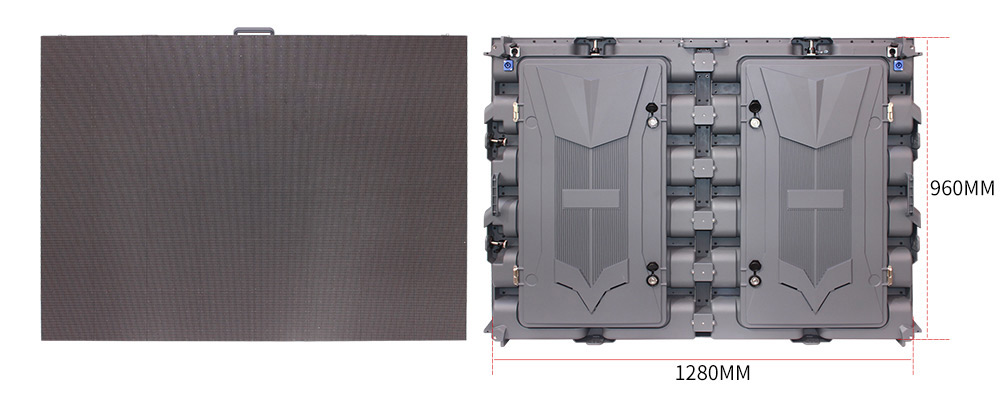

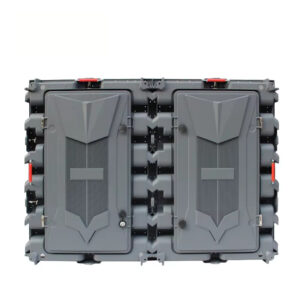

1280mm X 960mm Standard Display Cabinet

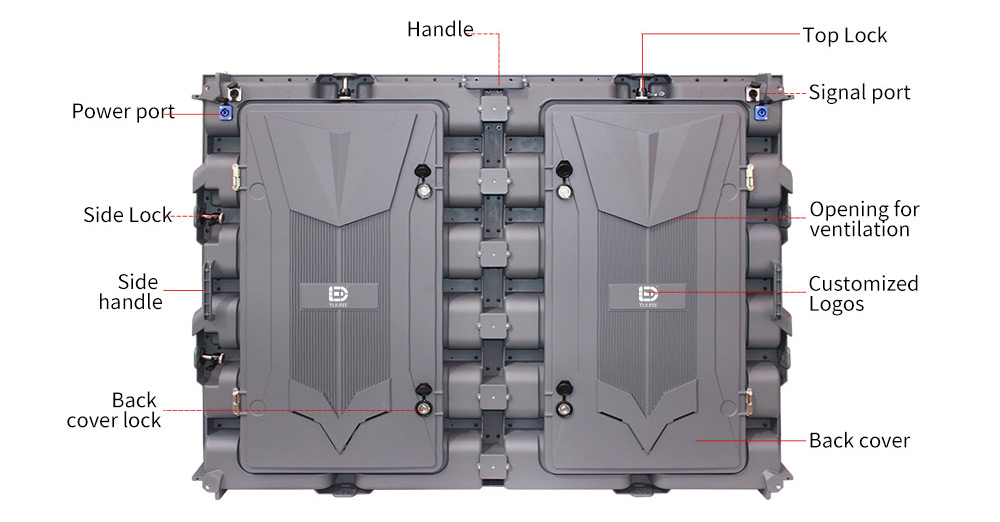

Product Decomposition Description
Superb craftsmanship

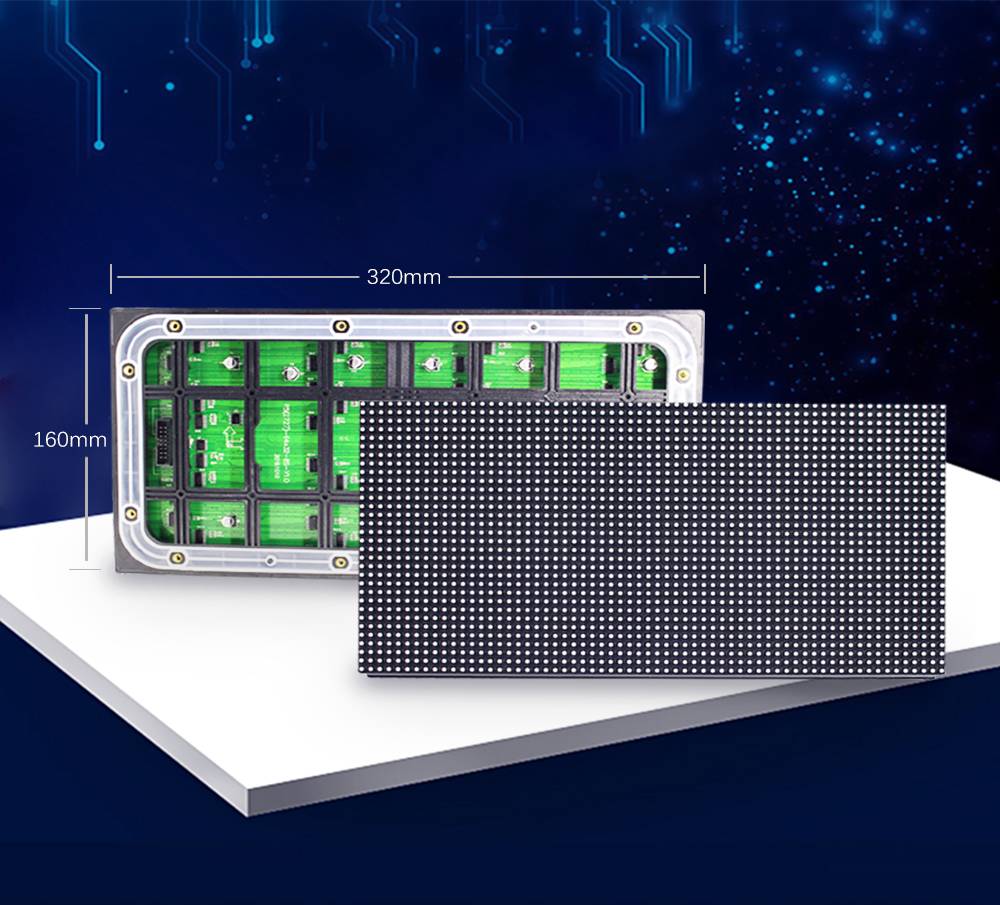

Suitable for 320x160mm standard size modules
Supports standard-sized panels: Changing the pixel pitch is also very easy, just replace the modules as they have the same dimensions and screw positions

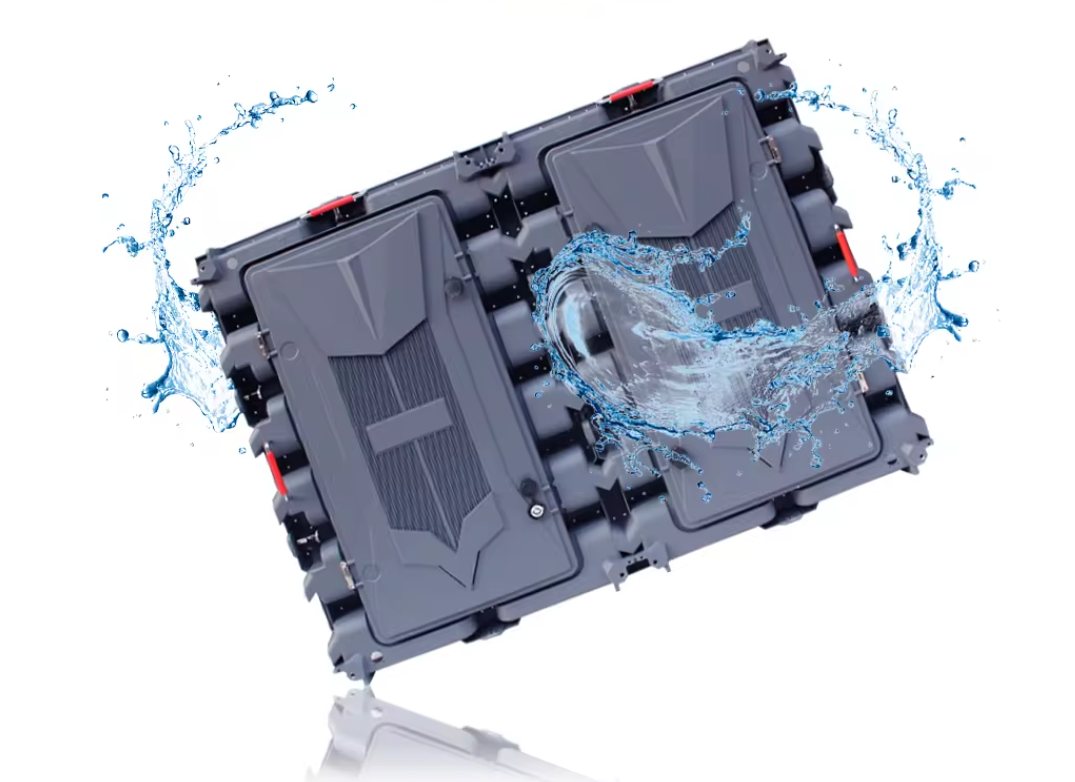

IP65 Waterproof
IP65 waterproof protection on the front side ensures continuous and stable operation in all kinds of outdoor environments

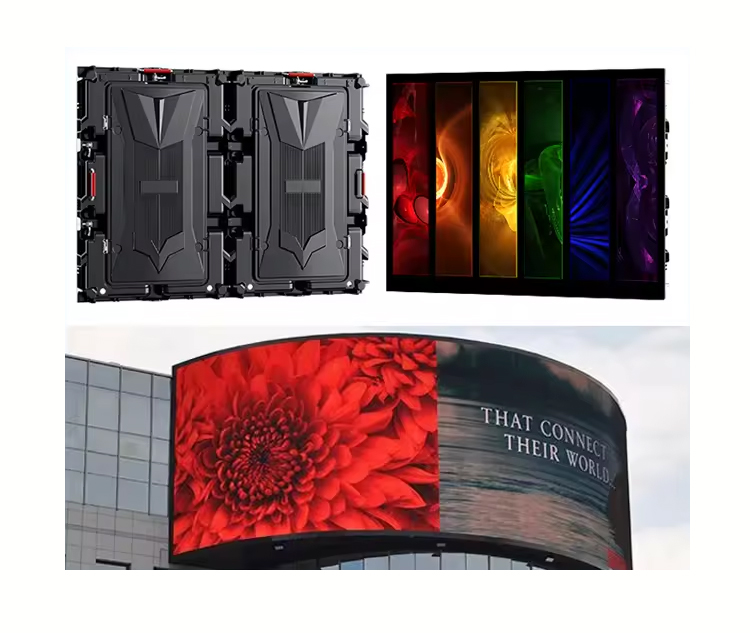

Energy Saving&Temperature Cooling
Dual voltage supply, Enhance the lamp life span&stability

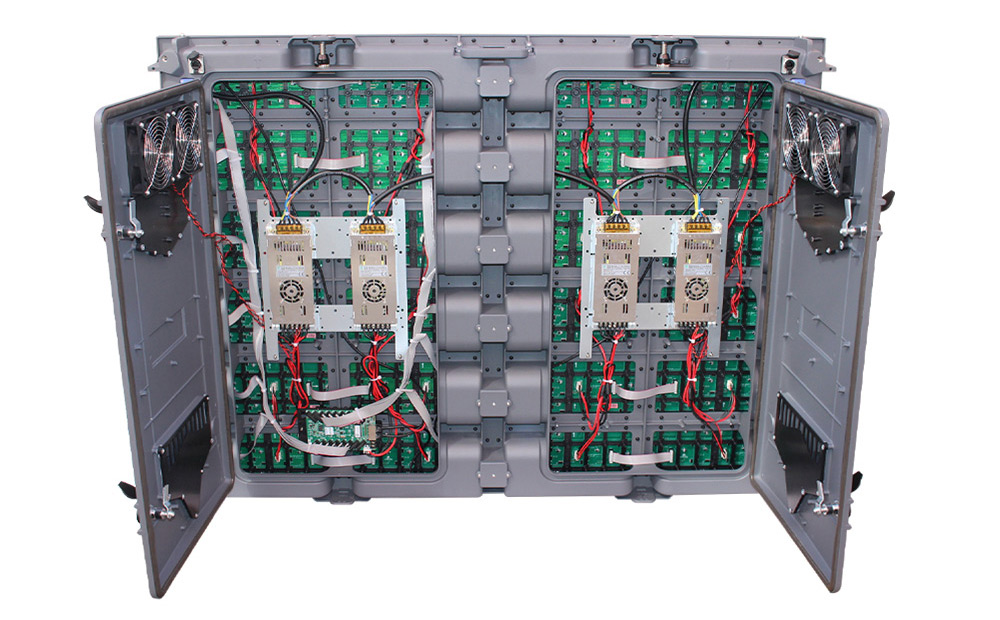

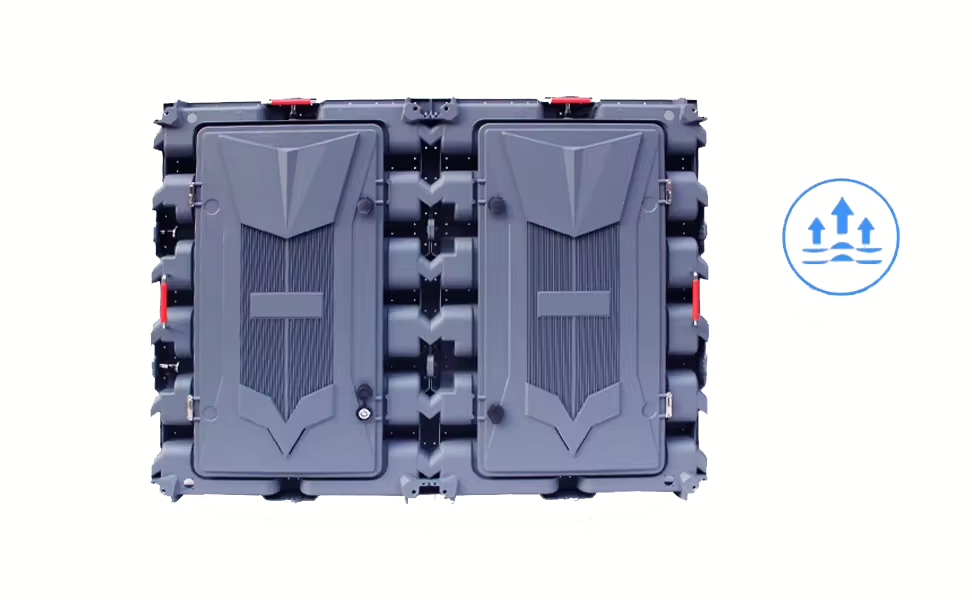

EXCELLENT HEAT DISSIPATION

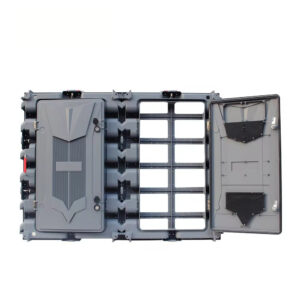

New type of doors,can both use the doors and fans for heat dissipation

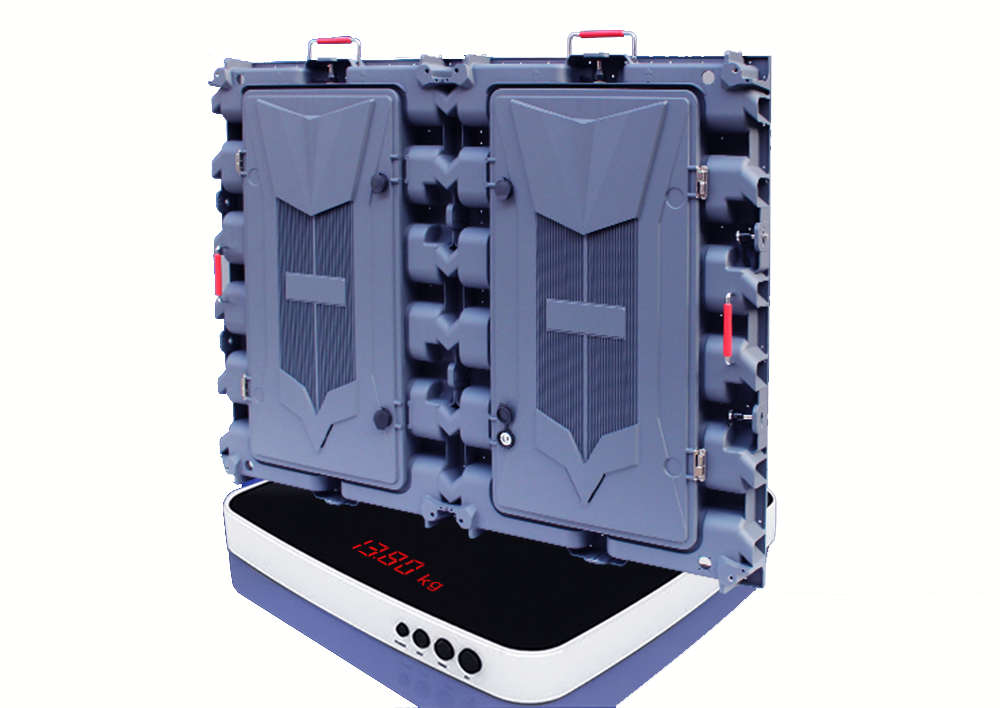

Super Thin
Magnesium alloy material, ultra lightweight,only 13.8KG
Seamless Connect
High precision, seamless connection
| Cabinet size | 1280*960*86mm |
| Module size | 320*160mm |
| Module | P2.5/P4/P5/P6.67/P8/P10 |
| Material | Magnesium alloy |
| Weight | 15kg |
| Installation | Hanging & fixed installation |
| Waterproof | Indoor IP30; outdoor IP65 |
| Accessories | Fast lock, handle, connecting plate, power supply plate, receiving card plate |
| Advantage | 1.Public module cabinet, easy to get compatible module. 2.Waterproof grade IP65. 3. Magnesium alloy material, most light weight,only 13kg. 4. High precision, seamless connect. 5.Fast and easy installation, save time and labour. 6. Versatility, can drilling any module holes on cabinet, for indoor and outdoor. 7. Excellent heat dissipation, well protect module and curcuit. 8.Can pass cable inside cabinet, save cost;excellent design hole for cable, good waterproof. 9. Can use for fixed installation, rental and stadium cabinet. |

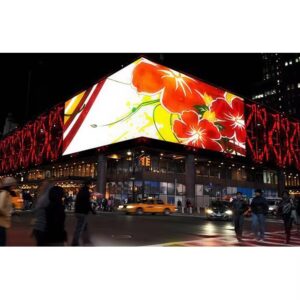

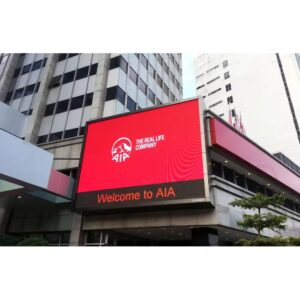

Outdoor Screen
