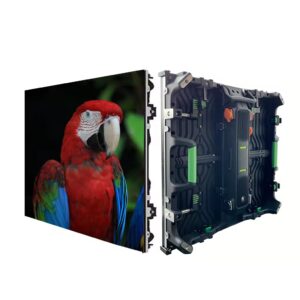

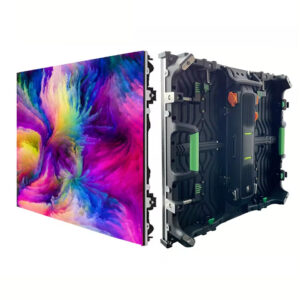

RH500 Indoor Rental LED Display
Using die casting aluminium, this rental led display main features is hard connection, modular power box.

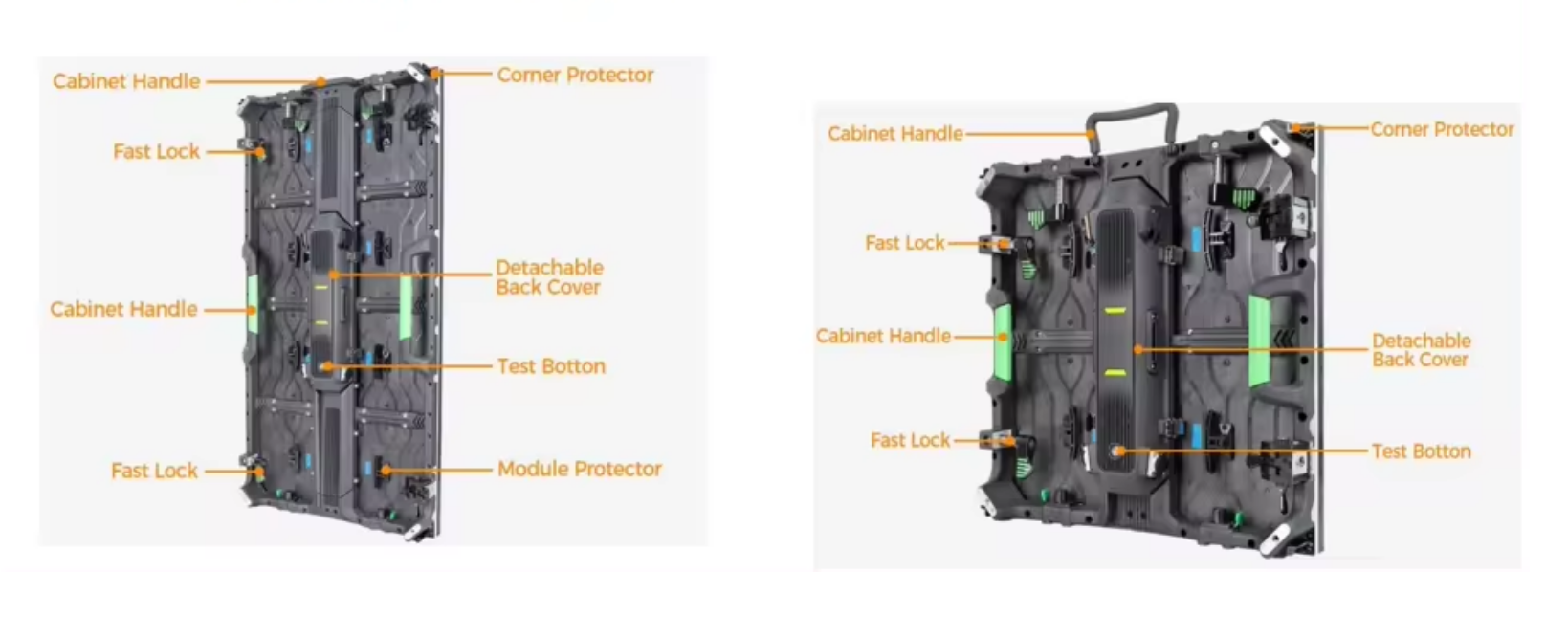

Perfect Cabinet Design

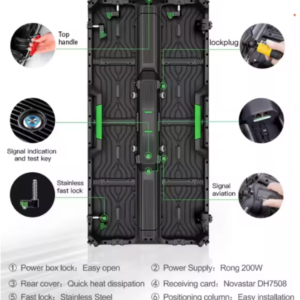

Excellent product came in all details from cabinet handle. cabinet fixed slot, fast lock.magnet adsorption module, module installation knob, Power& signal connect or detachable power boxing,and more.

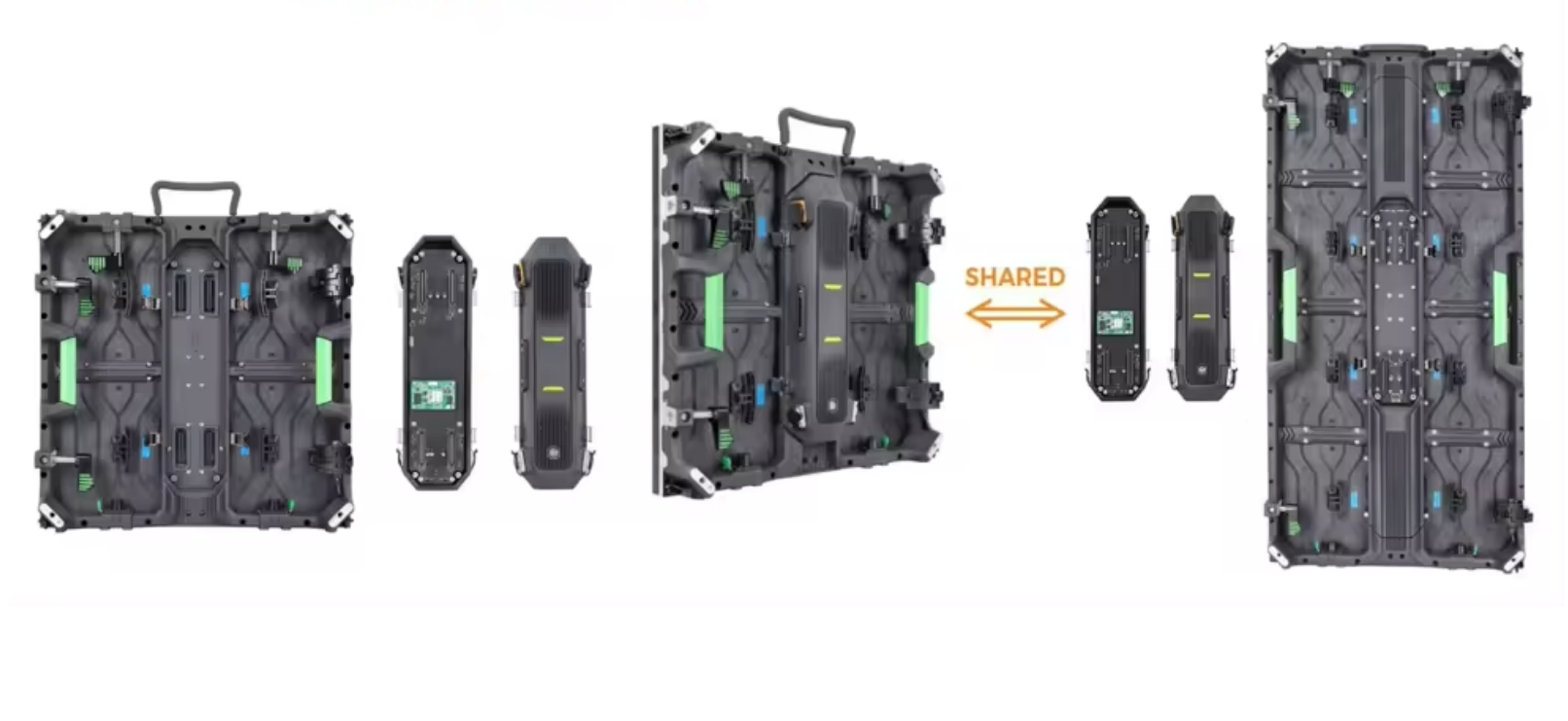

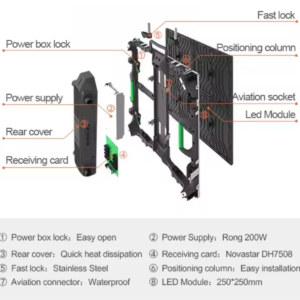

Detachable Back Cover
Hard Connection Design with detachable Power box and HUB board, High lP65Waterproof with Double Sealing Rubber Ring,Quick Mounting of Buckles for assemble and disassemble of back cover.

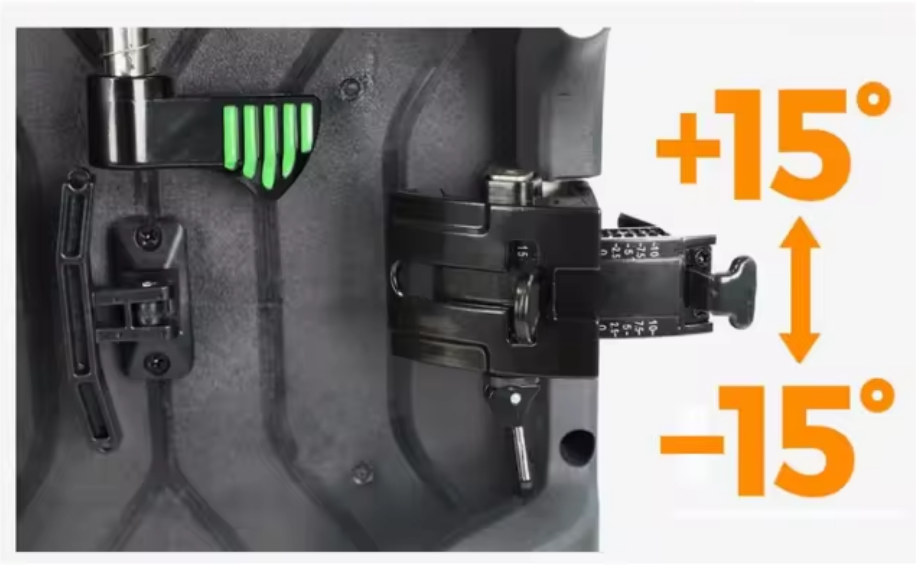

High Precision Curve Lock
Adopt high-precision curve lock design (-15° to +15°), rotation control, more accurate,easy to use, and quickly adjust the degree of curve.

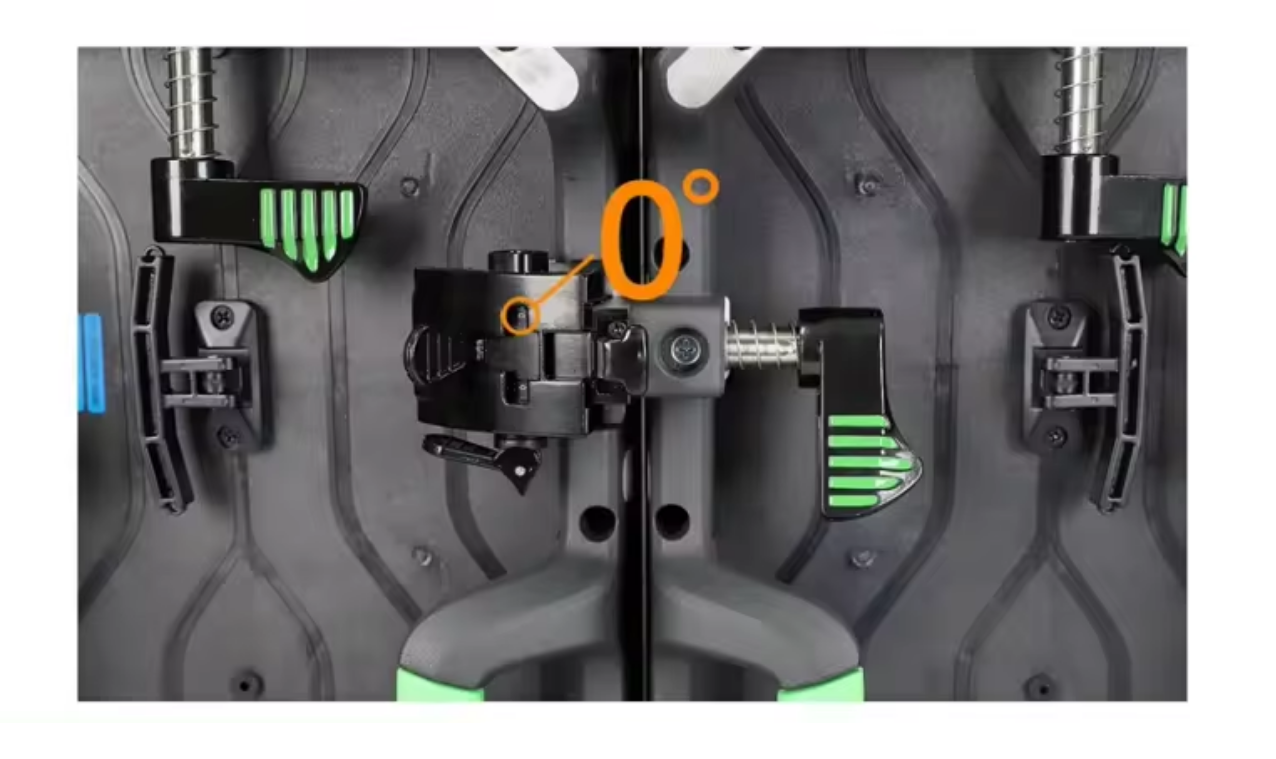

Curved Installation
This series rental led display support curved installation

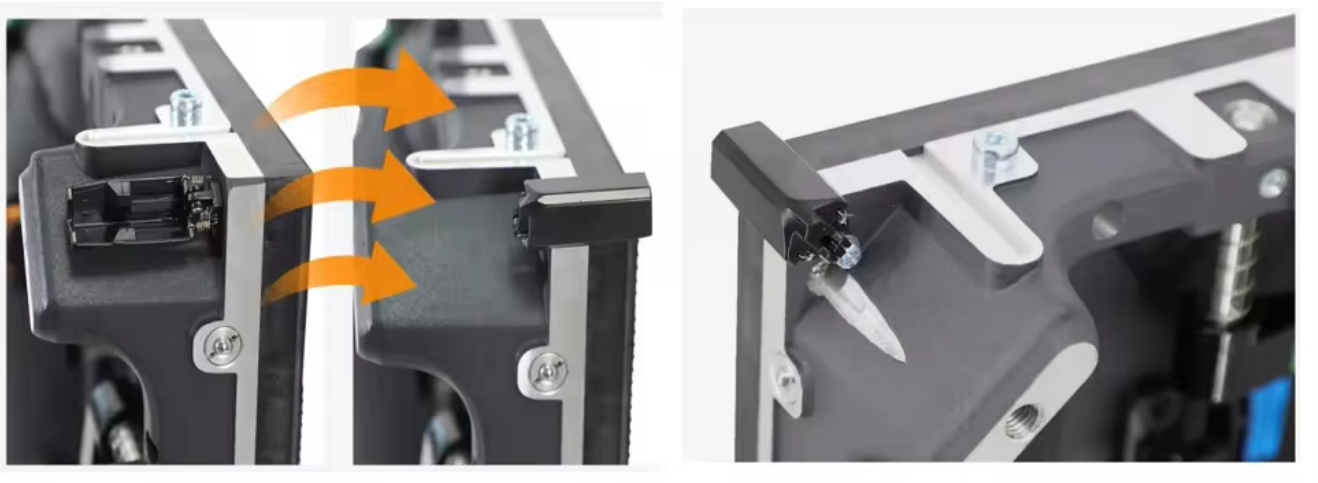

Corner Protector
The LED screen has four corners to prevent damage to the LED. Transportation,installation, operation,disassembly and assembly are more secure and easy to use.

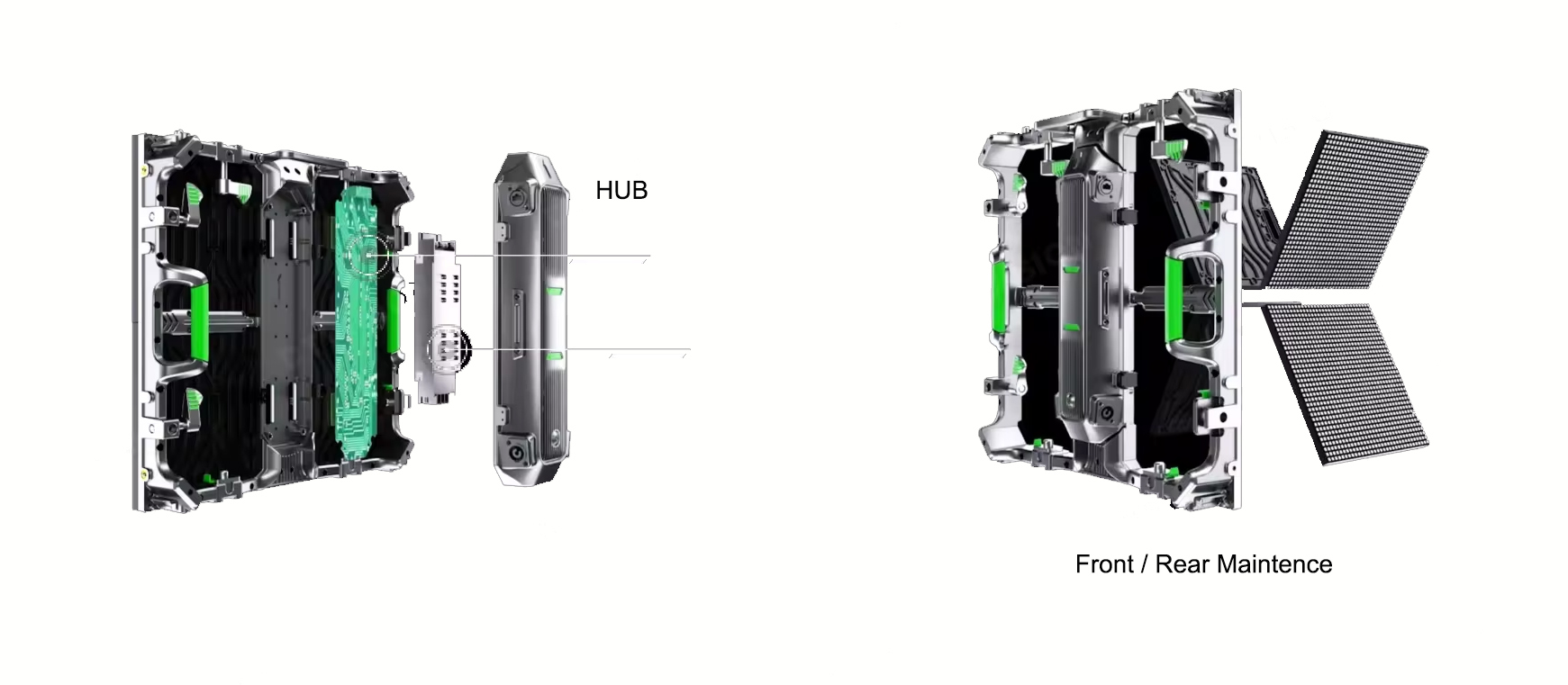

Front and Rear Maintenance
Modular design effectively improves the maintenance efficiency, saves the maintenance time and cost.

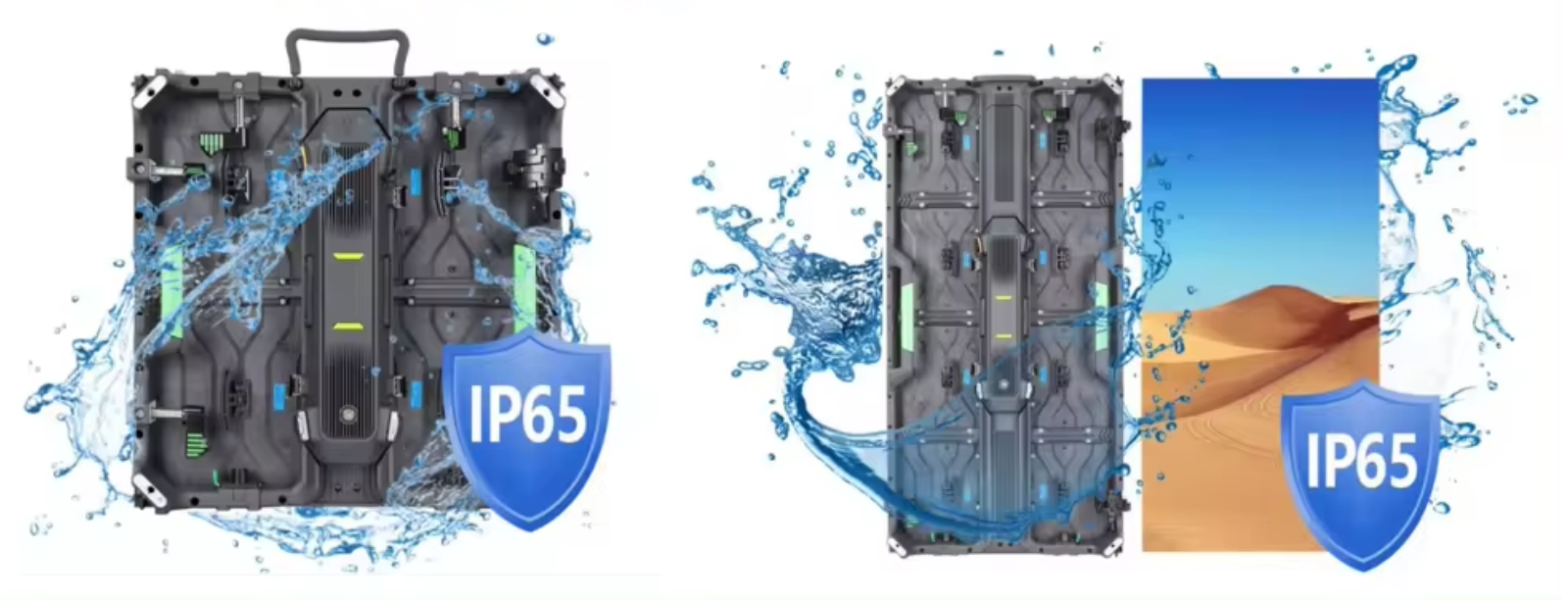

IP65 Dust-proof And Waterproof
Our outdoor rental LED display supports lP65 dust-proof and waterproof,it can resists severe weather conditions during outdoor activities.And die-cast aluminum is corrosion resistant

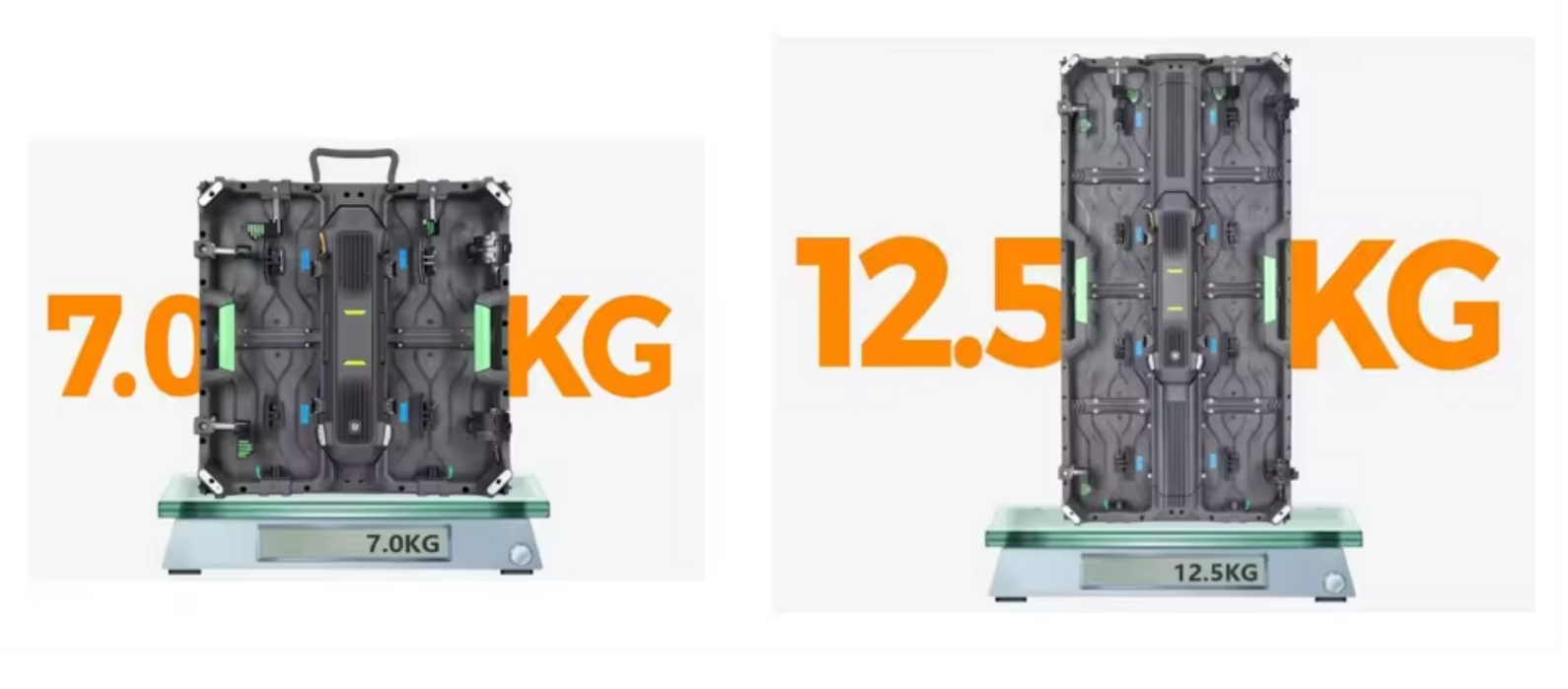

Lightweight and Thin
500x500mm LED display cabinet weighs 7KG/pc,500x1000mm LED display cabinet weighs 12.5KG/pc : one person to install, disassemble and maintain.

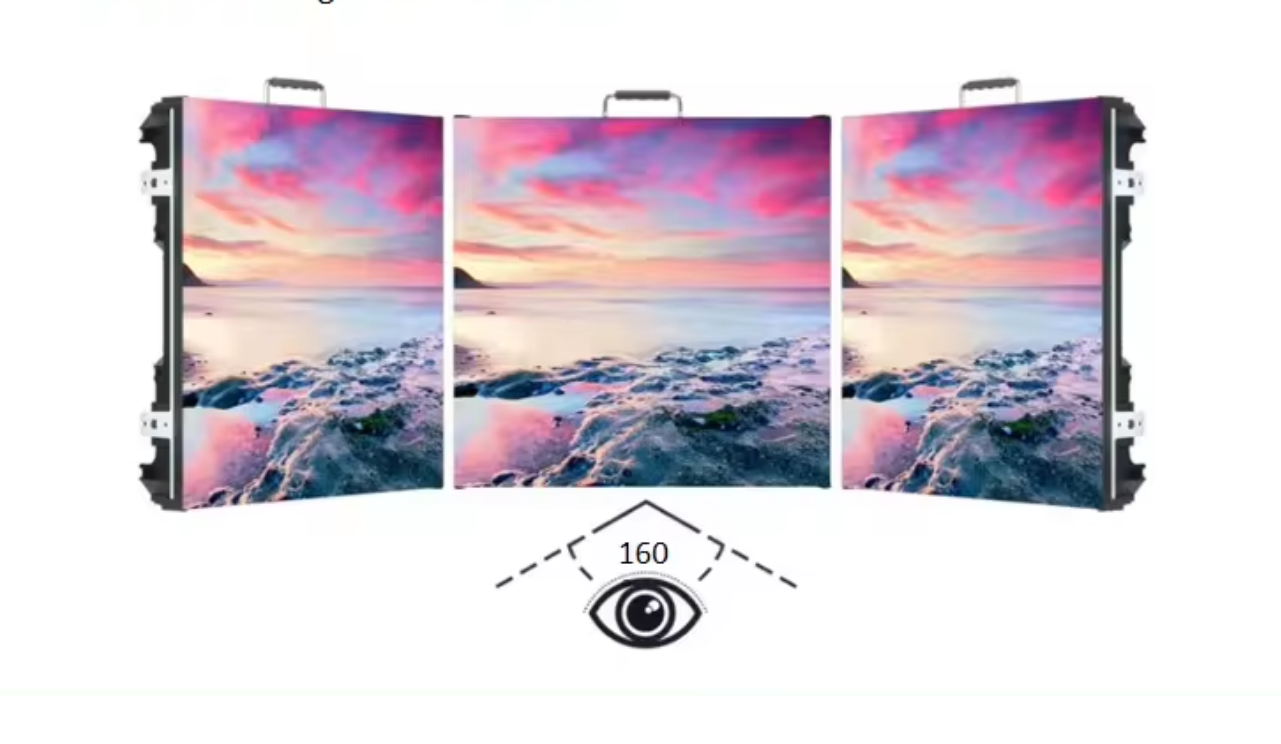

Wide Viewing Angle
Viewing angle is up to 160° vertical and horizontal, providing a wide viewing angle.Ultra-wide viewing angle give you the largest screen viewing area. it offers you clearand natural images in all directions.
| Pixel Pitch | 2.6mm | 2.976mm | 3.91mm | 4.81mm |
| Led Module Size | 250 x 250mm | 250 x 250mm | 250 x 250mm | 250x250mm |
| Led Panel Size | 500 x 500mm | 500 x 500mm | 500 x 500mm | 500 x 500mm |
| Led Panel Weight | 7KG | 7KG | 7KG/13KG | 7KG |
| Refresh Rate | 3840Hz | 3840Hz | 3840Hz | 3840Hz |
| Drive Method | 1/32 Scan | 1/28 Scan | 1/16 Scan | 1/16 Scan |
| Brightness | 1000nits | 1000nits | 1200nits | 1200nits |
| Power Supply | Chuanglian/ G-energy/ MeanWell | Chuanglian/ G-energy/ MeanWell | Chuanglian/ G-energy/ MeanWell | Chuanglian/ G-energy/ MeanWell |
| Receiving Card | Novastar / Huidu | Novastar / Huidu | Novastar / Huidu | Novastar / Huidu |
| Max Power Consumption | 690W/㎡ | 690W/㎡ | 690W/㎡ | 690W/㎡ |
| Working Temperature | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ |
| Best Viewing Distance | 2-25m | 2.5-30m | 3-40m | 3-50m |
| Best Viewing Angle | H: 160°; V:160° | H: 160°; V:160° | H: 160°; V:160° | H: 160°; V:160° |
| Life Span | 100,000 hours | 100,000 hours | 100,000 hours | 100,000 hours |
| Working System | Windows | Windows | Windows | Windows |
