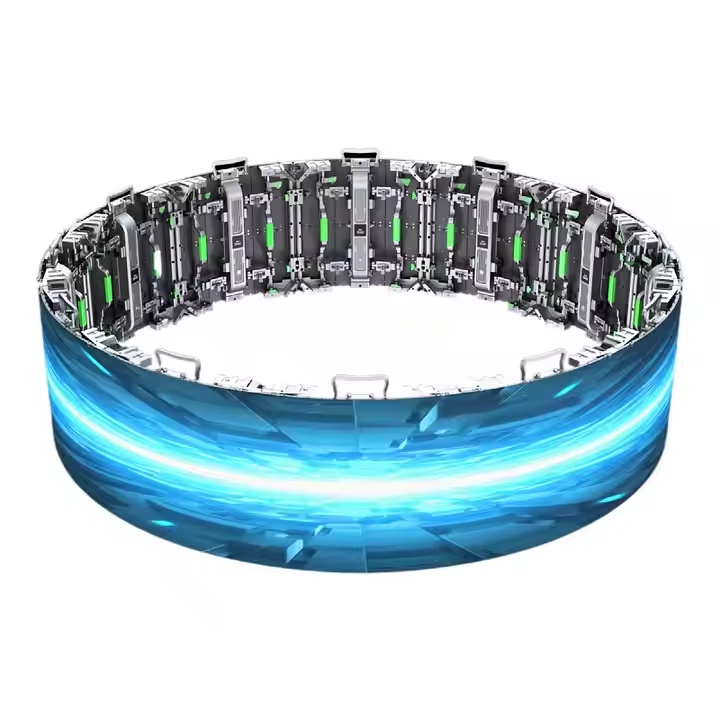

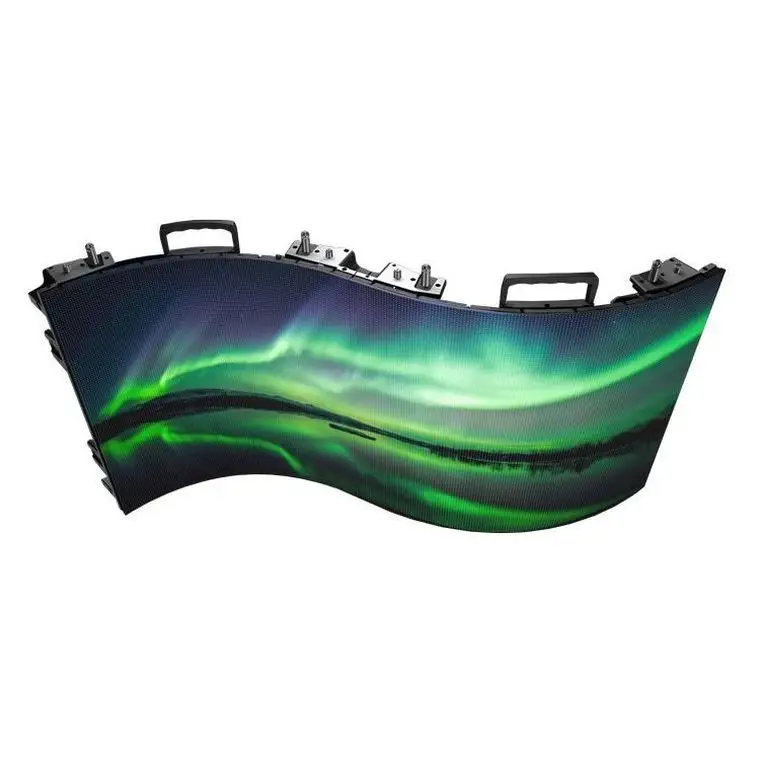

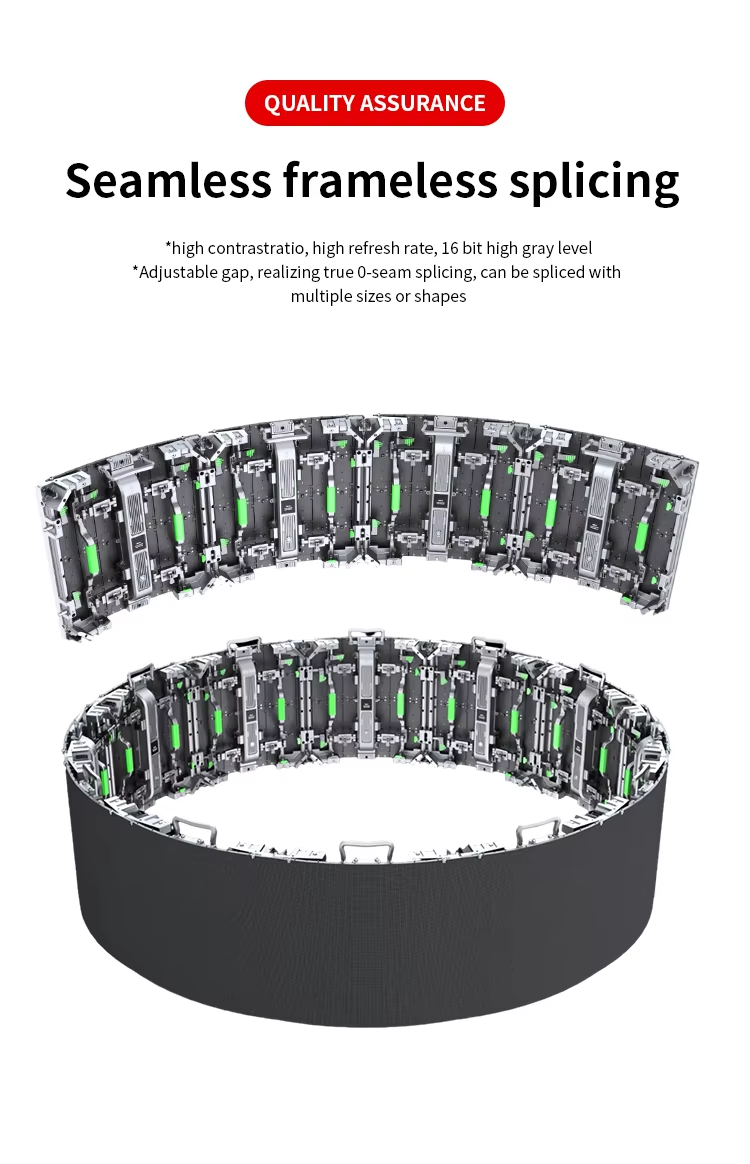

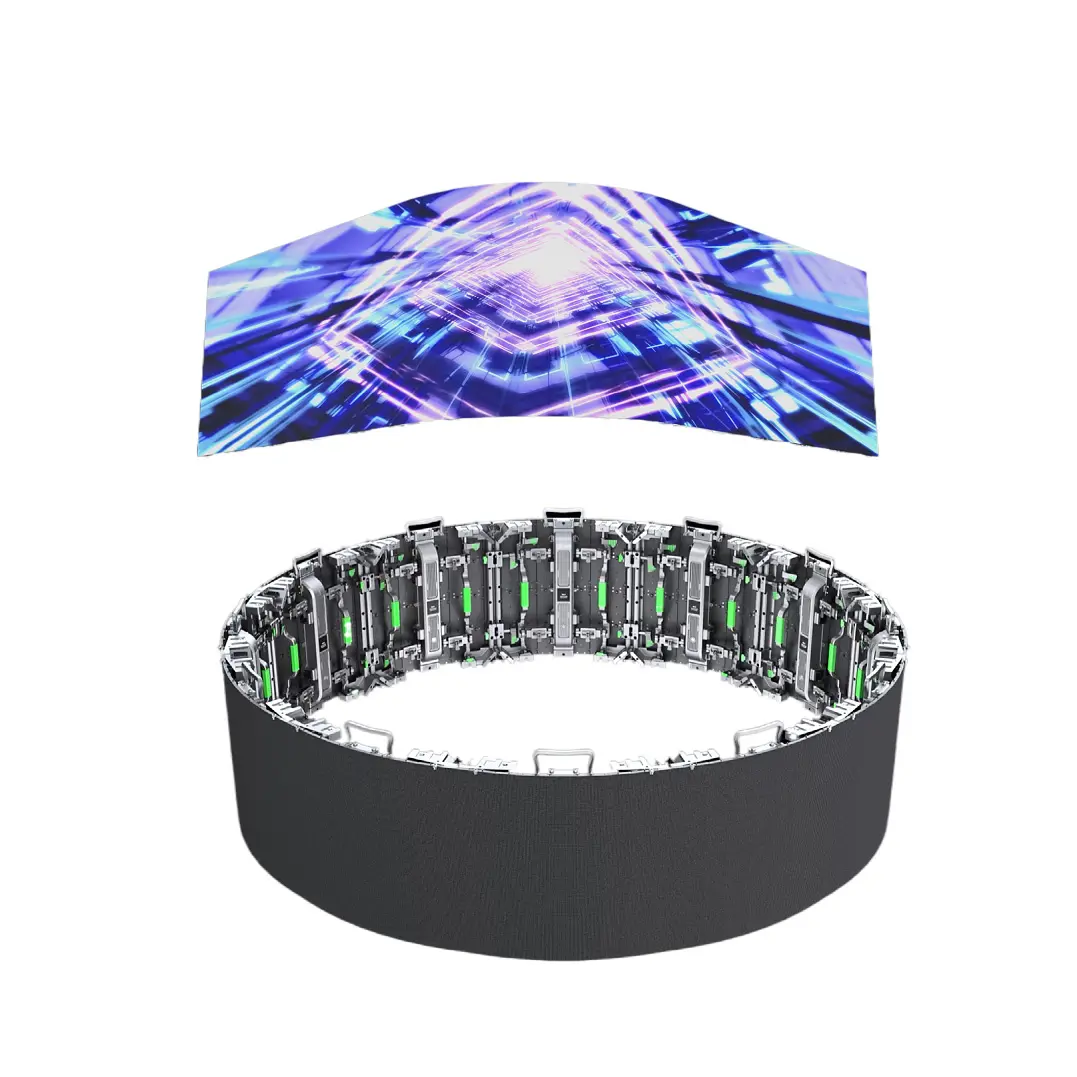

Indoor arc rental full color screen

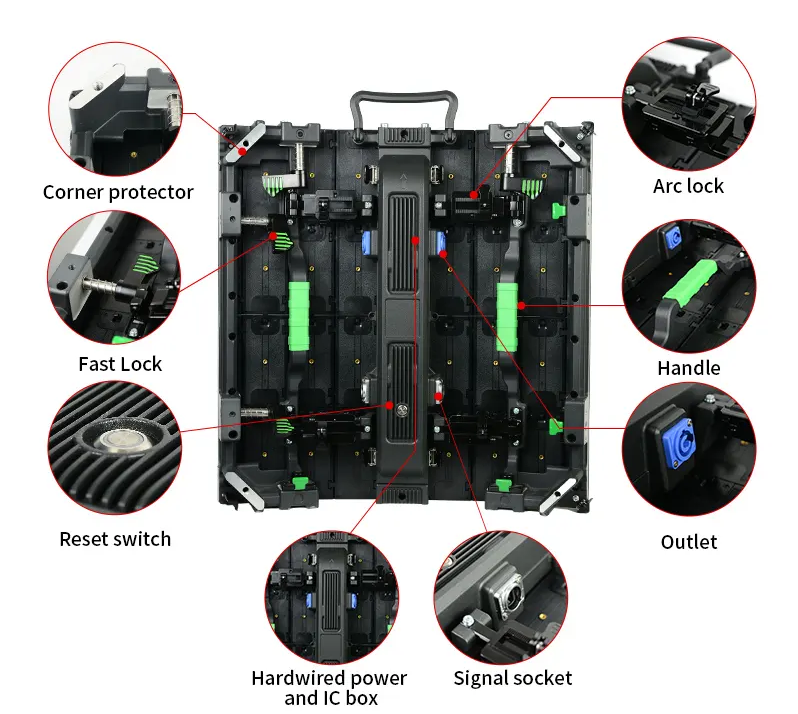

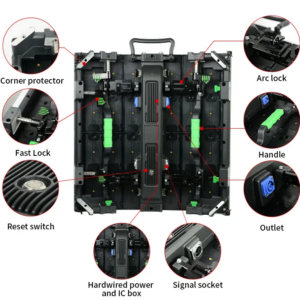

Product Structure

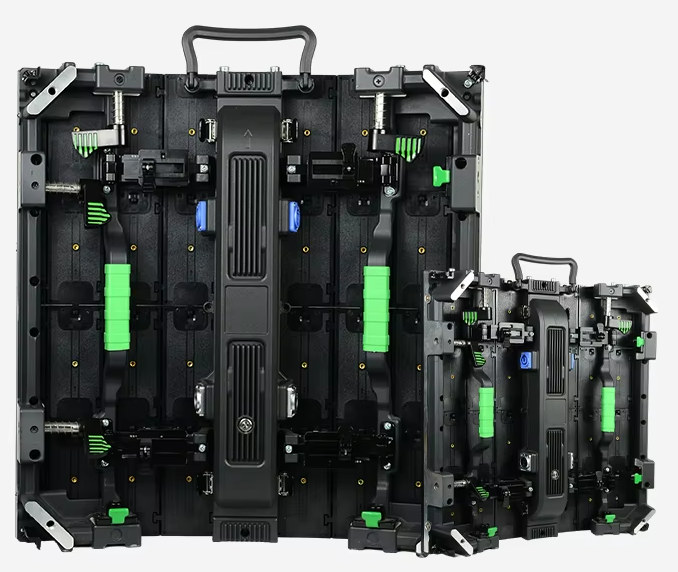

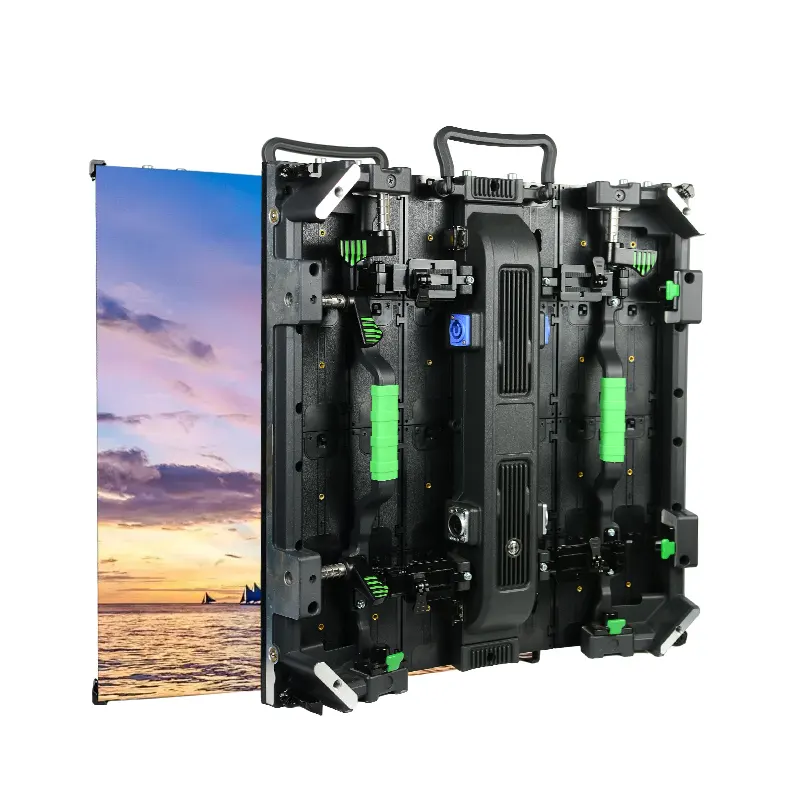

High precision cast aluminum cabinet
Ultra-thin and lightweight

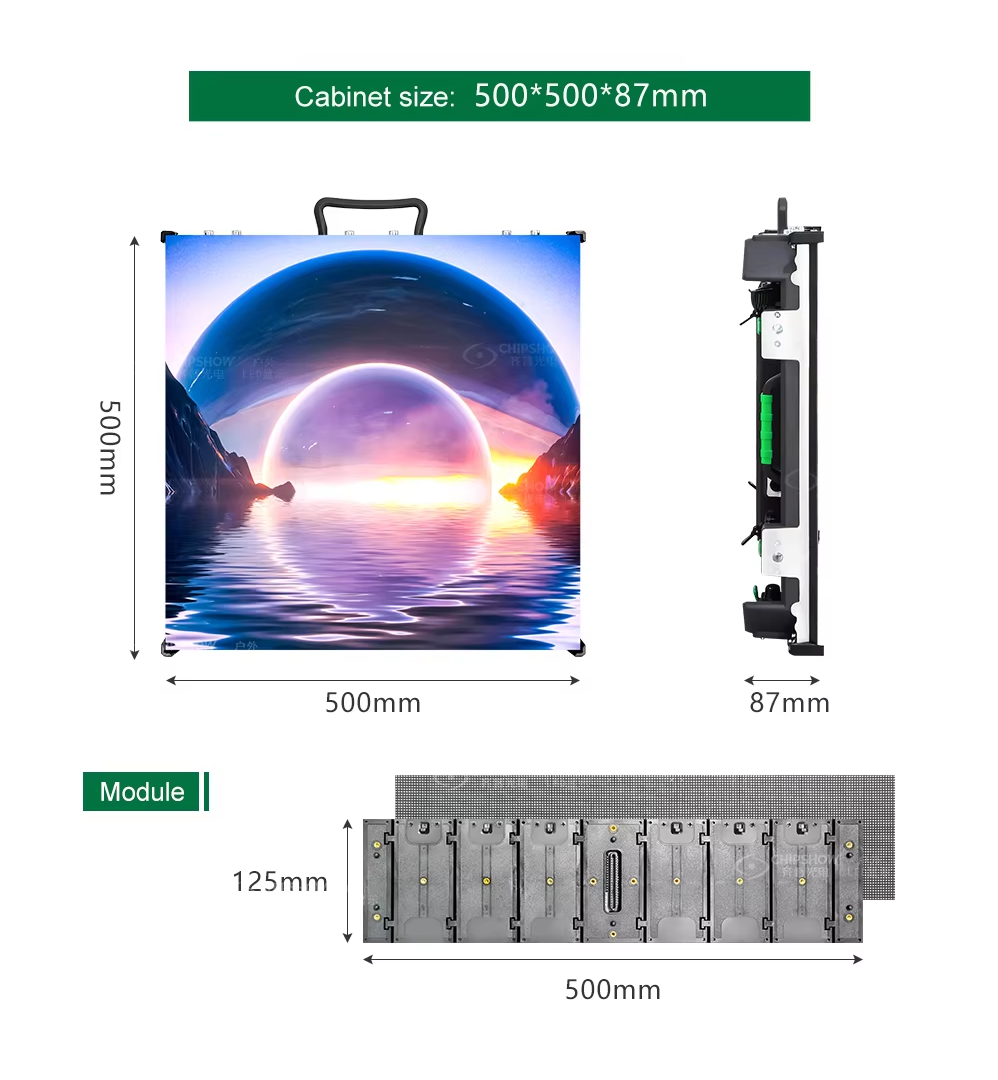

High precision cast aluminum cabinet, ultra-thin and lightweight，cabinet size:500*500，≤6.8KG/cabinet, thickness only 87mm;
| Pixel pitch(mm) | 2.604mm |
| Pixel density(dots/m2) | 147456 Dots/m |
| LED encapsulation | SMD1515 3in1 |
| Driving method | 1/24 |
| Resolution of module (dot) | 192*48 |
| Module size(mm) | 500*125*10mm |
| Module consumption(W) | 20W |
| Working voltage(V) | DC5V |
| Max.consumption(W/m2) | 320W/m2 |
| Ave.consumption(W/m2) | 110W/m |
| Brightness(CD/m2) | 700CD/m3 |
| Color temperature(K) | 3000~10000K |
| View angle(H/V) | 120°/120° |
| Refresh rate(Hz) | 3840Hz |
| Working temperature (℃) | -20~50°C |
| Protect degree(F/B) | IP40 |
| Grey / scale (bit) | ≥14bit |

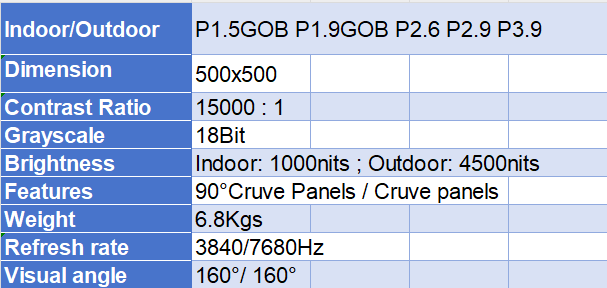

Rental Screen
P1.5GOB
6.8KG
500*500mm Cabinet
P1.9GOB
6.8KG
500*500mm Cabinet
P2.6GOB
6.8KG
500*500mm Cabinet
P2.9GOB
6.8KG
500*500mm Cabinet
P3.9GOB
6.8KG
500*500mm Cabinet
