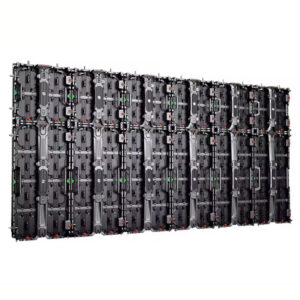

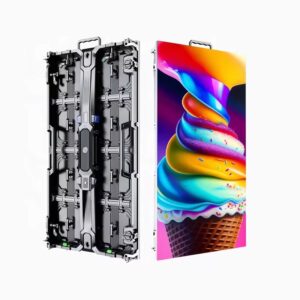

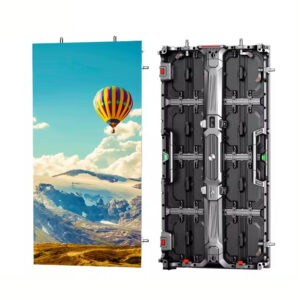

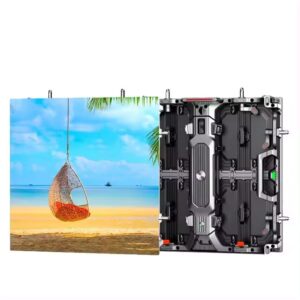

RF500 Series Rental LED Screen

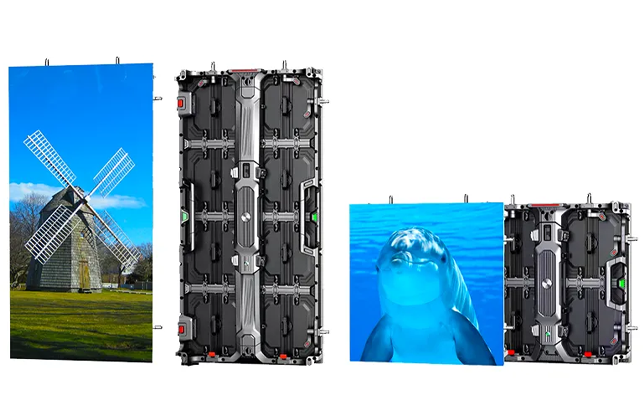

This series was born to create a big stage. The 500*500mm panel is flexible and convenient.
The 500*1000mm large size panel can help customers to quickly build a large screen in a short time. With a lightweight design, the RF500 Series Rental LED Screen enables one-man installation.

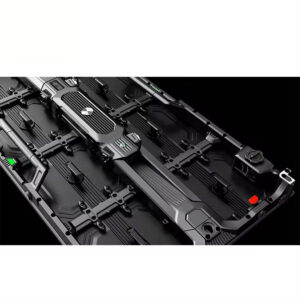

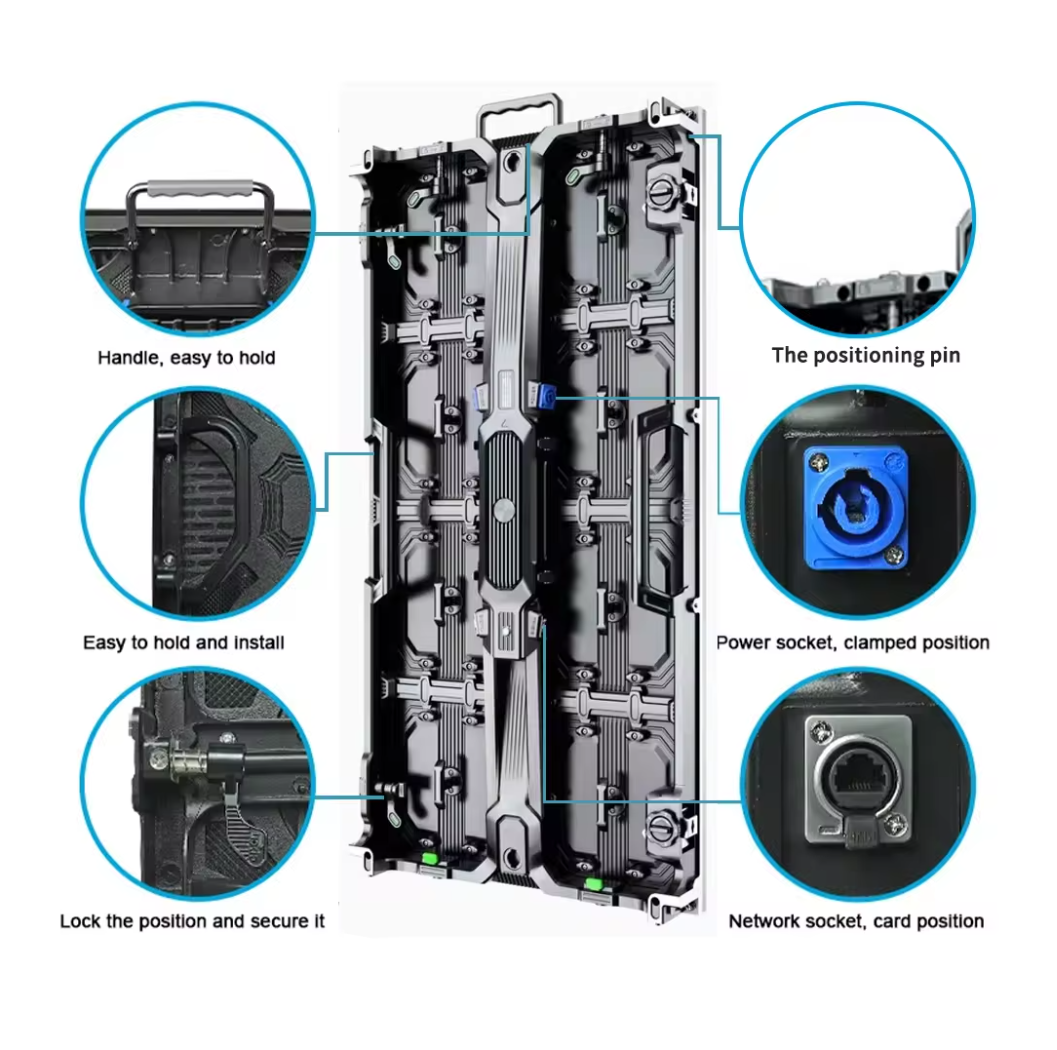

RF500 Series Rental Cabinet Details
More sturdy and durable
Each 500*500mm cabinet is 9.5kgs, and 1000*1000mm cabinet is around 19kgs. It’s weight is greater than that of regular rental cabinets.
The cabinet thickness is around 68mm, thicker than the normal rental led cabinet.

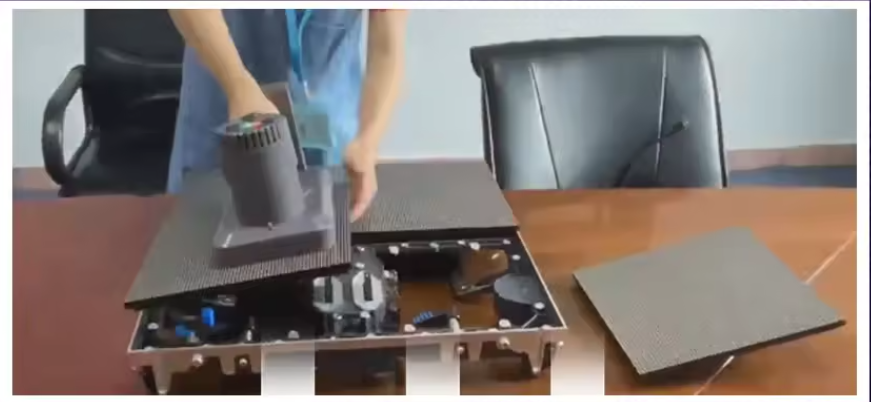

Front Maintenance
RD500 Rental led cabinet & module supports front maintenance, you can take the modules down with electronic tool, then repair the spare parts Make maintenance convenient and fast.
The front maintenance function makes this rental led screen suit for the indoor/outdoor wall mounted installation.

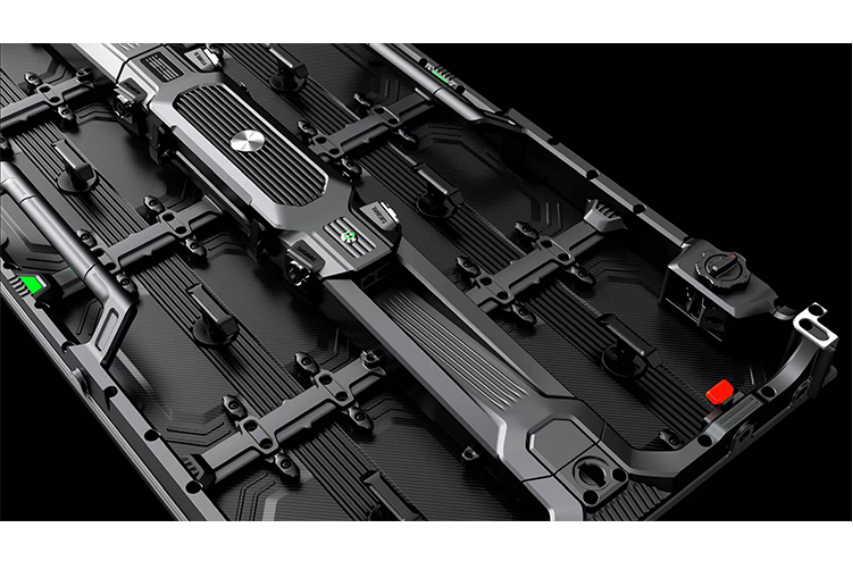

Low power consumption, low heat,no noise, energy saving and environmental protection, 24 hours daily stable operation, 365 days of continuous work, module life is more than 100,000 hours.

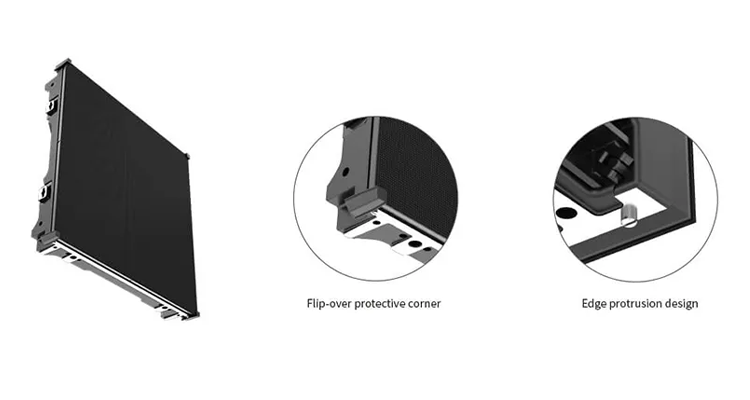

Considered Anti-Collision Design
Adopts anti-collision design to avoid direct collision between LEDs and the ground, thereby effectively protecting the LEDs on the edge.

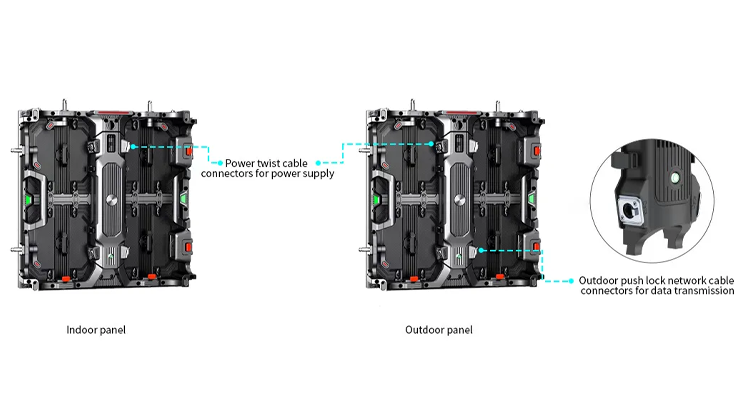

High-Quality Cable Connectors
The I series incorporates high-quality cable connectors for power and data transmission to achieve stable power and data signal transmission, and are equipped with high-quality cables to further reduce the failure rate.

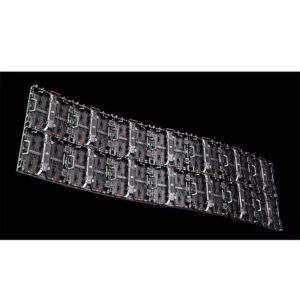

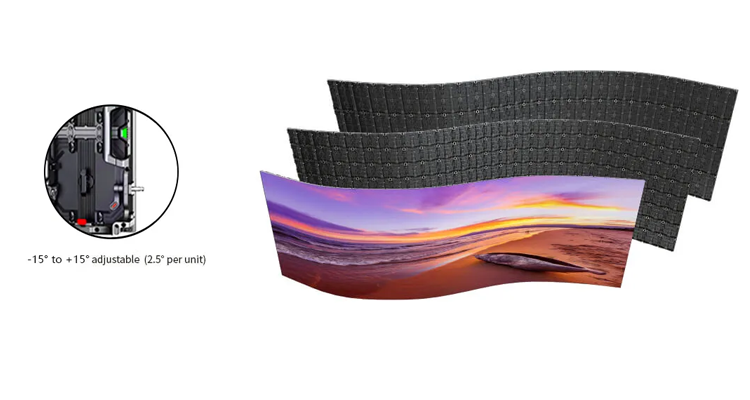

Excellent Curving Capabilities
Featuring a durable curve locking system, this rental led screen supports concave and convex connection to create various shapes and build a more creative stage.

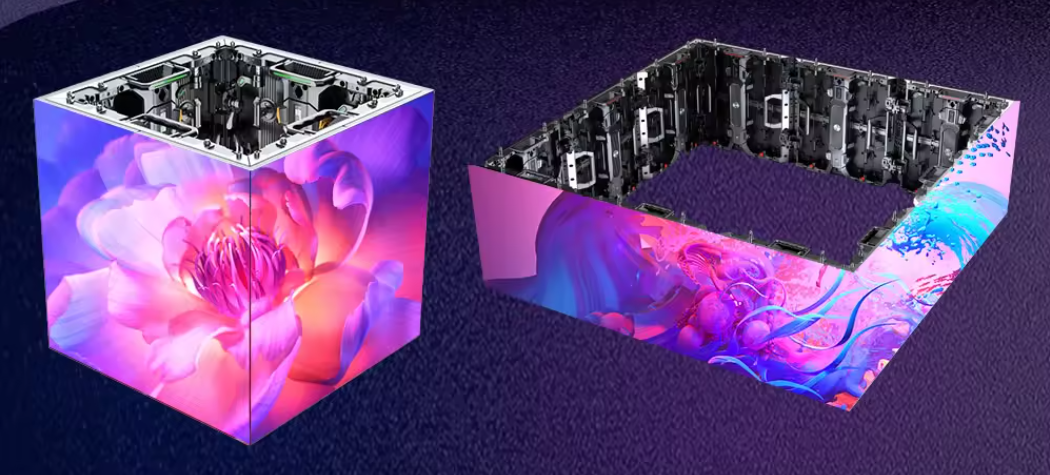

90°Splicing
Legend series cabinets and modules can be customized as 45o, then spliced as 90o right corner. So it can support some projects with cube shape or right angle requirements

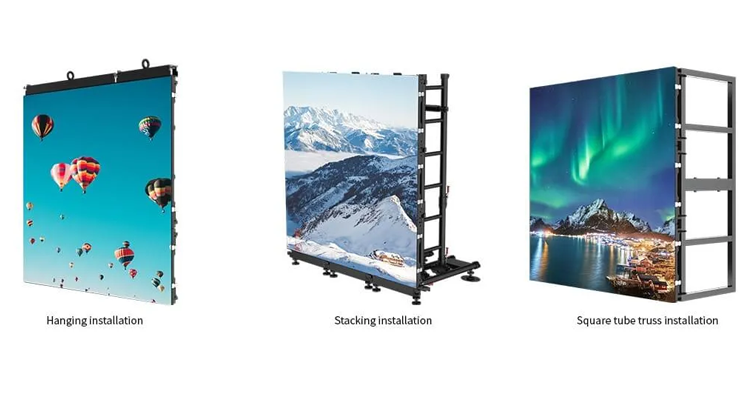

Multiple Installation Methods
Hanging and stacking installation solutions are both available to easily cope with the diverse requirements of the site environment.
Moreover, holes have been reserved for tying nylon ties to support the installation of square tube trusses, saving more labor and material costs.

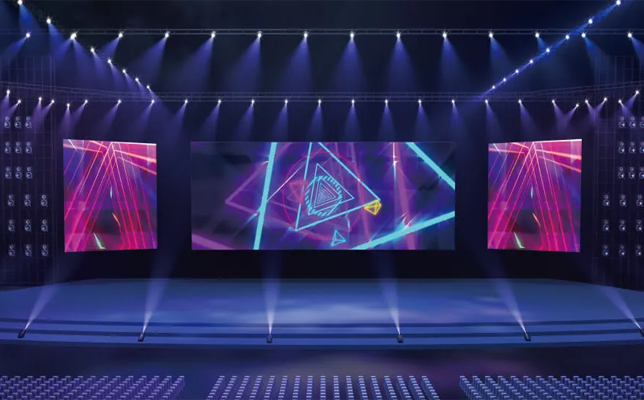

Amazing Visual Experience
Superior visual performance with high brightness and high refresh rate, ready to create stunning event moments at any time.
Brightness of indoor 9: 1000nits
Brightness of outdoor : 5500nits
Refresh rate : 3840Hz
indoor series | outdoor series | ||||||
| Pixel pitch | 1.95mm | 2.6mm | 2.98mm | 3.91mm | 2.98mm | 3.91mm | 4.81mm |
| LED Type | SMD1515 | SMD2121 | SMD1415 | SMD1921 | |||
| Pixel Density
(pixel/㎡) | 262144 | 147475 | 112896 | 65410 | 112896 | 65410 | 43222 |
| Scan | 1/32 scan | 1/28 scan | 1/16 scan | 1/28 scan | 1/16 scan | 1/13scan | |
| Cabinet Material | Die casting aluminum | ||||||
| Cabinet Dimension (W*H*D) | 500x500x85mm/19.7”x19.7”x3.4’’ ; 500x1000x85mm/19.7”x39.4”x3.4” | ||||||
| Cabinet Wight | 9.5kgs; 19kgs | ||||||
| Cabinet Resolution(dots) | 256*256 | 192*192 | 168*168 | 128*128 | 168*168 | 128*128d | 104*104 |
| Max power Consumption | 800w/㎡ | ||||||
| Average power Consumption | 270w/㎡ | ||||||
| Brightness | 1000cd/㎡ | 1200 cd/㎡ | 1500 cd/㎡ | 5500cd/㎡ | 6000 cd/㎡ | ||
| Viewing Angle | H: 120° V:120° | ||||||
| Refresh Rate | 5580Hz | ||||||
| Gray Scale | 16bits | ||||||
| High contrast | 4000:1 | ||||||
| IP Rating | IP43 | IP65 | |||||
| Operating Temperature | -30℃~ +70 ℃ | ||||||
| Lifetime | 100,000hrs | ||||||
Indoor Rental Screen
P1.95
SMD1515
262144 pixel/㎡
1000cd/㎡ Brightness
IP43
P2.6
SMD1515
147475 pixel/㎡
1200cd/㎡ Brightness
IP43
P2.98
SMD2121
112896 pixel/㎡
1200cd/㎡ Brightness
IP43
P3.91
SMD2121
65410 pixel/㎡
1500cd/㎡ Brightness
IP43
Outdoor Rental Screen
P2.98
SMD1415
112896 pixel/㎡
5500cd/㎡ Brightness
IP65
P3.91
SMD1921
65410 pixel/㎡
5500cd/㎡ Brightness
IP65
P4.81
SMD1921
43222 pixel/㎡
6000cd/㎡ Brightness
IP65
