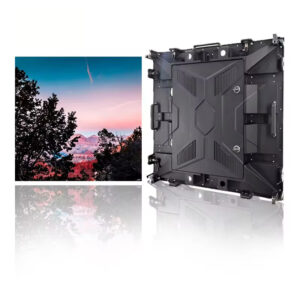

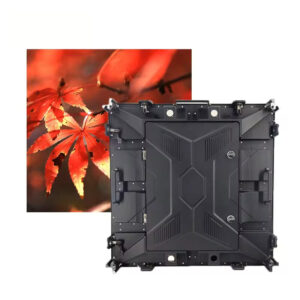

RP2.5 Rental LED Display
RP2.5 Series LED display with 640mmx640mm standard size cabinet design.Unify the Standard LED Display Cabinet Screw Holes for all Kinds of standard led module of 320x160mm.

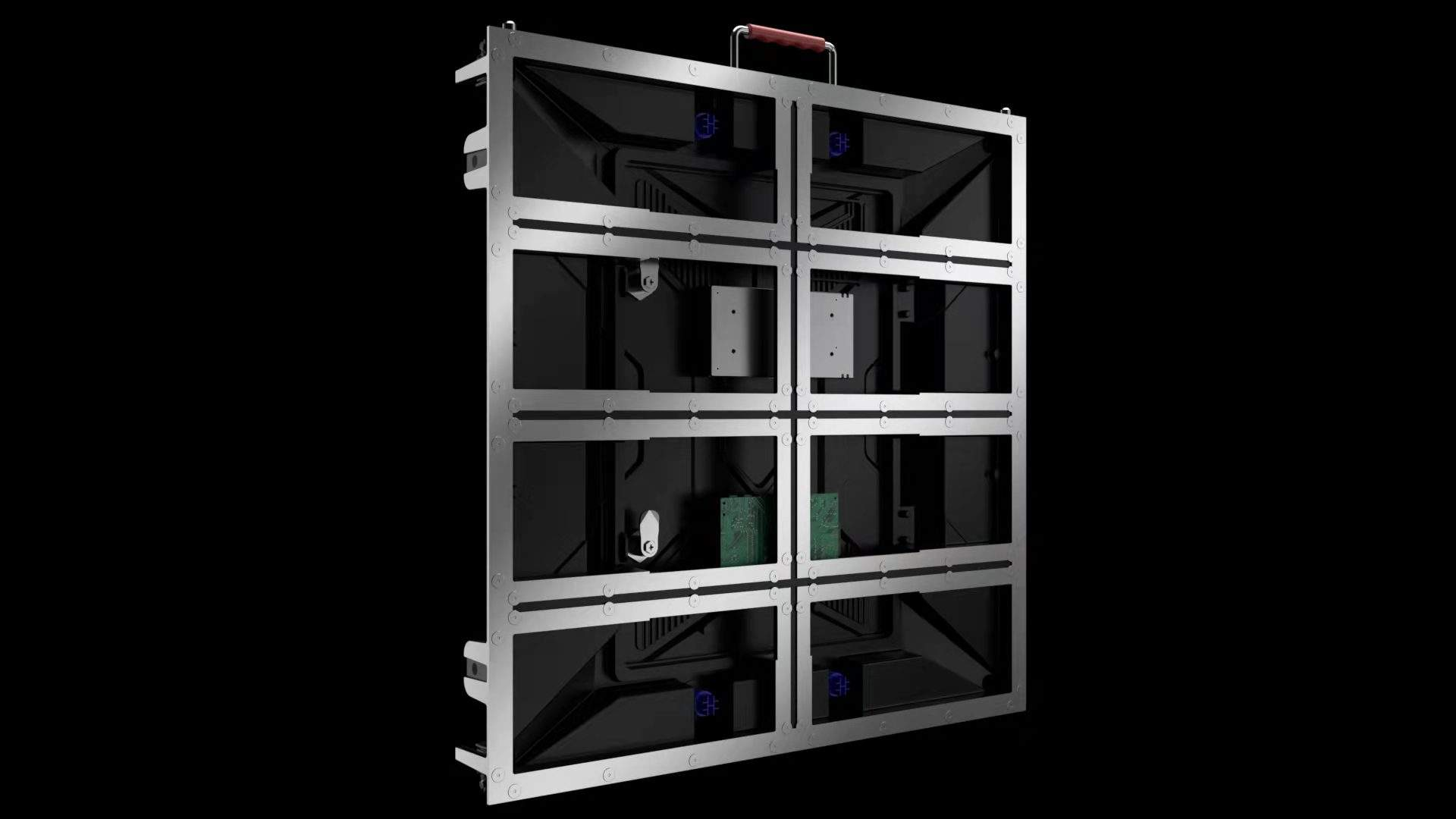

Die casting aluminum cabinet

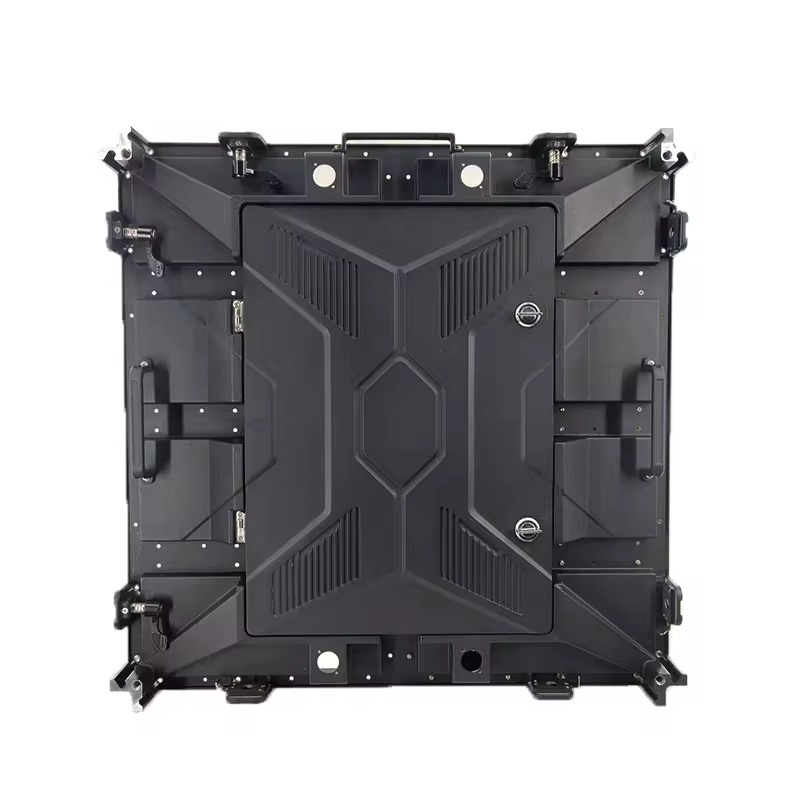

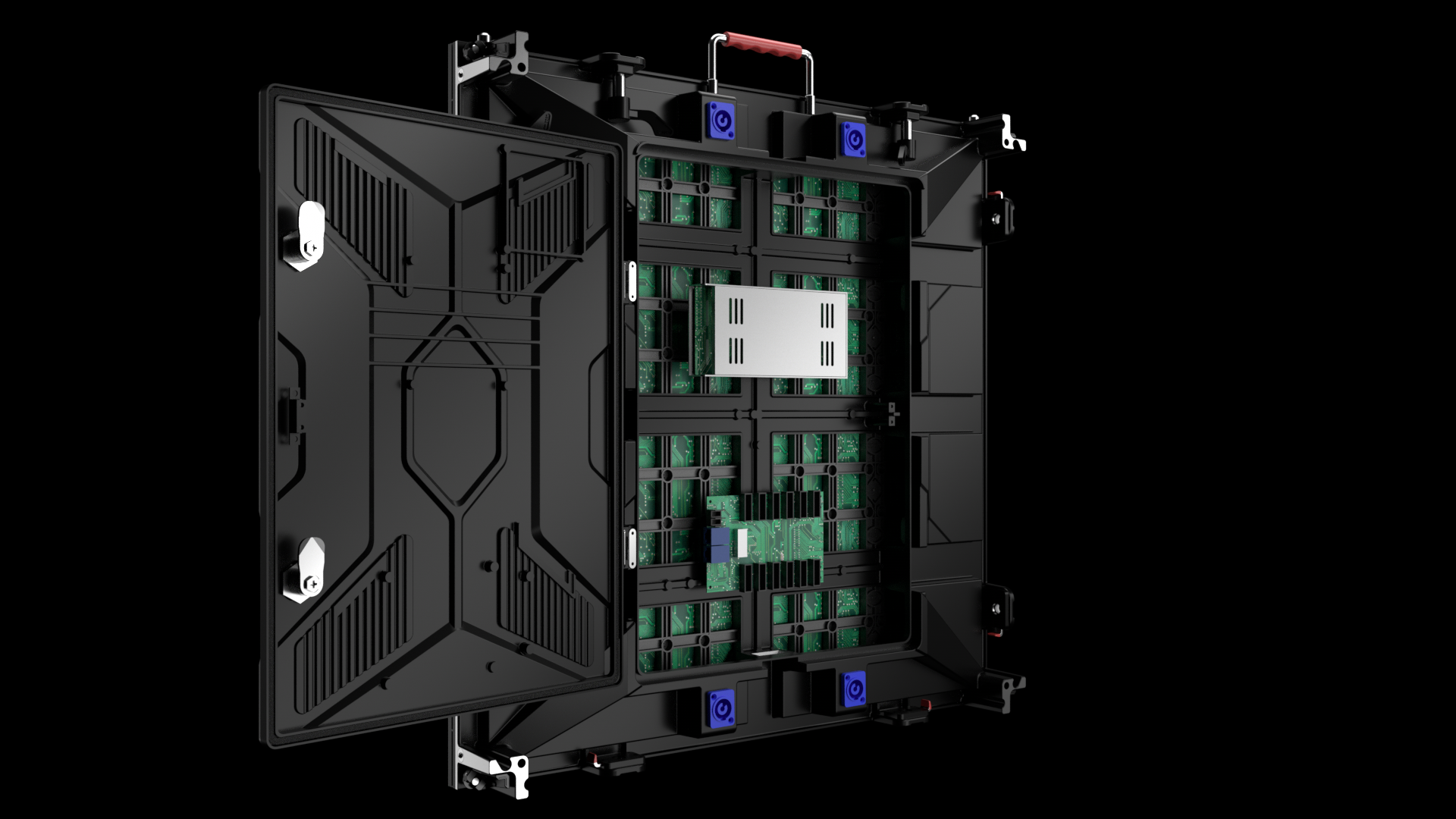

Rear service die casting aluminum cabinet
Cabinet size: 640*640.
Material: die casting aluminum
Thickness: 61.5mm

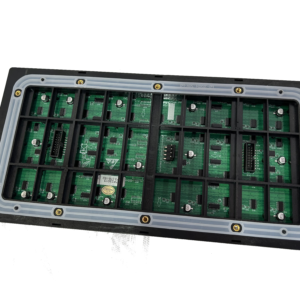

320x160mm LED Module
The module is equipped with copper bracket, power cable, magnet or screw.

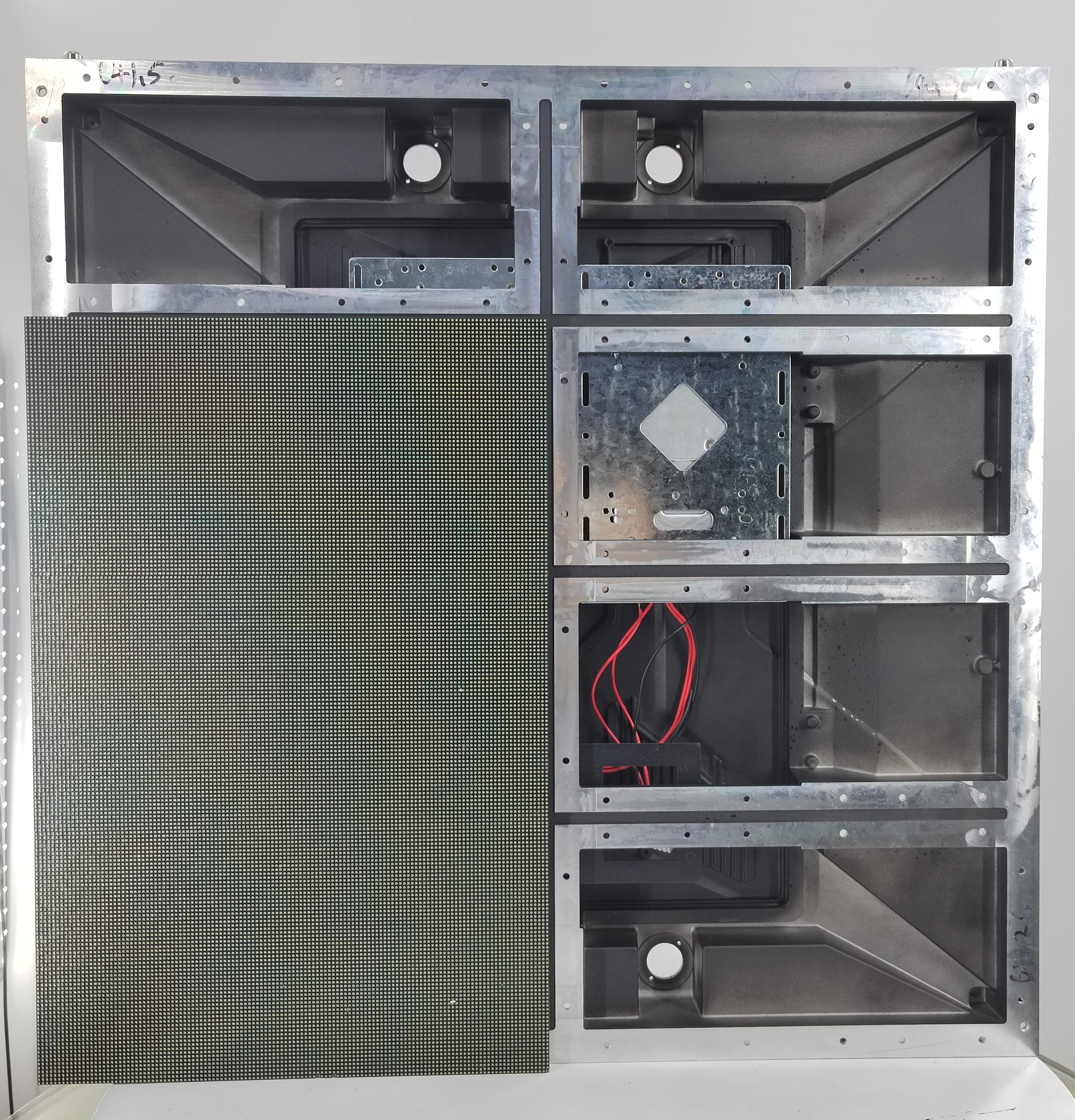

Energy Saving
We use customized PCB and power supply, so average power consumption is less than 150W/m.
Compared with the similar products in the market, RP2.5 series Outdoor LED billboard saves 20 %energy.
Intelligent and dynamic low power consumption under low brightness and gray level.
Excellent heat dissipation
Very good protection for modules and circuits

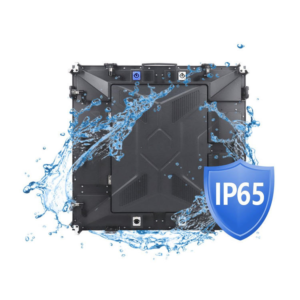

IP65
It is dust-proof and waterproof and can be used in outdoor environments.
It is resistant to rain and dust, ensuring stable operation in harsh weather conditions, making it suitable for a variety of outdoor activities.

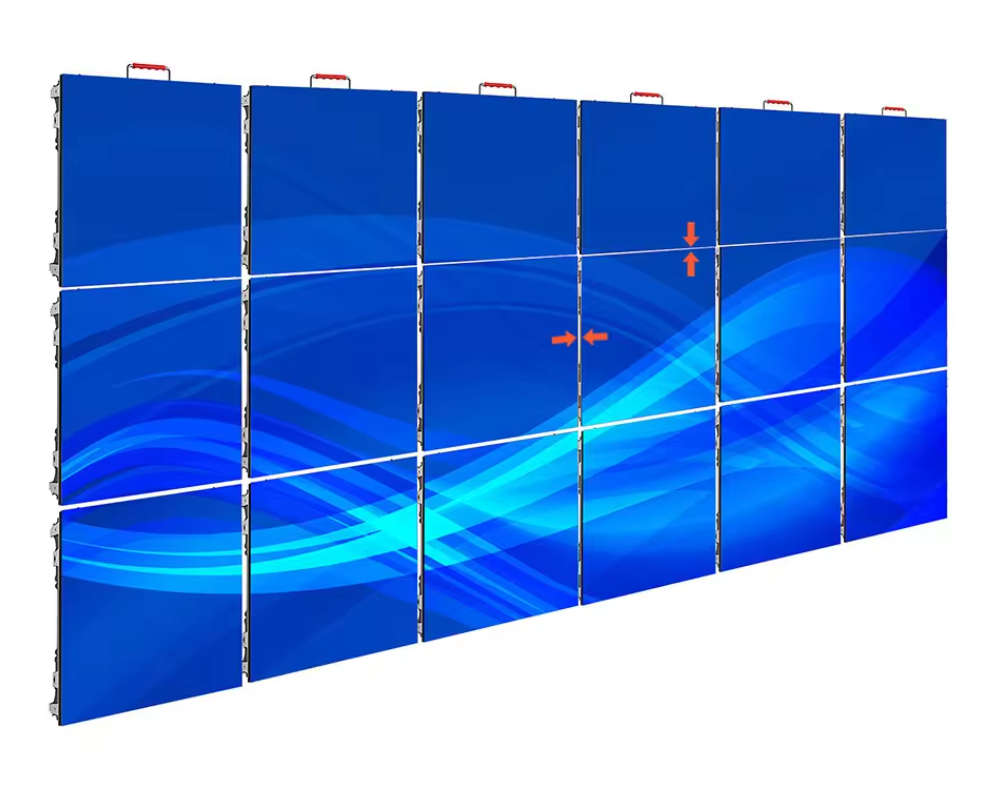

Seamless Splicing
Equipped with unique lock, the position of each cabinet can be precisely adjusted from Six directions
| Cabinet Model No. | RP2.5 |
| Cabinet Size | 640mm*640mm*61.5mm |
| Cabinet Weight | 6.2kg (Aliminum door/Suite and power supply not included) |
| Cabinet Material | Aluminum |
| Suite Quan. | 8 pcs of Modules 320mm*160mm per cabinet |
| Installation | Grane gider hoisting and Fixed Installation |
| Color | Body: Black; Door: Black/Blue/Orange |
| Working environment | Outdoor |
| Application scope of pixel pitch | P2.5 P4 P5 P8 P10 |
| Standard accessories | 1 door 1 handle 2 positioning pins 1 electrical installation board 1 receiving card board 1/3 Connection lieces 4 Quick locks |

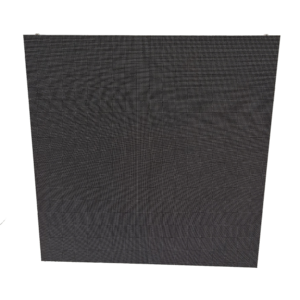

Rental Screen
P2.5
640mm*640mm*61.5mm
6.2kg Weight
320x160mm led module
P4
640mm*640mm*61.5mm
6.2kg Weight
320x160mm led module
P5
640mm*640mm*61.5mm
6.2kg Weight
320x160mm led module
P8
640mm*640mm*61.5mm
6.2kg Weight
320x160mm led module
P10
640mm*640mm*61.5mm
6.2kg Weight
320x160mm led module
