EV1000 Outdoor LED Display

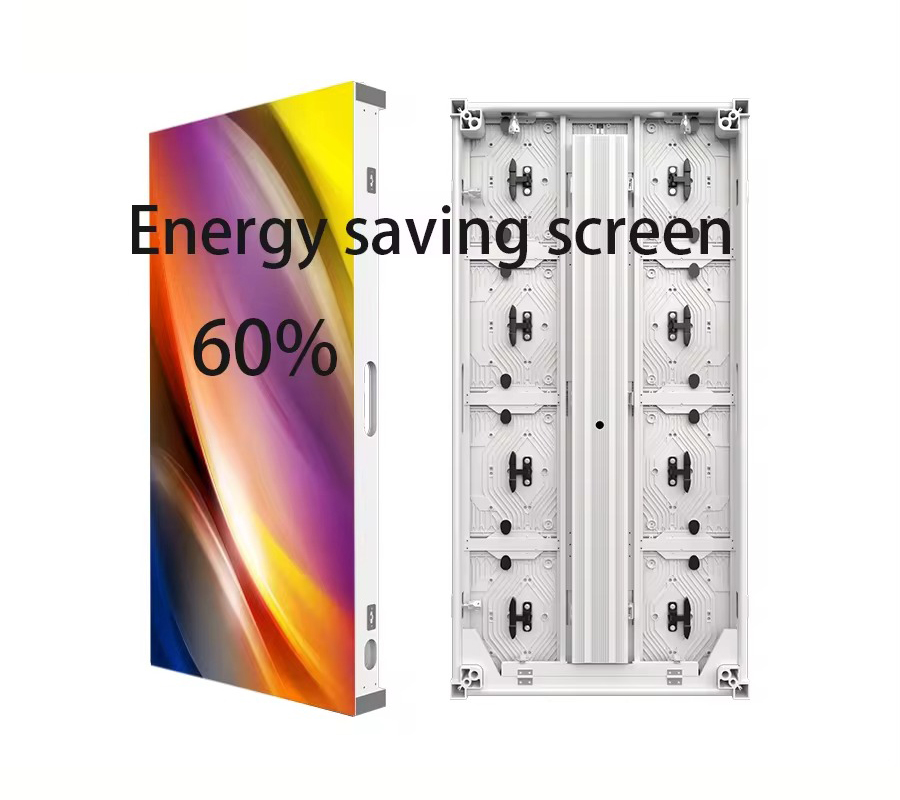

EV1000 Series LED Screen is Energy Saving LED Display. it’s the latest Common Cathode Aluminum Display with the size of 500*1000mm and high IP66 waterproof level.
IP66 Waterproof

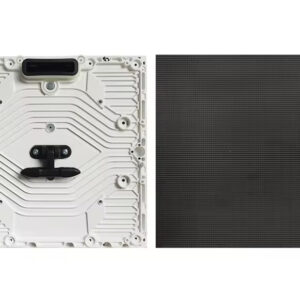

The high-quality LED module features a fully-sealed design and a die-cast aluminum chassis, providing an IP66 protection rating for both the front and rear, ensuring it is fully waterproof.

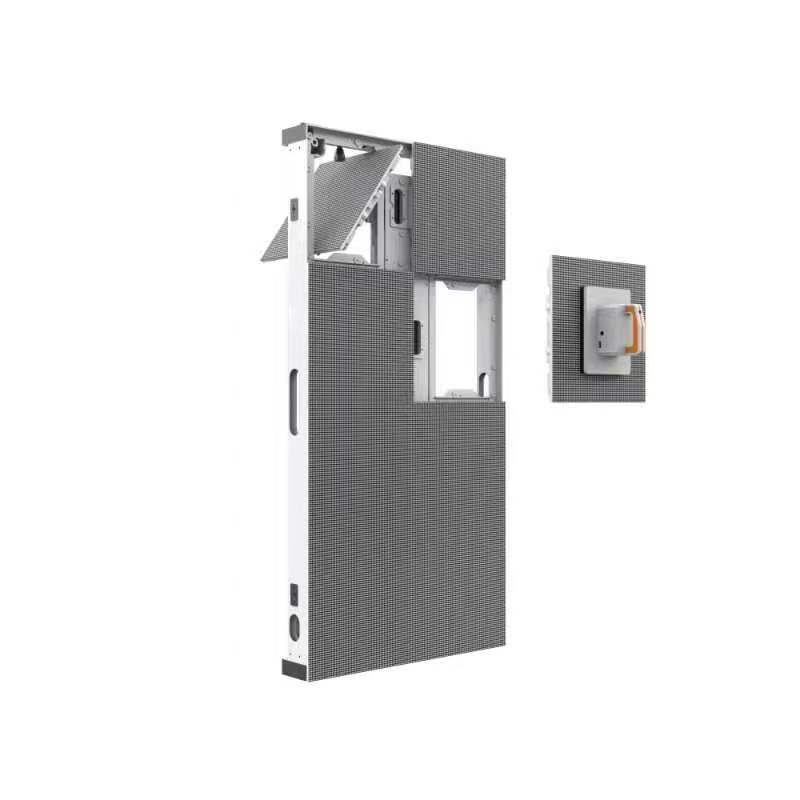

Support Front and Rear Service
The dual-service design includes both front and rear maintenance options, making it easy to operate and replace components.

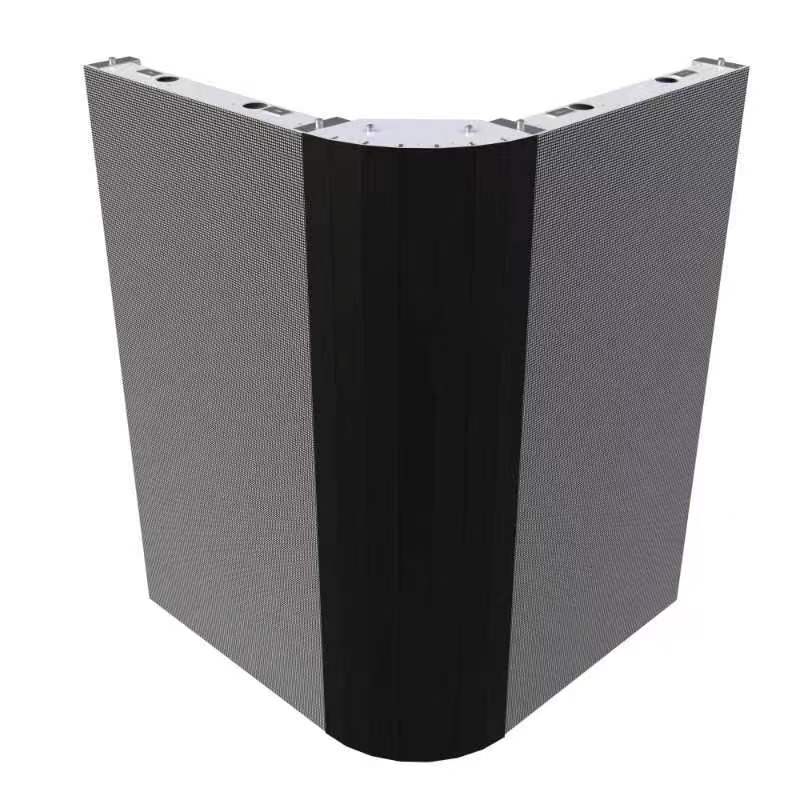

Support 90° Curve
Two Size Available

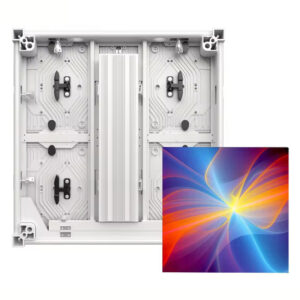

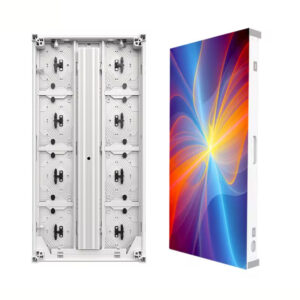

More Sizes with 500*500mm and 500*1000mm available, better to meet customers need

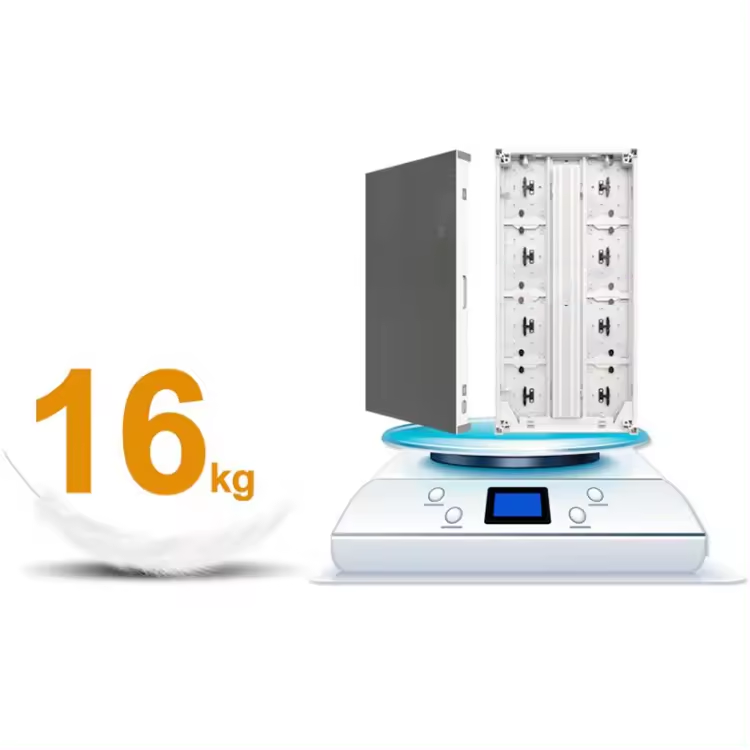

Ultra-light Weight

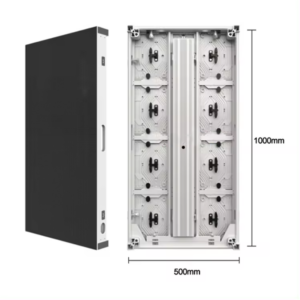

The 500*1000mm cabinet is only 16kg, making it easy to operate and portable.
| Pixel pitch | 1.95mm | 2.604mm | 2.97mm | 3.91mm |
| Pixels per cabinet | 192×384 (HxV) | 168×336 (HxV) | 128×256 (HxV) | 104×208 (HxV) |
| LED Type | SMD1516 | SMD1516 | SMD1516 | SMD1921 |
| Scan Way | 32S | 24S | 21S | 8S |
| Brightness | ≥4500 nits; | ≥4500 nits; | ≥4500 nits; | ≥6000 nits; |
| Module size | 250*250*18mm | |||
| Module resolution | 128*128dots | 96*96dots | 84*84dots | 64*64dots |
| Cabinet resolution /㎡ | 512*512=262144dots | 384*384=147456dots | 336*336=112896dots | 256*256=65536dots |
| Refresh rate | 3840Hz | |||
| Hor. viewing angle | 140° +/-5° (@50% brightness) | |||
| Vert. viewing angle | 120° +/-5° (@50% brightness) | |||
| Grey Level | 65536 | |||
| Avg Power consumption | 235 W/m² | 235 W/m² | 235 W/m² | 235 W/m² |
| Max Power consumption | 600 W/m² | 600 W/m² | 600 W/m² | 650 W/m² |
| IP rating | IP66 | |||
| Cabinet | 500 x 1000 x 83 mm (16KG),500 x 750x 83 mm (12KG), 500 x 500 x 83 mm (8KG) | |||
| Cabinet Material | Aluminum | |||
| Service Way | Front and Rear | |||
