Overview

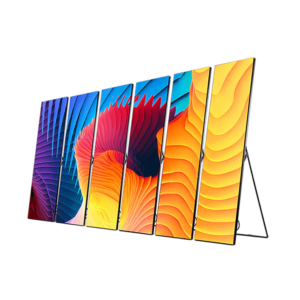

ChinaStar LED poster display is a revolutionary retail product that will display HD pictures or video to potential retail customers.

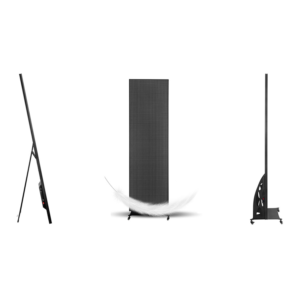

With a total thickness of 35mm(1.4in)and a weight of only 38kg(88lbs), these units can easily be moved and set up anywhere.

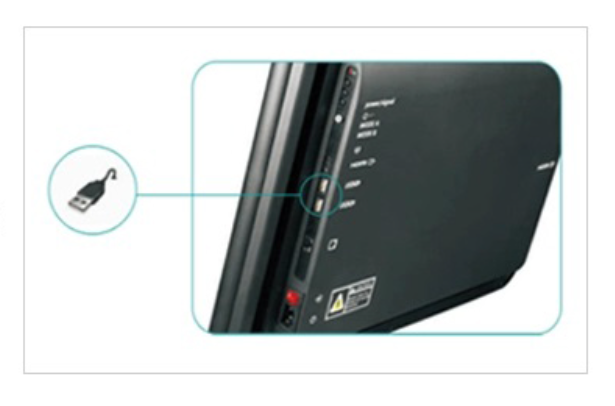

PLUG AND PLAY
Our smart led poster has a user-friendly interface that makes it easy to edit and send content to the display.

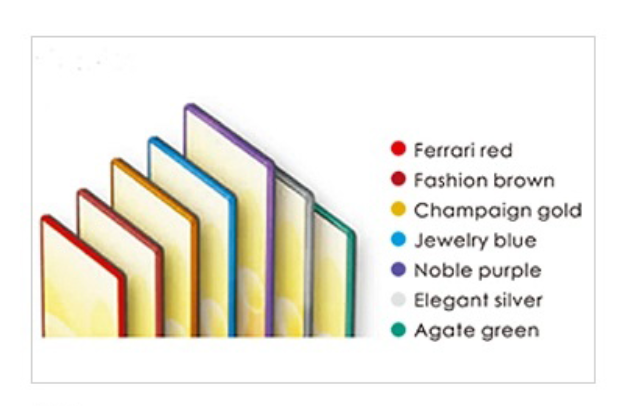

FRAME COLOR
The digital led poster defaults to black and can be customized in seven different colors.

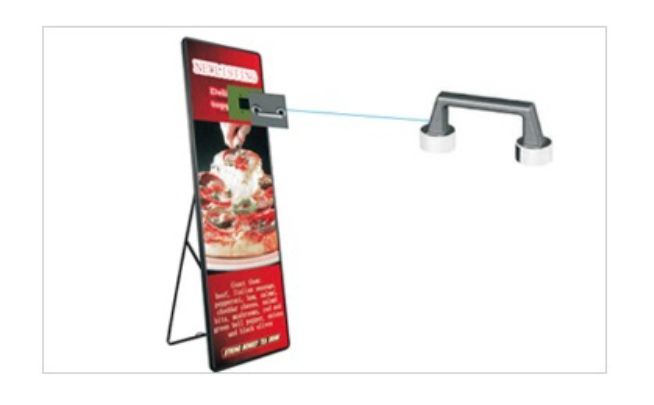

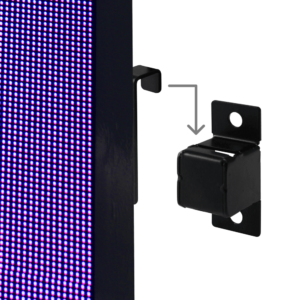

FRONT SERVICEABLE
Only take 5 seconds to replace a module for maintenance, saving the precious time
Synchronous and asynchronous control system

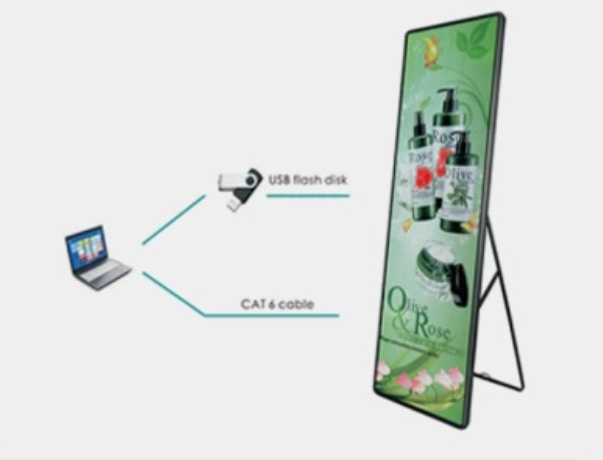

1) One machine control mode
USB flash disk
CAT 6 cable

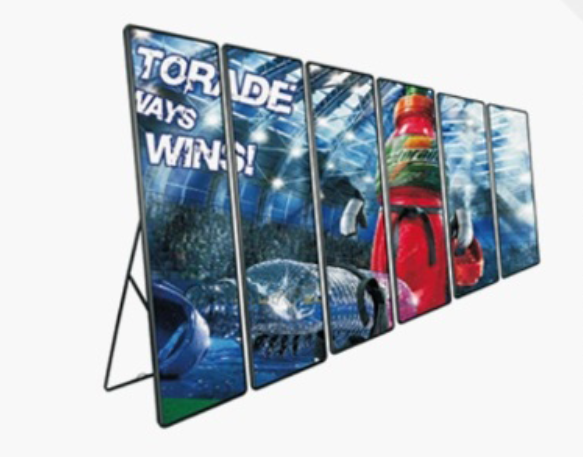

2) Multi-motor synchronous control mode In synchronous mode,you can connect the screens by the HDMi cable, by connecting six units of screens you can display a complete picture

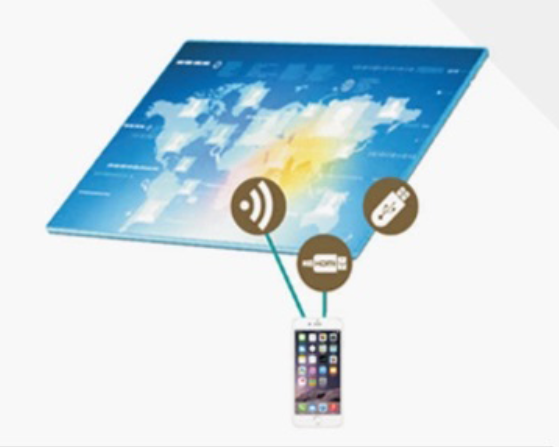

Smart management

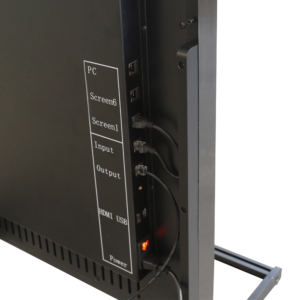

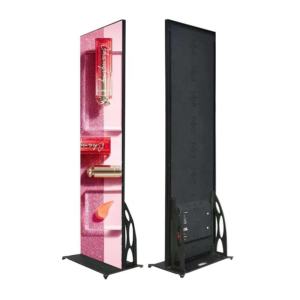

The led poster display is easily upload content via WiFi, USB or HDMI and manage hundreds of displays with one device from anywhere
The slim aluminum finish of the Cloud series really changes how traditional retail environments display their products.
The days of static posters or dressed up mannequins are in the past.
The Cloud LED display can now display multiple pictures containing a host of products or advertisements.
| ChinaStar CSMP2.5 Specifications | ||
| Module Specifications | ||
| 1 | Pixel Pitch | 2.5mm |
| 2 | Module Size | 320x160mm |
| 3 | Pixel Configuration | Nationstar SMD2020 |
| 4 | Brightness | 1200 nits |
| Screen Specification | ||

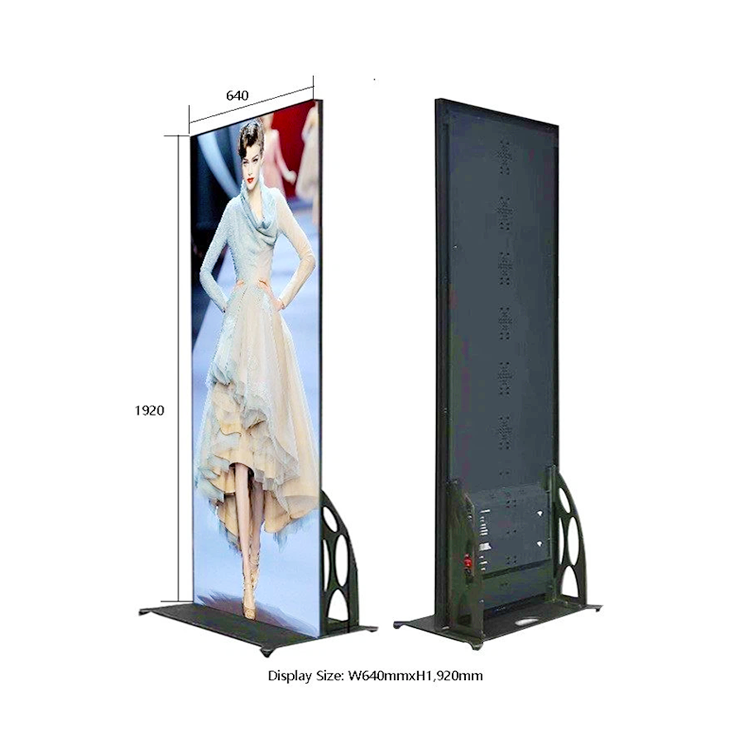

| 1 | Panel Size(L xWxH) | 650 x 1930 x 85mm |
| 2 | Resolution | 256 x 768mm |
| 3 | Pixel Matrix Per Sq.m | 160000 |
| 4 | Cabinet Pixels | 12288 dots |
| 5 | Viewing Angle (HM) | 140%/ 140° |
| 6 | Brightness | 1200cd/m |
| 7 | Refresh Rate | ≥3840 Hz |
| 8 | Power Consumption (Max / Avg) | 660 / 180 WI/sq m |
| 9 | Protective Grade | IP65 front/ IP20 rear |
| 10 | Input Voltage (AC) | 110VI 220V |
| 11 | Work temperature(0C) | -30C~ 70C |
| 12 | Controlling system | Novastar |
| 13 | Memory of control card | 4G/WIFI/USB/HDMI. |
| 14 | Control method | synchronous or asnchronous control |
