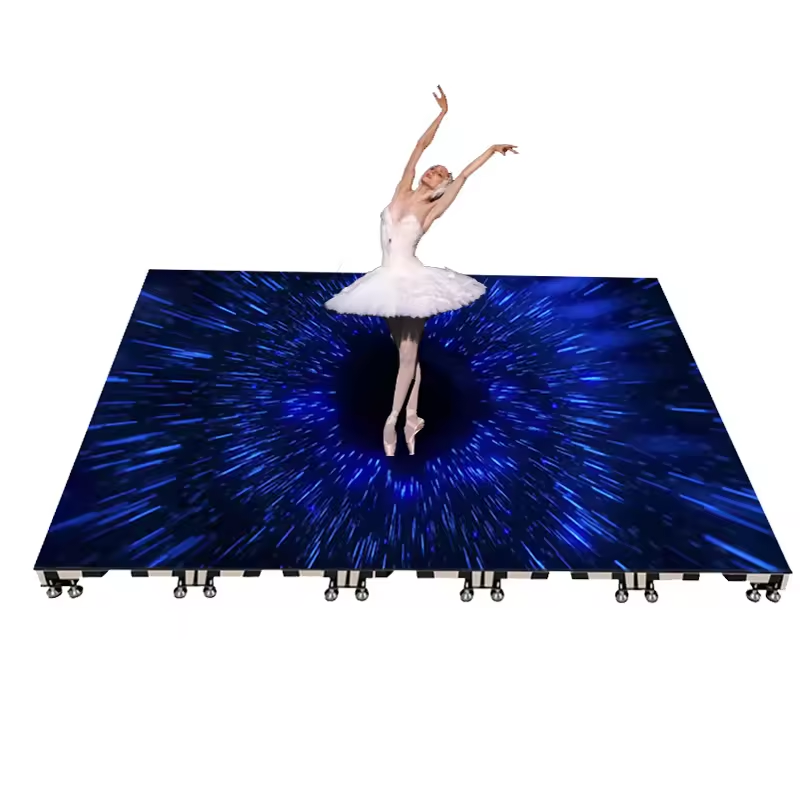

RDF391 LED Dance Floor

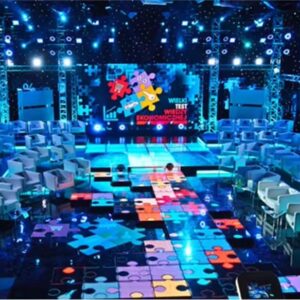

The led dance floor can be used in Weddings, Entertainment, Performances, Catwalks, Shopping Malls, Amusement Parks, Bars, KTV, Theme Parks etc.
The production is controlled by professional engineers. processes, materials, and assembly are all carried out in accordance with strict standards.
The led dance floor is flexible, portable, easy to install and maintain.
Thin and Light

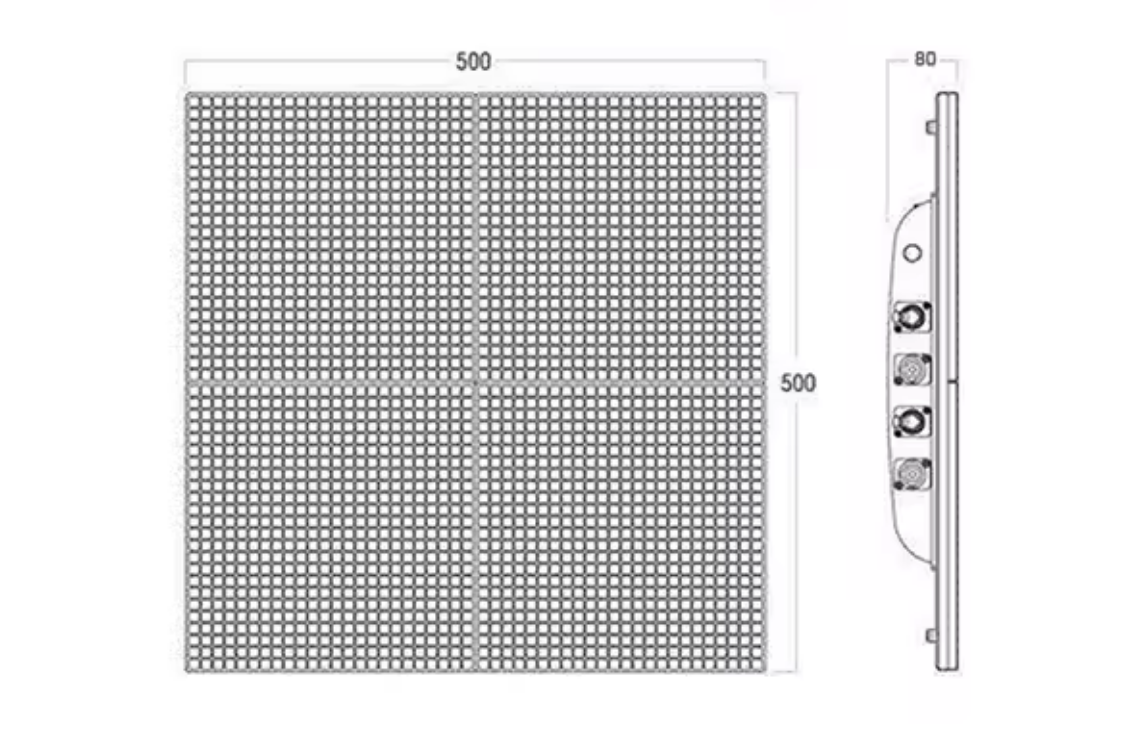

The thickness of the cabinet is 80mmand the weight is 7kg

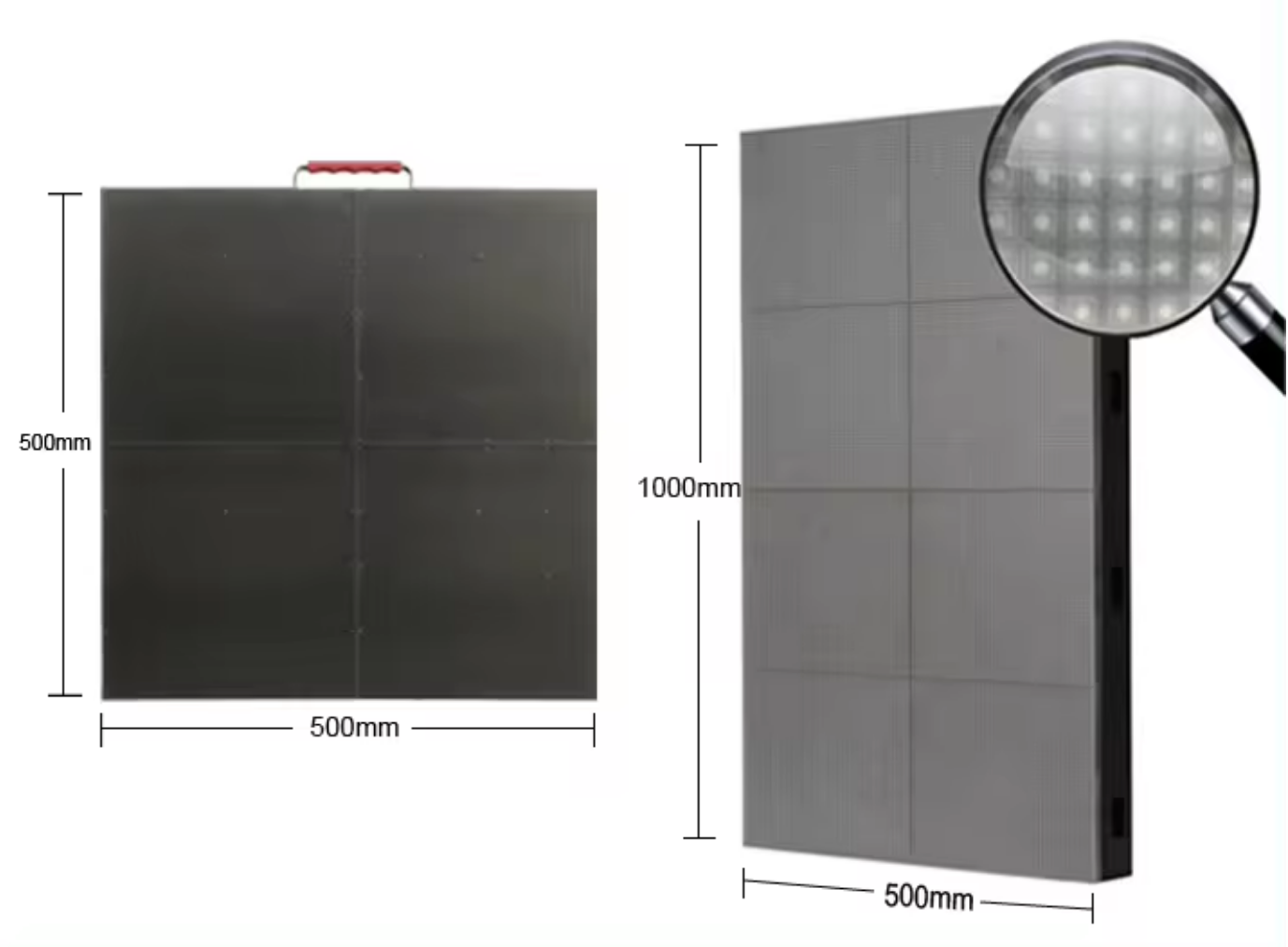

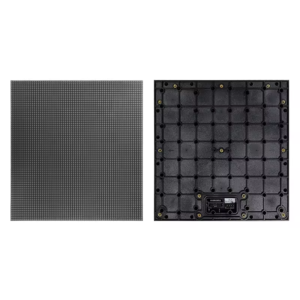

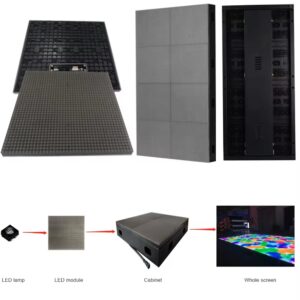

500 x500mm/500x1000mmDie casting aluminum /iron panel

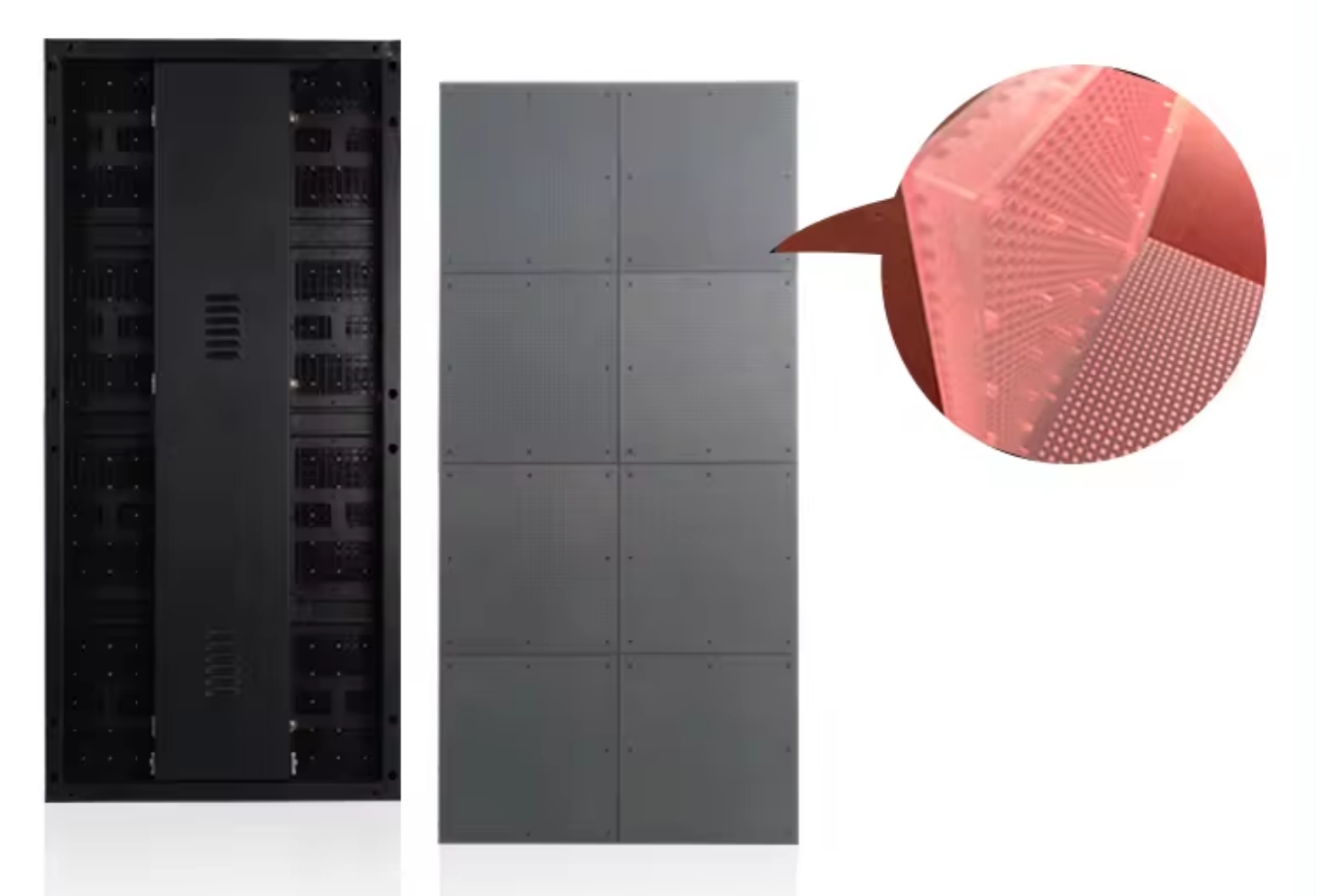

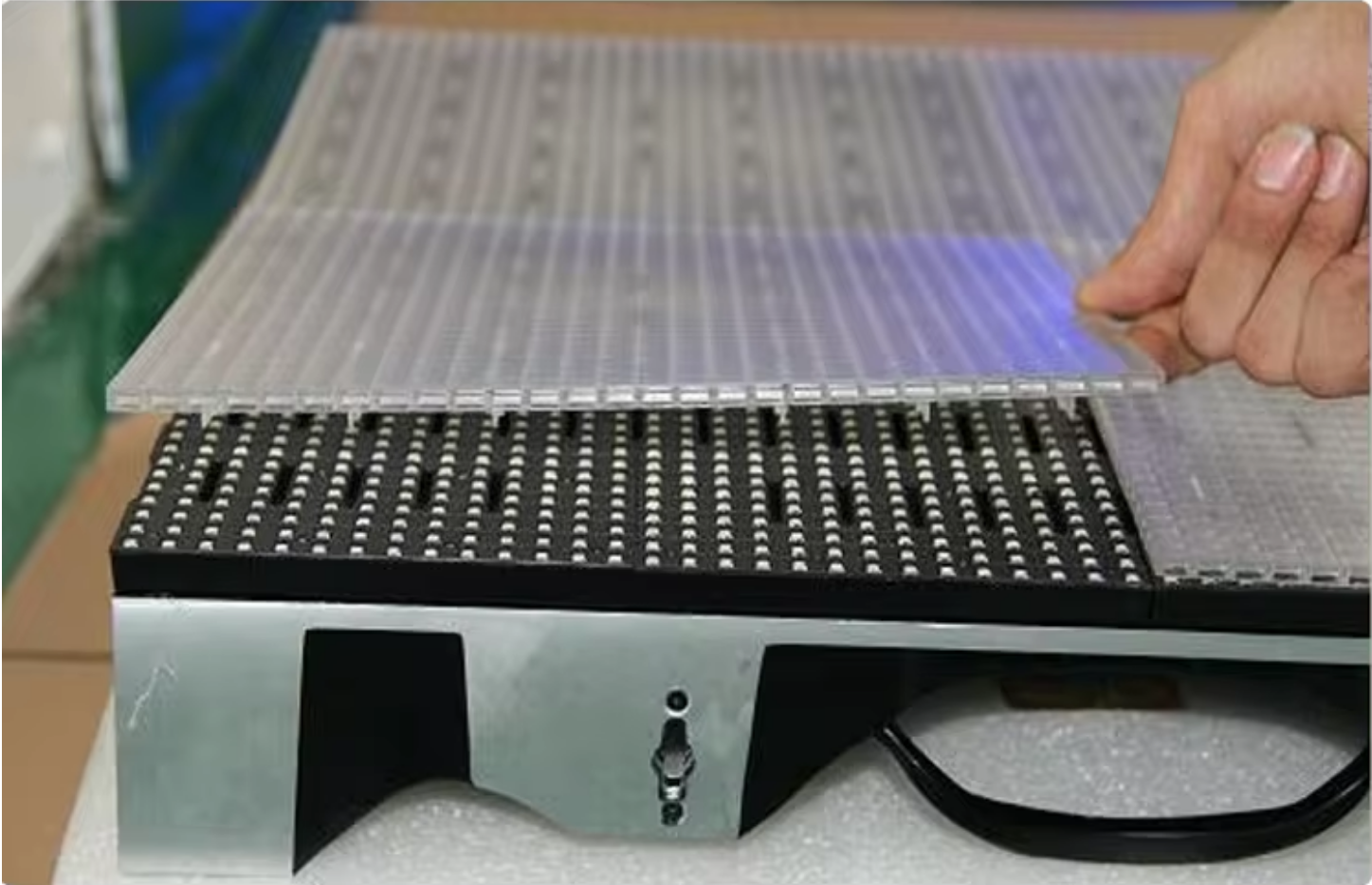

Acrylic Mask
Acrylic mask protect led lamp not be damaged when walking on it, it is matte, so we can see the content clearly. Besides, it is to clean.
Acrylic mask protect led lamp not be damaged when walking on it, it is matte, so we can see the content clearly.
It’s good for walking dancing and trampling.
Seamlessly connect, height can also be adjusted

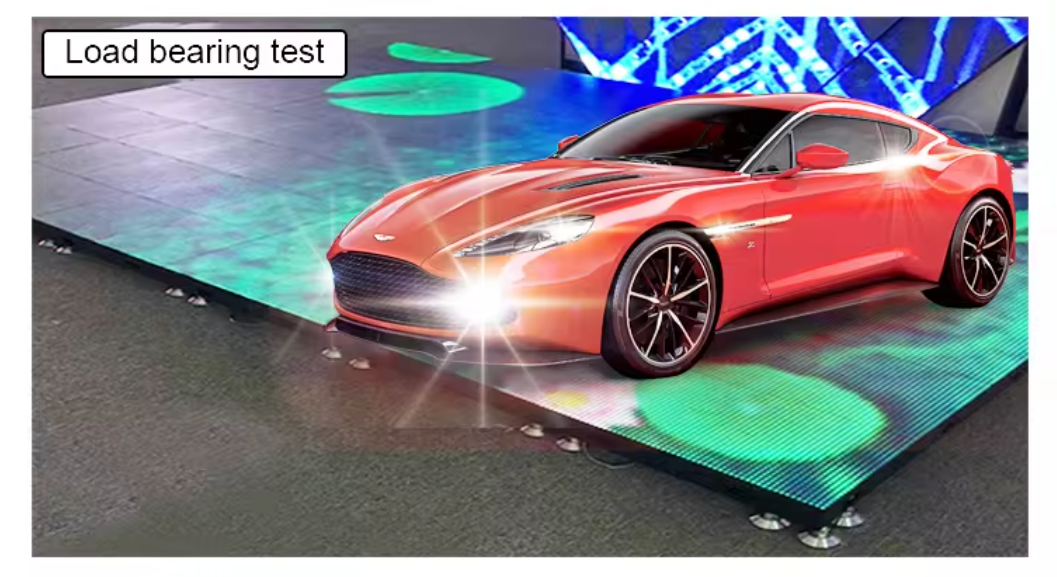

Strong and durable structure

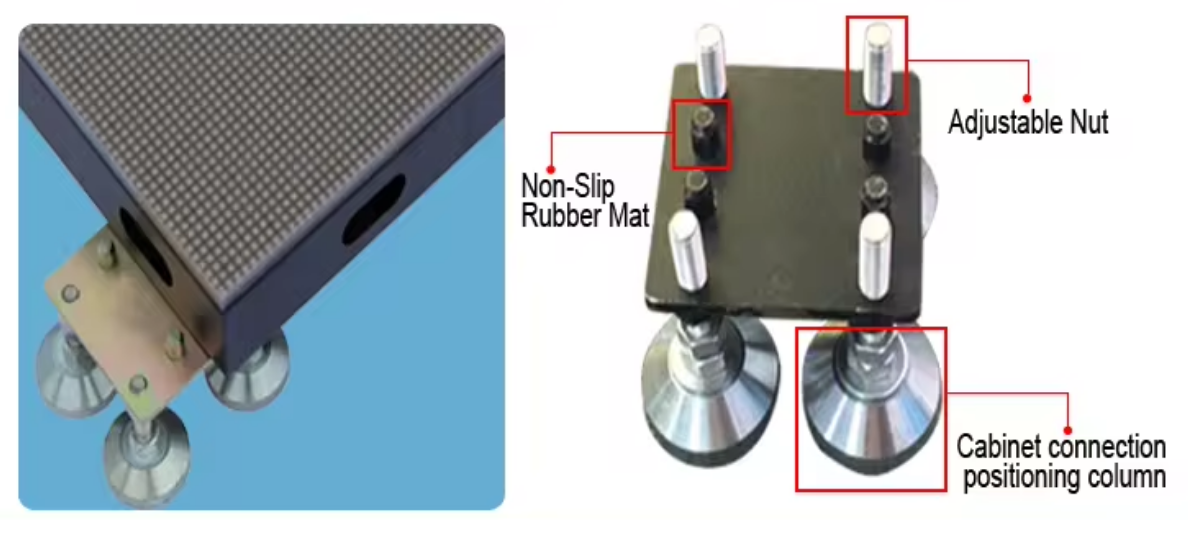

1.5~2.5 Tons heavy load
Floor led screen height can be adjustable by four nuts..
The bracket makes led screen not slip when you walk on it.
It can bear up to 1.5 tons/sqm, durable and shock resistant.
Sensors can detect movement and respond activity around the panel.
Easy to display the videos and images by interactive software.
| Outdoor Rental led screen specification | |||
| Pixel | 2.97mm | 3.91mm | 4.81mm |
| LED Encapsulation | SMD1921 | SMD1921 | SMD1921 |
| Brightness | 5000nit | 5000nit | 5000nit |
| Module Size(mm) | 250×250 | 250×250/ 250×500 | 250×500/250×250 |
| Cabinet Size | 500×1000×80/500x500x80 | 500×1000×80/500x500x80 | 500×1000×80/500x500x80 |
| Material | Die Casting Aluminum | Die Casting Aluminum | Die Casting Aluminum |
| Scan Method | 1/14 Scan | 1/8 Scan | 1/13 Scan |
| Weight | 8Kg | 12.5Kg/ 8Kg | 12.5Kg/ 8Kg |
| Cabinet Resolution | 84×168/84x84dots | 256x128dots / 128x128dots | 104x208dots/104x104dots |
| Pixel Density | 112896Pixel/㎡ | 65536 Pixel/㎡ | 43264 Pixel/㎡ |
| Refresh Frequency | ≥1920Hz | ||
| Viewing Angle | 140/140 | 140/140 | 140/140 |
| Working Voltage | 110-220Volt/50/60hz | 110-220Volt/50/60hz | 110-220Volt/50/60hz |
| IP waterproof | IP65 | IP65 | IP65 |
| Optimal Viewing Distance | ≥ 2m | ≥ 3m | ≥ 4m |
| Working Temperature | -20~60 ℃ | – 20~60℃ | -20~60 ℃ |

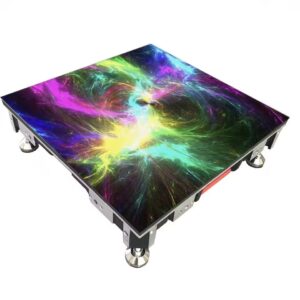

LED Dance Floor
P2.97

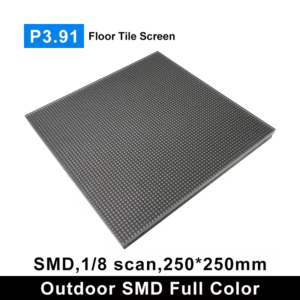

P3.91
