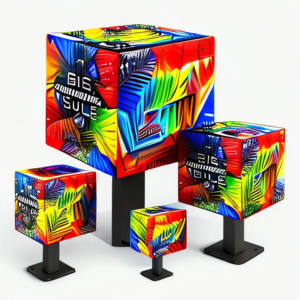

P2.5P3P4 led cube display
Chinastar led cube display could customized according to customer needs, providing different size, accept custom size, custom logo, etc.

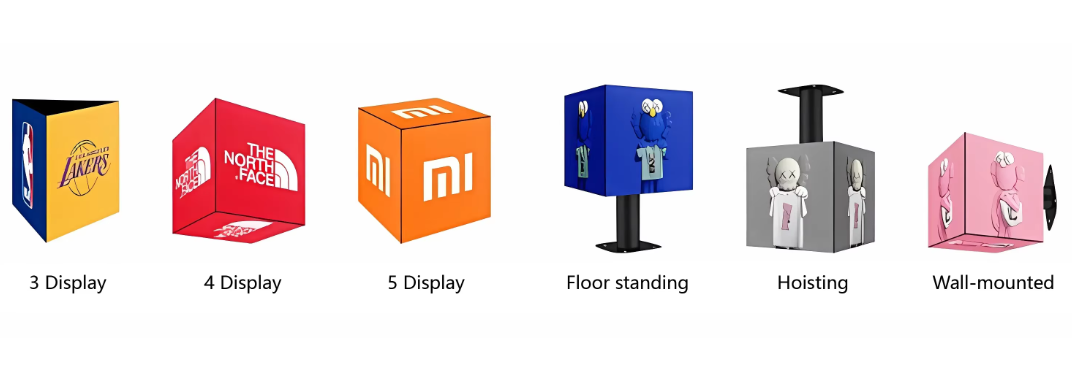

Four side, Five sides, Six sides LED Cube Display for choice, Highlight Business Value Win Unlimited Business Opportunities.
In addition, it supports a variety of installation methods, including hanging installation, floor-standing and mobile use

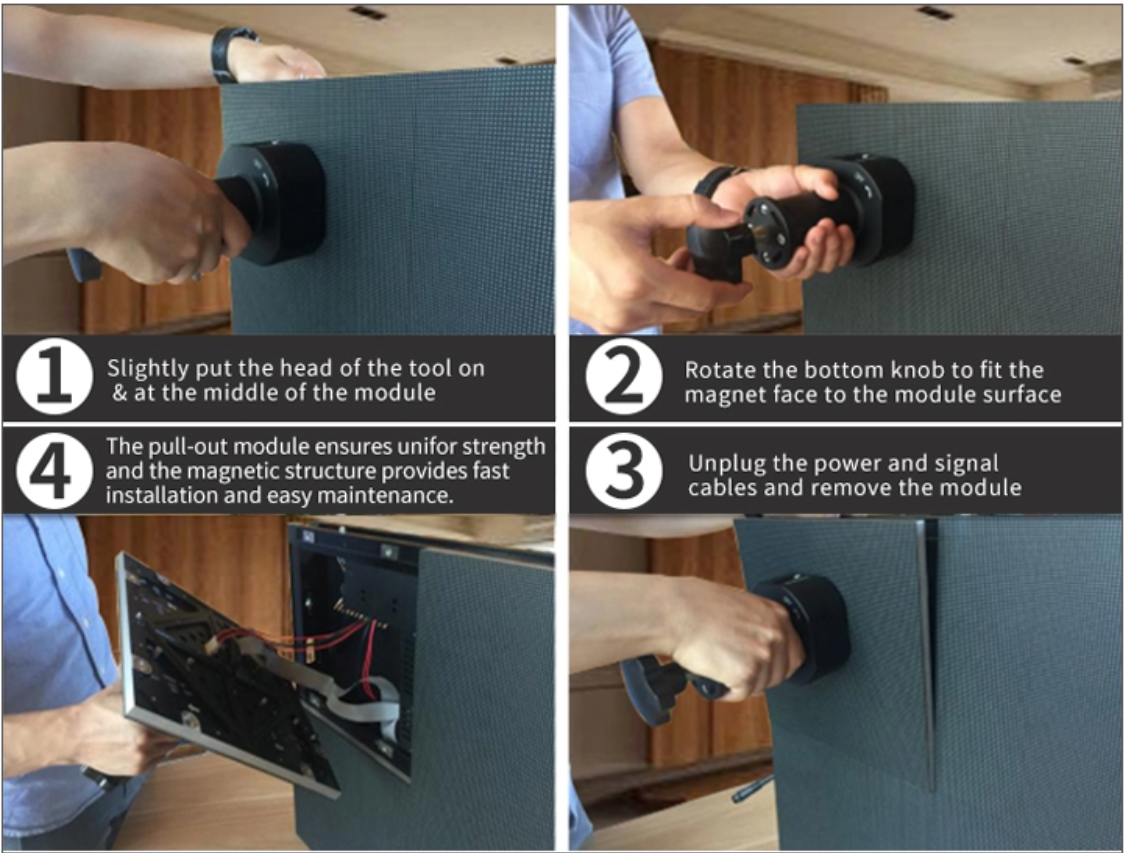

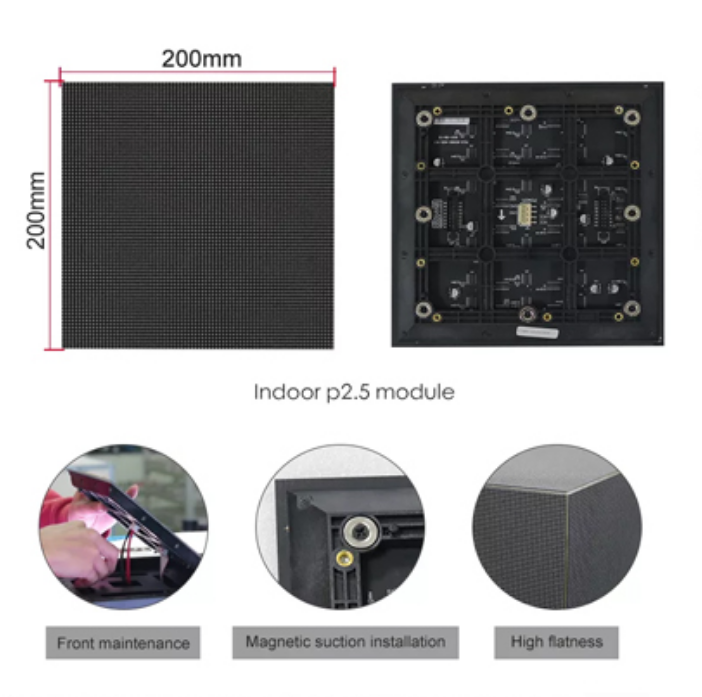

Maintain
Support front and rear maintenance
Easy maintenance
The SMD three-in-one technology with high brightness makes the display has a ultra-wide view and smoother pictures when in use.

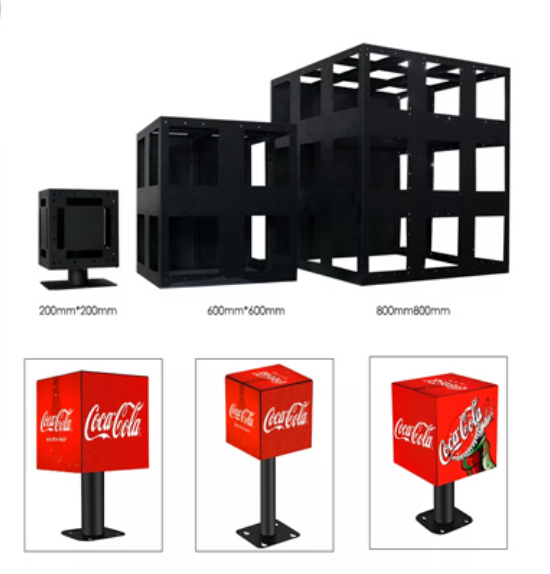

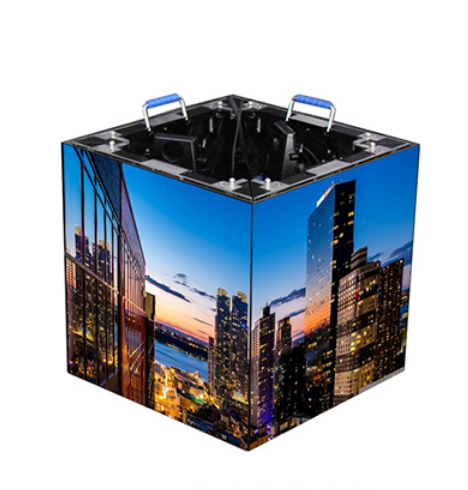

Frame structure
Wide view angle: Highly wavelength consistency of LED lamp and 120°horizontal and vertical view angle guarantee viewers can see the playing images from any direction in front.
The cabinet is made of aluminium,so can be spliced with no crack.
The thickness of the cabinet is only 80mm.
The assembling can be much quicker and more efficient for no tools is needed

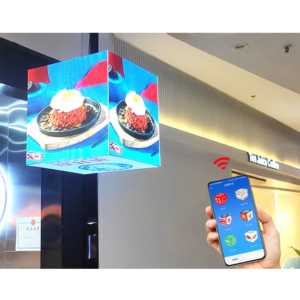

WiFi 4G remote control
Support WiFi 4Gremote control, support realize many task such as advertisement publishing,updating, management etc.

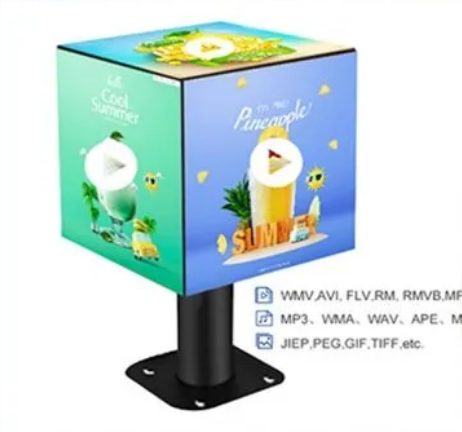

Floating on the ground
Applicable to passageways corridors, stations, subway entrances and so on.

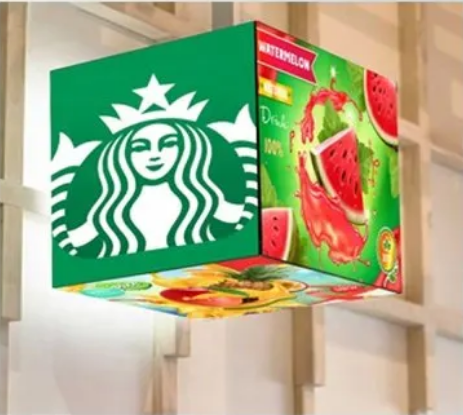

Wall hanging
Usually used indoors or semi-outdoors

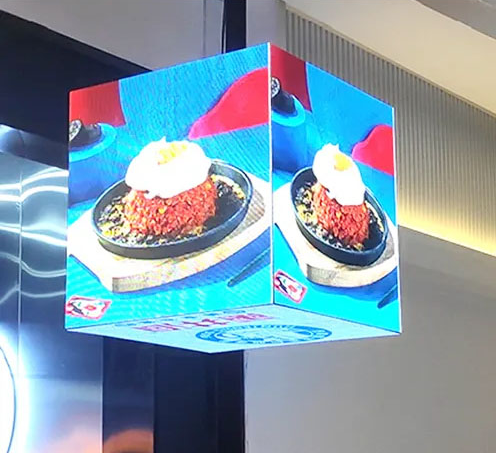

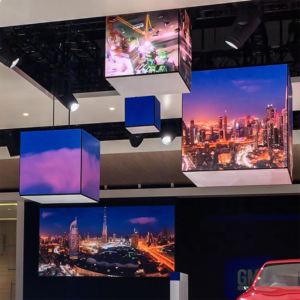

Hoisting
Stand out, look up and you’ll see it
| Pixel pitch (mm) | 2.5mm | 3mm | 4mm |
| Pixel Configuration | 1R1G1B | 1R1G1B | SMD2121/1R1G1B |
| Module sizie (mm) | 160*160mm | 192*192mm | 128*128mm |
| Module resolution | 64*64dots | 64*64dots | 32*32dots |
| Pixel Density | 160000dots/sqm | 11111dots/m2 | 62500dots/m2 |
| Cabinet Dimension (mm) | 640*640mm | 768* 768mm | 512*512mm |
| Cabinet Weight | 30kg/m2 | 30kg/m2 | 8.5kg/m2 |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Scanning Mode | 1/32s | 1/32s | 1/16 scanning |
| Brightness(cd/m2) | 3500cd/m2 | 3500cd/m2 | 5500cd/m2 |
| Max Power Consumption | 600W/m2 | 900W/m2 | 900 Watt/m2 |
| Avg. Power Consumption | 185W/m2 | 380W/m2 | 400 Watt/m2 |
| Optimal Viewing Distance | 2.5-100m | 3m | > 4m |
| Input Voltage | 100-240V AC, 50/60HZ | ||
| Lifespan | >100000Hours | ||
| Other pixel pitch (mm) | p1.56 p1.875 p1.9 p2 p4.81 p5 p6 | ||

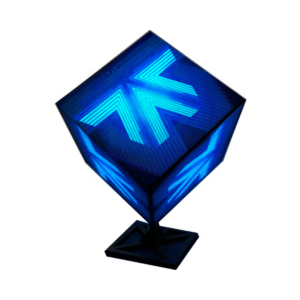

Magic Cube Display
P2.5
160000dots/㎡
160*160mm Module
640*640mm Cabinet
P3
11111dots/㎡
192*192mm Module
768* 768mm Cabinet
P4
62500dots/㎡
128*128mm Module
512*512mm Cabinet
