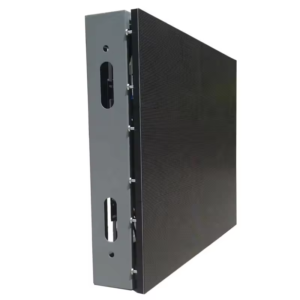

HS960 Indoor LED Screen

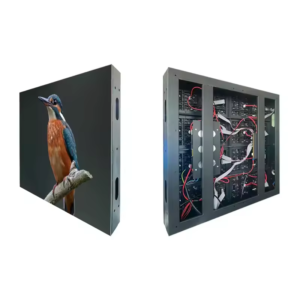

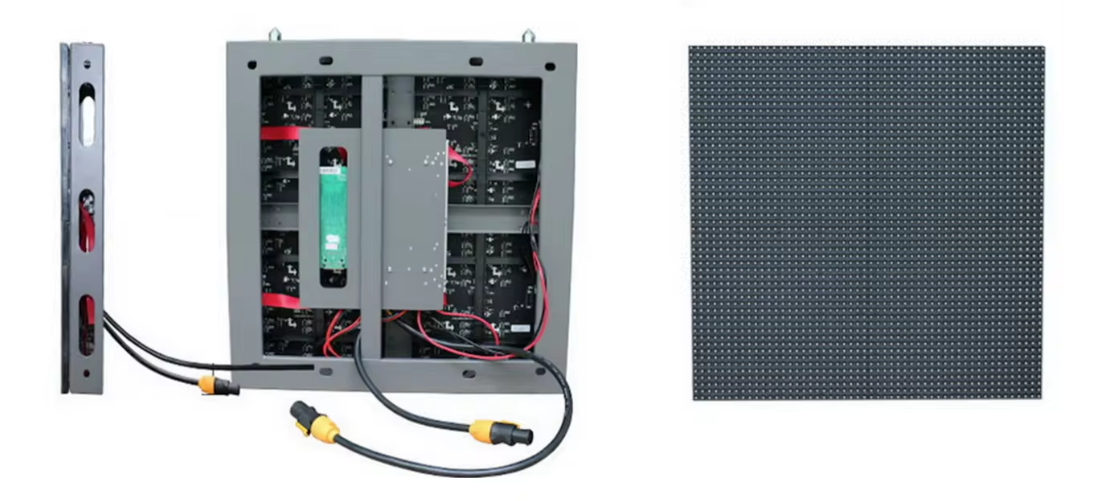

LED cabinet structure as below

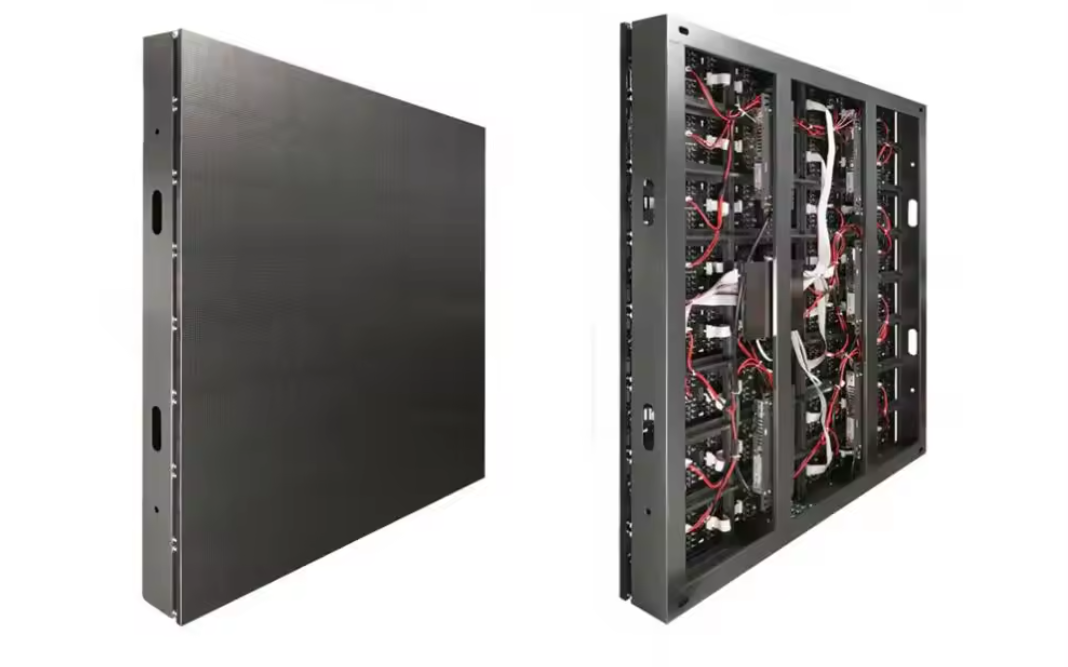

Simple Iron Cabinet without backdoor
Steel Iron cabinet, lock structure, 10 seconds assembly, saving installation time;
The box is made of Steel Iron, which has high strength, toughness, high precision, and is not easy to deform. Its thickness is only 80mm;
The modular design of the box body makes it easy to install and disassemble the screen body at any position, and the maintenance is simple
The cabinet is singular and compatible with multiple point distances
The cabinet is light in weight and requires low installation costs;
Low power consumption of the cabinet, saving operating costs;

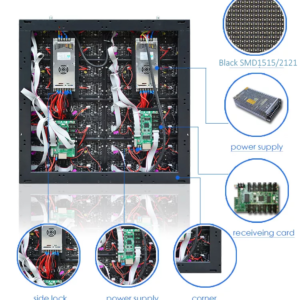

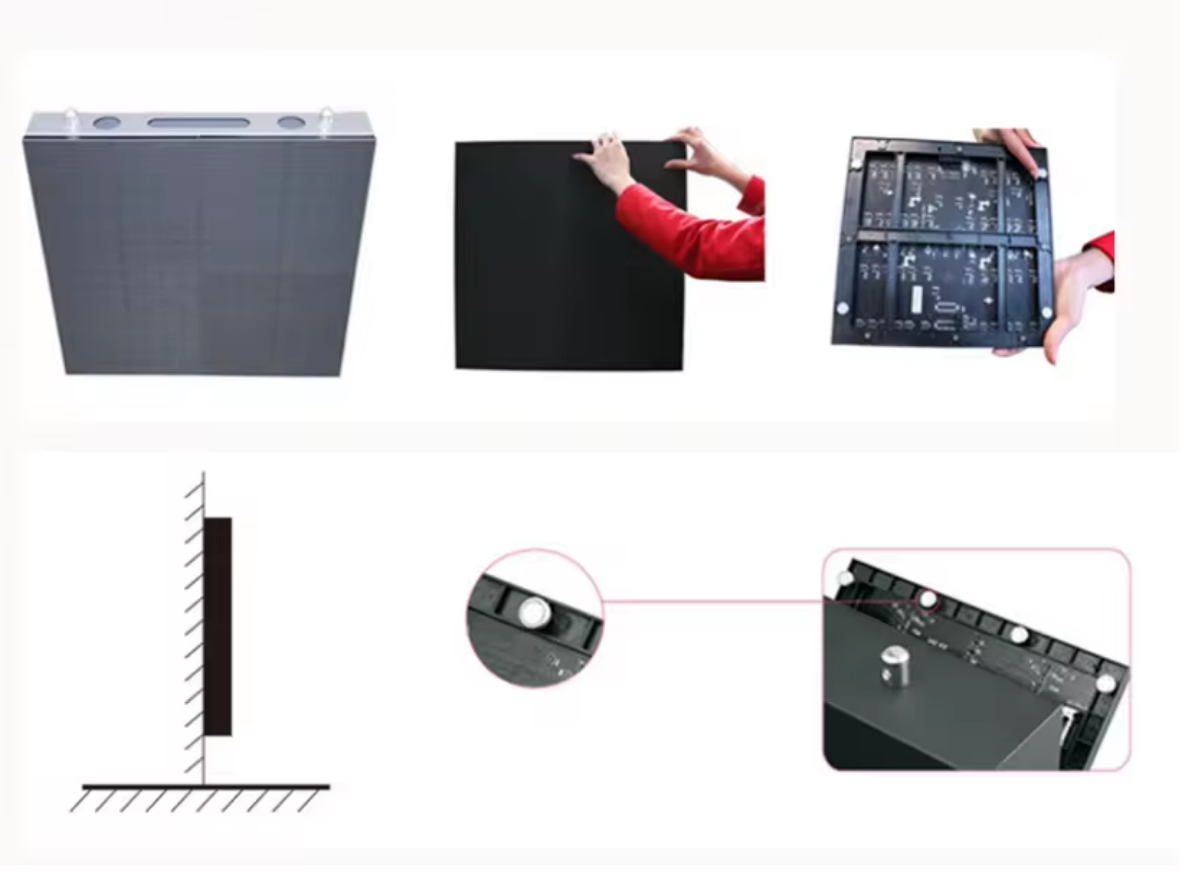

Total front access
HS960 series Module, power supply ,card,cables all,can be taken out from front
HS960 series is available to do customized size
HS960 series is cost-effective option for indoor wall mounted choice
HS960 Series has indoor P2.5,P3, P4. P5,P6 ,wide choice
Extreme precision

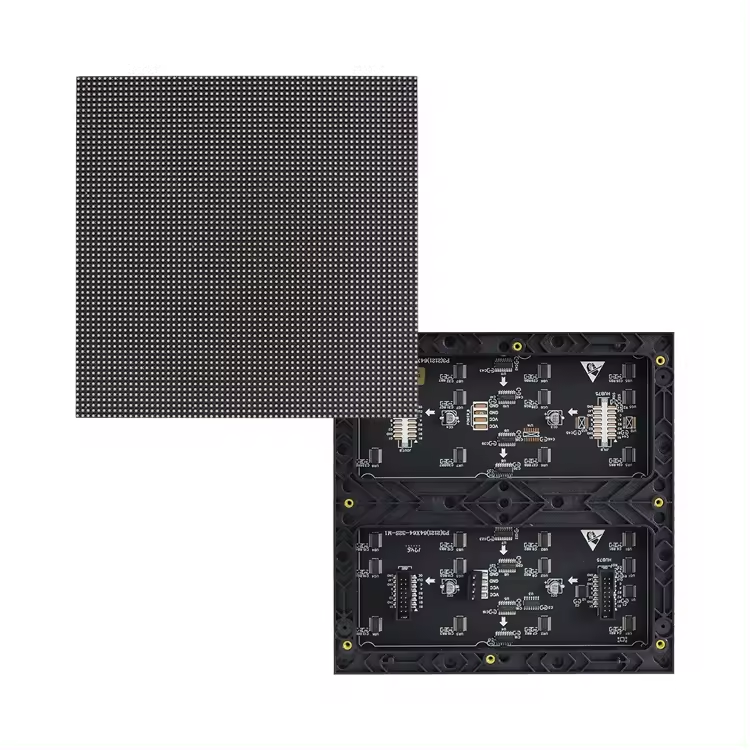

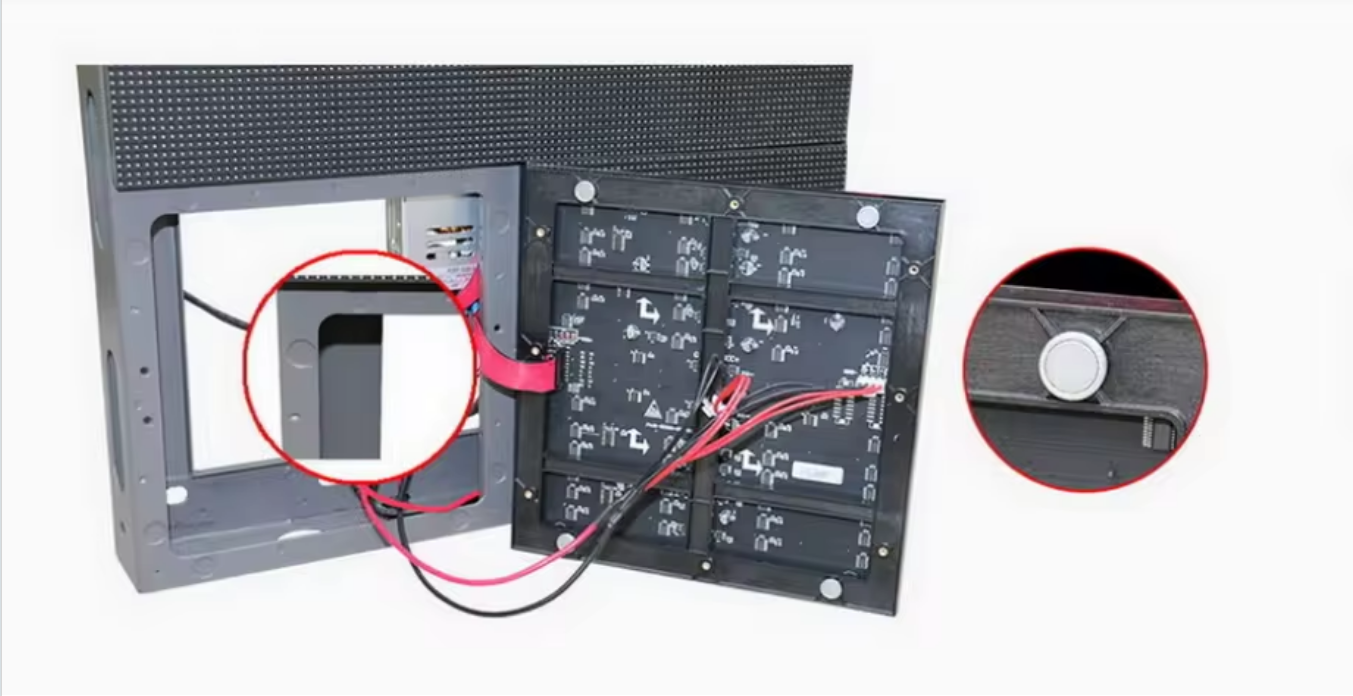

Magnetic led module,easy to connect and install.whole screen flatness and seam is less than 0.05mm
Installation screws in the front
Screws connect with connection plate front front ,greatly reduce installation distance between screen and wall

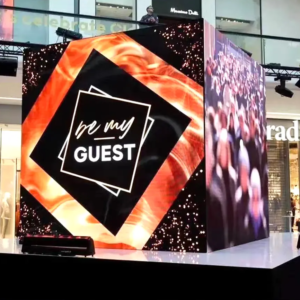

Customized 90°panel(module is also 90°)for the rectangular LED screen
| Pixel Pitch | 2.5mm | 3mm | 4mm | 5mm | 6mm |
| Pixel Density/mi | 160,000 dots | 111111 dots | 62,500dots | 40,000 dots | 27,777 dots |
| LED Congratulation | SMO2121 | SMD2121 | SMD2121 | SMD2121 | SMD3528 |
| Modulo Size | 160mm*160mm | 192mm*192mm | 256mm*128mm | 320m* 160mm | 192mm 192mm |
| Module Re solution | 64* 64 dots | 64″ 64 dots | 64* 32 dots | 64* 32 dots | 32 32 dots |
| Panel Dimension | 480*480*100mm | 768*576*100mm | 768*512*100mm | 960*640*100mm | 960*960*100mm |
| Panel Resolution | 192″ 192 dots | 256* 192 dots | 192 * 128 dots | 192* 128 dots | 160* 160 dots |
| Panel Weight | 8 Kg | 15 Kg | 13 Kg | 20 Kg | 32 Kg |
| Driving Mode | 1/32 | 1/16 | 1/16 | 1/8 | 1/8 |
| Refresh Rate | 1920- -3840Hz | 1920-3840Hz | 1920-3840Hz | 1920-3840Hz | 1920-3840Hz |
| Brightness | 800 cd/㎡ | 1000 cd/㎡ | 》1200 cd/㎡ | 1200 cd/㎡ | 31500 cd/㎡ |
| color processing bits | 16bit | ||||
| Cabinet raw material | Steal/Aluminum | ||||
| IP rating | IP3X | ||||

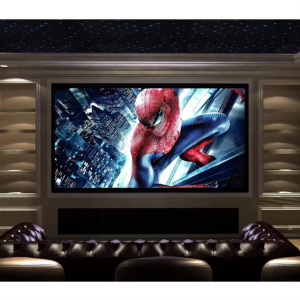

Indoor Screen
P2.5
160*160mm Modulo Size
480*480*100mm Panel Size
Panel Weight 8kg
P3
192*192mm Modulo Size
768*576*100mm Panel Size
Panel Weight 15kg
P4
256*128mm Modulo Size
768*512*100mm Panel Size
Panel Weight 13kg
P5
320*160mm Modulo Size
960*640*100mm Panel Size
Panel Weight 20kg
P6
192*192mm Modulo Size
960*960*100mm Panel Size
Panel Weight 32kg
