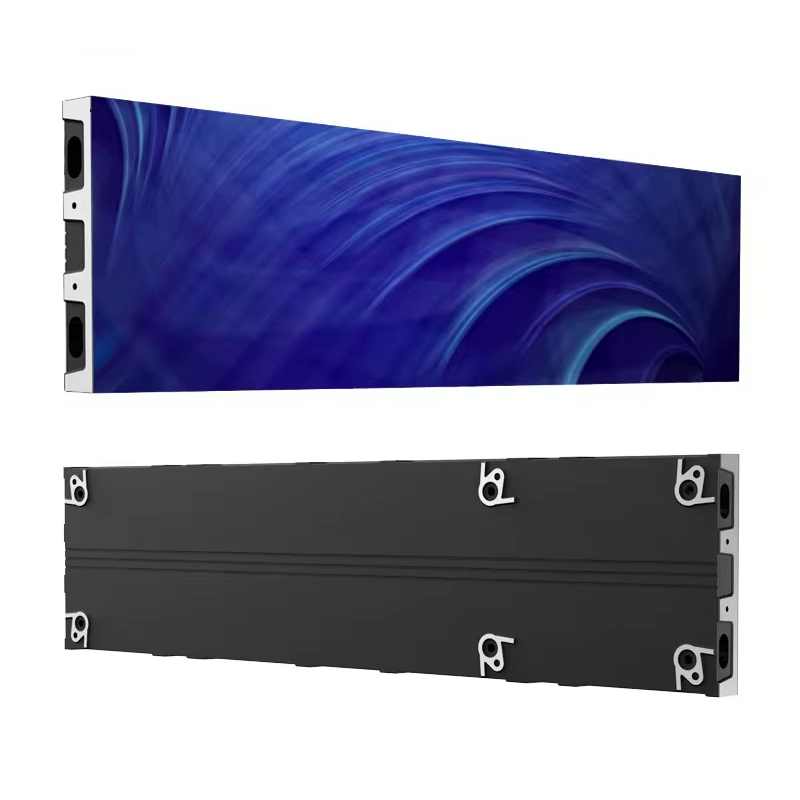

HC1000 Indoor Fixed LED Display
High contrast corrugated light absorbing mask achieves high contrast
Cabinet design looks neat, and no cables connection between cabinets

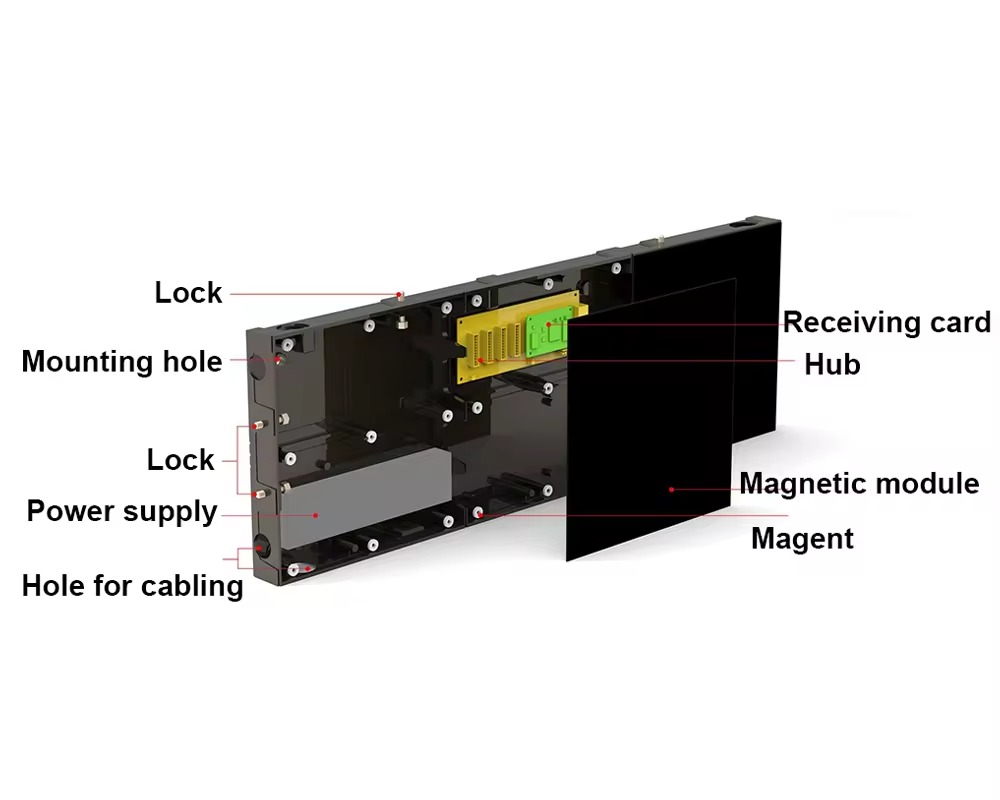

Details of Cabinet

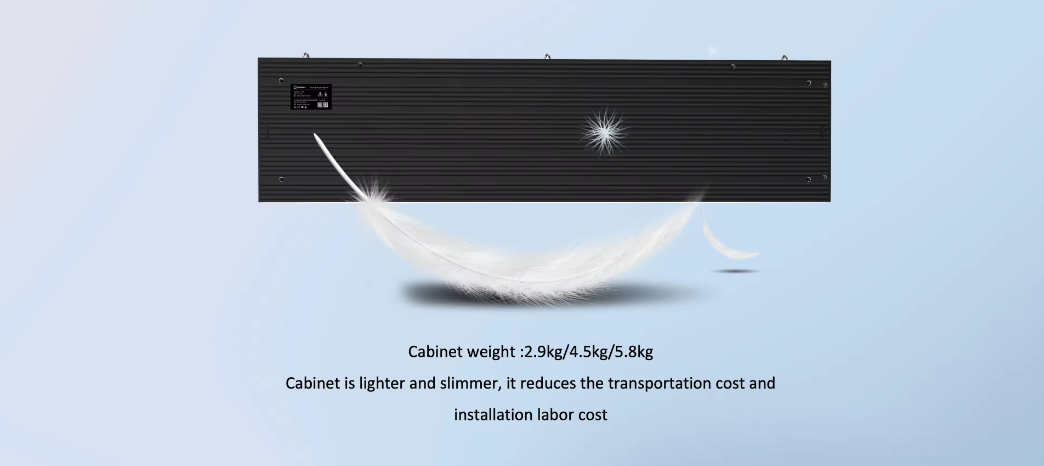

Slim and Light
Cabinet weight :2.9kg/4.5kg/5.8kg
Cabinet is lighter and slimmer, it reduces the transportation cost and installation labor cost.

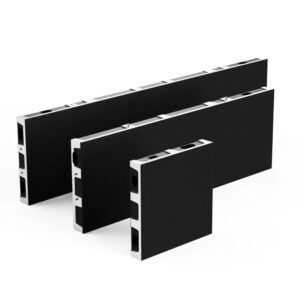

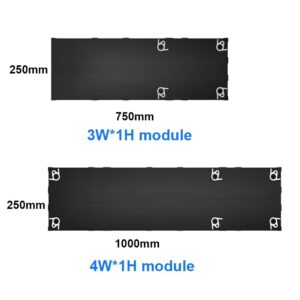

3 Cabinet Size available
250*250mm, 250*750mm, 250*1000mm.
so to make various dimensions of LED Display.

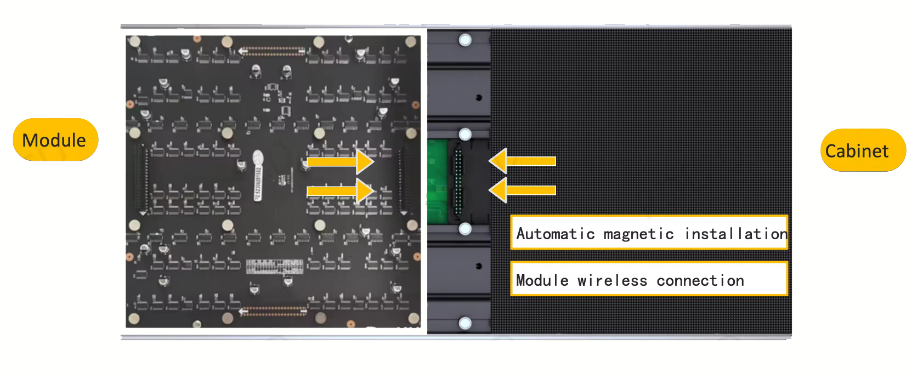

Hot swapping·wireless connection
Hardware connection between modules and cabinet is more stable Aluminum cabinet has better heat dissipation performance

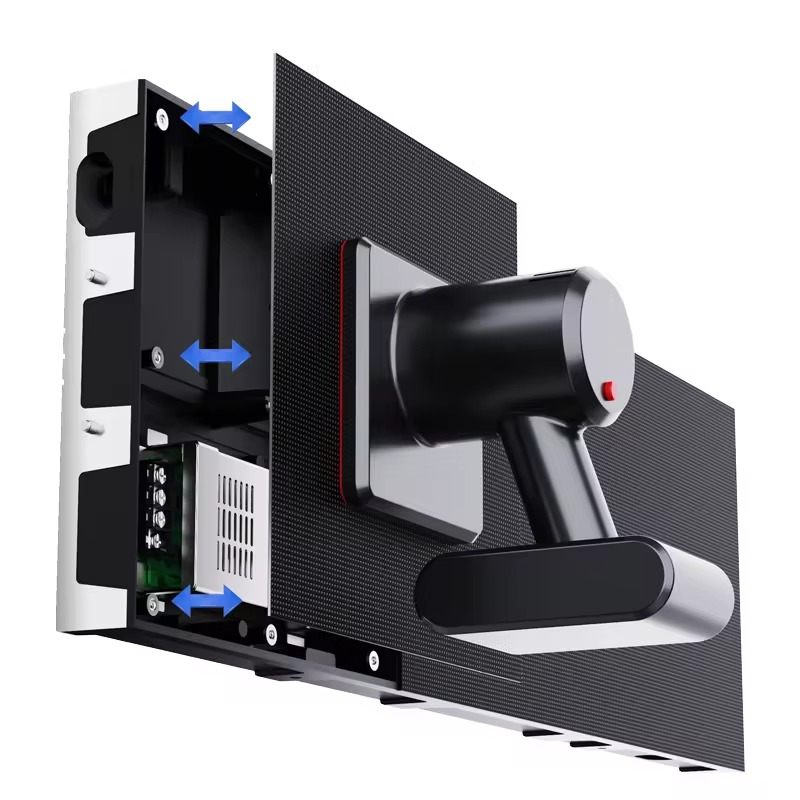

Front Maintenance
Modules and cabinet are adsorbed by multiple magnetic columns, which is firm.
Module and all the parts front accessible.

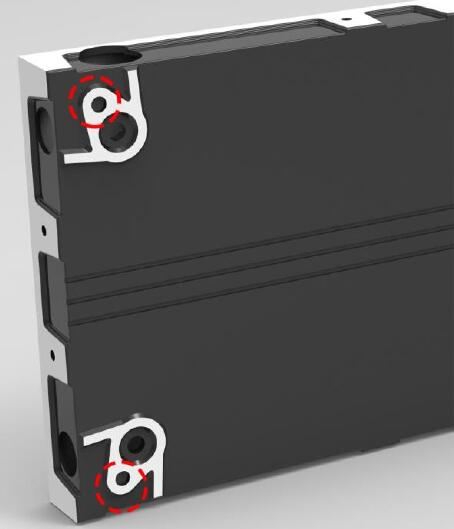

Wall Mounted
Flat mounting on wall with structure free

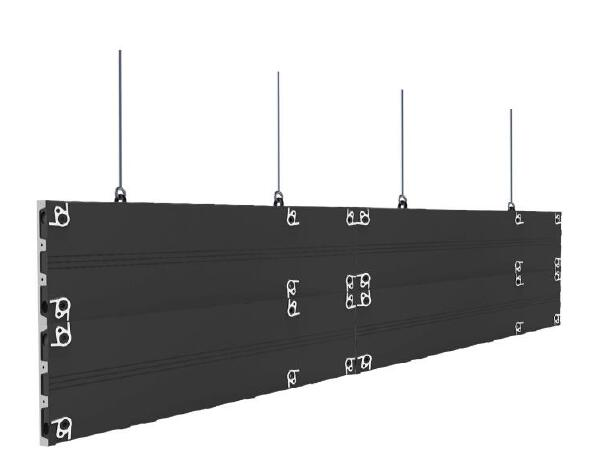

Hanging
2 round ring on top level cabinet, and it is removable.
| Item | P1.56 | P1.95 | P2.5 | P2.604 | P2.976 | P3.91 |
| LED Type | SMDD1212(GOB) | SMD1515 | SMD1515 | SMD1515 | SMD1515 | SMD2020 |
| Physical density(Dot/sqm) | 409600 | 262144 | 160000 | 147456 | 112896 | 65536 |
| Module resolution | 160X160 | 128X128 | 100X100 | 96X96 | 84X84 | 64X64 |
| Module dimension(mm) | 250X250 | 250X250 | 250X250 | 250X250 | 250X250 | 250X250 |
| Panel size(mm) | 1000X250X33 | 1000X250X33 | 1000X250X33 | 1000X250X33 | 1000X250X33 | 1000X250X33 |
| Panel resolution | 640X160 480X160 | 512X128 384X128 256X128 | 400X100 300X100 200X100 | 384X96 288X96 192X96 | 336X84 252X84 168X84 | 256X64 192X64 128X64 |
| Module Quantity(WXH) | 4X1/3X1 | 4X1/3X1/2X1 | 4X1/3X1/2X1 | 4X1/3X1/2X1 | 4X1/3X1/2X1 | 4X1/3X1/2X1 |
| Maintenance | Front access | Front access | Front access | Front access | Front access | Front access |
| Cabinet material | Aluminum Profile | Aluminum Profile | Aluminum Profile | Aluminum Profile | Aluminum Profile | Aluminum Profile |
| Brightness(Nits) | 600 | 800 | 800 | 800 | 800 | 1000 |
| Color Temperature(K) | 3200-9300 Optional | 3200-9300 Optional | 3200-9300 Optional | 3200-9300 Optional | 3200-9300 Optional | 3200-9300 Optional |
| Gray level | 14/16 Optional | 14/16 Optional | 14/16 Optional | 14/16 Optional | 14/16 Optional | 14/16 Optional |
| Viewing angle(V/H) | 160°/160° | 160°/160° | 160°/160° | 160°/160° | 160°/160° | 160°/160° |
| Brightness/Color uniformity | ≥97% | ≥97% | ≥97% | ≥97% | ≥97% | ≥97% |
| Contrast | 10000 : 1 | 10000 : 1 | 10000 : 1 | 10000 : 1 | 10000 : 1 | 10000 : 1 |
| Frame frequency | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Drive mode | 1/40 scan | 1/32 scan | 1/25 scan | 1/32 scan | 1/28 scan | 1/16 scan |
| Single point brightness correction | Have | Have | Have | Have | Have | Have |
| Refresh rate(Hz) | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 |
| Max. power consumption(W/sqm) | 650 | 650 | 650 | 650 | 650 | 650 |
| Avg. power consumption(W/sqm) | 100-200 | 100-200 | 100-200 | 100-200 | 100-200 | 100-200 |
| Protection level | IP31 | IP31 | IP31 | IP31 | IP31 | IP31 |
| Power input | AC90-264V,47-63Hz | |||||
| Wroking temperature/humidity(℃/RH) | Minus 20~60℃/10%~85% | |||||
| Storage temperature/humidity(℃/RH) | Minus 20~60℃/10%~85% | |||||
| Certificatiom | CCC/CE/RoHS/FCC/CB/TUV/IEC | |||||

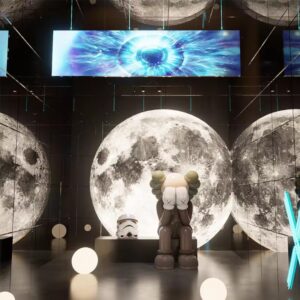

Indoor Screen
P1.56
1000X250X33mm
250*250 Module Size
409600 dot/㎡
P1.95
1000X250X33mm
250*250 Module Size
262144 dot/㎡
P2.5
1000X250X33mm
250*250 Module Size
160000 dot/㎡
P2.604
1000X250X33mm
250*250 Module Size
147456 dot/㎡
P2.976
1000X250X33mm
250*250 Module Size
112896 dot/㎡
P3.91
1000X250X33mm
250*250 Module Size
65536 dot/㎡
