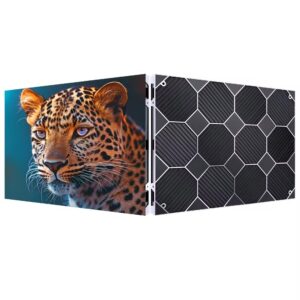

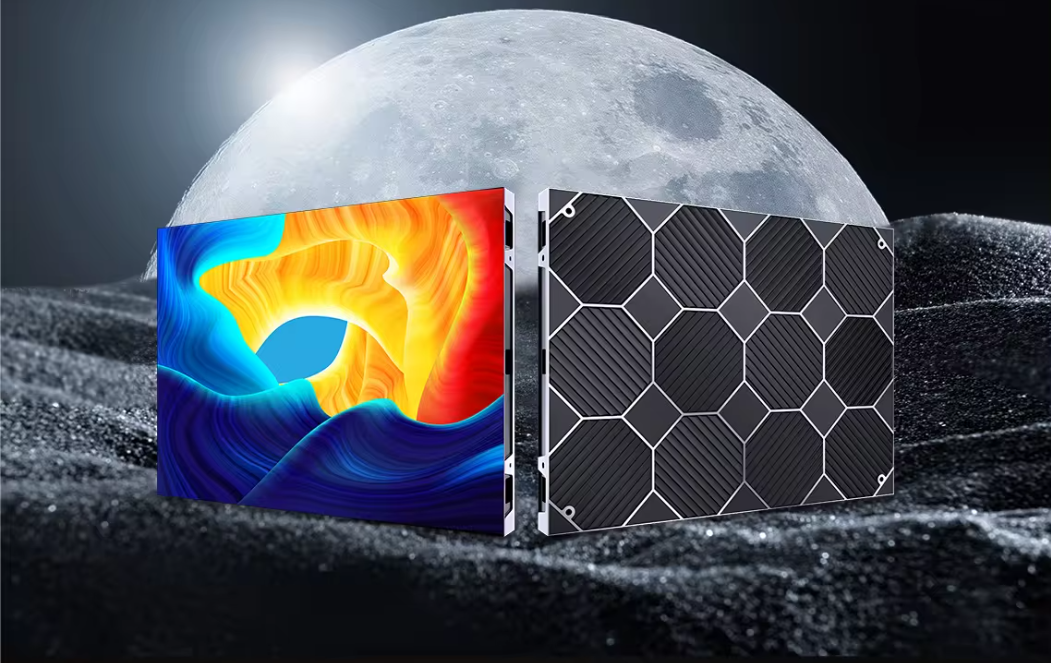

HD640 Indoor LED Screen
HD640 LED display is a visually stunning produce, featuring a front service design for its LED modules, power supply and receiving card.
It is an ideal solution for i ndoor fixed installation front service screen.
Feature

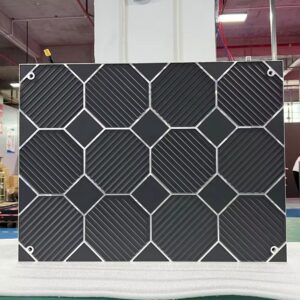

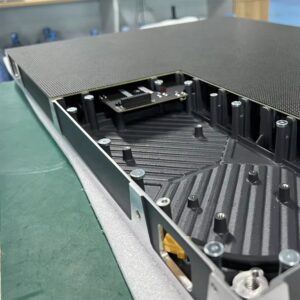

Die-casting aluminum cabinet with good heat dissipation effect
High precision structural design with gorgeous appearance.
CNC Technology makes the stitching gap less than 0.2mm

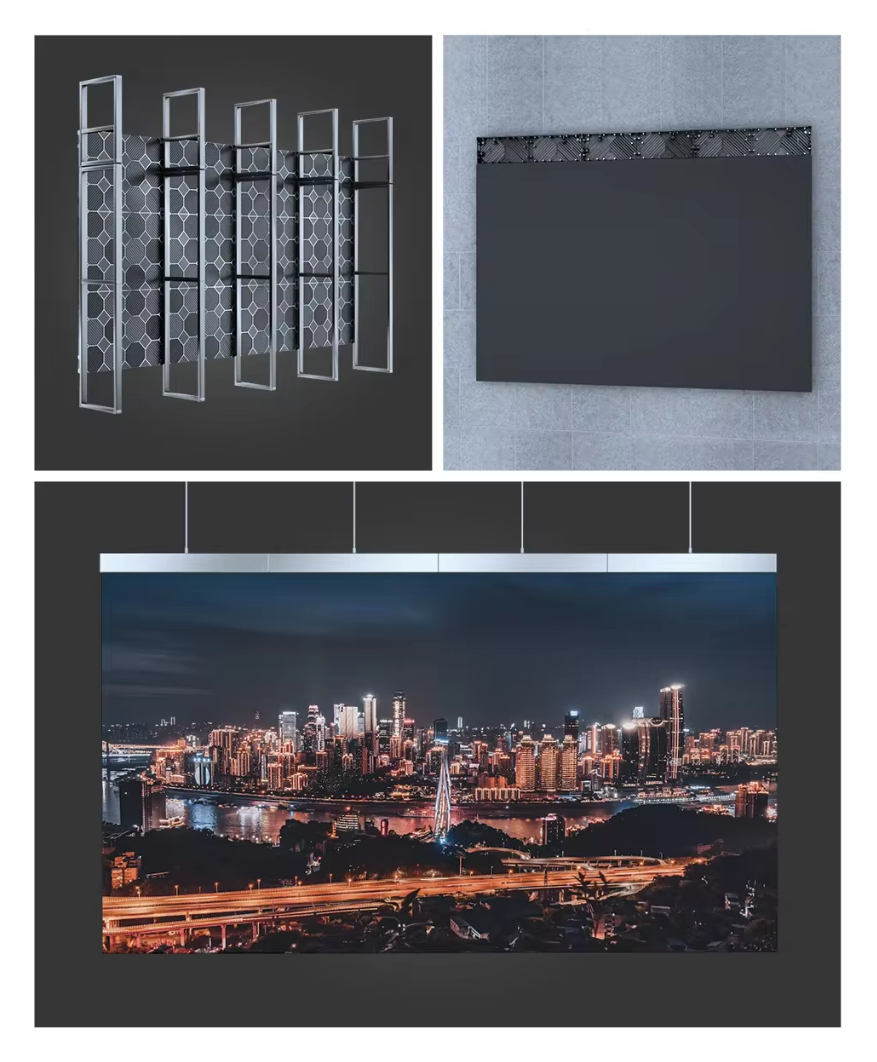

Installation without steel structure, fast and convenient.
Installation and front maintenance of magnetic suction modules ensures better flatness.

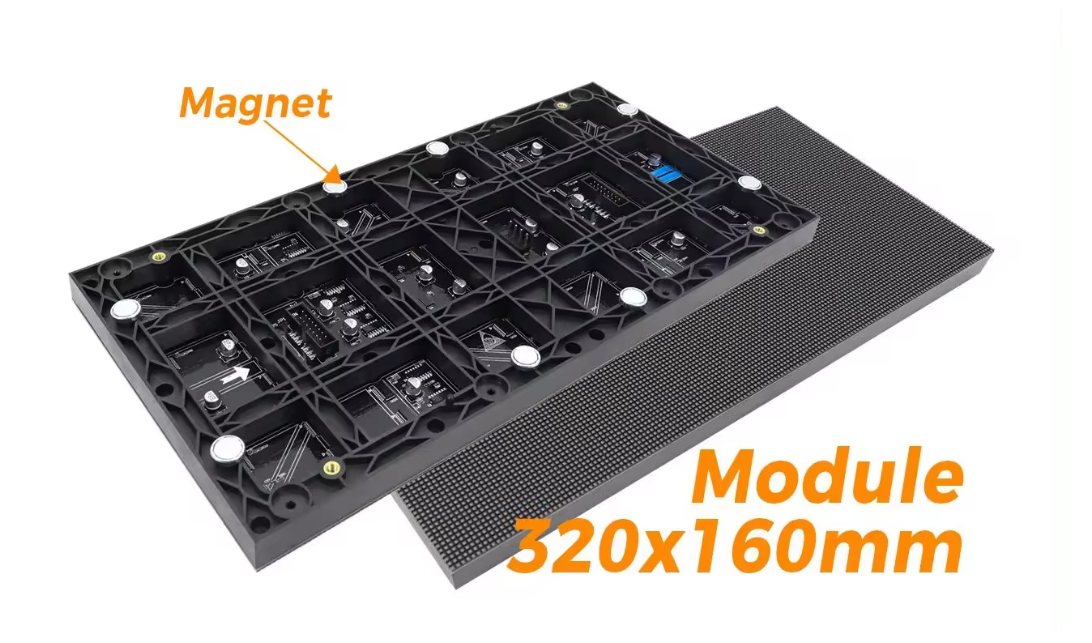

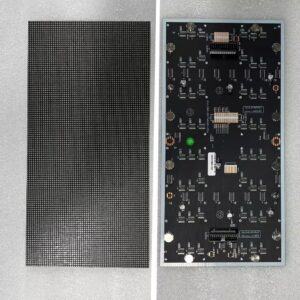

Suitable For 320x160mm Size Modules
640x480mm LED display with standard size panel: 320x160mm. Standard led screens are quick to assemble and maintain.
Changing the pixel spacing is also very convenient, just change the modules because they have the same module size and structure.

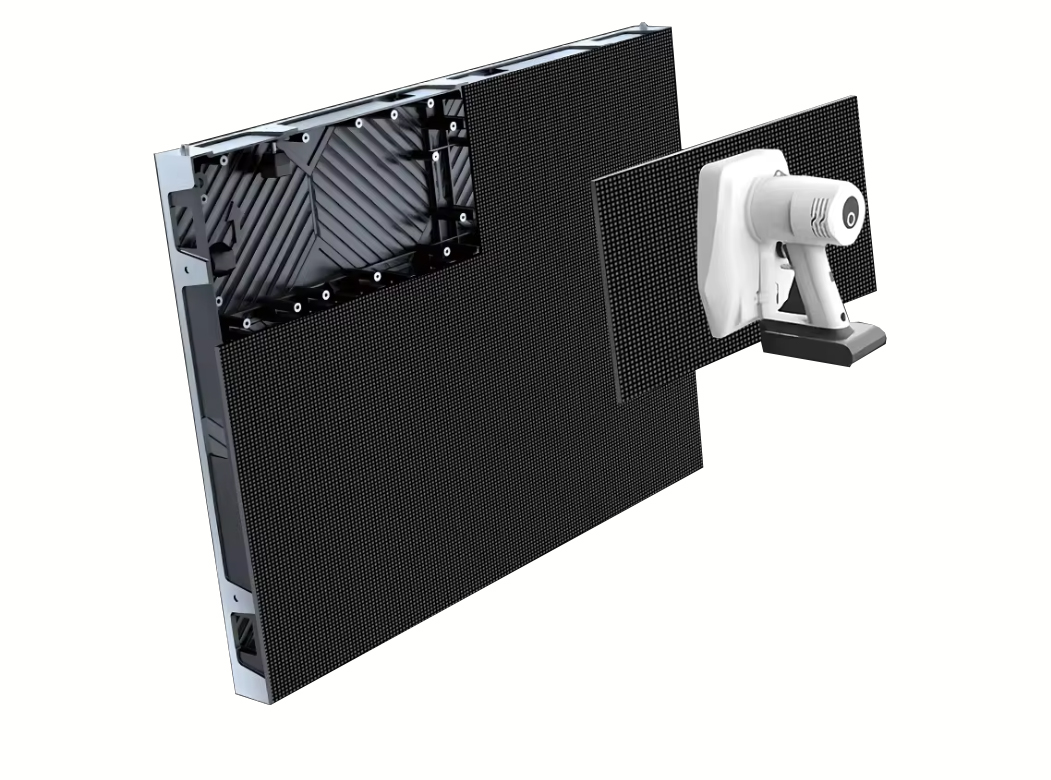

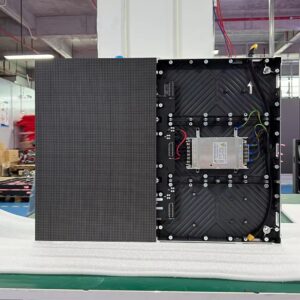

Full front maintenance design for easy installation
Due to the ultra-light weight of the panels, they can be installed directly on wooden or concrete walls, and all parts are serviceable from the front

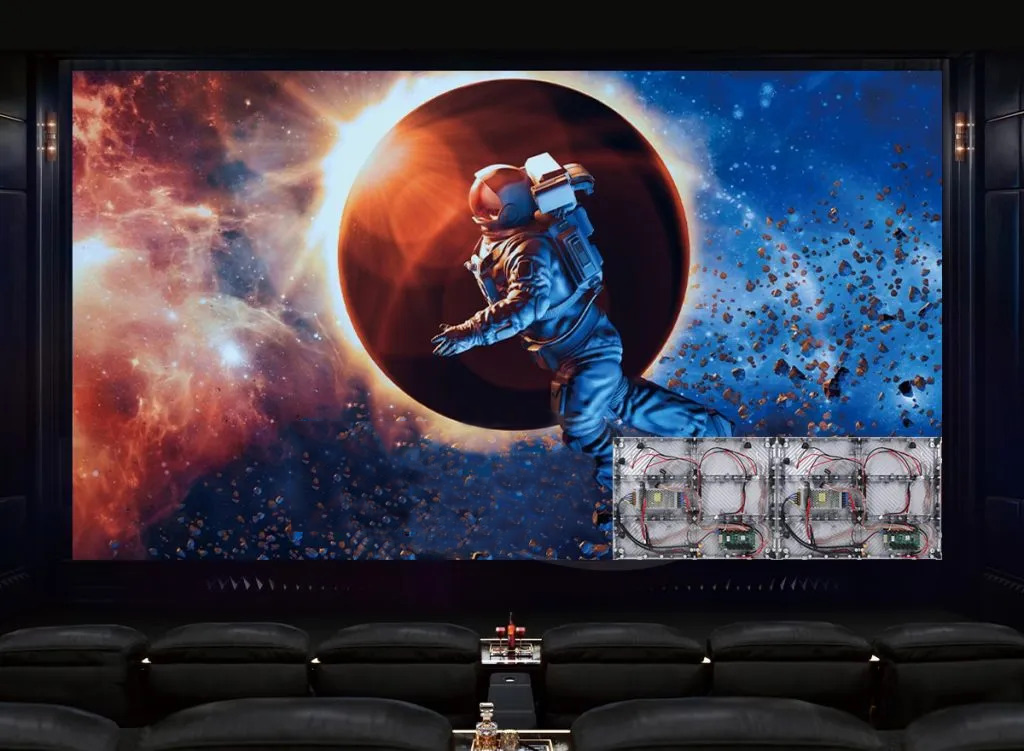

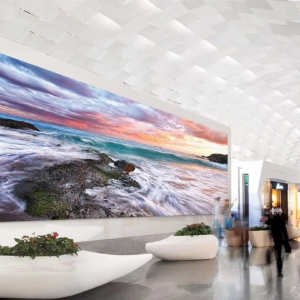

Cinema-like Visual Experience
Seamless splicing design, simple internal wiring, and perfect cabinet splicing. The picture quality is gorgeous, bringing you a movie-like visual experience.

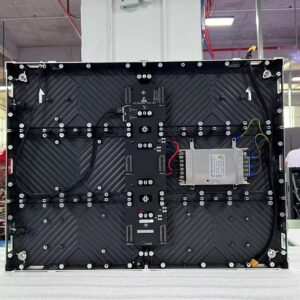

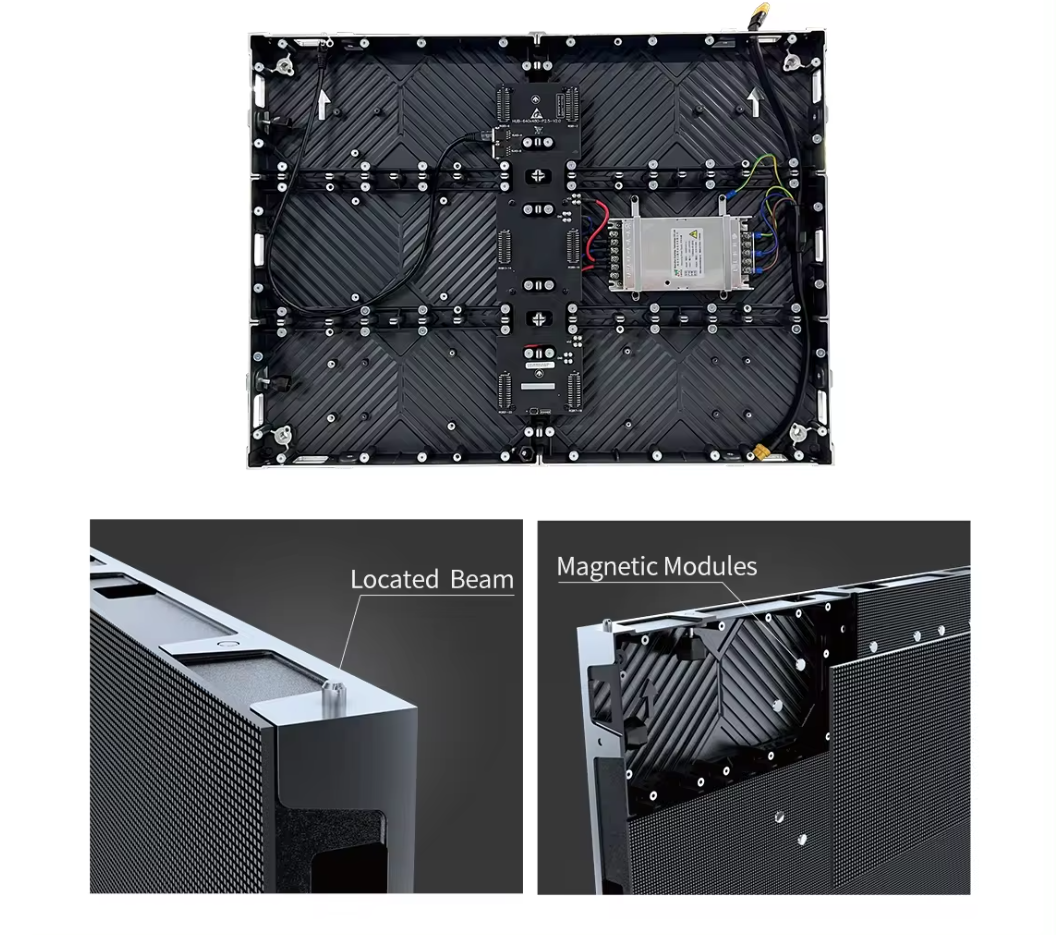

Cable-free connection
PCB on the cabinet with good spreading effect and the heat dissipation is better than that of plastic frame.
High brightness and low gray, perfect picture quality

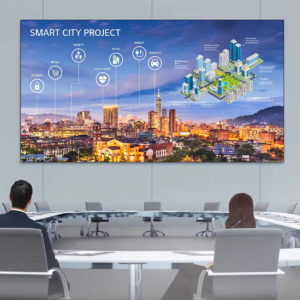

Realize seamless and smooth assembly between screens, bringing you the ultimate high-definition picture enjoyment.The best helper for your event, conference or exhibition.

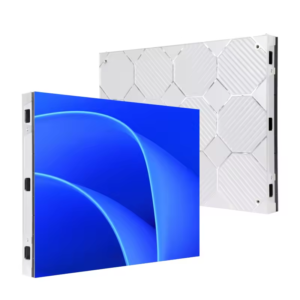

Perfect Structure Design
This cabinet adopts high-standard industry-leading design, and the die-cast aluminum cabinet bottom shell is high-end and atmospheric.
Equipped with a quick lock design, the installation and assembly are more convenient.
| Parameters | P1.2 | P1.5 | P1.8 | P2.5 |
| Pixel Configuration | 3 in 1SMD | 3in 1SMD | 3 in 1SMD | 3 in 1SMD |
| Pixel Pitch(mm) | 1.25 | 1.538 | 1.86 | 2.5 |
| Module Resolution(W*H) | 256*128 | 208*104 | 172*86 | 128*64 |
| Module Size(mm) | 320*160 | 320*160 | 320*160 | 320*160 |
| Module Weight (Kg) | 0.28g | 0.28g | 0.28g | 0.28g |
| Element Area(mi) | 0.0512 | 0.0512 | 0.0512 | 0.0512 |
| Pixel Density(dot/mi) | 640000 | 422500 | 288906 | 160000 |
| Brightness(nits) | ≥600 | |||
| color Temperature (K) | 9000±500(Adjustable) | |||
| Viewing Angle(°) | ≥140 | |||
| Deviation of center distance | <3% | |||
| Contrast Ratio | 5000:1 | |||

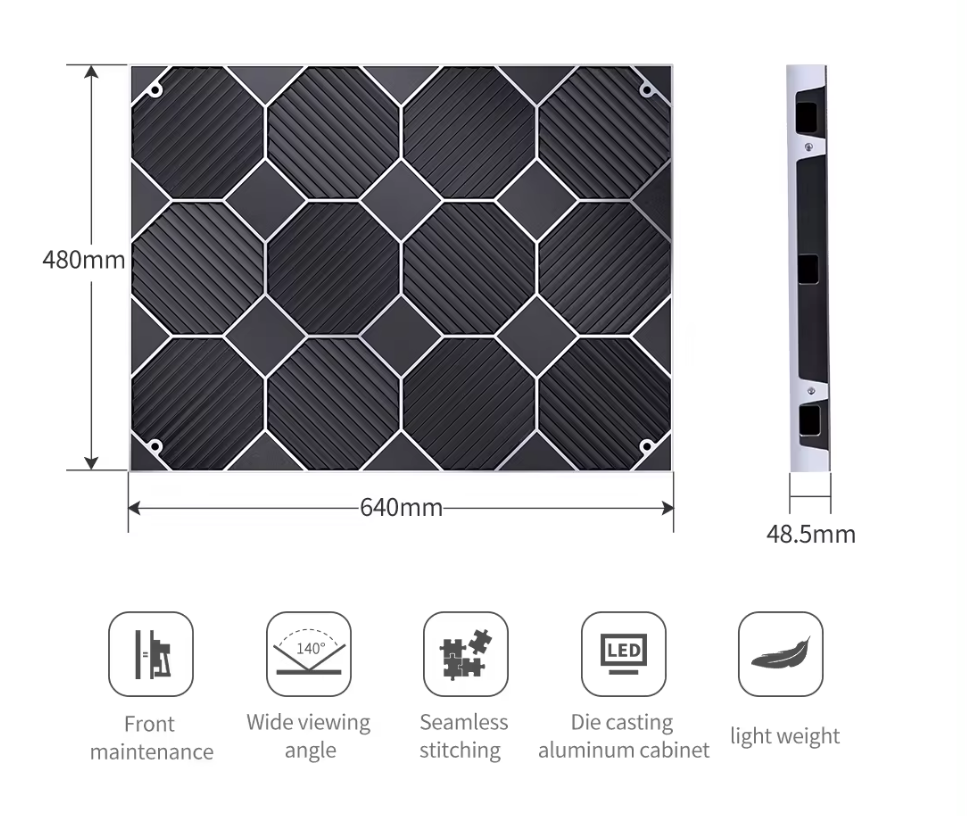

| Cabinet Size(mm) | 640X480X48.5 | |||
| Cabinet Weight(kg) | 6.5 | |||
| Connection type | Conversion Card Cable-Free Connection | |||
| Maintenance Design | Full front maintenance | |||
| Scan Mode | 64S 52S 43S | 32S | ||
| Repetition frequency(Hz) | 60 | |||
| Refresh Rate (Hz) | ≥3840 | |||
| Max Power Consumption(W/mi) | ≤550 | |||
| Ave Power Consumption (W/m) | ≤180W | |||
| Module Power Requirements (V) | DC5V | |||
| Single Mode Current (A) | 5A | |||
| Typical Lifetime(hrs) | 100000 | |||
| Work Temperature(℃) | -10~40 | |||
| Storage Temperature(℃) | -20~60 | |||
| Work Humidity (RH) | 10~80% | |||
| Storage Humidity (RH) | 10~85% | |||
Indoor Screen
P1.2
640X480X48.5mm
320*160 Module Size
640000 dot/㎡
P4
640X480X48.5mm
320*160 Module Size
422500 dot/㎡
P5
640X480X48.5mm
320*160 Module Size
288906 dot/㎡
P6.67
640X480X48.5mm
320*160 Module Size
160000 dot/㎡
