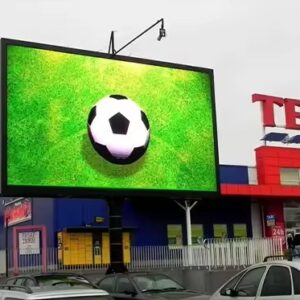

FO960 Series Outdoor LED Screen

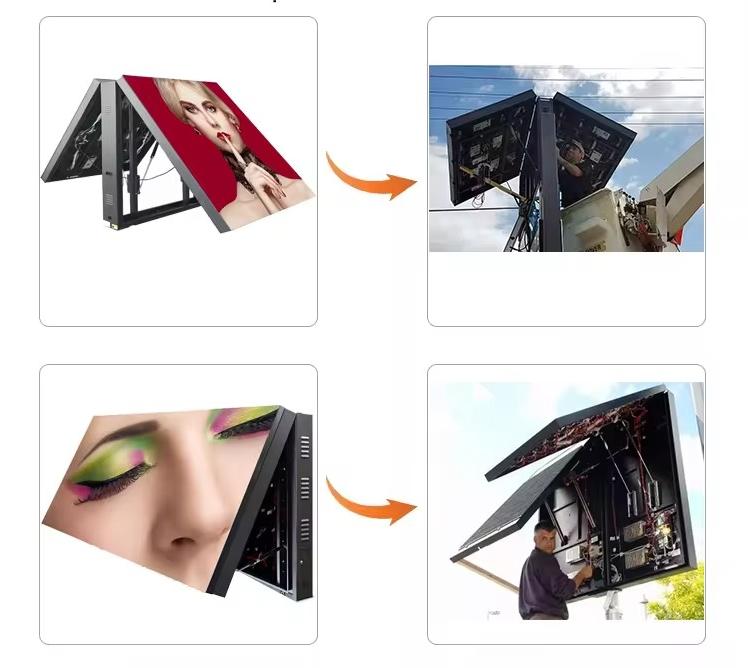

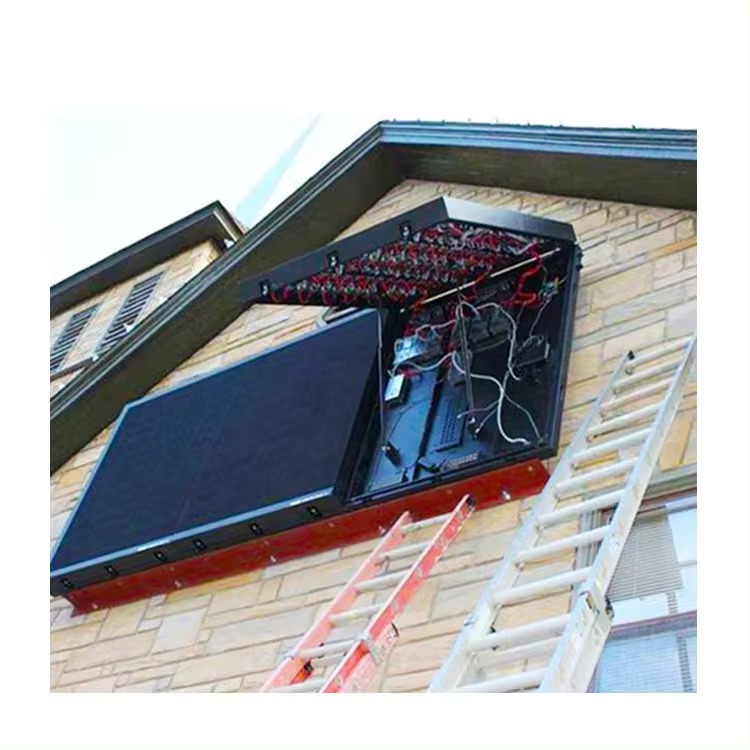

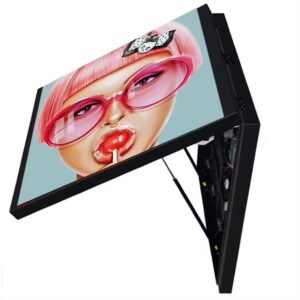

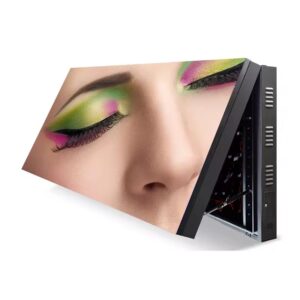

Front maintenance led display cabinet, when there is any failure in the display, open the flip of the display from the front, you can see the internal structure of the display , so as to carry out inspection and maintenance.

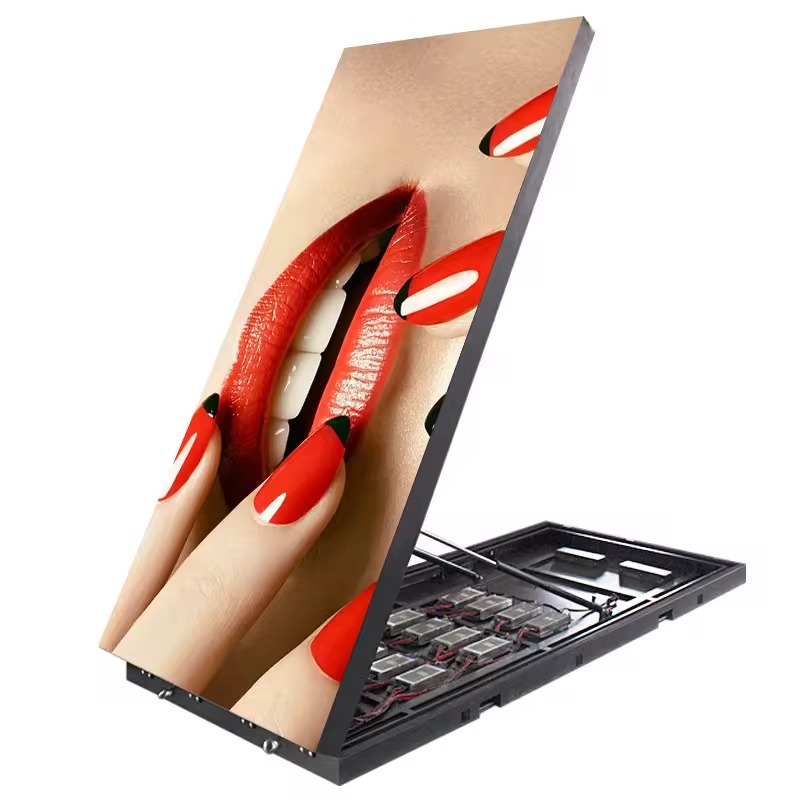

Normally, after the flip of the display is opened, it is Fixed by pneumatic rod.

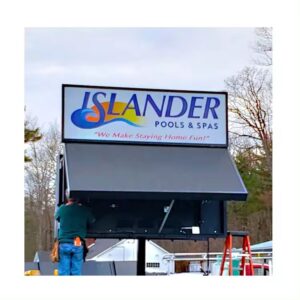

Install the front-maintained cabinet against the wall, with holes for screwing on the back of the cabinet, or use a lifting ring.
This installation method is suitable for the environment where the height is less than 2m.
The size of the screen is small, and there is no maintenance space behind.

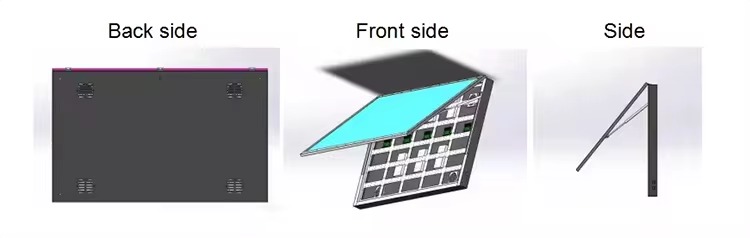

Easy to maintenance / Back side no need space / Safe installation
The cabinet can be open from the front,easy to install and maintain, just change the bad module sat the screen ,easy to pick down,reducing the maintain cost
HIGH RESOLUTION ANDBRIGHTNESS
The Outdoor Double Sided Led Display high resolution and high brightness features ensure shows best quality pictures and vivid videos with great details.
Perfect fit for stage, banks,highways,promotion,station, stadium and other Outdoor places.
IP65 PROTECTION LEVEL
All-weather for outdoor environment, with Unit unique protection technology to make the display reache the level of lP65.
Can work normally in any weather condition! High protection grade of lP65 guarantees, durability,reliability, Anti-ultraviolet and steady.

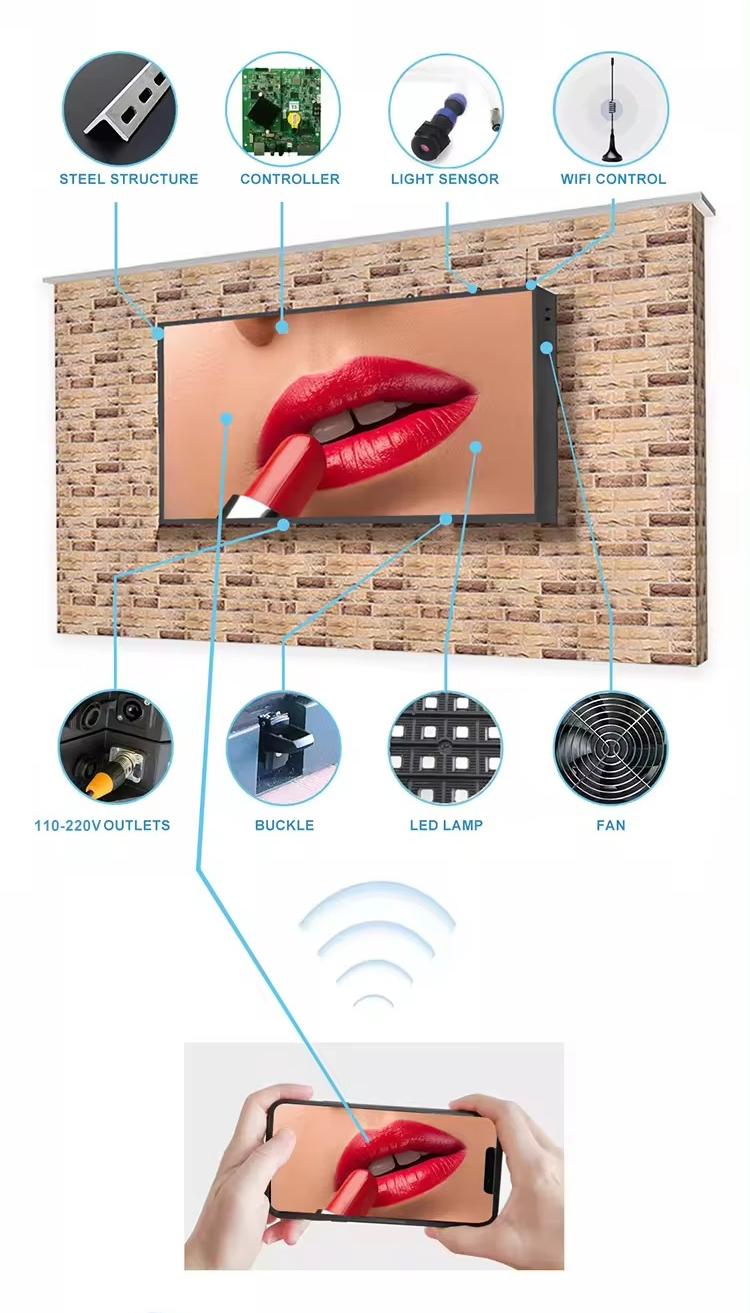

Wireless control, easy to configure your screen
Our Features:
Front access/Front service LED Display
High brightness, visible even with direct sunshine
High water proof and dust proof, IP65 both front and rear side
Having good lighting accordance and no mosaic
Getting vivid effect within any position of the viewing range
Any LED in died pixel can be respectively repaired, which reduce the cost of the display maintenance.

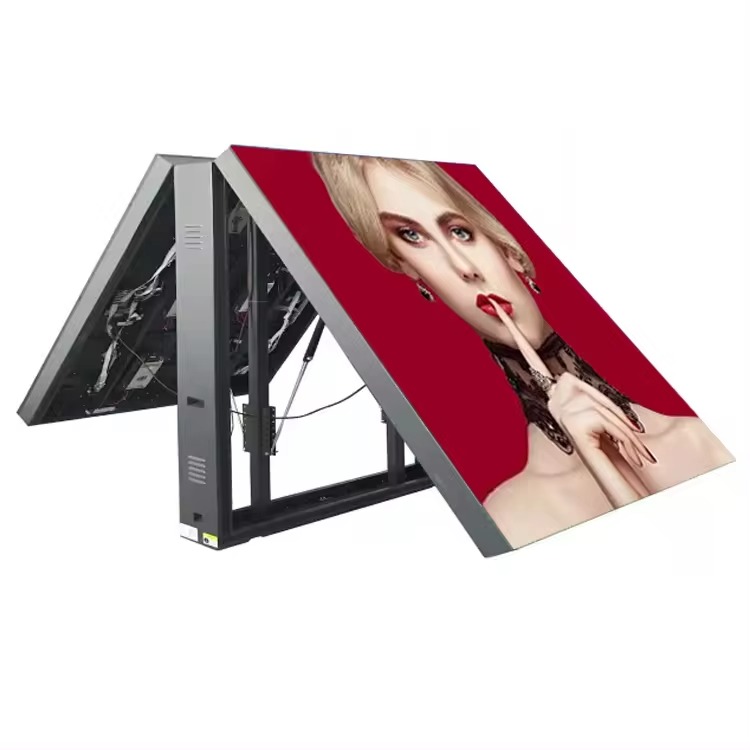

Double side front lift, Easy to install
No need extra maintenance channel,the height cannot exceed 2m. Just front open can maintenance.save time
| ltem | P2.5 | P3 | P4 | P5 |
| Pixel Pitch | 2.5mm | 3mm | 4mm | 5mm |
| composition | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| LED Type | SMD1921 | SMD1921 | SMD1921 | SMD1921 |
| Module Size | 320*160mm | 192*192mm | 320*160mm | 320*160mm |
| Pixel Density | 160000dots/sqm | 111111dots/sqm | 62500dots/sqm | 4000dots/sqm |
| Panel Size | 960*960mm | 960*960mm | 960*960mm | 960*960mm |
| Scan method | 8S | 8S | 4S | 2S |
| Refresh Rate | ≥1920HZ | ≥1920HZ | ≥1920HZ | ≥1920HZ |
| Brightness | 6500cd/m2 | 6500cd/m2 | 6500cd/m2 | 6500cd/m2 |
| Viewing angle | 160°/140° | 160°/140° | 160°/140° | 160°/140° |
| Color Processing Digit | 16bit | 16bit | 16bit | 16bit |
| Input Voltage(V) | AC 110-220V | AC 110-220V | AC 110-220V | AC 110-220V |
| Working Environment | Outdoor | Outdoor | Outdoor | Outdoor |
| Max Power Consumption | 700W/m² | 650W/m² | 650W/m² | 700W/m² |
| Average Power Consumption | 350W/m² | 300W/m² | 300W/m² | 350W/m² |
| Ontrol system | Synchronous System | |||
| Perating Temperature/Humidity（℃/RH） | ±-10-40/±10-80%RH | |||
Outdoor Screen
P5
960x960mm
62500 pixels/sqm
320x 320mm module
P6.67
960x960mm
40000 pixels/sqm
320x 320mm module
P8
960x960mm
22477 pixels/sqm
320x 320mm module
P10
960x960mm
15625 pixels/sqm
320x 320mm module
