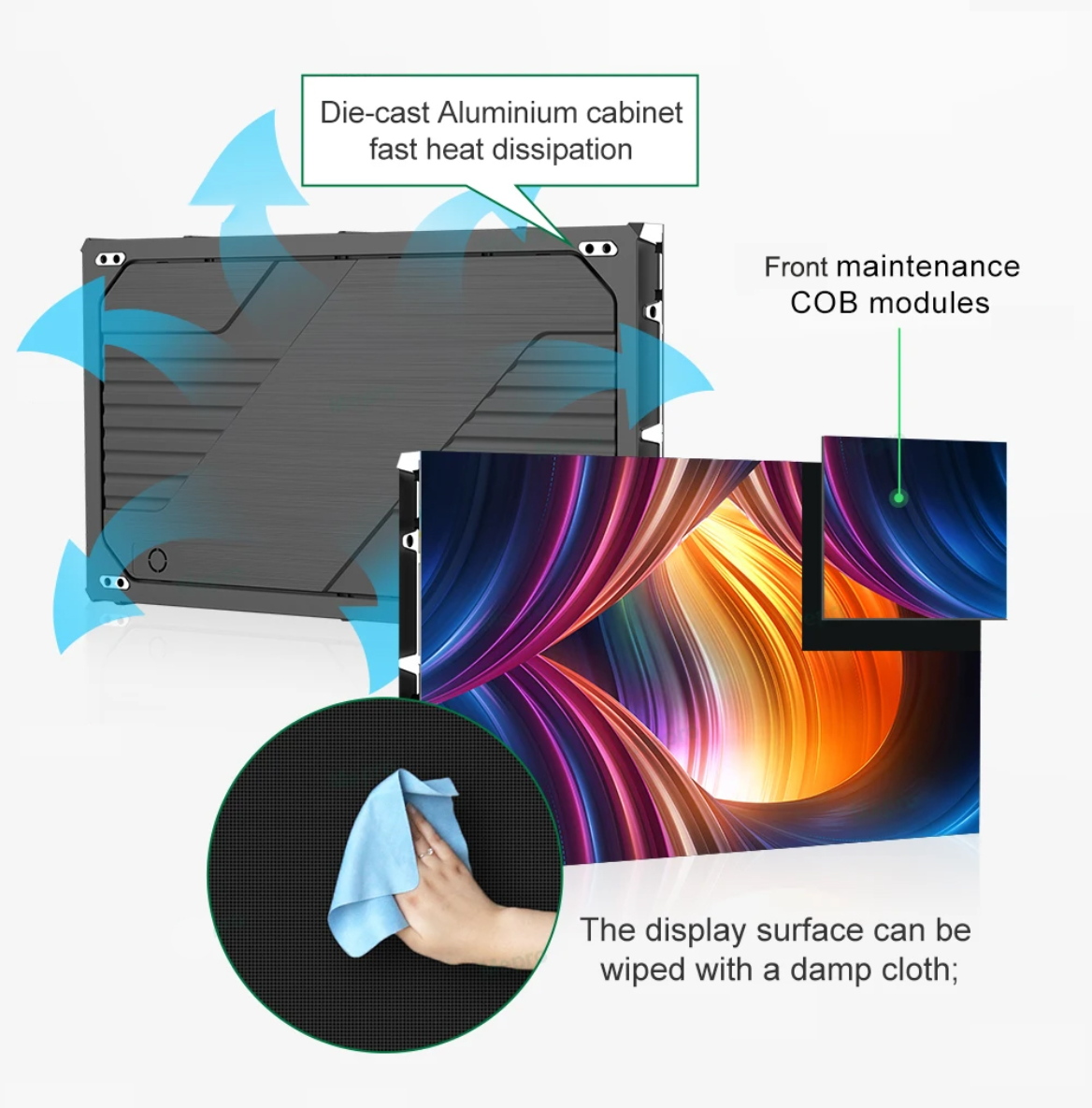

COB Indoor LED Screen
Chinastar COB led modules, not only moisture proof, Anti-collision, Scrubbable lamp surface ,but low power consumption, fast heat dissipation, and prolong the service life of the chip effectively

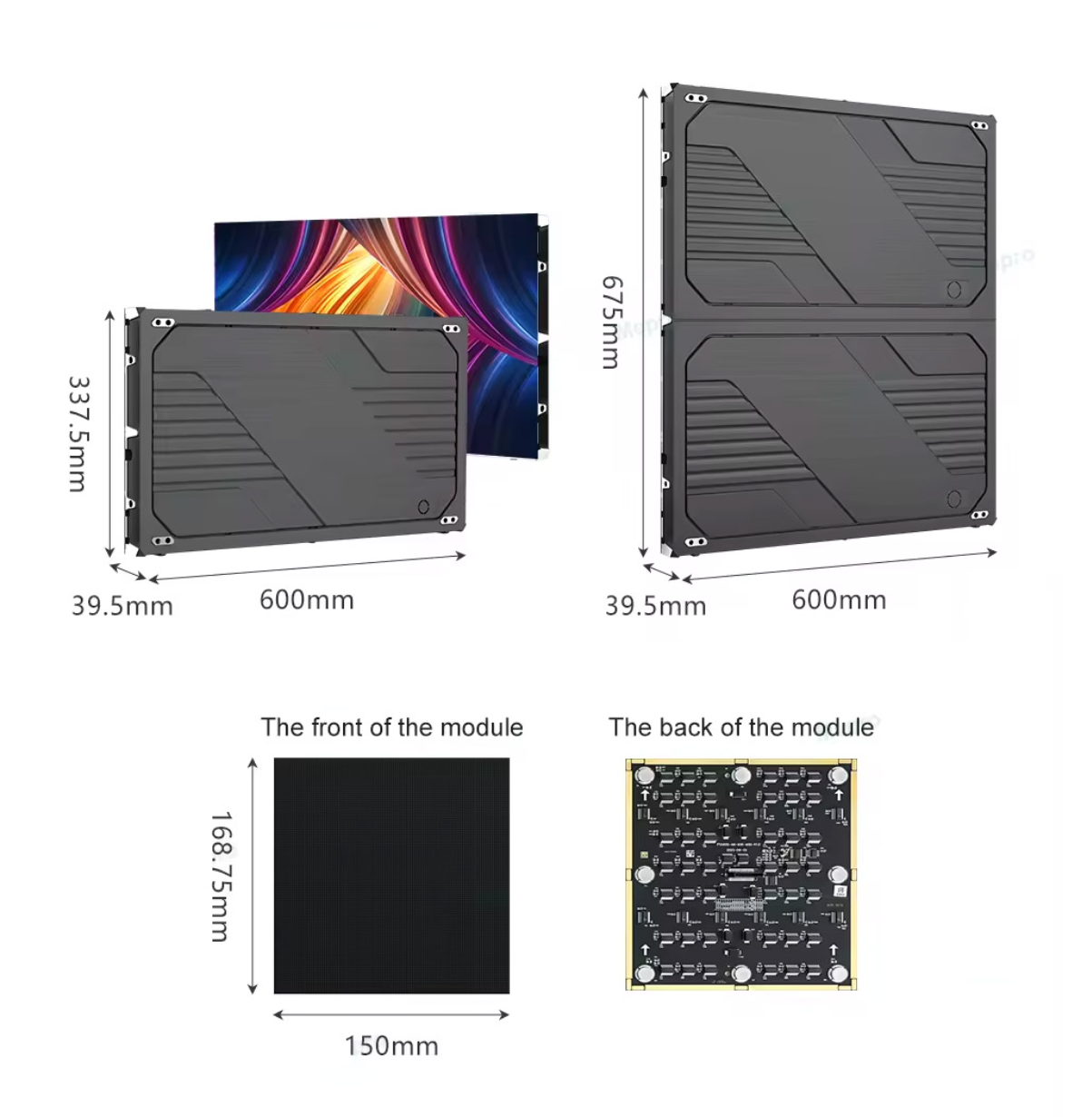

Cabinet size: 600*337.5/600*675mm
The 600*337.5mm size display is relatively short and suitable for places with limited space or environments, genually that places require a lower installation height;
while the 600*675mm size display is taller and suitable for places that require greater visual effects or longer viewing distances.
IP65 high waterproof rating
Uses innovative glue filling and sealing technology to effectively protect LED modules from water attack.
Its surface is covered with advanced new materials, providing an additional layer of protection to ensure that the display can operate stably in harsh outdoor environments.

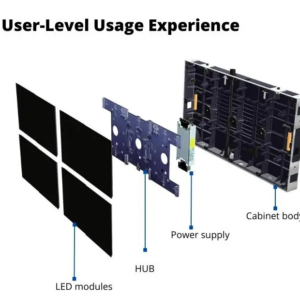

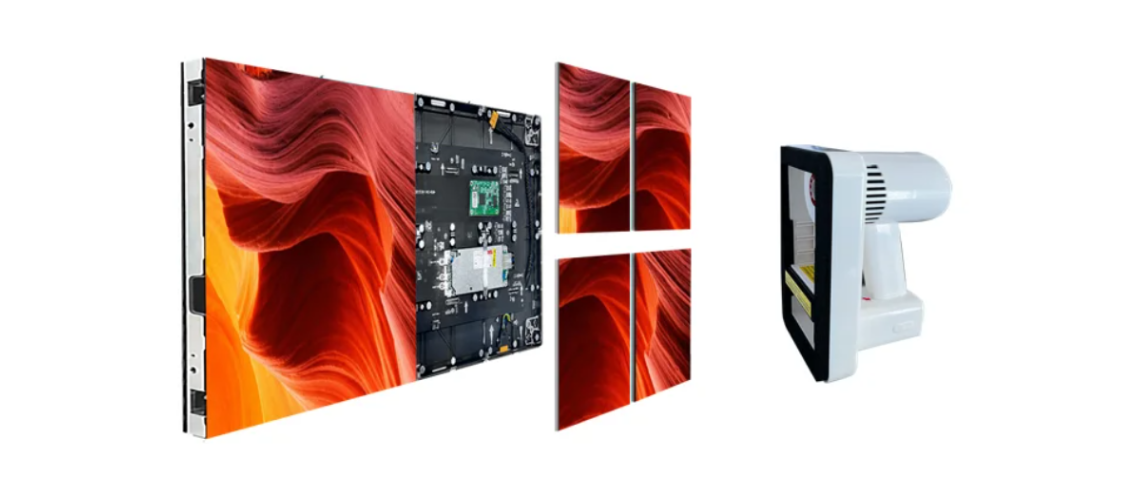

Magnetic Front maintenance
Use a magnetic tool to remove the module from the cabinet for maintenance

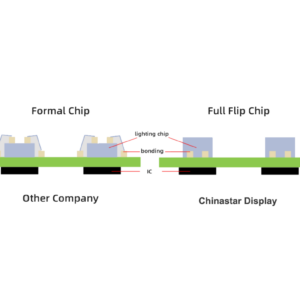

The COB display adopts a modular design, and the LED chip is directly packaged on the PCB board. Thus, the entire module has a high degree of integration and is easy to maintain.

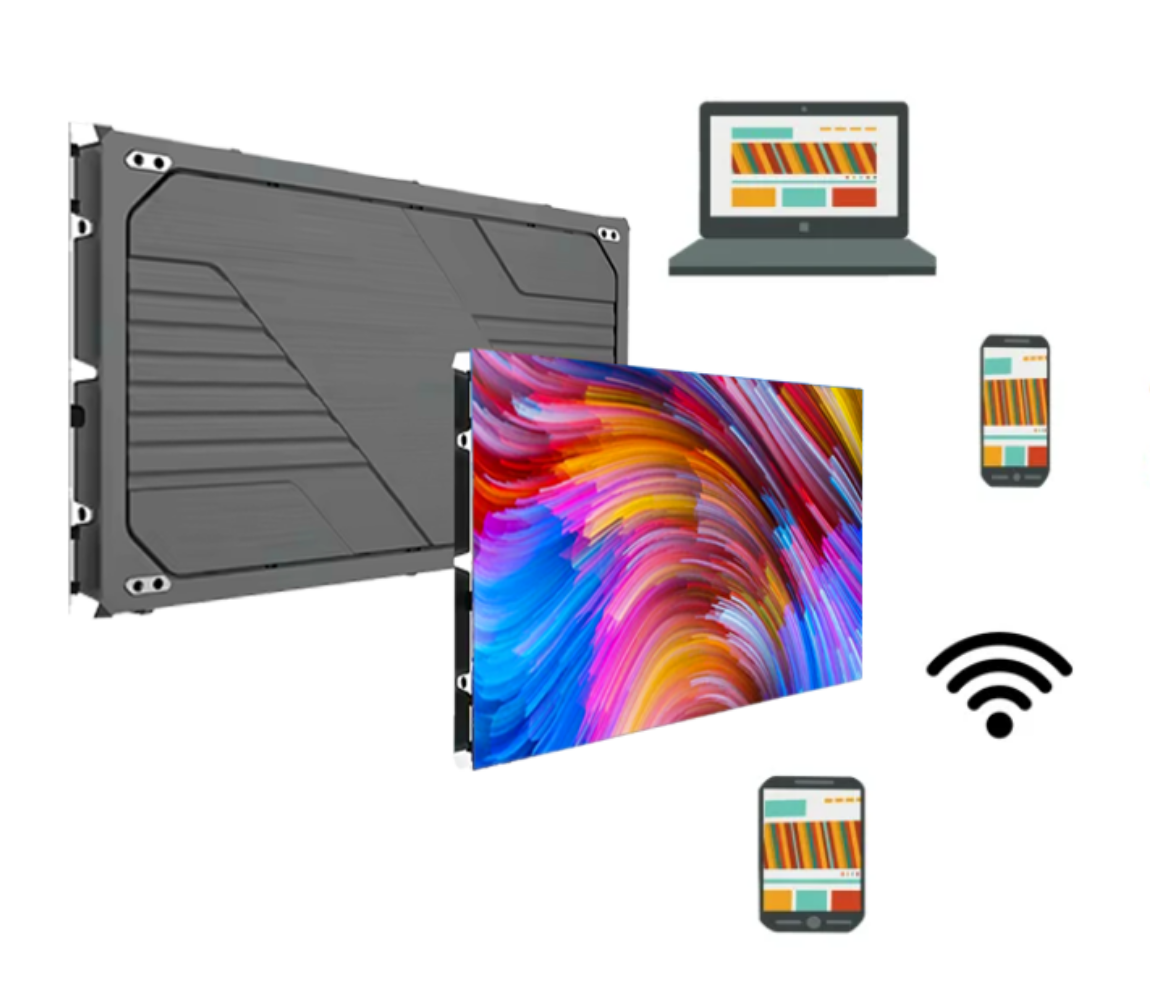

Connection method: Tablet Computer And Phone， Support HDMI&WiFi Control
The COB (Chip-on-Board) connection method can be used with tablets and mobile phones, supporting HDMI and WiFi control.
Users can manage and control remotely through applications on tablets or mobile phones.
Or directly connect the device through HDMI and WiFi to realize video signal and data transmission.
It could meet the application needs of different scenarios.

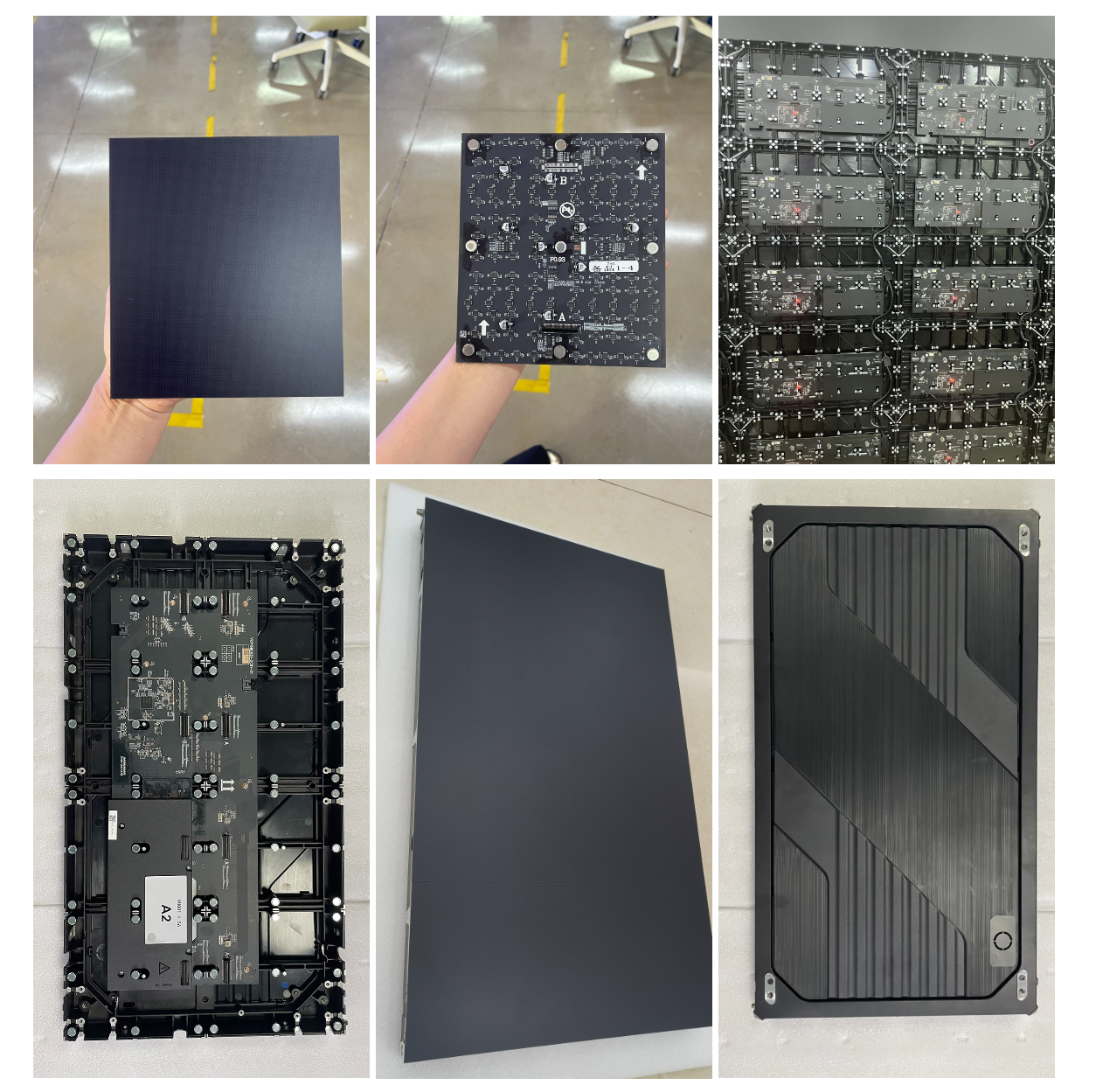

COB LED Module
The hardness of the display panel reaches 4H, which is anti-scratch and anti-bump. Thus increasing the durability of the display.

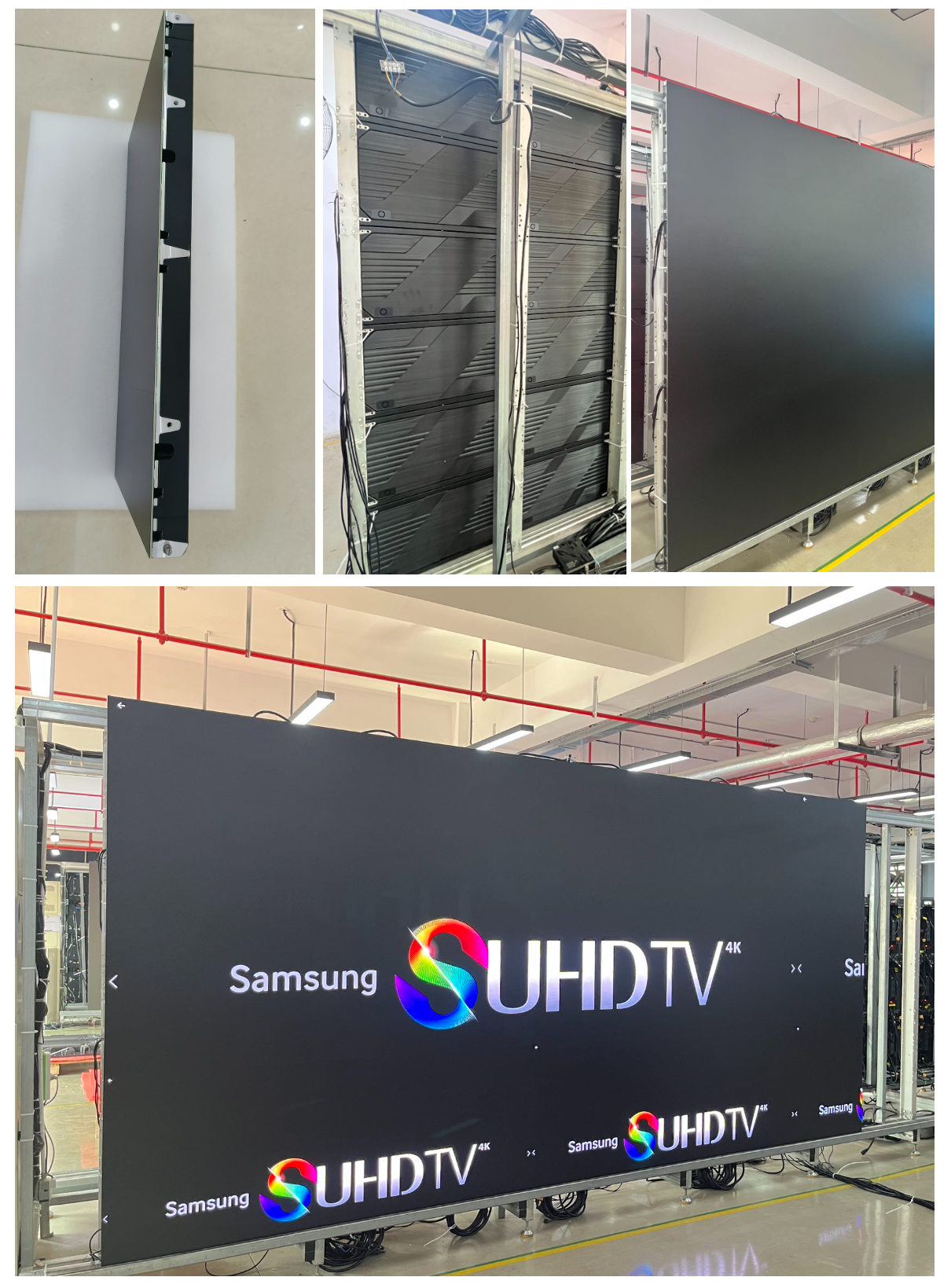

Precision splicing
COB technology makes the arrangement of LED chips more compact, then realizes precise splicing of the screen, and improves the uniformity and clarity of the overall display effect.

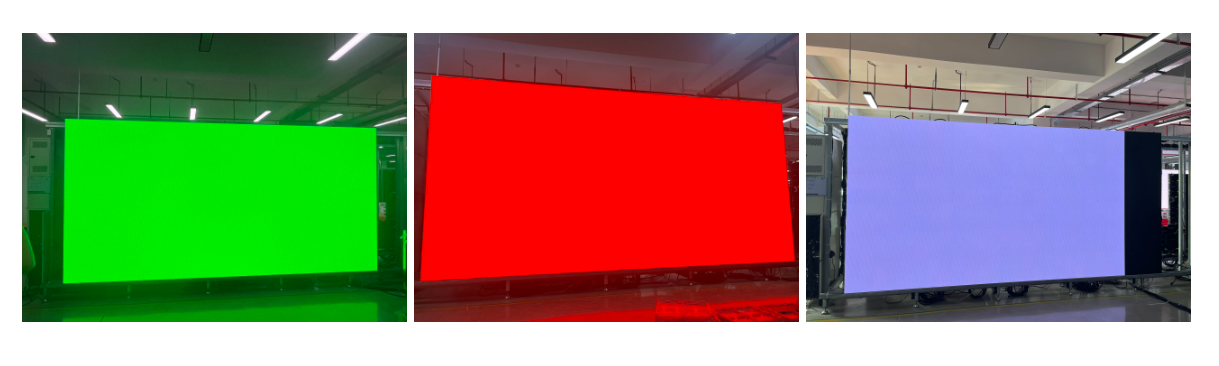

AGING TEST
| Pixel Pitch(mm) | 0.93 | 1.25 | 1.56 | 1.875 |
| Pixel Density(dits/㎡) | 1137777 | 640000 | 409600 | 284444 |
| LED Encapsulation | COB | |||
| Driving Method | 54scan | 60scan | 54scan | 40scan |
| Resolution of Module(dot) | 160*180 | 120*135 | 96*108 | 80*90 |
| Module Size(mm) | 150*168.75 | |||
| Working Voltage(V) | 2.8/3.8 | 4.2 | 4.2 | 4.2 |
| Module Consumption(W) | 10 | 9 | 9 | 8 |
| Max.consumption(W/set) | 380 | 330 | 330 | 320 |
| Ave.consumption(W/㎡) | 125 | 110 | 110 | 110 |
| Brightness(CD/㎡) | 600nit (standard)；10000nit (HDR – need customized) | |||
| View Angle(H/V) | 160°/160° | |||
| Refresh Rate(Hz) | 2880~3840 | |||
| Working Temperature | -10~40℃ | |||
| Protect Degree | IP65 | |||
| Power supply requirements | AC100-240V (50-60Hz) | |||
| Grey / Scale (bit) | 16bit | |||
Indoor Product
P0.93
600*337.5/600*675mm Cabinet
150*168.75mm Module
1137777 dots/㎡
P1.25
600*337.5/600*675mm Cabinet
150*168.75mm Module
640000 dots/㎡
P1.56
600*337.5/600*675mm Cabinet
150*168.75mm Module
409600 dots/㎡
P1.875
600*337.5/600*675mm Cabinet
150*168.75 Module
284444 dots/㎡
