As display technology continues to evolve, COB fine pitch LED displays are becoming one of the most talked-about innovations in the LED display industry.
Widely used in control rooms, conference centers, broadcast studios, and high-end commercial spaces, COB LED displays deliver superior image quality, reliability, and long-term performance.
This article provides a comprehensive introduction to COB small pixel pitch LED displays, covering technology basics, advantages, applications, and key selection factors.
一、What Is a COB Fine Pitch LED Display?
A COB (Chip On Board) LED display is a type of LED display screen where multiple LED chips are directly mounted and encapsulated onto a single PCB board using advanced packaging technology.
Unlike traditional SMD LED displays, COB LED technology eliminates individual LED lamp beads, creating a smoother and more durable display surface.
When combined with small pixel pitch technology, COB LED displays are typically available from P0.6 to P1.8, making them ideal for close-viewing indoor environments.
二、COB vs SMD LED Display: Key Differences
| Feature | COB LED Display | SMD LED Display |
|---|---|---|
| Packaging method | Chips directly on board | Individual LED lamps |
| Pixel protection | High | Medium |
| Dead pixel rate | Very low | Higher |
| Viewing distance | Close | Medium to far |
| Maintenance | Easier | More complex |
| Typical pixel pitch | P0.6–P1.8 | P1.5 and above |
This comparison highlights why COB fine pitch LED displays are increasingly replacing SMD solutions in premium applications.
三、Key Advantages of COB Fine Pitch LED Displays
1）Superior Image Quality
COB LED displays offer:
- Ultra-high resolution
- Seamless image presentation
- High contrast ratio
- Uniform brightness
These characteristics make them ideal LED video wall solutions for mission-critical environments.
2）Enhanced Durability and Reliability
Thanks to full encapsulation, COB LED displays provide:
- Excellent resistance to dust and moisture
- Strong anti-collision performance
- Stable operation for 24/7 usage
This reliability is crucial for control room LED displays and command center LED video walls.
3）Lower Maintenance Costs
COB technology significantly reduces:
- Dead LEDs
- Color inconsistency
- Frequent module replacement
This results in lower long-term maintenance costs compared to traditional LED display screens.
4）Comfortable Viewing Experience
COB LED displays feature:
- Low glare surface treatment
- Reduced blue light emission
- Wider viewing angles
This creates a more comfortable visual experience for long-duration viewing.
四、Common Pixel Pitch Options for COB Fine Pitch LED Displays
Popular pixel pitch options include:
- P0.6 / P0.9 COB LED display – High-end control rooms
- P1.2 / P1.25 COB LED video wall – Conference rooms and studios
- P1.5 / P1.8 COB LED screen – Commercial indoor applications
Choosing the correct pixel pitch depends on viewing distance, screen size, and resolution requirements.
五、Typical Applications of COB Fine Pitch LED Displays
1）Control Rooms and Command Centers
COB fine pitch LED displays are widely used for:
- Real-time data visualization
- Surveillance and monitoring
- Emergency command systems
2）Corporate Conference Rooms
In modern meeting spaces, COB LED displays support:
- Presentation and collaboration
- Video conferencing
- Touch and interactive systems
3）Broadcast Studios and Media Centers
The seamless surface and high refresh rate make COB LED displays ideal for:
- TV studios
- Live streaming environments
- Camera-friendly applications
4）High-End Commercial and Retail Spaces
Luxury retail stores and brand showrooms use COB LED displays for:
- Premium visual presentation
- Brand storytelling
- Immersive customer experiences

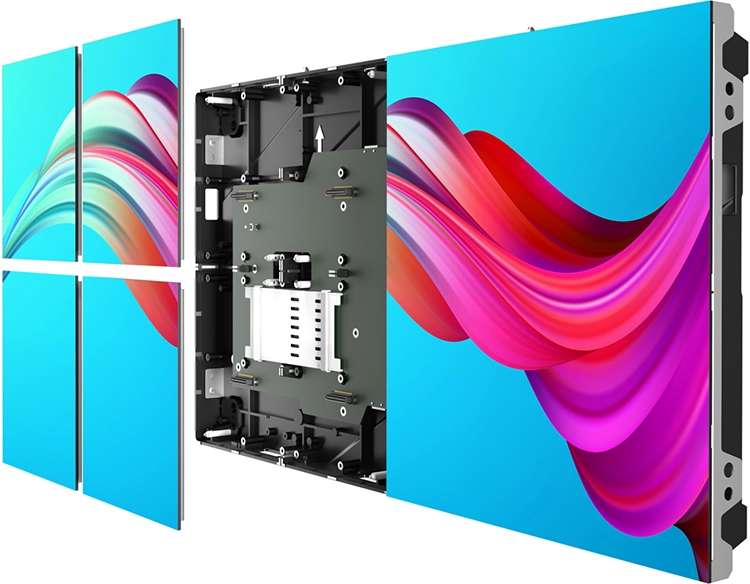

六、COB Fine Pitch LED Display Installation and Structure
Modern COB LED displays often adopt:
- Hardwired cabinet design for integrated power and signal connections
- Front service LED modules
- Ultra-thin LED cabinets
These features simplify installation and ensure a clean, professional appearance.
七、Energy Efficiency and Lifespan
COB LED displays are designed for:
- Lower power consumption
- Improved heat dissipation
- Long operational lifespan
This makes them an environmentally friendly and cost-effective LED display solution over time.
八、Is COB Fine Pitch LED Display the Future of the LED Display Industry?
With growing demand for:
- Higher resolution
- Smaller pixel pitch
- Greater reliability
COB fine pitch LED displays are rapidly becoming the preferred choice for high-end indoor LED video walls.
As manufacturing processes mature and costs decrease, COB LED technology is expected to see wider adoption across commercial and professional markets.
九、Conclusion
COB fine pitch LED displays represent a major advancement in LED display technology. By combining ultra-high resolution, exceptional durability, and long-term stability, they offer an ideal solution for control rooms, conference centers, broadcast studios, and premium commercial environments.
For projects requiring high performance, reliability, and visual excellence, COB LED displays are redefining the standards of the global LED display industry.
