Sports Stadium LED Screen

Chinastar launches the latest sports stadium LED display, achieving greater breakthroughs in performance and stability, presenting a more excellent and realistic display effect. The new product adopts a 960×960mm size design, and the standard size 320×160mm size LED display module has a unified screw hole design, allowing the stadium LED screen box to be designed with pixel pitches such as P5mm, P6.67mm, P8mm, and P10mm, while also having High brightness and excellent visual experience.

Sports Stadium LED Screen

Chinastar Stadium LED display is unique in design, size, etc., and is significantly different from indoor fixed LED displays, outdoor fixed LED displays and rental LED displays. Specifically designed to meet the needs of stadiums and events, Chinastar provides a variety of products and professional perimeter LED display solutions to meet various needs and standards. In the past few years, Chinastar stadium LED displays have been successfully exported to Italy, the United Kingdom, France, Germany, the United States and other countries and regions.

Main advantages of Stadium LED display:

  1. Bright color, high contrast, good consistency and high brightness to keep the high resolution of the video under the sunlight.
  2. Adopt CNC technology in high precision processing box body, the whole screen flatness<0.2mm. Using connection frame steel structure, installation and maintenance is very convenient.
  3. Saving 60-70% Energy, Red LEDs were powered by 3.2V, blue and green LEDs were powered by 3.8V, which make the screen work stable and prolong the life span.
  4. With PFC high-efficiency power supply, to ensure the screen can be powered sustainable.
  5. Soft led module mask,protect athlete’s bodynot to hurt and led lamp not to broken
  6. Fast installation, two easy locks on the top and two on the sidePositioning pin on the top, installed by connector
  7. High quality cotton on topto reduce impact
  8. Support frame can beadjust the angle. The angle of the display can be adjusted freely to obtain a perfect visual experience
  9. Jointed correctly, being installed & dismountedby one person without tool
  10. 3-5year warranty and professional tech support with good after-sale service

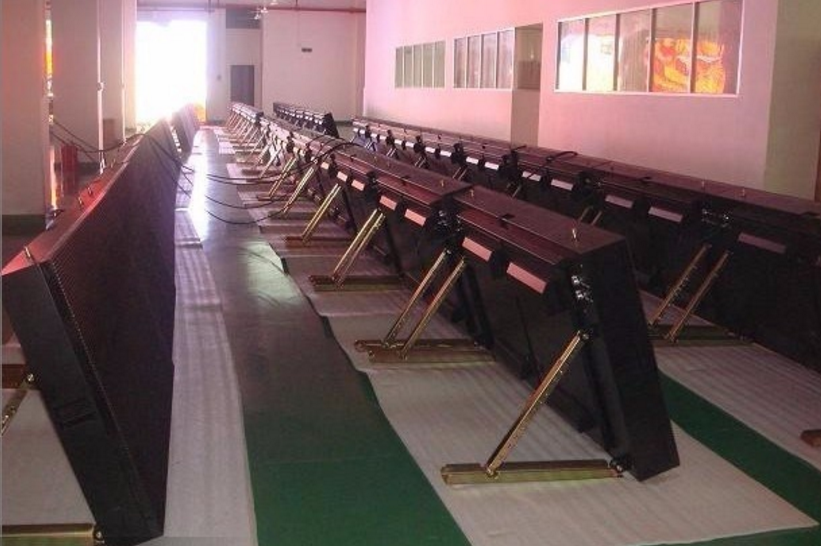

Stadium LED display

Main Feature of Stadium LED display:

  • Design features: 960×960mm cabinet design, suitable for LED displays of different standard sizes, with the same screw holes and structure.
  • Safety: Use a soft modular mask to provide protection, with special consideration for the safety of the LED display and the audience.
  • High-strength design: The cabinet is supported on the ground using an adjustable rear bracket, which supports angle adjustment while maintaining the stability of the cabinet when it is impacted.
  • Soft pillow design: Use a soft pillow with the same width as the box on the top of the box to provide double protection for the LED display and box, effectively preventing impacts from external objects.
  • High waterproof level: The box structure reaches IP65 waterproof level, which can prevent rain, water, and dust in various venue environments.
  • Easy transportation and installation: Easy transportation, installation, assembly and disassembly with suitable weighing bracket and rear bracket.
  • Lightweight Material: Made of high-hardness die-cast aluminum, lightweight and easy to move from one stadium to another.
  • High-brightness display: The LED display uses the latest SMD LED packaging and Nationstar LED to ensure high brightness and excellent visual effects.

Stadium LED display

The structure of the stadium LED display

Chinastar Stadium LED display cabinet not only looks beautiful, but also adopts a top-design layout that makes the LED display easy to install, assemble, and disassemble. The LED display cabinet is equipped with a waterproof cover, waterproof plug, quick lock and other designs, which improves its waterproof performance and installation convenience.

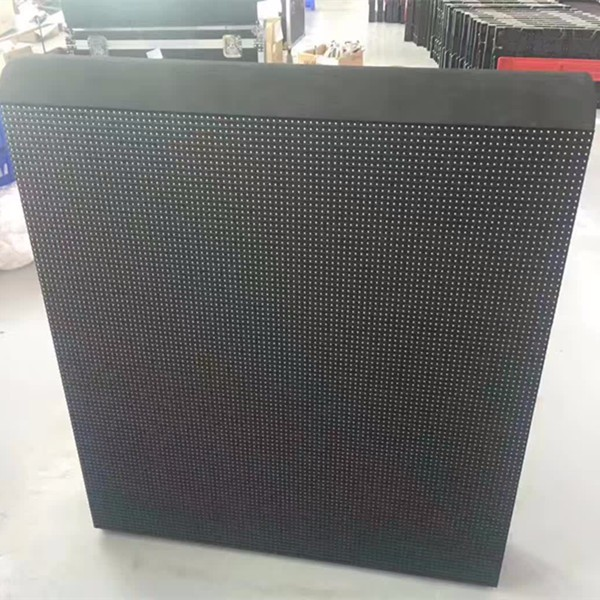

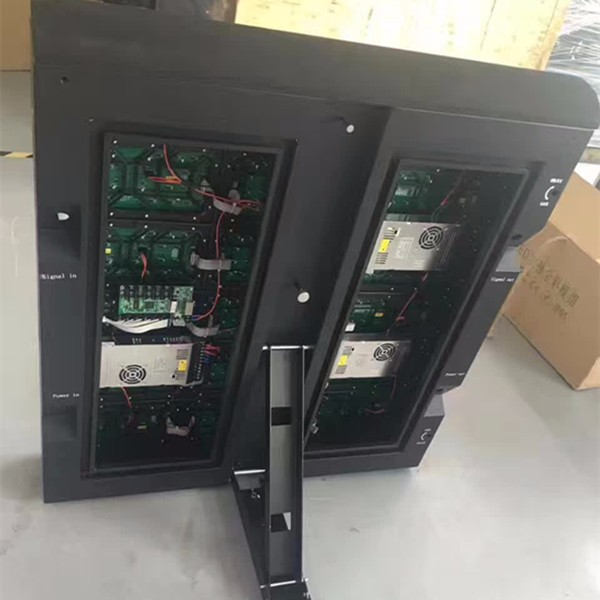

Stadium LED screen Stadium LED screen

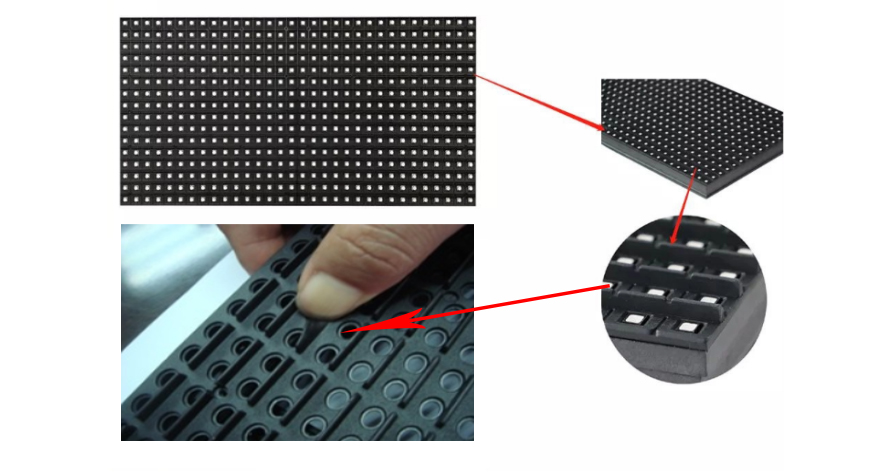

Rubber module mask

The LED display module is equipped with a rubber module mask, which effectively protects the display screen from external impacts and improves human protection capabilities.

Rubber module mask

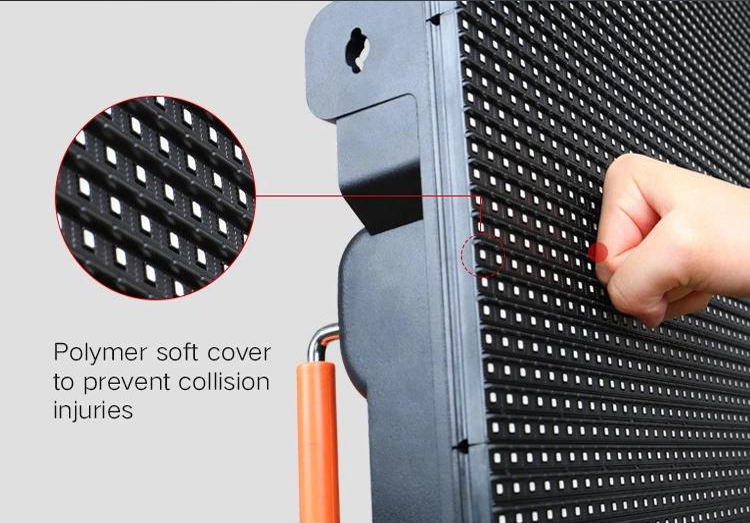

Reasonable safety design

Using designs such as soft masks and pillowcases, it is designed to fully protect the LED screen while ensuring that no harm is caused to athletes or spectators.

soft masks and pillowcases


Adjustable support bracket

The adjustable stand is flexible and can adjust the viewing angle of the LED display according to the needs of the audience. This design not only provides a better visual experience, but also ensures that the audience can more easily adjust the tilt angle of the LED display to obtain the best viewing experience when installing an LED display in the auditorium.

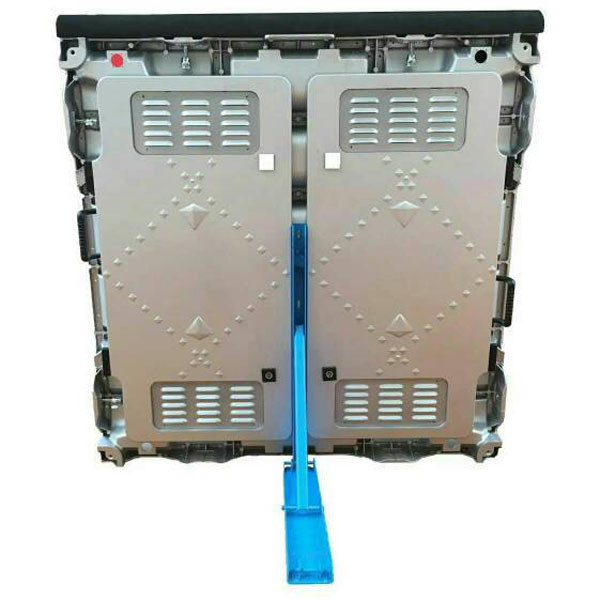

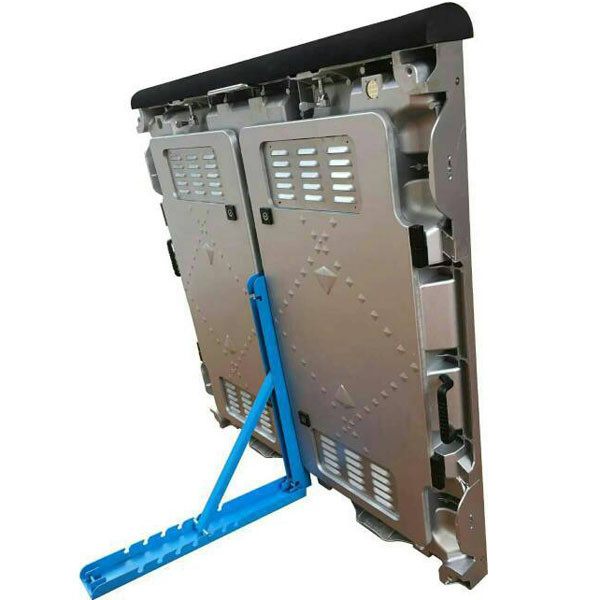

stadium LED display screenstadium LED screen



IP65 Waterproof

The outdoor sport LED display reaches the IP65 protection level and is highly durable, able to cope with changing environments, extend its service life, and reduce maintenance and purchase costs.

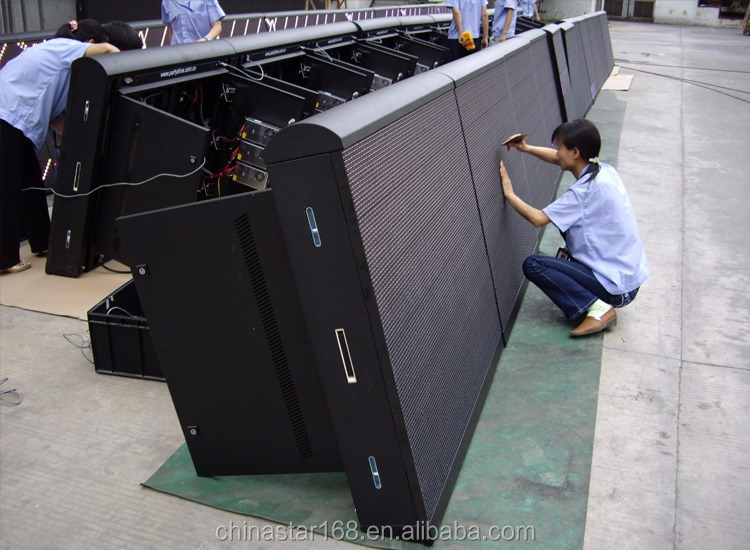

Sport LED display

Sport LED display Cases

  • Pixel Pitch: P10mm
  • Moudle Size: 320×160mm
  • Module Resolution: 32×16 dots
  • Cabinet Size: 960×960mm
  • Cabinet Resolution: 96×96dots
  • Total Cabinet Units: 220pcs
  • Total Display Area: 163sqm
  • Application: Stadium Perimeter

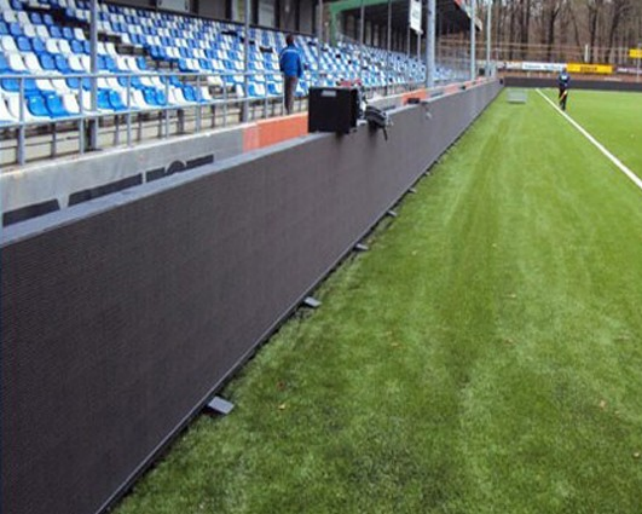

Sport LED displaySport LED display screen

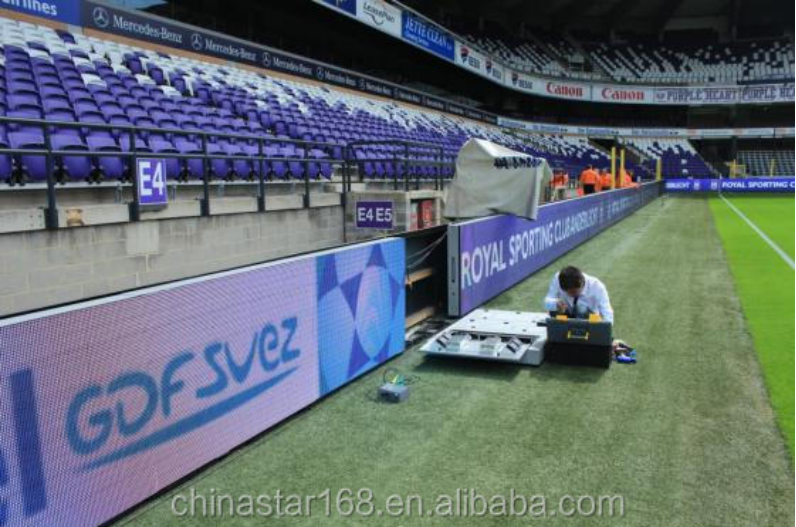

Sport LED screen

Stadium LED display Parameters

Pixel Pitch 5mm 6.67mm 8mm 10mm
L EDSMD 3in1SMD 3in1SMD 3in1SMD 3in1
Module size320*160mm320*160mm320*160mm320*160mm
Module resolution64*32dots48*24dots40* 20dots32*16dots
Density40000 pixels/sqm22478 pixels/sqm1 5625 pixels/sqm10000 pixels/sqm
L ED Cabinet Size960*960*87(mm)960*960*87(mm)960*960*87(mm)960*960* 87(mm)
Cabinet Weight26kg/pc26kg/pc26kg/pc26kg/pc
MaterialDie Casting AluminumDie Casting AluminumDie Casting AluminumDie Casting Aluminum
Brightness5500-6500 cd/m2 (Nits)5500-6500 cd/m2 (Nits)5500-6500 cd/m2 (Nits)5500-6500 cd/m2 (Nits)
Avg power consumption450w350w320w280w
Max power consumption950w880w850w750w
Best Viewing Distance5m to 50m6m to 60m8m to 80m10m to 100m
Grey Level14 bits14 bits14 bits14 bits
Fresh frequency2960HZ>960HZ>960HZ2960HZ
Humidity-operating10% ~ 95%10% ~ 95%10% ~ 95%10% ~ 95%
Screen life2100000 hours2100000 hours2100000 hours2100000 hours
Controlling modeSynch or AsyncSynch or AsyncSynch or AsyncSynch or Async
Warranty3 Years3Years3 Years3 Years
Protective gradeIP65 WaterproofIP65 WaterproofIP65 WaterproofIP65 Waterproof
