GOB Ultra-thin Waterproof Indoor LED Display Screen

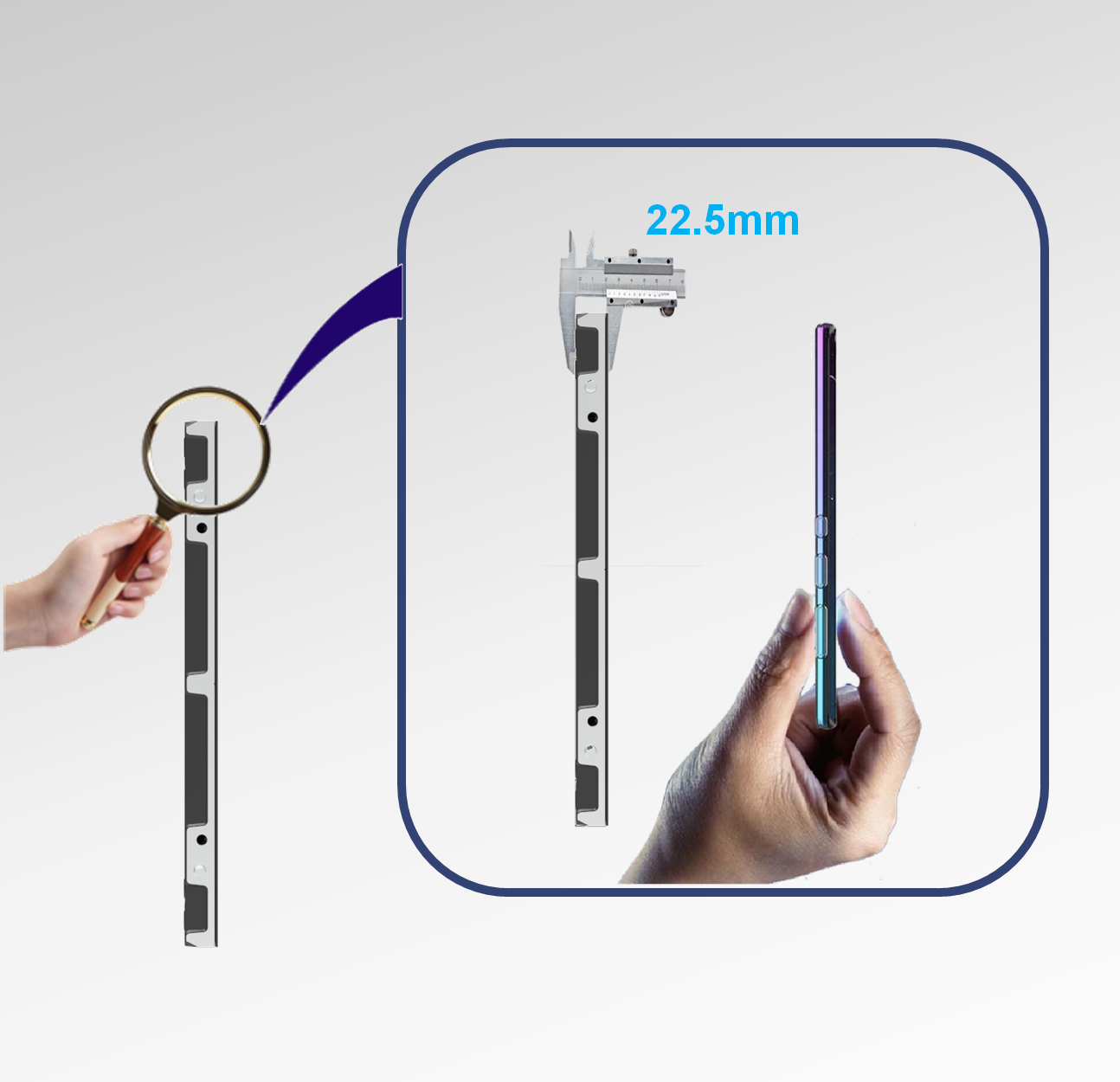

Ultra-thin Cabinet
Only 22mm thick, the whole cabinet use aluminum alloy or magnesium alloy material, and very light and practical
HUB Design, no mussy cables
Totally front service design, and saving space and maintenance cost
No cable outside, all cables are hidden
The GOB packaging technology uses transparent materials with super high transparency and super thermal conductivity.
Also, it can form an effective protection for the substrate and its LEDs.
Besides, the GOB small pixel is moisture-proof waterproof, dust-proof, anti-impact, anti-UV, and can adapt to any harsh environment.

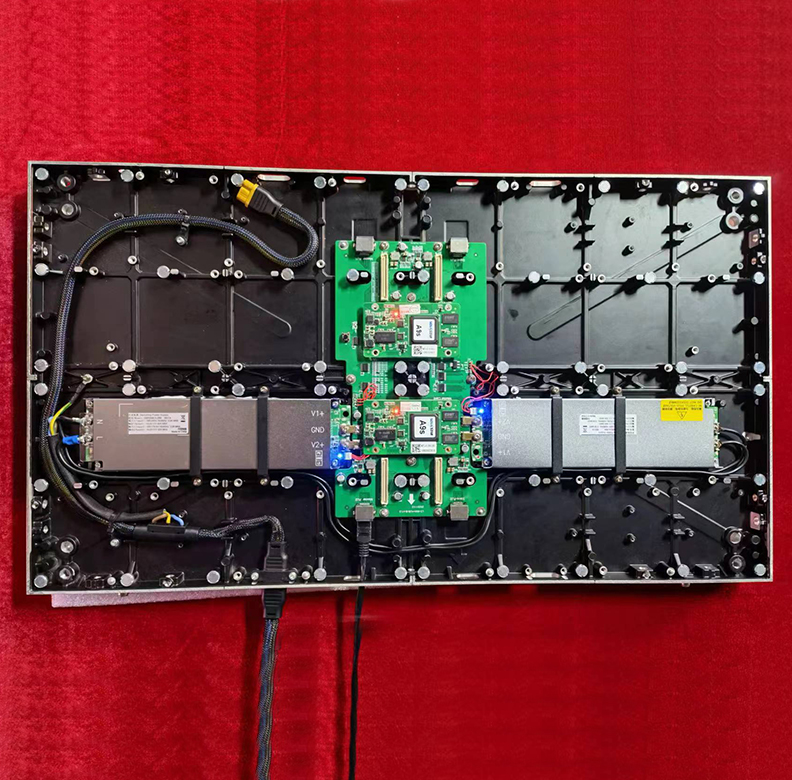

Beautiful/ thin/good heat dissipation

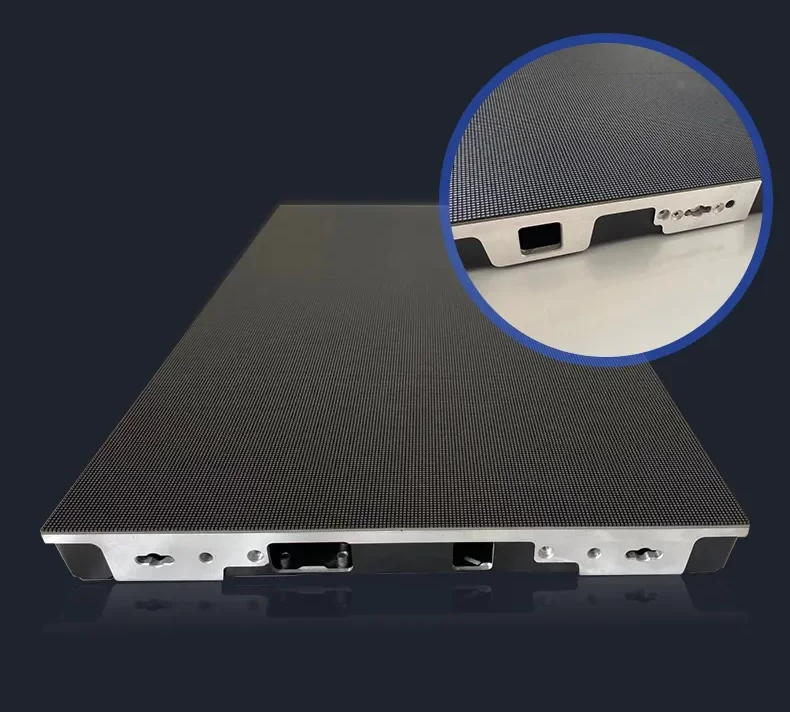

Die-cast aluminum body, faster and more
Convenient heat dissipation, and can greatly improve the life of the display screen
16:9 Ratio
The cabinet W/H ration 16:9
HD600 Series indoor fixed installation LED Display is designed with a 4:3，16:9 golden ratio, and easily build 16:9, 4:3 ratio 2K/4K/8K display
320000:1 High Contrast，4680HZ High Refresh，22bit+ High Gray Scale
Ensure that the LED display screen presents clear, detailed, and high-quality images and videos.

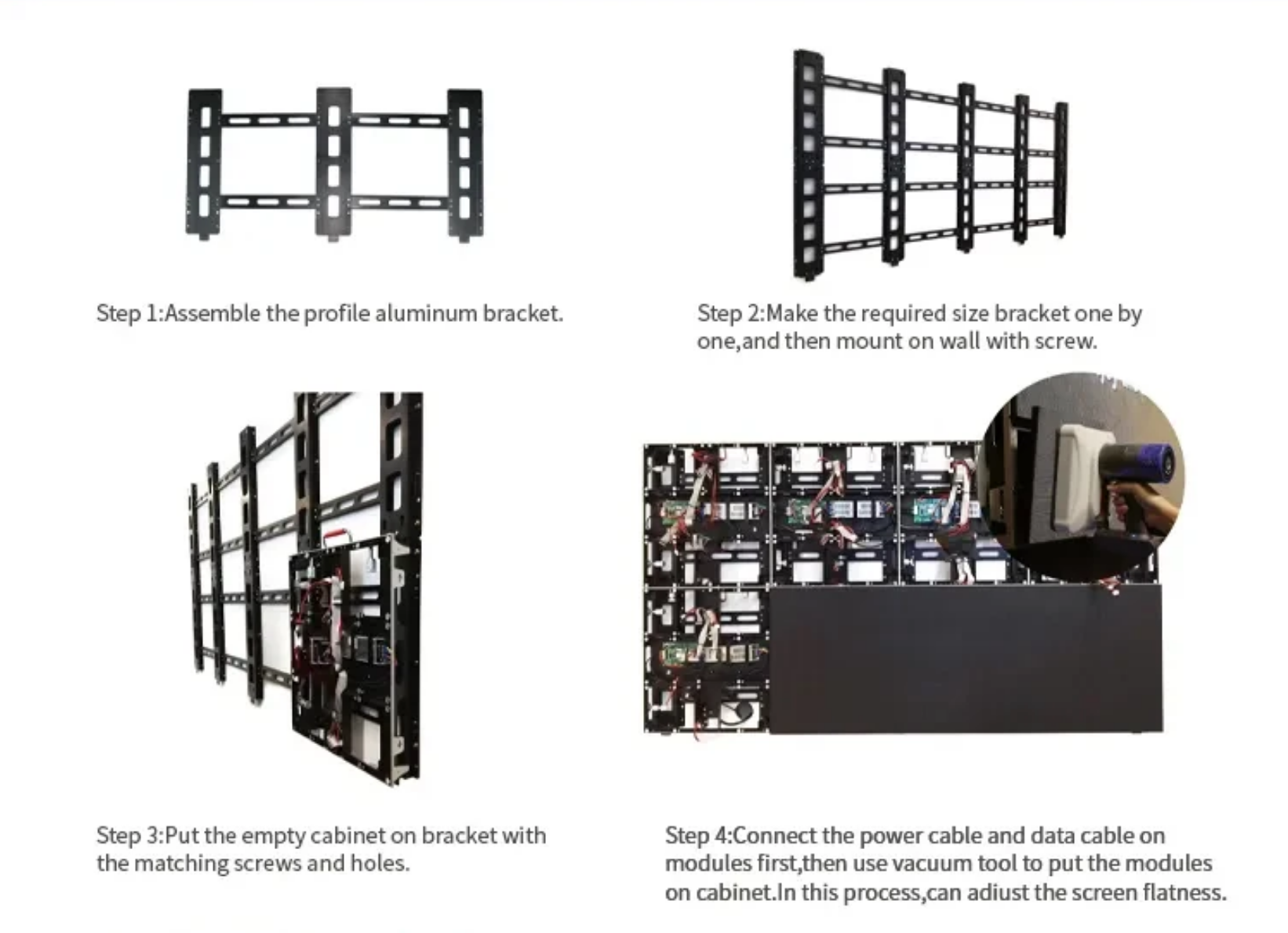

Easy for installation with simple mount bracket

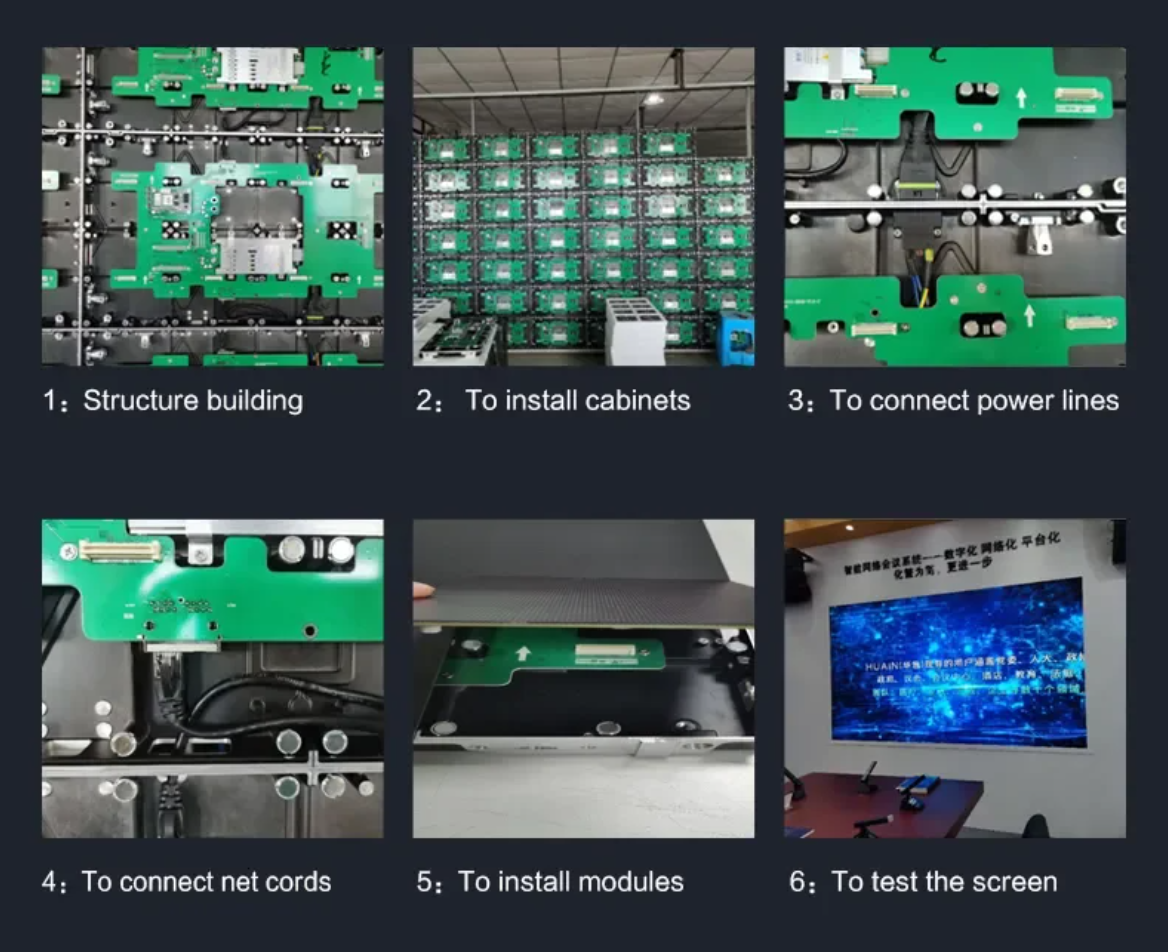

Installation Process of indoor led screen
| Pixel Pitch(mm) | 0.9375 | 1.25 | 1.56 | 1.87 |
| LED Type | Flip Chip COB Common–Cathode | |||
| Pixel Density(pixles/m ) | 1,137,778 | 6,400,00 | 409,600 | 284,444 |
| Brightness | 500-1200 cd/m | |||
| Scan | 1/60 | 1/45 | 1/48 | 1/30 |
| Refresh Rate (Hz) | >3840 | |||
| Cabinet Resolution (W*H) | 640×360 | 480*270 | 384*216 | 320*180 |
| Cabinet Size (mm) | Die casting aluminum cabinet 600 x 337.5 x 32.5mm | |||
| Module Size (mm) | 150*168.75 | |||
| Weight (lb/cabinet) | 7.5KG | |||
| Maintenance method | Front | |||
| Horizontal / Vertical Viewing Angle | 170*/170° | |||
| Gray Scale | 14~16 | |||
| Colour Temp | 3200~9300 | |||
| Contrast Ratio | >10,000:1 | |||
| Input Signal | HDMI, DVI/VGA.RGBHV Composite,S- VIDEO,YPbPr(HDTV) etc… | |||
| dot by dot color calibration | YES | |||
| brightness calibration | YES | |||
| Module power supply voltage DC | DC2.8V+3.8V | |||
| Max Power Consumption(W/m | s300 | |||
| Avg. Power consumption(W/m | s100 | |||
Indoor Product
P0.9375
600×337.5×32.5mm Cabinet
150×168.75mm Module
1137778 pixles/㎡
P1.25
600×337.5×32.5mm Cabinet
150×168.75mm Module
640000 pixles/㎡
P1.56
600×337.5×32.5mm Cabinet
150×168.75mm Module
409600 pixles/㎡
P1.87
600×337.5×32.5mm Cabinet
150×168.75mm Module
284444 pixles/㎡
